How do Clinical Analyzers work?
Most clinical analyzers quantify an analyte by converting its concentration into a measurable signal. Photometric analyzers mix sample with reagent in a reaction cuvette, hold it at 37 °C, and measure absorbance at selected wavelengths through a grating or filter wheel; concentration follows the Beer–Lambert relation against a calibration curve. Ion-selective electrode modules measure the potential of Na+, K+ and Cl- across a selective membrane relative to a reference electrode. Turbidimetric and nephelometric modules detect light scattered by antigen-antibody complexes. Chromatographic analyzers separate hemoglobin fractions by cation-exchange HPLC. Key components include a sample and reagent probe with liquid-level detection, a precision syringe, a thermostatted reaction unit, a detection optic, and software that applies calibration, quality control rules and result flagging.
Which Clinical Analyzers variants are available?
- Benchtop Automated Biochemistry Analyzer — A benchtop automated biochemistry analyzer is a random-access photometric system that runs routine serum chemistry without operator intervention between loading and result.
- Semi-Automated Biochemistry Analyzer — A semi-automated biochemistry analyzer is a photometer with a flow cell or cuvette holder in which the operator pipettes samples and reagents manually or aspirates them by pump.

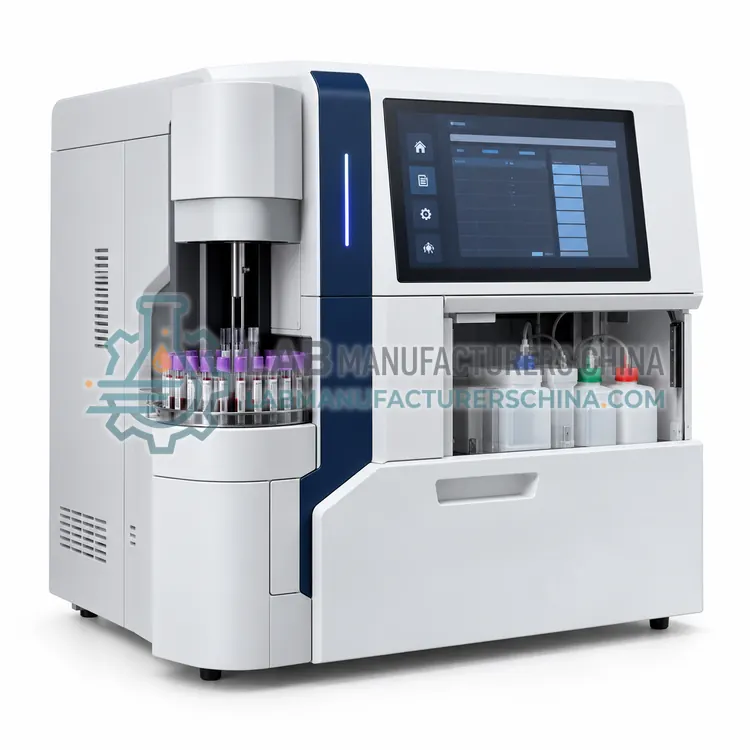

- Blood Gas and Electrolyte Analyzer — A blood gas and electrolyte analyzer measures pH, pCO2, pO2 and electrolytes in whole blood using electrochemical sensors, typically with added hematocrit, glucose and lactate.

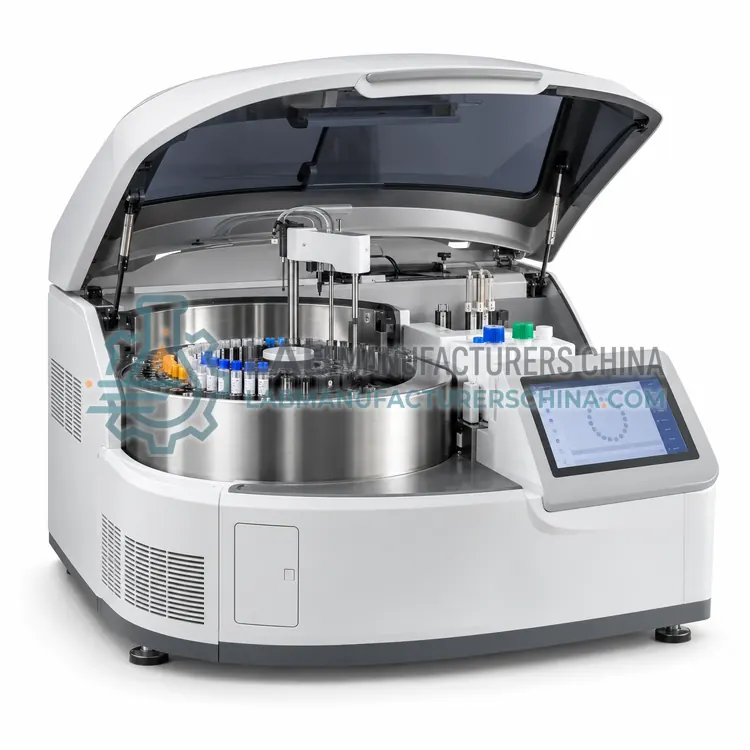

- Specific Protein Analyzer — A specific protein analyzer quantifies plasma proteins such as CRP, immunoglobulins, complement and transferrin by measuring light scattered or absorbed by antigen-antibody complexes.

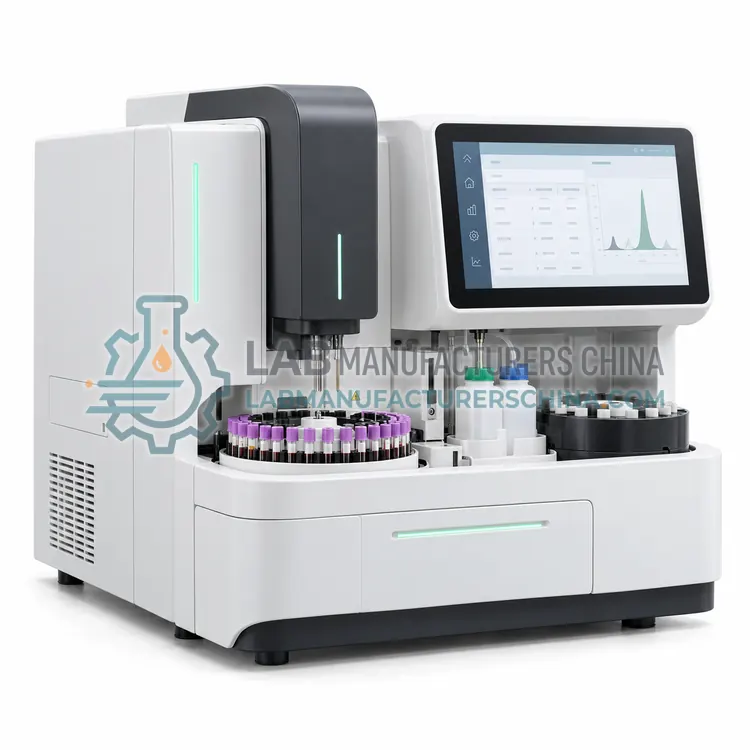

- HbA1c Glycohemoglobin Analyzer — An HbA1c glycohemoglobin analyzer quantifies glycated hemoglobin in whole blood, most commonly by cation-exchange HPLC, to monitor average blood glucose control over the preceding two to three months.
How do I choose the right variant?
Start with the test menu and daily workload, because throughput and reagent format set the platform. Low volumes of routine chemistry suit a semi-automated photometer, while several hundred samples a day call for a benchtop random-access analyzer. Decide whether you need open reagent channels, which lower cost per test but require you to validate each assay, or closed reagent systems that simplify operation. Check sample volume needs for pediatric work, onboard reagent capacity, cuvette type and waste handling. For electrolytes, blood gas or HbA1c, choose a dedicated analyzer rather than stretching a general chemistry unit. Confirm LIS connectivity through HL7 or ASTM, barcode reading, and the availability of service engineers and spare parts in your region.
Where are Clinical Analyzers used?
Clinical Analyzers are specified in routine serum chemistry, electrolyte and blood gas testing, diabetes monitoring (HbA1c), renal and inflammatory protein testing and emergency department testing.
Which standards and certifications apply?
Work with Clinical Analyzers is commonly governed by ISO 15189, CLSI EP05-A3, CLSI EP06, CLSI C24, IEC 61010-2-101 and IEC 61010-1. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install on a level bench away from direct sunlight, vibration and strong electromagnetic sources, with stable power, a dedicated earth and a supply of purified water that meets CLSI Type II quality where the analyzer requires it. Verify performance before clinical use through precision, linearity, carryover and method comparison studies in line with CLSI EP protocols. Run internal quality control every day and join an external quality assessment scheme. Schedule daily probe cleaning, weekly lamp and cuvette checks, and replacement of tubing, syringes and lamps per the maintenance plan. Treat all samples and waste as biohazardous and follow local regulations for disposal.
