How do X-Ray Diffractometers work?
X-rays scatter from the electron density of a material. In a crystal, scattering from periodic lattice planes interferes constructively at angles given by Bragg's law, producing diffraction peaks. A diffractometer positions the sample and detector with high angular precision and records intensity versus angle or versus a two-dimensional detector image. Single-crystal instruments determine atomic structure from the full set of reflections, while powder and thin-film instruments analyze phase mixtures, preferred orientation and layer structure. Peak positions give lattice parameters and strain, peak widths relate to crystallite size and microstrain, and low-angle scattering reveals nanoscale features. The choice of optics, monochromator, detector and sample stage determines which measurements are possible, and instrument alignment with certified standards underpins accuracy.
Which X-Ray Diffractometers variants are available?
- Single-Crystal X-Ray Diffractometer — A single-crystal X-ray diffractometer measures individual reflections from one crystal to solve its complete full atomic structure.

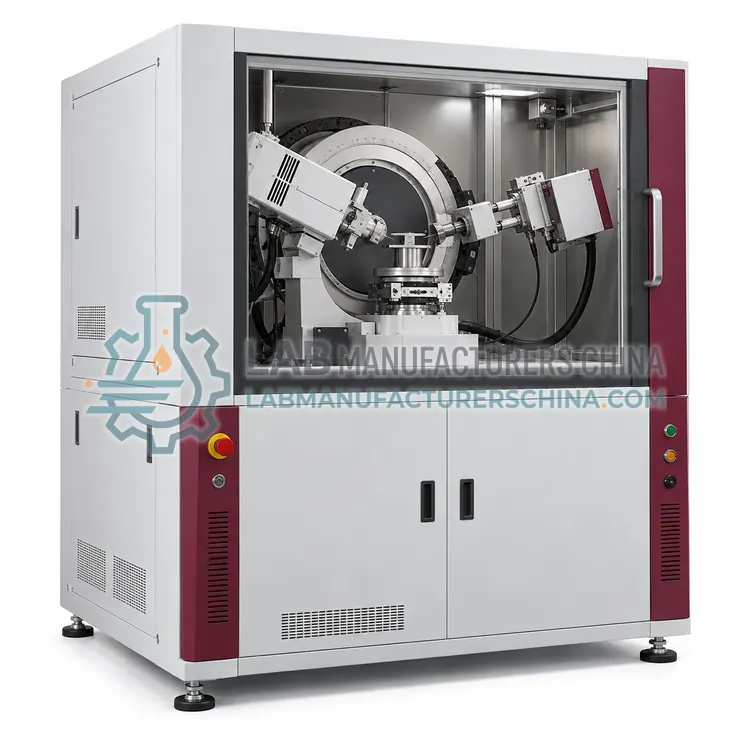

- Four-Circle X-Ray Diffractometer — A four-circle X-ray diffractometer uses four rotation axes for full orientation control of the sample.

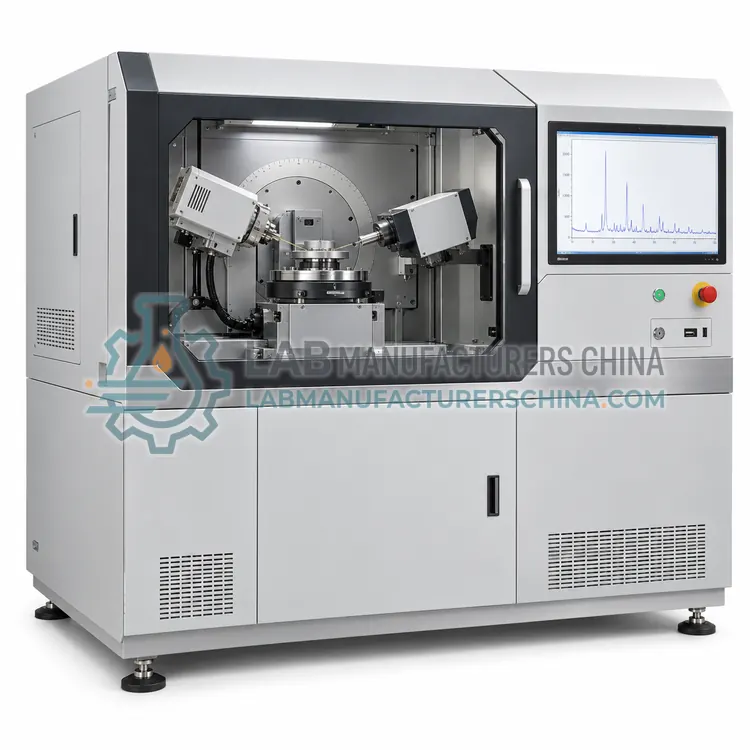

- Thin-Film X-Ray Diffractometer with Grazing Incidence — A thin-film X-ray diffractometer with grazing-incidence optics characterizes layers, coatings and epitaxial films.

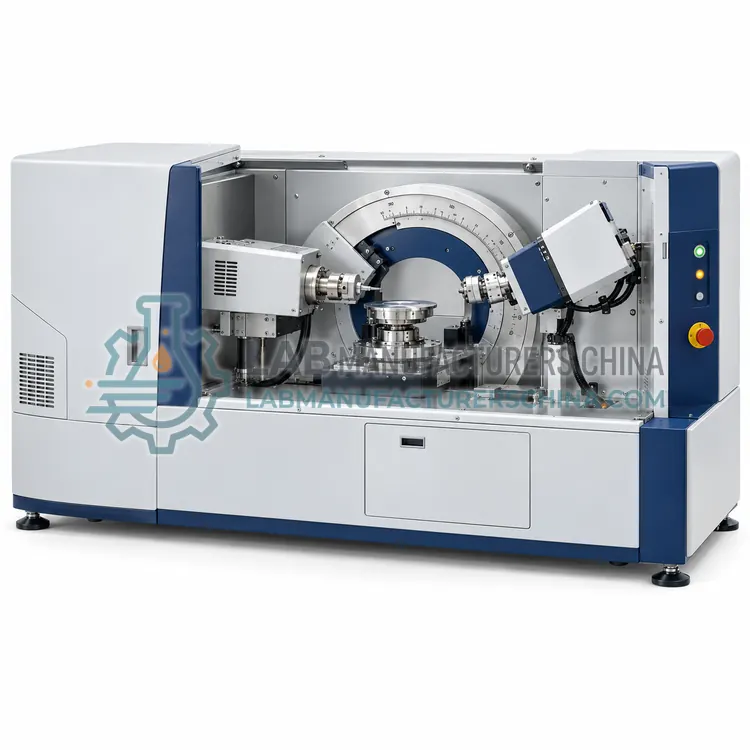

- X-Ray Reflectometry Diffractometer — An X-ray reflectometry diffractometer measures specular reflection at very low angles to profile thin layers.

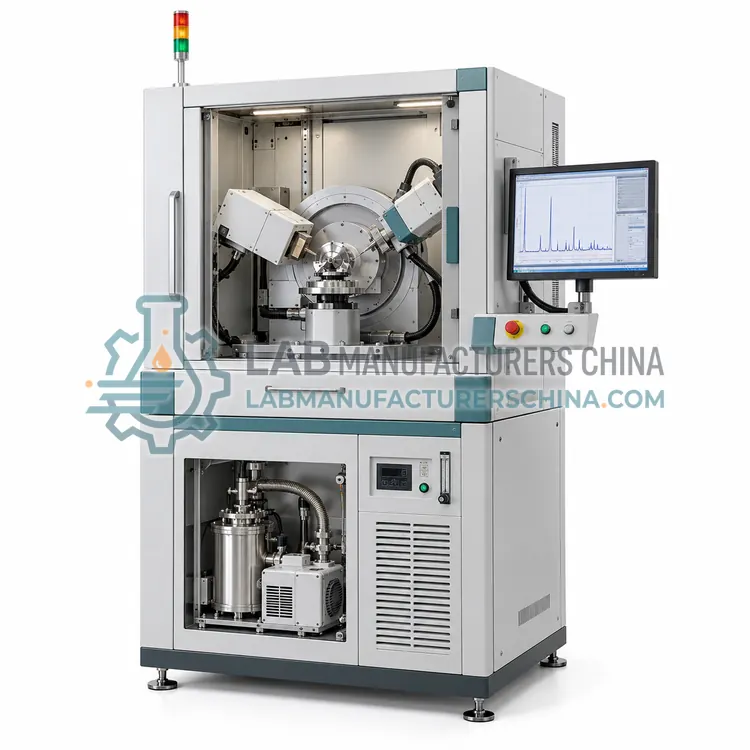

- Residual Stress X-Ray Diffractometer — A residual stress X-ray diffractometer measures lattice strain by tracking the shift of a diffraction peak with sample tilt.

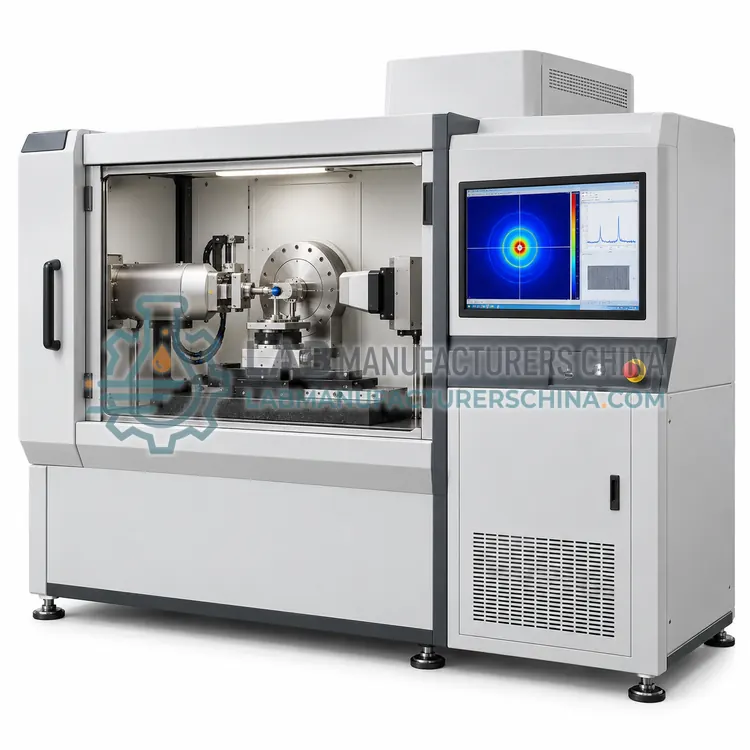

- Small-Angle X-Ray Scattering Diffractometer — A small-angle X-ray scattering diffractometer measures scattering at very low angles to resolve nanoscale structures.
How do I choose the right variant?
Select a diffractometer configuration by the structural question. Single-crystal systems with four-circle or kappa goniometers and area detectors determine atomic structures from small crystals. Thin-film instruments with grazing-incidence optics and parallel beams measure layer thickness, texture and phase in coatings. Reflectometry configurations measure electron density profiles, interface roughness and layer thickness at very low angles. Residual stress instruments use side-inclination or psi geometry with precise sample tilting to measure strain in metals and ceramics. Small-angle scattering systems with long camera lengths resolve nanometre-scale particles, pores and lamellae. Confirm the angular range and resolution, sample environment, detector type and software for your application, and verify that the instrument can follow any required standard method.
Where are X-Ray Diffractometers used?
X-Ray Diffractometers are specified in single-crystal structure determination, thin-film thickness, texture and phase analysis, residual stress in welds, coatings and machined parts and nanostructure by small-angle X-ray scattering.
Which standards and certifications apply?
Work with X-Ray Diffractometers is commonly governed by ASTM E915 Verifying the alignment of X-ray diffraction instrumentation, ASTM E1426 Determining the effective elastic parameter for X-ray diffraction measurements of residual stress, USP <941> X-Ray Diffraction, ISO 20203 Carbonaceous materials — XRD of calcined coke, ISO/IEC 17025 and IEC 61010-2-091. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
These are regulated radiation devices requiring shielding, interlocks, radiation surveys and trained operators. Single crystals must be mounted and centered precisely, and low-temperature or humidity devices often protect them. Thin films and wafers need flat mounting and careful alignment to the beam, and reflectometry requires very low background and precise angular steps. Residual stress methods need defined measurement directions and elastic constants. Small-angle systems require long evacuated paths and clean beam stops. Alignment, angular calibration and detector linearity are verified with standards, and X-ray tubes, goniometer motors and area detectors are wear items. Sample preparation and measurement conditions should be recorded for traceability.
