How do Polarimeters work?
A polarimeter passes light through a polarizer to produce plane-polarized light, then through a sample cell containing an optically active substance. The sample rotates the plane of polarization by an amount proportional to its concentration, path length and specific rotation. An analyser measures the rotation angle, historically by eye against a vernier scale and now by photoelectric detection with a servomotor or Faraday modulator. Monochromatic light is essential because optical rotation depends strongly on wavelength; the sodium D line at 589 nm is the conventional reference. Temperature control matters because specific rotation changes with temperature. The measured rotation is converted to concentration using the specific rotation and path length.
Which Polarimeters variants are available?

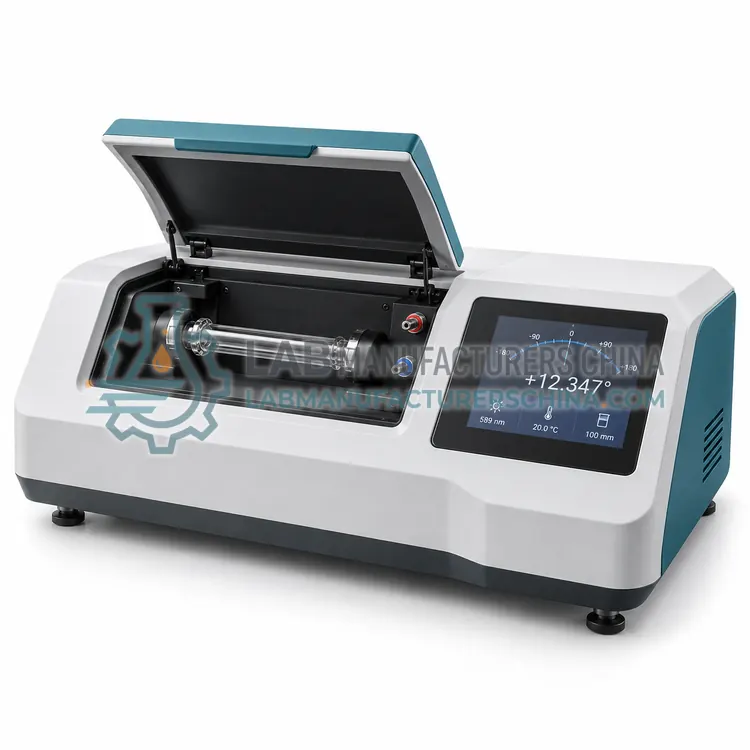

- Automatic Polarimeter — An automatic polarimeter measures optical rotation photoelectrically and displays the result digitally.

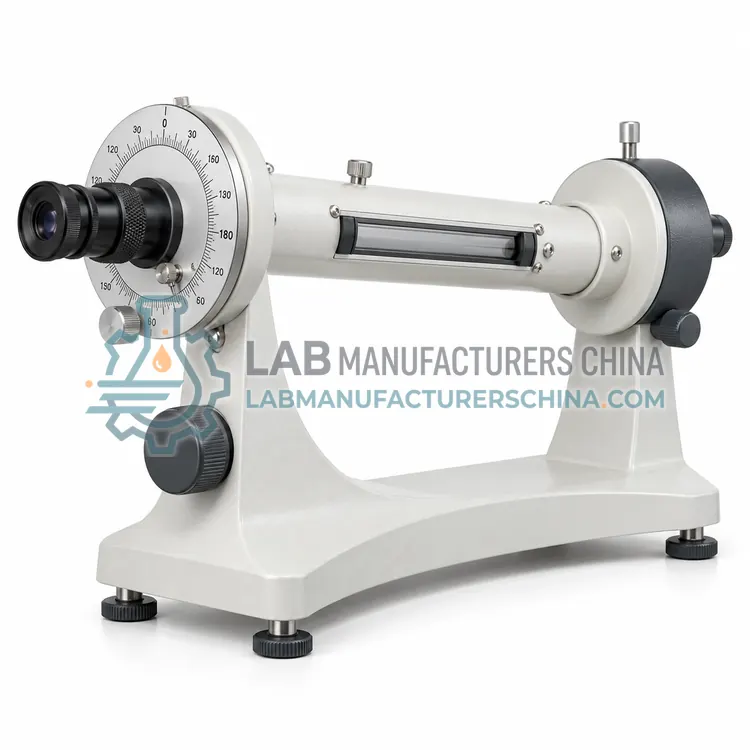

- Manual Polarimeter — A manual polarimeter measures optical rotation by visually matching a split field and reading a vernier scale.

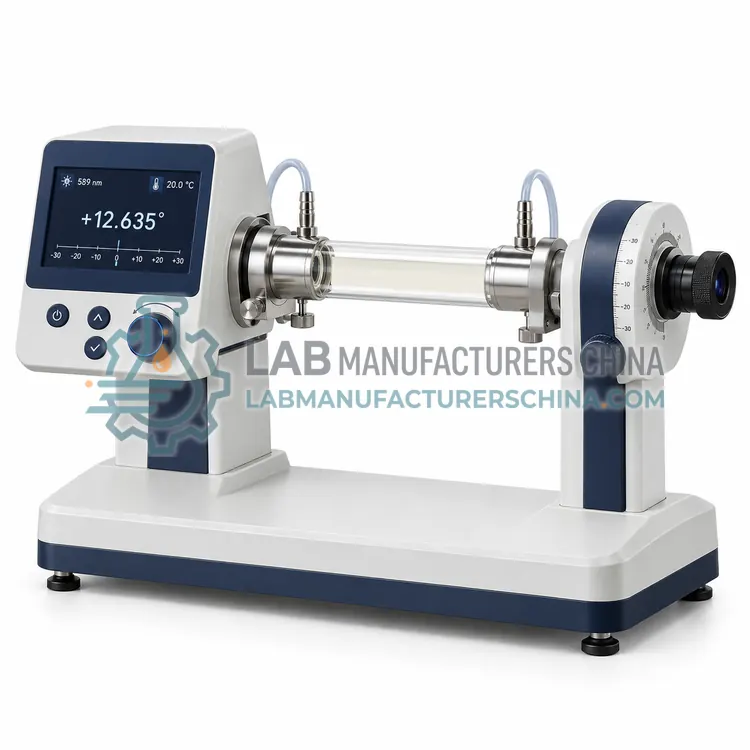

- Saccharimeter — A saccharimeter is a polarimeter calibrated in sugar degrees for measuring sucrose content.

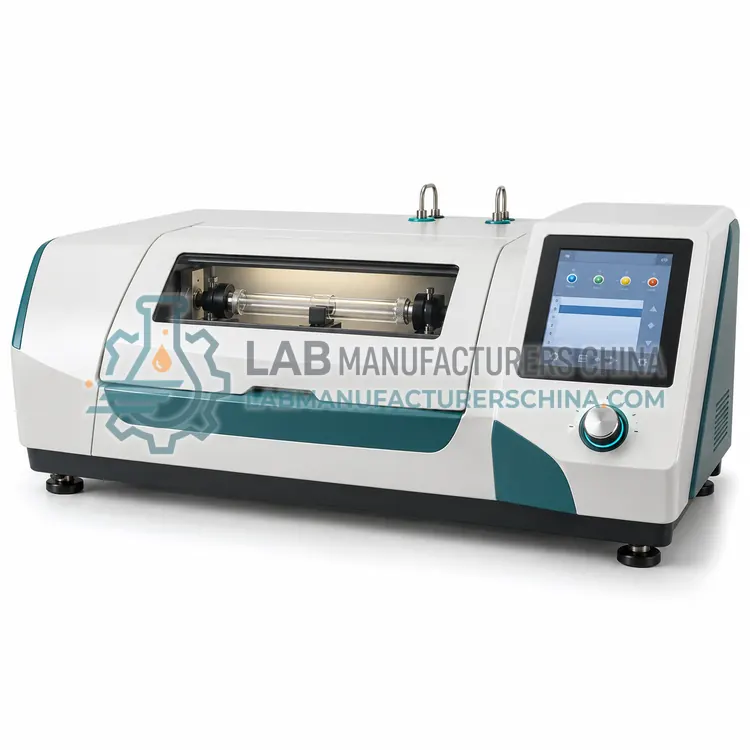

- Multi-Wavelength Polarimeter — A multi-wavelength polarimeter measures optical rotation at several wavelengths, allowing optical rotatory dispersion and improved selectivity.
- Flow-Through Polarimeter — A flow-through polarimeter measures optical rotation of a sample stream passing through a fixed cell.
How do I choose the right variant?
Choose the polarimeter type according to the application. Sugar analysis uses a saccharimeter reading in sugar degrees, while chiral pharmaceutical testing uses an automatic polarimeter reading in angular degrees and often several wavelengths. Manual instruments suit teaching and occasional measurement where budget is limited. Where temperature-sensitive substances are tested, select a model with Peltier temperature control. Confirm the required resolution, accuracy and tube length, and whether sample tubes or flow cells are needed. For regulatory work, check that the wavelength, temperature and data records match pharmacopoeial requirements, and that the instrument supports audit trails and controlled user access.
Where are Polarimeters used?
Polarimeters are specified in pharmaceutical chiral purity and assay, sugar and sweetener analysis, essential oil and flavour authentication and chemical research and teaching.
Which standards and certifications apply?
Work with Polarimeters is commonly governed by USP <781>, Ph. Eur. 2.2.7, JP 2.49, ICUMSA Method GS1/2/3 and IEC 61010-1. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Fit the polarimeter with the correct tube length and clean, bubble-free sample cells, and allow temperature equilibration before reading. Standardize the instrument with a certified quartz plate or a reference standard at the working wavelength and temperature, and record the result. Keep polarizers and windows clean to avoid stray light and scattering errors. Prepare samples at known concentration and temperature, and note the solvent because specific rotation depends on it. Service and recalibrate periodically, and verify the sodium lamp or light-emitting diode output, since wavelength drift biases results.
