How do Analytical Balances work?
Most analytical balances use electromagnetic force restoration. A weighing pan is attached to a lever system or monolithic cell, and a coil in a permanent magnetic field generates the force that returns the pan to its reference position. The coil current needed to do this is proportional to the load and is converted by an analog-to-digital converter into a mass reading. Optical or inductive sensors detect pan position. A draft shield isolates the pan from air currents, and temperature sensors compensate drift. Internal calibration uses a built-in reference mass driven by a motor, while external calibration uses a traceable weight placed by the operator. Leveling feet and a level indicator ensure the pan is vertical. Electronics apply filters to stabilize readings against vibration.
Which Analytical Balances variants are available?
- External-Calibration Analytical Balance — An external-calibration analytical balance reads to 0.1 mg with capacities around 120 to 320 g and relies on an operator-placed certified weight for calibration.

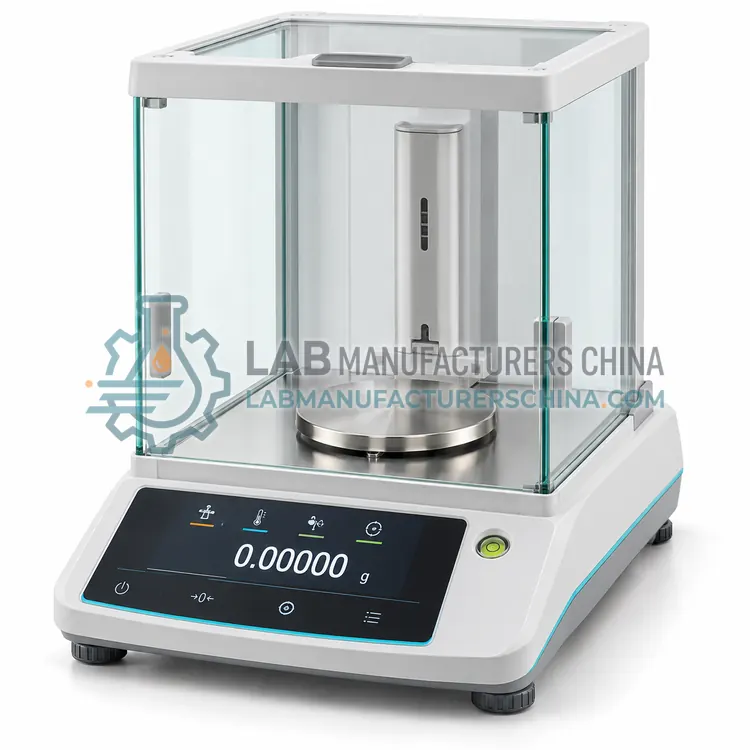

- Internal-Calibration Analytical Balance — An internal-calibration analytical balance has a motor-driven built-in reference weight that adjusts sensitivity automatically when temperature changes or on demand.

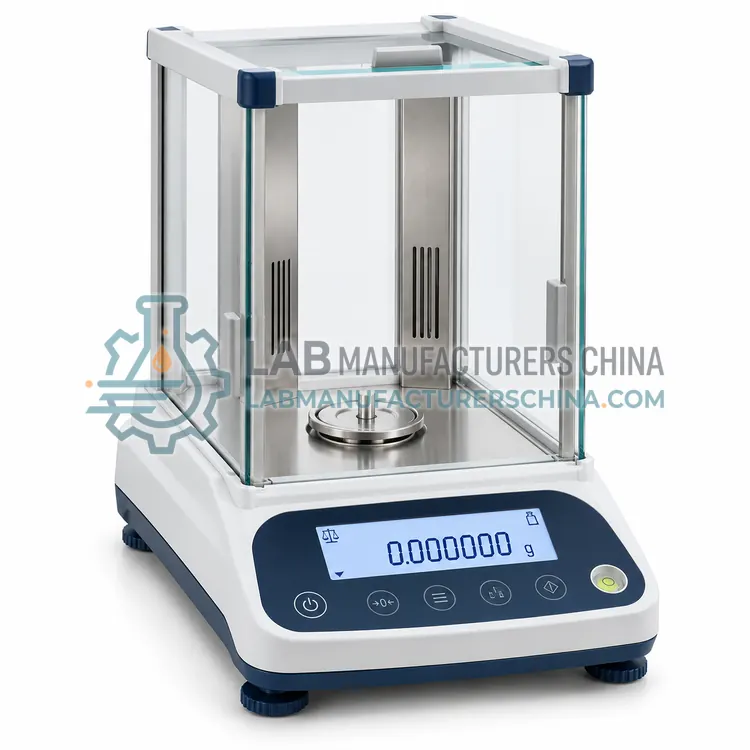

- Semi-Micro Analytical Balance — A semi-micro analytical balance reads to 0.01 mg with capacities of about 52 to 120 g, allowing accurate weighing of small samples with low minimum weight.

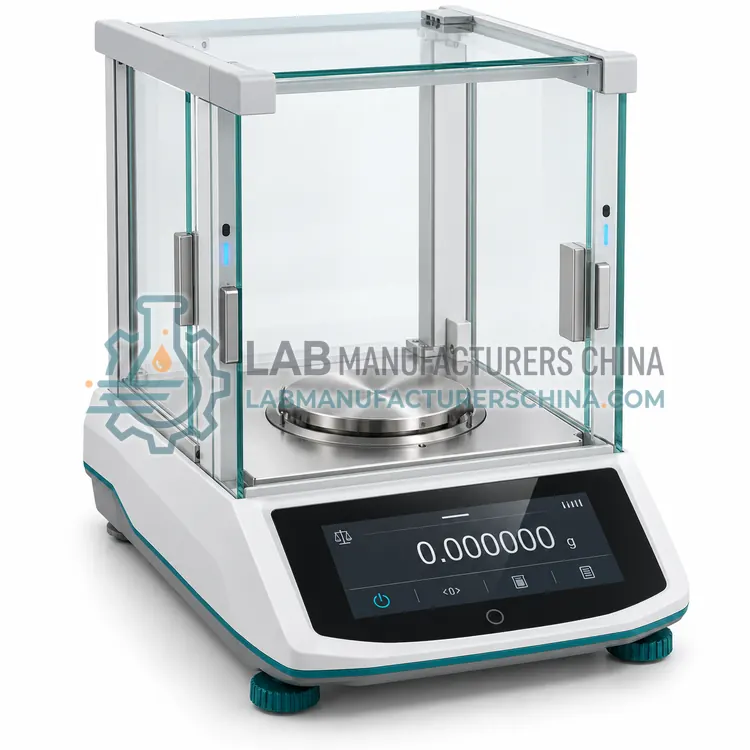

- Analytical Balance with Automatic Draft-Shield Doors — This analytical balance opens and closes its draft-shield doors by motor, triggered by a sensor or key, and keeps the chamber closed during weighing.

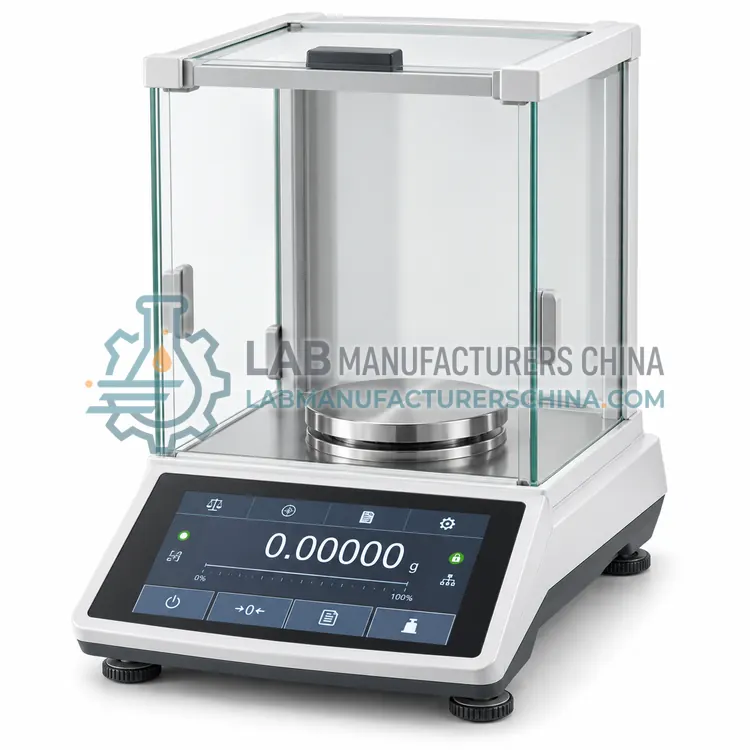

- GLP-Compliant Analytical Balance with Data-Integrity Software — This analytical balance adds user login, audit trail, electronic records and validated data transfer to a 0.1 mg or 0.01 mg weighing platform.
How do I choose the right variant?
Decide readability first. A 0.1 mg balance serves most routine weighing, while 0.01 mg semi-micro models are needed for small samples or minimum weight limits of a few milligrams. Then check capacity, since higher capacity usually reduces repeatability. Consider how calibration will be handled: internal calibration reduces operator effort and drift in variable conditions, while external calibration is cheaper. For regulated laboratories, verify data-integrity software, audit trail and printouts. Automatic draft-shield doors reduce operator influence and static. Also consider the installation site, because vibration, drafts and temperature change affect performance more than the nominal specification. Finally, check the minimum weight at the required tolerance, using the balance's own repeatability data rather than readability alone.
Where are Analytical Balances used?
Analytical Balances are specified in pharmaceutical QC weighing, standard solution preparation, gravimetric analysis, food and feed analysis, environmental sample weighing and academic research.
Which standards and certifications apply?
Work with Analytical Balances is commonly governed by USP <41>, USP <1251>, OIML R 76-1, Ph. Eur. 2.1.7, ASTM E898, GB/T 26497 and ISO 9001. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install the balance on a rigid, vibration-free bench away from doors, air conditioning vents, direct sunlight and heat sources. Allow warm-up of at least 30 minutes to a few hours before use, as specified by the manufacturer. Level the balance and calibrate after every move. Routine checks with certified weights, plus periodic calibration by an accredited service, support compliance with pharmacopoeial requirements. Keep the pan and chamber clean, and avoid placing samples directly on the pan. Control humidity roughly between 40 and 60 percent to limit static and drift. Use antistatic accessories for powders. Record routine tests, eccentricity and repeatability to support quality audits.
