How do Dry Heat Sterilizers work?
Dry heat sterilization kills microorganisms by oxidation and protein denaturation in the absence of moisture. Because air conducts heat less efficiently than steam, higher temperatures and longer times are needed, for example 160 °C for 120 minutes, 170 °C for 60 minutes or 180 °C for 30 minutes. A heated chamber uses electric heating elements, and either natural gravity convection or a fan circulates air to equalize temperature. Fan-forced models reduce gradients and speed heat-up. A controller reads a platinum resistance or thermocouple sensor, and an independent overtemperature cut-out protects the unit. Timing begins when the coldest point in the load reaches the set temperature. Depyrogenation ovens run at 250 to 350 °C to destroy endotoxin, often with HEPA-filtered air supply. Insulated walls and a sealed door limit heat loss.
Which Dry Heat Sterilizers variants are available?
- Forced-Air Dry Heat Sterilizer Oven — A laboratory oven with a circulating fan that holds 50 to 300 °C with uniformity within ±3 °C.

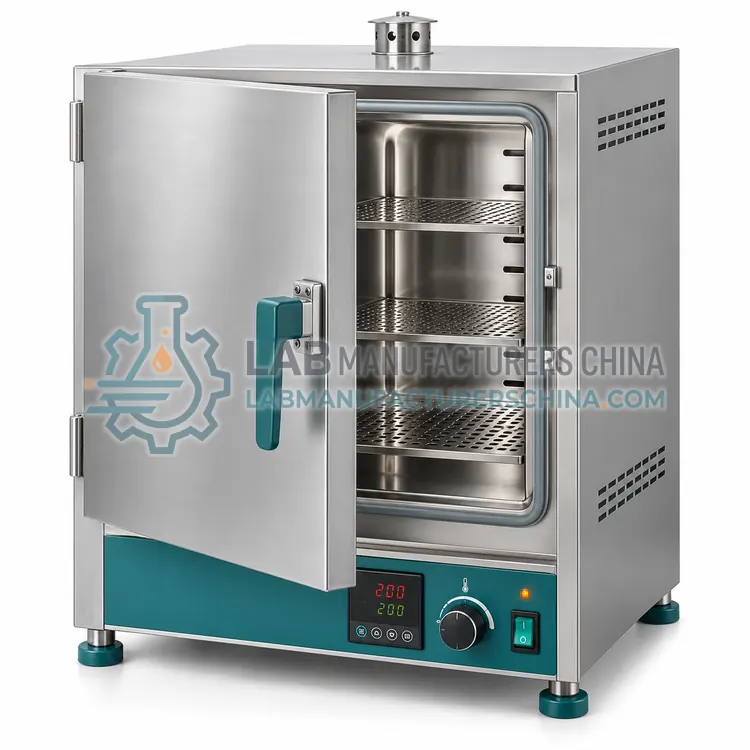

- Gravity Convection Dry Heat Sterilizer — A dry heat oven without a fan that relies on natural convection, operating from ambient to about 250 °C.

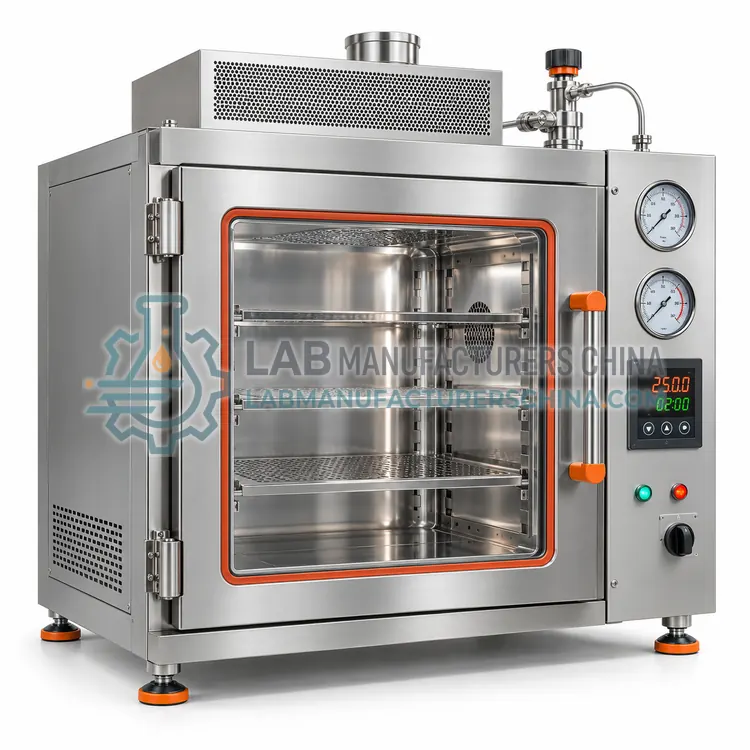

- Depyrogenation Oven with HEPA-Filtered Air — A high-temperature oven that reaches 250 to 350 °C with HEPA-filtered air supply, used to destroy bacterial endotoxin on vials, glassware and metal parts before aseptic filling or endotoxin testing in pharmaceutical laboratories.

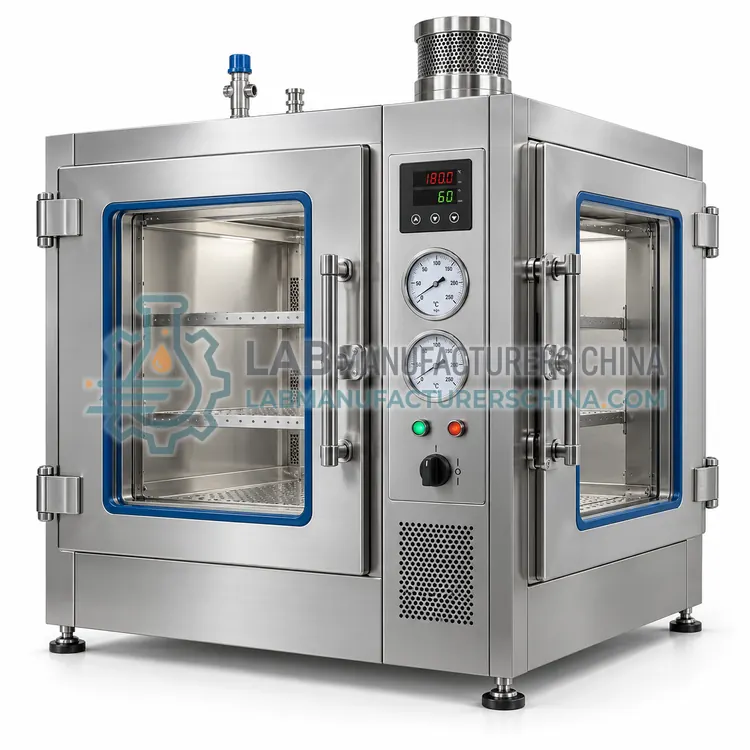

- Double-Door Pass-Through Dry Heat Sterilizer — A dry heat sterilizer with interlocked loading and unloading doors that separates the unclean and clean sides of a wall.

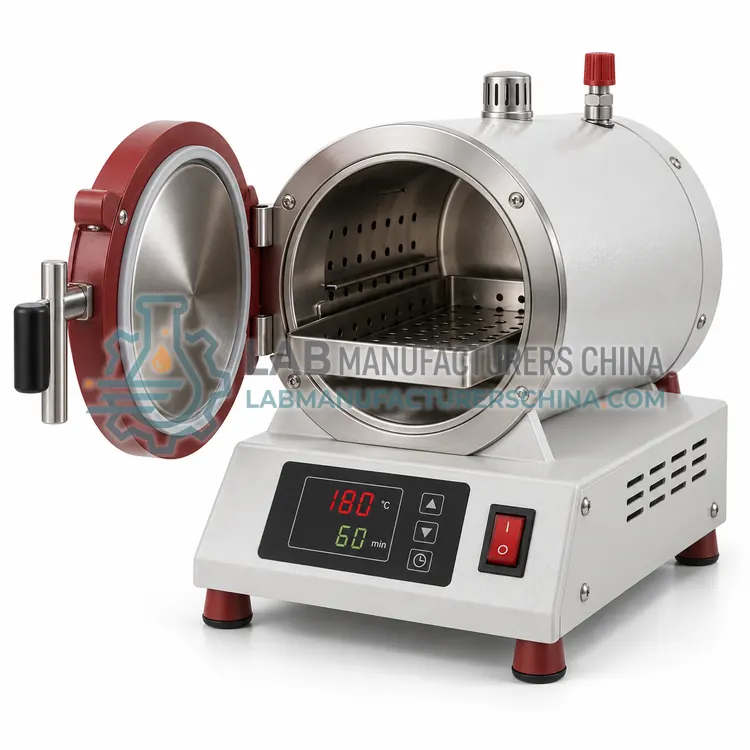

- Benchtop Mini Dry Heat Sterilizer for Small Instruments — A small benchtop dry heat sterilizer of 5 to 20 L that reaches 160 to 200 °C.
How do I choose the right variant?
Decide first whether you need sterilization, which runs at 160 to 180 °C, or depyrogenation, which needs 250 °C or above. Then choose between gravity convection, which is simple and gentle on powders, and forced-air models, which give tighter uniformity and faster cycles. Size the chamber for the largest racks or trays and allow space between items for airflow. Check temperature range, uniformity across the chamber, programmable cycles and cooling rate. Regulated laboratories need data logging, validated load mapping and, for pharmaceutical use, HEPA filtration and double-door configurations. Confirm that the materials to be processed tolerate the temperature. Plastics, rubber, liquids, and most textiles are unsuitable, and sharp instruments may lose temper at higher temperatures.
Where are Dry Heat Sterilizers used?
Dry Heat Sterilizers are specified in glassware sterilization, metal instrument sterilization, depyrogenation of vials and glassware, powder and oil sterilization and microbiology laboratory support.
Which standards and certifications apply?
Work with Dry Heat Sterilizers is commonly governed by USP <1211>, Ph. Eur. 5.1.1, USP <1228.1> Dry heat depyrogenation, ISO 20857, EN 61010-2-010, GB/T 30690 and EN 13060. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Place the sterilizer on a non-combustible surface with clearance for ventilation and keep flammable materials away. Use a dedicated electrical circuit sized for the heater. Load items in racks so air can circulate, and do not overfill. Wrap or cover items with aluminum foil or place them in metal or borosilicate containers that tolerate the temperature. Start timing at the set temperature for the coldest point, which is verified with thermocouples during validation. Use chemical indicators or biological indicators such as Bacillus atrophaeus spores to verify cycles. Allow the load to cool before opening, since glass can crack with thermal shock. Calibrate the temperature sensor annually and check door seals and fans regularly. Follow burn-safety rules when unloading.
