How do High Temperature Furnaces work?
High-temperature furnaces concentrate heat in a densely insulated hot zone using elements that remain stable at extreme temperature. Silicon carbide and molybdenum disilicide resist oxidation in air to about 1600 to 1800 C, while graphite and tungsten elements work beyond 2000 C under vacuum or inert gas because they oxidize in air. Induction furnaces instead use an alternating magnetic field to induce currents in a conductive crucible or susceptor, heating the charge directly. Dense alumina, zirconia or graphite insulation limits heat loss, and water-cooled shells protect the structure. Type B or C thermocouples, optical pyrometers and radiation sensors cover the range, and programmable controllers follow slow ramp profiles that avoid thermal shock. Atmosphere control is often essential to prevent oxidation, evaporation or contamination of the sample.
Which High Temperature Furnaces variants are available?

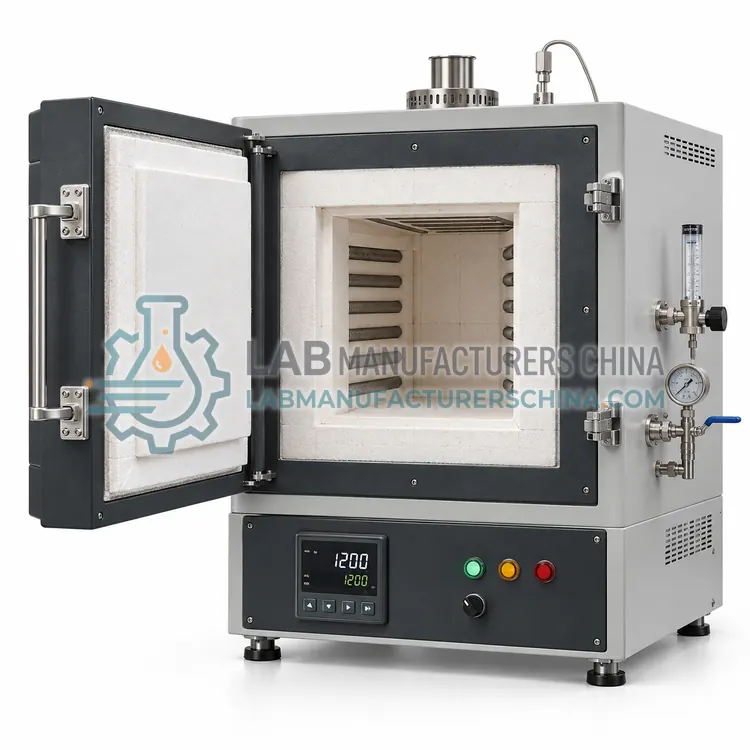

- High-Temperature Box Furnace — A high-temperature box furnace heats crucibles and trays in a box chamber to 1400 to 1700 C.

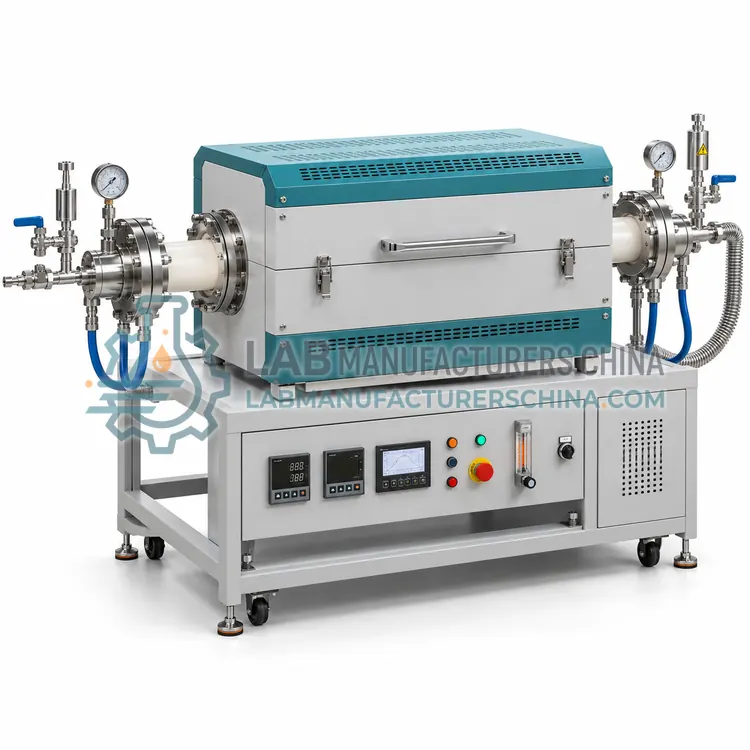

- High-Temperature Tube Furnace — A high-temperature tube furnace heats a work tube to 1600 to 1700 C with gas flow or vacuum for controlled-atmosphere processing.
- Graphite Element High-Temperature Furnace — A graphite element high-temperature furnace reaches 2000 to 3000 C under vacuum or inert gas.

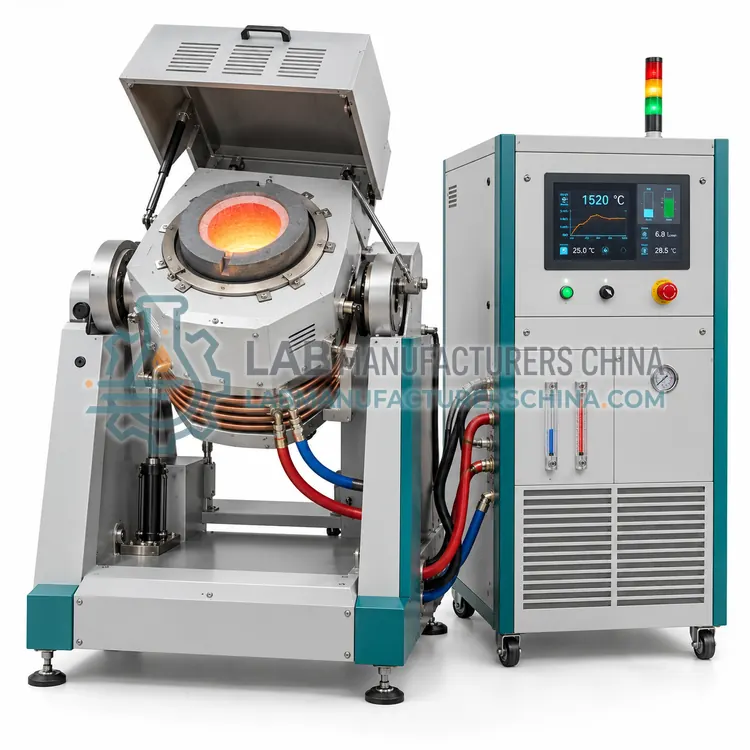

- Induction Melting Furnace — An induction melting furnace melts conductive metals and alloys by coupling an alternating magnetic field into the charge or a susceptor.

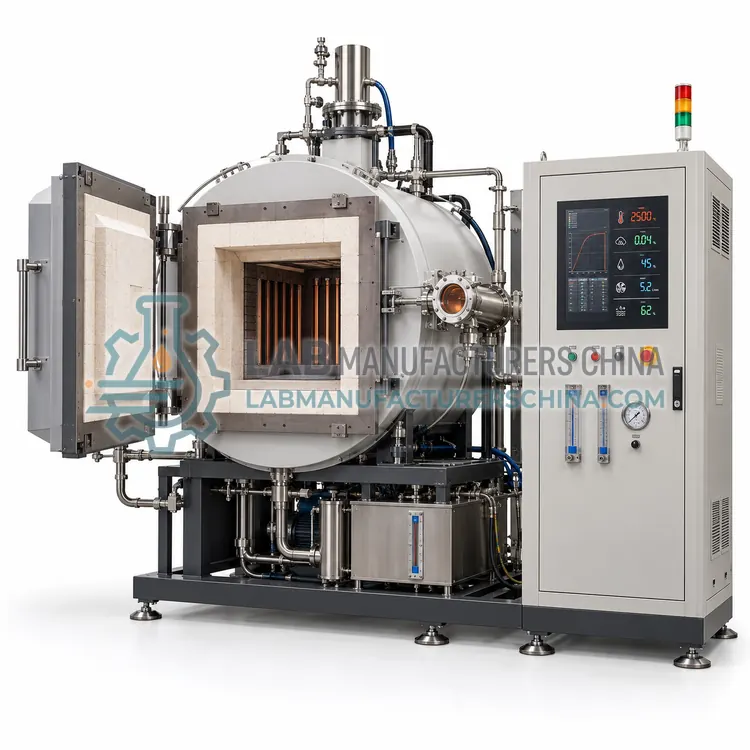

- Ultra-High-Temperature Furnace — An ultra-high-temperature furnace reaches 2500 to 3000 C for sintering, melting and materials research at the extremes of laboratory capability.
How do I choose the right variant?
Choose a high-temperature furnace only when the process genuinely needs 1400 C or above, since cost, element life and atmosphere requirements rise steeply with temperature. Decide the atmosphere first: air, inert gas, vacuum or reducing, because elements and insulation depend on it. Then set the maximum temperature and hot zone size from the sample and crucible, and select the heating method, with resistance for clean work and induction for melting conductive charges. Confirm the temperature measurement method for the range, since thermocouples need type B or C and optical pyrometers are used above about 1800 C. Specify ramping capability, cooling, water supply and safety protection.
Where are High Temperature Furnaces used?
High Temperature Furnaces are specified in advanced ceramic sintering, refractory material testing, glass and frit melting, crystal growth from melt, high-temperature materials research and metal and alloy melting experiments.
Which standards and certifications apply?
Work with High Temperature Furnaces is commonly governed by IEC 61010-1, IEC 61010-2-010, IEC 60519-1, DIN 17052-1, ISO 9001 and ISO 17025. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
High-temperature furnaces need rigid foundations, generous clearances and, for water-cooled types, reliable cooling with flow and temperature interlocks. Install gas and vacuum lines with proper purging and leak checking, and never heat a graphite or refractory-metal element in air. Warm up and cool slowly according to the schedule to protect dense refractories and elements from thermal shock. Replace elements and thermocouples as matched sets and on condition. Verify temperature with a reference instrument and profile the hot zone periodically, keep records, and train operators on atmosphere, water and emergency shutdown procedures.
