How do Tube Furnaces work?
A tube furnace surrounds a cylindrical work tube with heating elements embedded in ceramic fiber or refractory, so the sample is heated inside a controlled environment separate from the elements. The tube, usually quartz, alumina or a high-temperature alloy, passes through one or more heating zones. Gas enters one end, flows over the sample and exits the other, or a pump pulls vacuum for anaerobic work. Thermocouples measure each zone, and a PID or SCR controller holds setpoints or programmed profiles. Split designs open to place the tube without threading it, while multi-zone designs create a controlled temperature gradient. End seals, flanges and gas manifolds keep the atmosphere clean and safe, and exhaust may pass through a scrubber or bubbler.
Which Tube Furnaces variants are available?

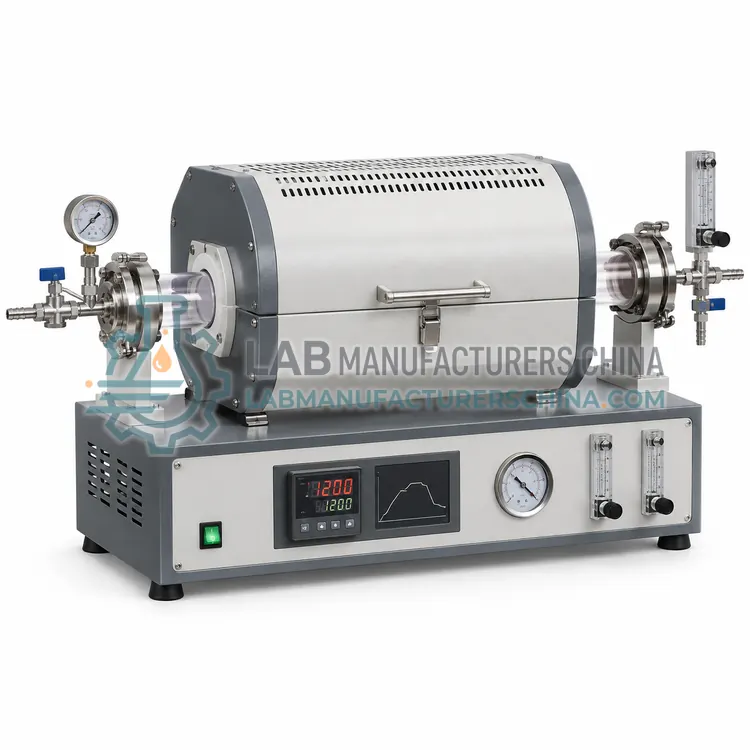

- Single-Zone Tube Furnace — A single-zone tube furnace heats one defined length of work tube for uniform calcination, annealing and catalyst work.

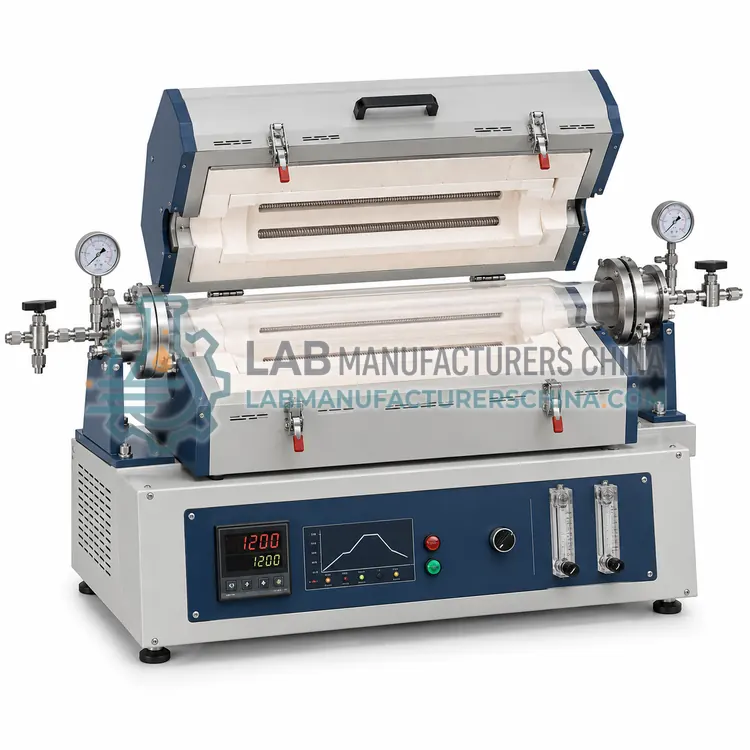

- Split Tube Furnace — A split tube furnace opens along its length so the work tube can be placed without threading it through.

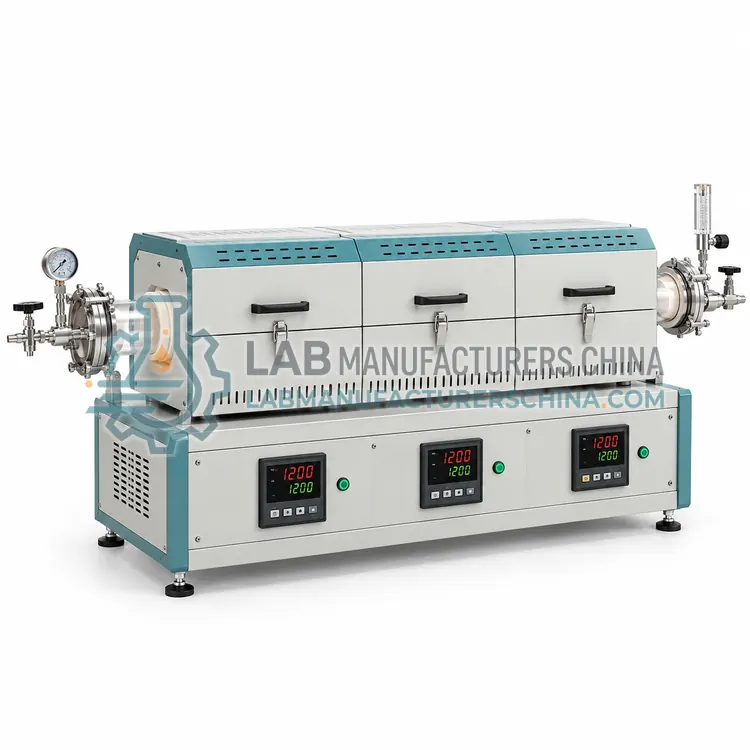

- Three-Zone Tube Furnace — A three-zone tube furnace controls three independent heating zones to create a long uniform hot region or a deliberate temperature gradient.

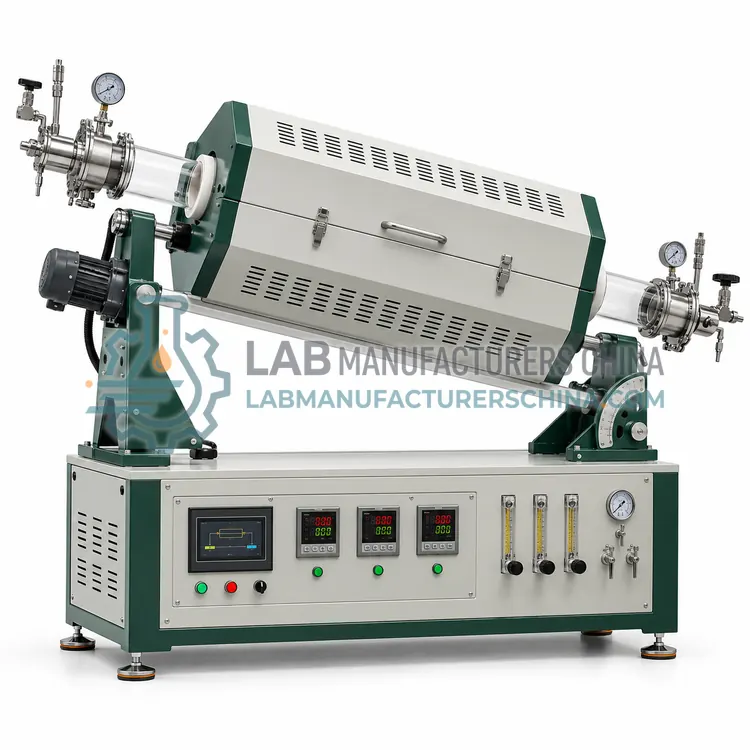

- Rotary Tube Furnace — A rotary tube furnace slowly rotates the work tube so powder samples tumble and receive uniform heat.
- Vertical Tube Furnace — A vertical tube furnace holds the work tube upright so samples hang or drop through a controlled hot zone.
How do I choose the right variant?
Choose a tube furnace when the process needs gas flow, vacuum or a sealed environment, or when the sample must be a powder in a boat rather than a crucible in a box. Set the maximum temperature with margin above the working setpoint, and select the tube material accordingly: quartz to about 1100 C, alumina to 1600 to 1700 C, and alloys for specific atmospheres. Match the tube diameter to the sample boat, and pick one, three or five zones depending on whether a gradient or uniform hot zone is needed. Decide between solid and split designs for handling. Specify gas connections, end seals, flow meters and safety features for flammable or toxic gases.
Where are Tube Furnaces used?
Tube Furnaces are specified in controlled-atmosphere calcination, chemical vapor deposition, catalyst reduction and activation, annealing under inert gas, carbonization and pyrolysis and materials research with gas flow.
Which standards and certifications apply?
Work with Tube Furnaces is commonly governed by IEC 61010-1, IEC 61010-2-010, IEC 60519-1, DIN 17052-1 and ISO 9001. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install with clearance for the hot tube ends and route exhaust gases to a safe vent, using a scrubber or bubbler for toxic or corrosive species. Use only tubes rated for the temperature and atmosphere, and never exceed the manufacturer limit, since quartz softens and alumina can crack under thermal shock. Support long tubes and avoid mechanical stress at the seals. Purge the tube before heating when air must be excluded, and check for leaks after each assembly. Calibrate the control thermocouple and profile the hot zone, and replace tubes showing cracks, devitrification or sag before failure.
