How do 5-Part Analyzers work?
These analyzers combine impedance counting with a flow cytometry channel. A diluted and stained sample passes a sheath flow cell where hydrodynamic focusing aligns cells in single file. A laser beam strikes each cell, and three signals are recorded: forward scatter, which reflects cell size; side scatter, which reflects internal granularity and complexity; and fluorescence from a dye that stains nucleic acids and cell membranes. Clustering algorithms in the instrument software separate the signals into five leukocyte populations, and the same data support flags for band forms, blasts, atypical lymphocytes and nucleated red cells. Impedance channels measure red cells, platelets and a second white cell count for comparison. Hemoglobin is measured photometrically after lysis. Because the flow channel provides much more information than a size histogram, the analyzer can also report reticulocytes, immature platelet fraction and body fluid cell counts when the corresponding reagent and software options are installed.
Which 5-Part Analyzers variants are available?

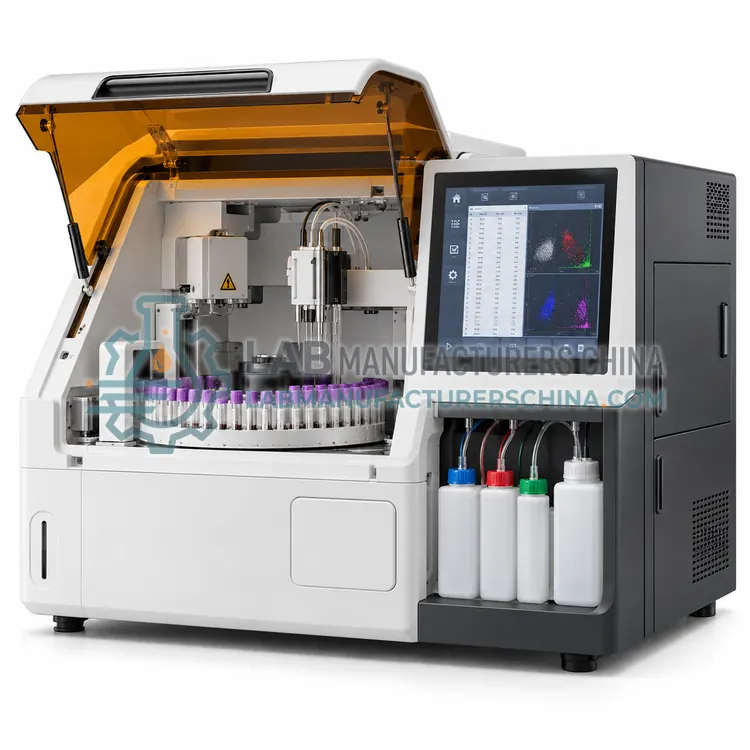

- Five-Part Differential Hematology Analyzer — A five-part differential hematology analyzer is a bench-top instrument that reports a complete blood count with neutrophils, lymphocytes, monocytes, eosinophils and basophils counted separately by laser flow cytometry.

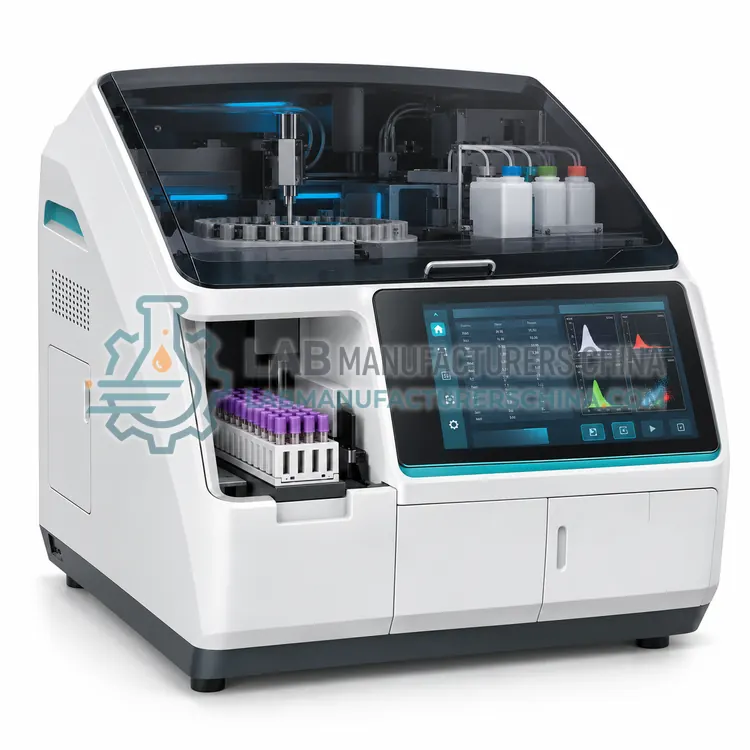

- High-Throughput 5-Part Hematology Analyzer — A high-throughput 5-part analyzer processes 100 to 150 samples per hour with continuous rack loading, which suits large hospital core laboratories and reference laboratories whose daily counts exceed several hundred samples.

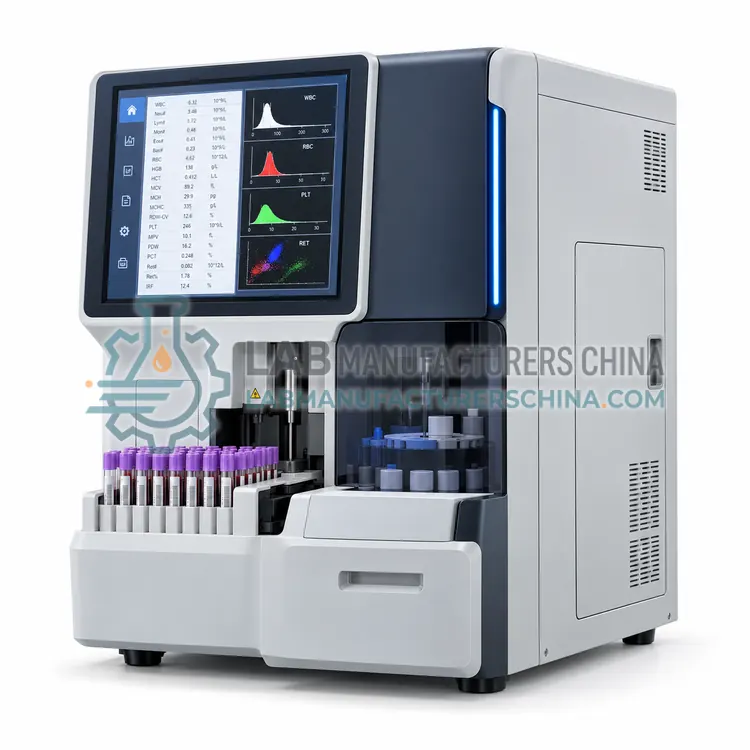

- 5-Part Hematology Analyzer with Reticulocyte Count — This analyzer adds a nucleic acid staining channel that quantifies reticulocytes and their maturity fractions alongside the five-part differential.

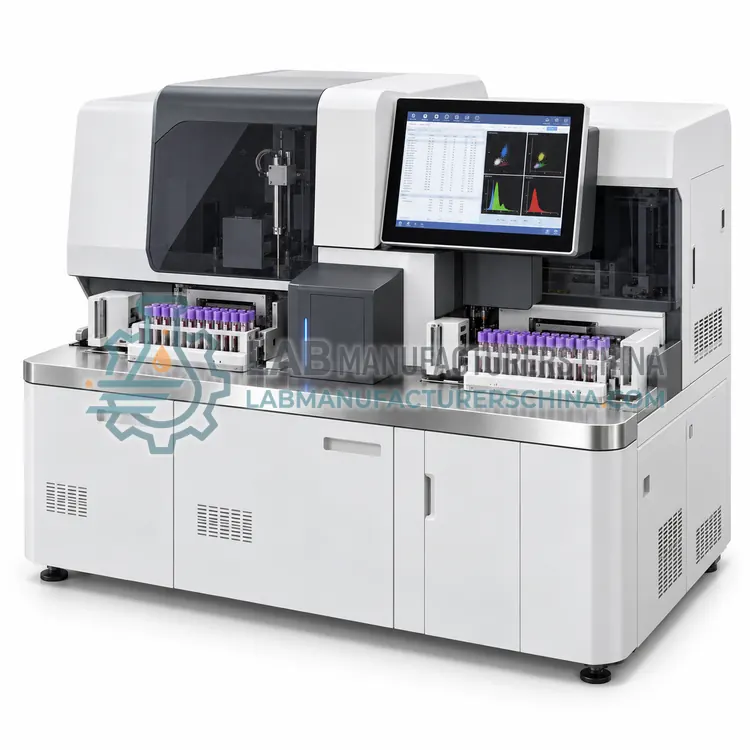

- 5-Part Hematology Analyzer with Autoloader and Barcode — This model pairs the five-part flow cytometry platform with a close-tube autoloader and full barcode identification, allowing batches to run unattended and results to match the worklist automatically.

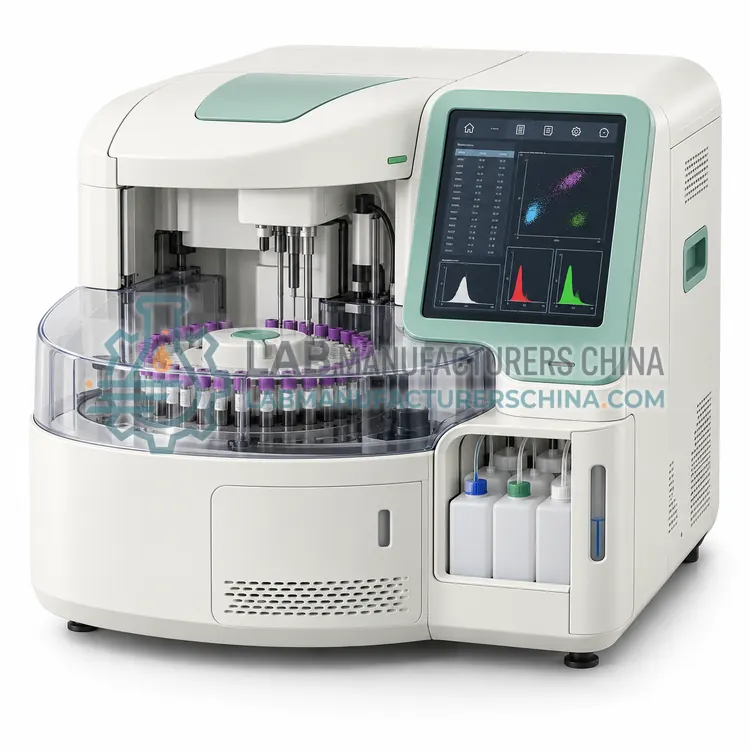

- Veterinary 5-Part Hematology Analyzer — A veterinary 5-part analyzer applies species-specific calibration and reference intervals to a flow cytometry platform, giving five-part differentials for dogs, cats, horses and other animals.
How do I choose the right variant?
Specify a 5-part analyzer when clinicians act on the differential, for example to follow neutropenia during chemotherapy, to screen for leukemia, or to manage pediatric infections. Compare throughput, which ranges from about 60 to more than 120 samples per hour, and the first-result time for emergency work. Check which optional modes are included: reticulocyte count, nucleated red cell count, immature platelet fraction and body fluid analysis all require dedicated reagents and software licences. Confirm the minimum sample volume for pediatric samples and the linearity at low white cell counts. Ask about the flagging performance for blasts, the review rules the software applies, and whether a slide maker or digital morphology review is supported. Confirm LIS connectivity, reagent openness, calibration interval of the flow channel, and local service support.
Where are 5-Part Analyzers used?
5-Part Analyzers are specified in hospital routine and emergency blood counts, neutropenia and chemotherapy monitoring, leukemia and lymphoma screening, pediatric and neonatal blood counts and body fluid cell counts.
Which standards and certifications apply?
Work with 5-Part Analyzers is commonly governed by ISO 15189, CLSI H26-A2, CLSI H20-A2, CLSI EP05, CLSI H21, IEC 61010-1 and IEC 61010-2-101. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install the analyzer on a stable bench with a dedicated grounded outlet, controlled room temperature of about 15 to 30 degrees Celsius and low dust. Verify performance at installation with precision, carryover, linearity and method comparison studies, including a specific check of the differential against manual microscopy on abnormal samples. Run three levels of control each day, join an external quality assessment scheme, and review flag rates regularly, because an excessive flag rate increases manual reviews and delays reporting. Clean the flow cell, probes and waste lines according to the maintenance plan, protect the laser and optics from vibration, and keep sheath fluid and cleaning reagents within their expiry dates. Handle all blood samples as potentially infectious.
