How do 3-Part Analyzers work?
A 3-part analyzer aspirates a small volume of anticoagulated whole blood, then splits it into separate channels for dilution and measurement. Red cells and platelets are counted in an isotonic diluent by the Coulter principle, in which each cell passing a small aperture displaces conductive electrolyte and creates a voltage pulse proportional to cell volume. White cells are counted in a second channel where a lysing reagent destroys red cell membranes while leaving white cells intact for sizing. The analyzer sorts white cells into three populations using two software thresholds on the size histogram: lymphocytes, a mixed population of monocytes, eosinophils and basophils, and granulocytes. Hemoglobin is released by lysis and measured photometrically at about 540 nm after conversion to a stable chromogen. Software computes indices such as MCV, MCH and MCHC, applies quality control rules, and stores or transmits the report.
Which 3-Part Analyzers variants are available?
- Compact 3-Part Hematology Analyzer — A compact 3-part hematology analyzer is a bench-top blood cell counter that produces a complete blood count with a three-part white cell differential from about 20 microliters of whole blood.

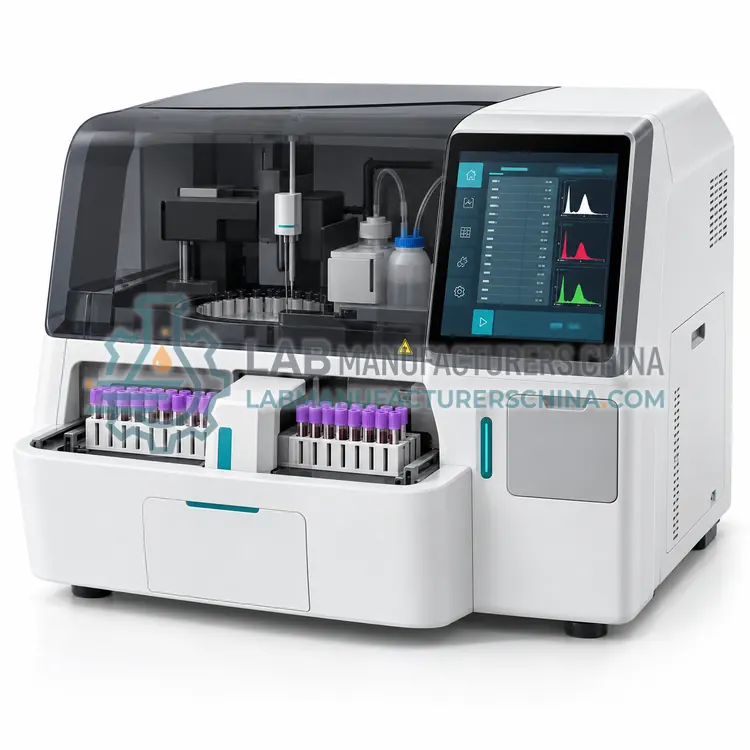

- Automated 3-Part Blood Cell Counter with Autoloader — An automated 3-part counter with an autoloader accepts racks of closed blood tubes and processes them without operator attendance, giving a three-part differential at moderate throughput.

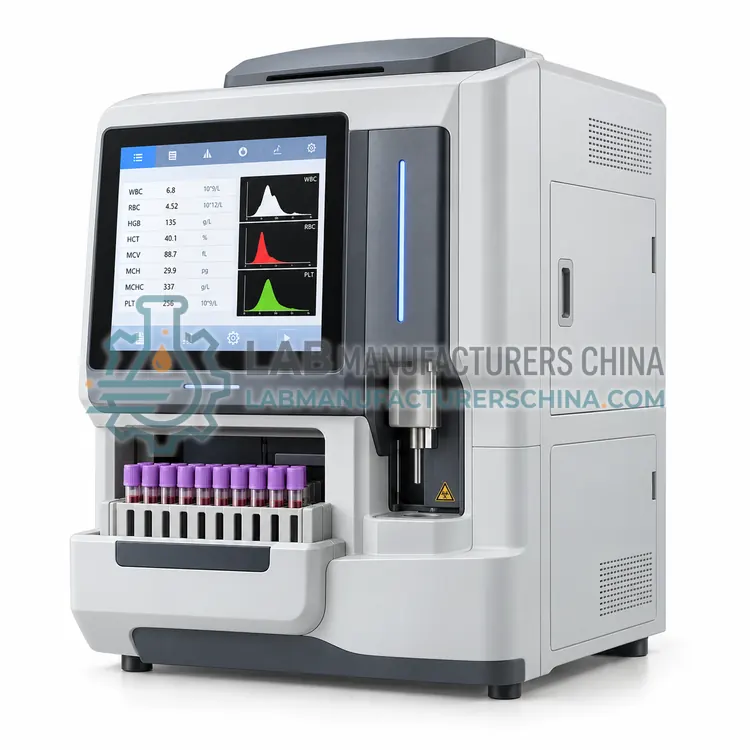

- Semi-Automated 3-Part Blood Cell Counter — A semi-automated 3-part blood cell counter requires the operator to present each diluted sample to the aspiration probe, then measures it automatically and prints a three-part count.

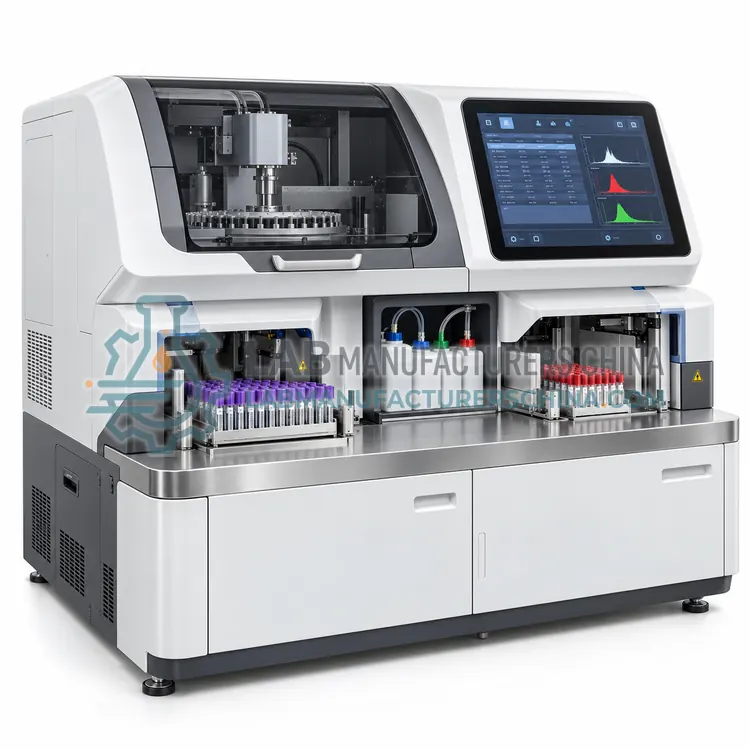

- 3-Part Hematology Analyzer with Integrated ESR Module — This analyzer combines a 3-part blood count with an automated erythrocyte sedimentation rate module, so that one tube yields both results in a single run.

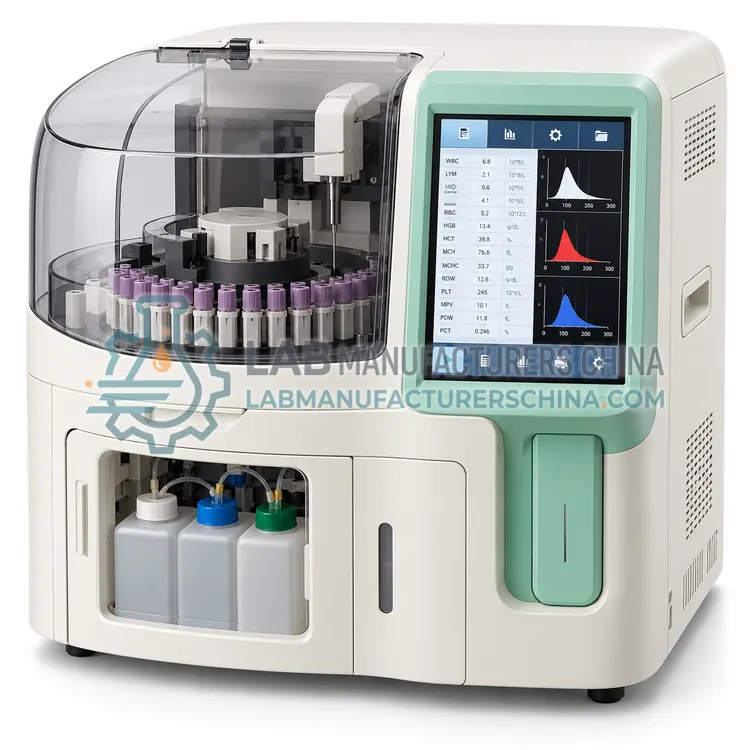

- Veterinary 3-Part Hematology Analyzer — A veterinary 3-part analyzer is calibrated and software-configured for animal species such as dogs, cats and horses, giving a three-part differential with species-specific reference ranges.
How do I choose the right variant?
Choose a 3-part analyzer when the clinicians served mainly need total counts, hemoglobin and a basic differential, and when the daily workload is low enough that a 5-part flow cytometry channel would not be used. Compare variants by throughput in samples per hour, minimum aspiration volume for capillary sampling, whether the reagent system is open or proprietary, and the quality of the histogram display. Confirm autoloader capacity if more than fifty samples arrive in a batch, check barcode and LIS connectivity, and review the calibration and control materials offered. Ask about the expected life of the shear valve and pump tubing, because these parts dominate maintenance cost, and about local service response time for a clinic without an in-house engineer.
Where are 3-Part Analyzers used?
3-Part Analyzers are specified in routine complete blood counts in community clinics, anemia and infection screening, pre-operative and antenatal blood counts, monitoring during chronic disease follow-up and outreach and mobile health screening.
Which standards and certifications apply?
Work with 3-Part Analyzers is commonly governed by ISO 15189, CLSI H26-A2, CLSI H20-A2, CLSI EP05, IEC 61010-1 and IEC 61010-2-101. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Place the analyzer on a stable, level bench away from direct sunlight, strong vibration and large electrical motors, with a grounded outlet and a supply of clean, low-particulate water if the instrument needs it. Perform installation verification with the manufacturer or distributor, including background counts, precision, carryover and linearity checks with fresh or stabilized blood. Run two or three levels of quality control at the start of each working day and after reagent changes. Daily cleaning of the aspiration probe, weekly cleaning of the apertures and periodic replacement of pump tubing, seals and the peristaltic pump keep results stable. Treat all blood samples, waste and control material as potentially infectious and follow local biosafety rules for decontamination and disposal.
