How do Surface Area Analyzers work?
These analyzers expose a degassed solid to an adsorbate and measure how much is taken up. In static volumetric physisorption, known doses of nitrogen, argon or krypton are admitted to a manifold and sample tube at 77 K or 87 K, and the pressure drop after equilibration gives the adsorbed volume. Isotherms are analyzed with BET for surface area, t-plot and DFT methods for micropores, and BJH for mesopores. Gravimetric systems weigh the sample directly while vapor pressure is controlled. Chemisorption analyzers dose hydrogen, CO or oxygen at elevated temperature and use thermal conductivity detection for temperature-programmed reduction and desorption. Key components are vacuum pumps, pressure transducers, a cryogenic bath or furnace, and analysis software.
Which Surface Area Analyzers variants are available?
- High-Vacuum Volumetric Physisorption Analyzer for Micropore and Mesopore Analysis — A static volumetric analyzer with turbomolecular pumping and low-pressure transducers that records full nitrogen or argon isotherms down to about 10⁻⁶ relative pressure.

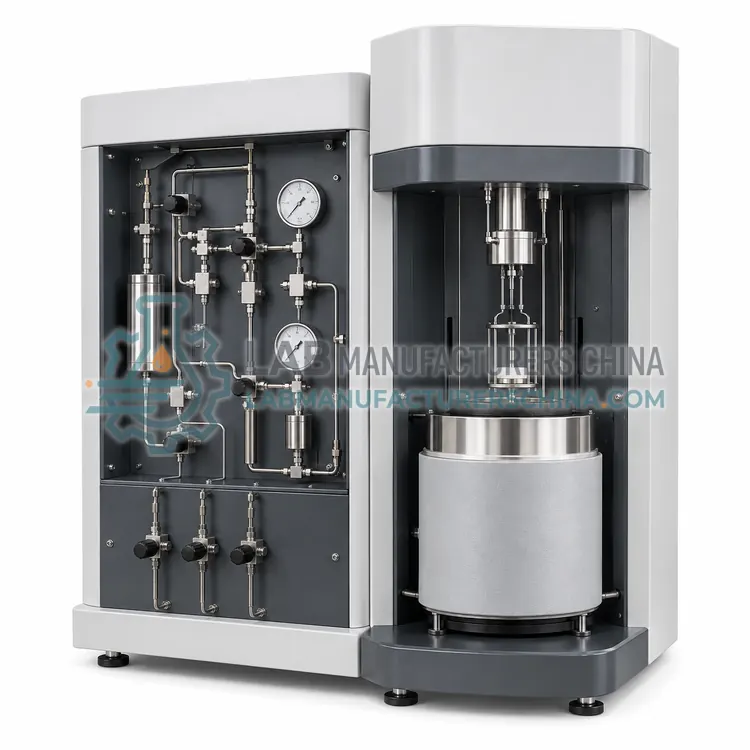

- Krypton Low-Surface-Area Analyzer for Thin Films and Flat Substrates — A volumetric analyzer configured for krypton adsorption at 77 K with a low-volume manifold and a sensitive low-range transducer.
- Gravimetric Dynamic Vapor Sorption Analyzer — An instrument that weighs a sample on a microbalance while relative humidity or solvent vapor concentration is stepped under controlled temperature.

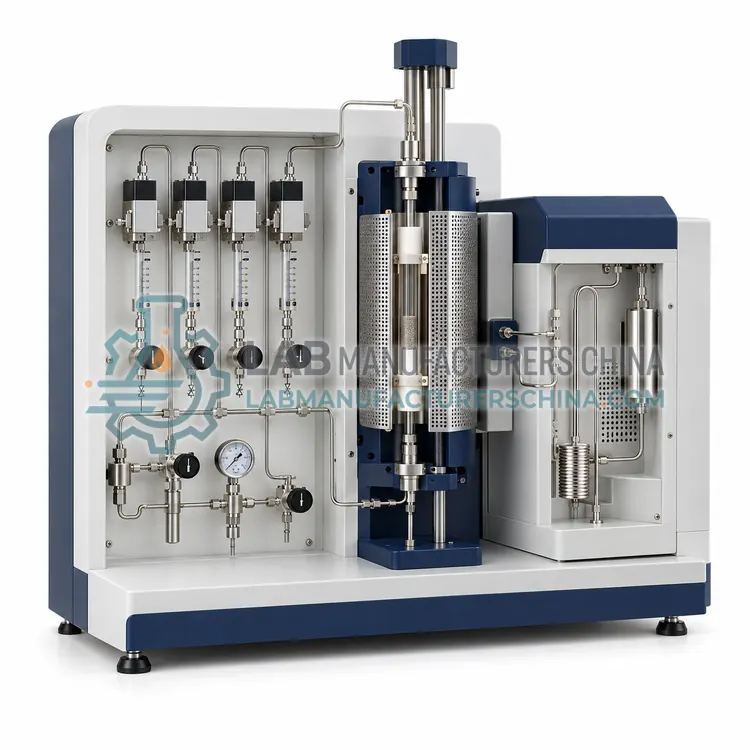

- Chemisorption Analyzer for Catalyst Metal Dispersion and TPR/TPD — An automated instrument that doses hydrogen, CO or oxygen onto catalysts and uses a thermal conductivity detector with a programmable furnace.

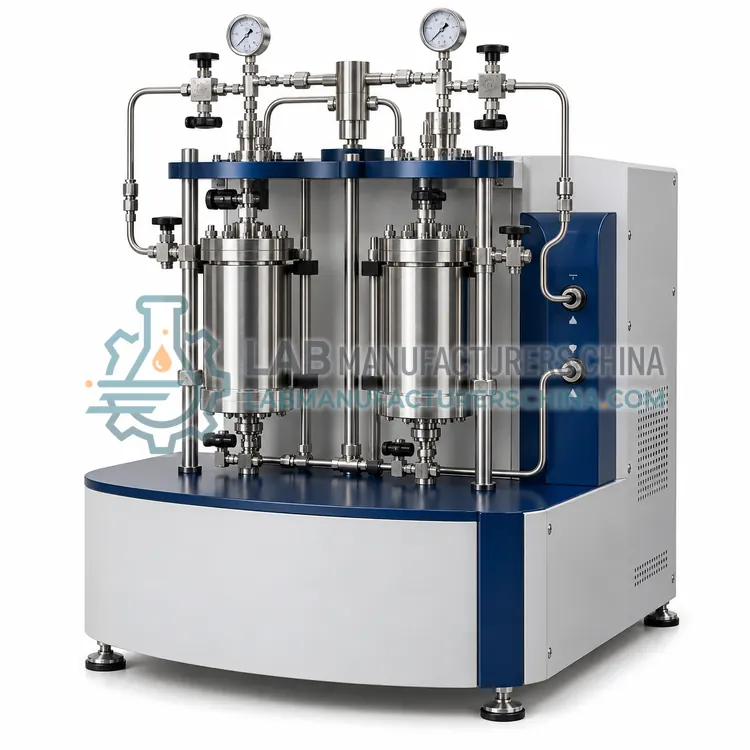

- High-Pressure Gas Adsorption Analyzer for Hydrogen and Carbon Dioxide Storage — A volumetric or gravimetric sorption analyzer rated for gas pressures up to 100 bar or more, measuring excess and total uptake of hydrogen, methane and CO₂.
How do I choose the right variant?
Decide first what must be measured. Surface area and mesopore size of powders, catalysts and electrode materials suit a volumetric physisorption analyzer; micropore work requires turbomolecular pumping and low-pressure transducers. Very low area films and substrates need krypton capability. Water or solvent uptake calls for a gravimetric vapor sorption analyzer. Metal dispersion and acid site measurements need a chemisorption system with a furnace and detector. Hydrogen and methane storage research needs a high-pressure sorption analyzer. Compare the number of analysis ports, degassing stations, pressure range, transducer accuracy, liquid nitrogen consumption and compliance with ISO 9277 and ISO 15901-2 when specifying.
Where are Surface Area Analyzers used?
Surface Area Analyzers are specified in catalyst and support characterization, battery electrode powder analysis, activated carbon and adsorbent testing, metal-organic framework and zeolite research and pharmaceutical powder surface area.
Which standards and certifications apply?
Work with Surface Area Analyzers is commonly governed by ISO 9277, ISO 15901-2, ISO 15901-3, ASTM D3663 and ASTM D4365. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Sample degassing is the main source of error; select temperature and time so that moisture and volatiles are removed without changing the structure, and weigh the sample after degassing. Use adequate sample mass to provide at least 1 m² of total surface area, or 0.05 m² with krypton. Check free-space calibration and leak rates regularly. Ensure a reliable supply of high-purity gases, typically 99.999 percent, and monitor liquid nitrogen levels. Verify performance with certified reference materials of known surface area. Place the unit on a stable bench with ventilation for cryogenic and hydrogen work, and follow local rules for compressed gas cylinders.
