How do pH Meters work?
A pH meter is a high-impedance voltmeter connected to a measuring electrode and a reference electrode, often combined in one probe. The glass membrane at the electrode tip develops a potential that depends on the hydrogen ion activity difference between the internal fill solution and the sample, described by the Nernst equation. At 25 degrees Celsius the ideal slope is 59.16 mV per pH unit. The reference electrode, usually silver/silver chloride in potassium chloride electrolyte, supplies a stable potential through a porous junction. The meter amplifies the millivolt signal with input impedance above 10¹² ohms, applies temperature compensation from a thermistor or Pt1000 sensor, and uses a two- to five-point calibration with buffers to correct offset and slope. Modern meters store calibration data, check electrode slope and offset, and export results with date, time and operator identification for good laboratory practice.
Which pH Meters variants are available?
- Benchtop pH Meter — A benchtop pH meter is a mains-powered laboratory instrument with resolution to 0.001 pH, multi-point calibration and GLP data handling.

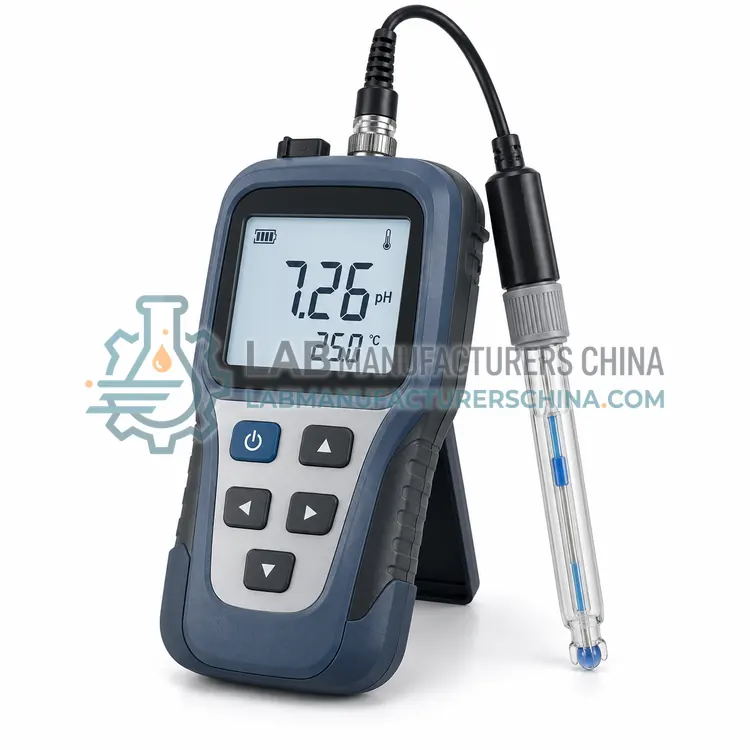

- Portable pH Meter — A portable pH meter is a battery-powered, rugged handheld instrument for field sampling and plant floor measurements.

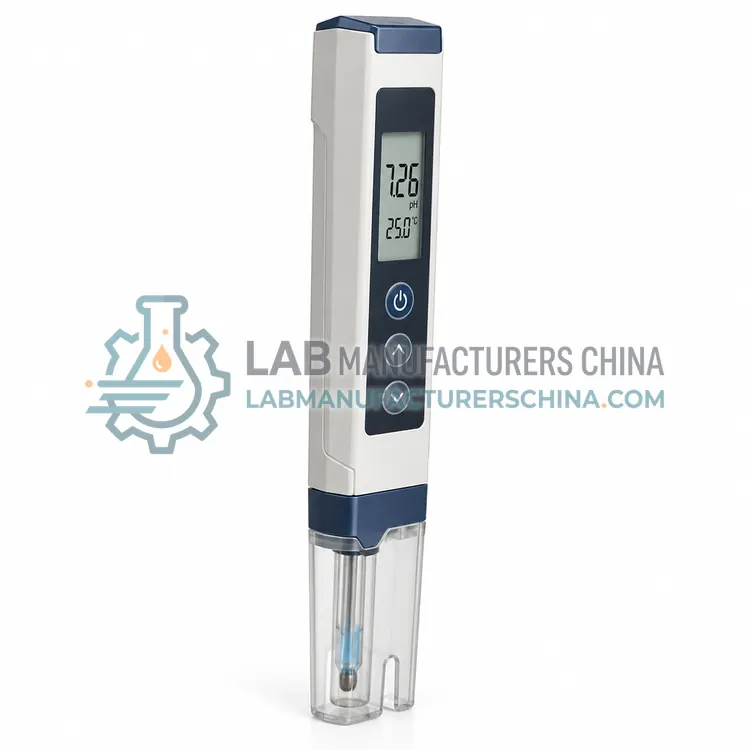

- Pen-Type pH Tester — A pen-type pH tester is a compact, low-cost pocket instrument with an integrated electrode and ±0.1 or ±0.01 pH accuracy.

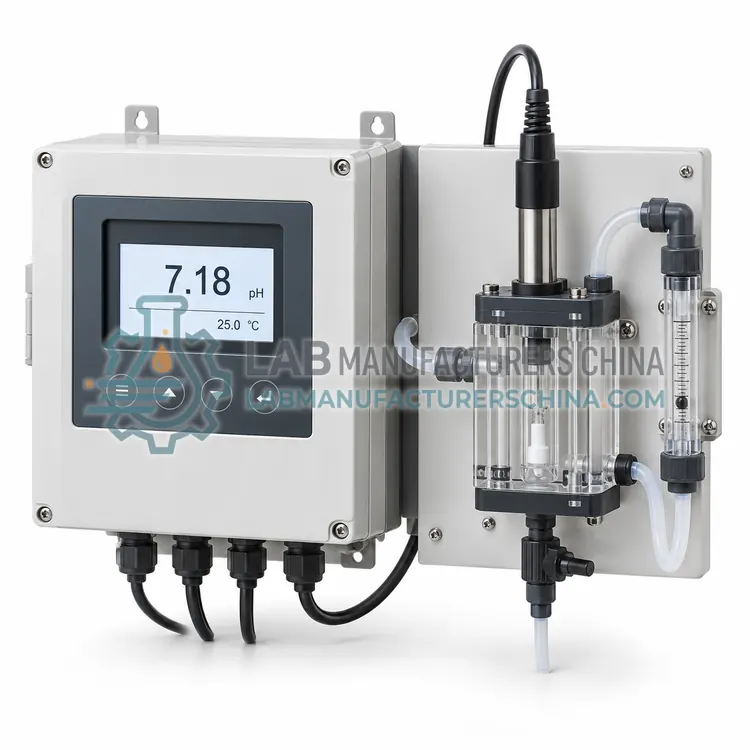

- Online Process pH Analyzer — An online process pH analyzer continuously monitors pH in pipes, tanks or flow cells using an installed sensor and a transmitter with 4–20 mA, relay and digital outputs.

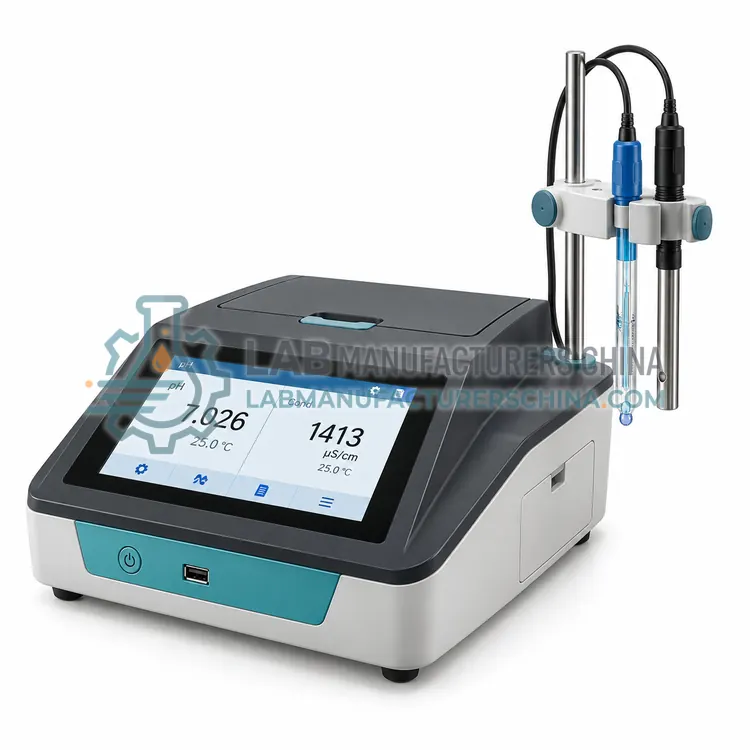

- Multiparameter Benchtop pH/Conductivity Meter — A multiparameter benchtop meter combines pH, mV, conductivity, TDS and often dissolved oxygen channels in one instrument.
How do I choose the right variant?
The decisive parameters are accuracy and resolution, portability, sample type and compliance needs. Benchtop meters give resolution of 0.001 pH and accuracy of about ±0.002 pH, suitable for pharmacopoeial work. Portable meters trade some resolution for ruggedness, IP-rated housings and battery operation for field and plant use. Pen testers suit quick checks at ±0.1 pH. Online analyzers add continuous measurement, cleaning and control outputs for processes. Also consider the electrode, since glass composition, junction type and body material must suit the sample: Tris buffers, low-ionic-strength water, viscous samples, emulsions and semi-solids each need a specific design. For regulated laboratories, check GLP data handling, calibration reminders, password control and compatibility with USP <791>. Include electrode replacement and buffer costs in ownership estimates.
Where are pH Meters used?
pH Meters are specified in pharmaceutical QC and buffer preparation, drinking water and wastewater testing, food and beverage production control, soil and agricultural analysis and teaching and research laboratories.
Which standards and certifications apply?
Work with pH Meters is commonly governed by USP <791>, Ph. Eur. 2.2.3, ASTM E70, ASTM D1293, ISO 10523, GB/T 6920 and IEC 60746-2. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Store electrodes in the recommended storage solution and never in deionized water. Calibrate with fresh, traceable buffers bracketing the sample pH, verify slope between 95 and 105 percent, and record the offset. Rinse the electrode between samples and clean it periodically with protein or inorganic cleaning solutions. Keep the meter away from strong electromagnetic fields and ensure samples are at a stable temperature or use automatic compensation. Replace electrodes when response slows or slope drops. Regulated laboratories should schedule calibration verification, document maintenance in the equipment log and follow USP <791> or Ph. Eur. 2.2.3 requirements. Use appropriate chemical-resistant bench space and handle buffers according to local safety rules.
