How do Viscosity Testers work?
Kinematic viscosity testers time the gravity-driven flow of a fixed liquid volume through a calibrated glass capillary viscometer held in a constant-temperature bath. Viscosity equals the measured flow time multiplied by the tube constant, expressed in mm²/s, and bath temperature must be held within about 0.02 °C because viscosity changes rapidly with temperature. Rotational instruments drive a spindle or rotor in the sample and measure the torque required, giving dynamic viscosity in mPa·s. Cold-cranking simulators rotate a rotor inside a stator at low temperature and relate motor speed to apparent viscosity for engine oils. Efflux cup methods such as Saybolt measure time for a set volume to drain through an orifice. Key components are the bath, thermostat, viscometer tubes, timing device and, in automatic models, optical or ultrasonic meniscus sensors.
Which Viscosity Testers variants are available?

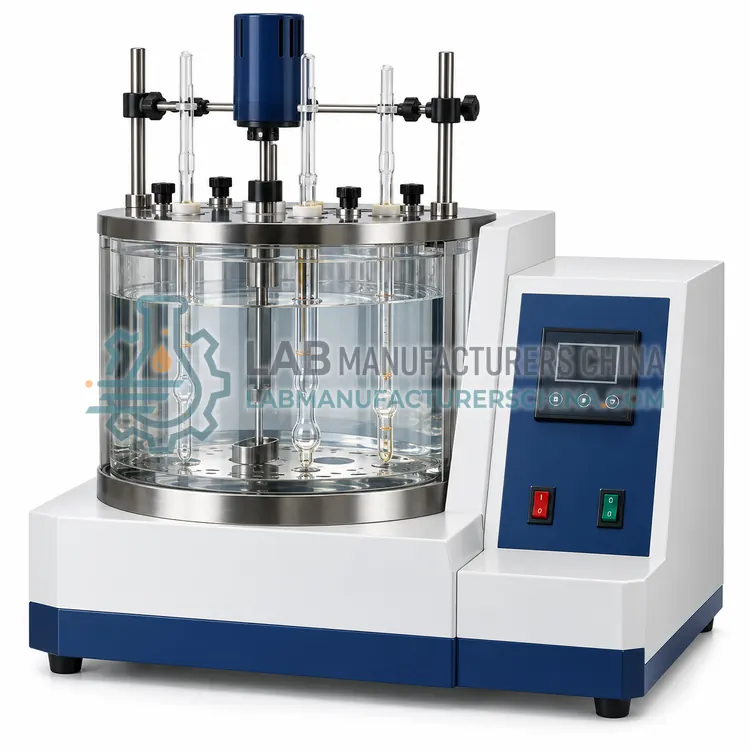

- Manual Kinematic Viscosity Bath with Glass Capillary Viscometers — A manual kinematic viscosity bath holds glass capillary viscometers at a stable temperature while the operator times the flow of oil with a stopwatch.

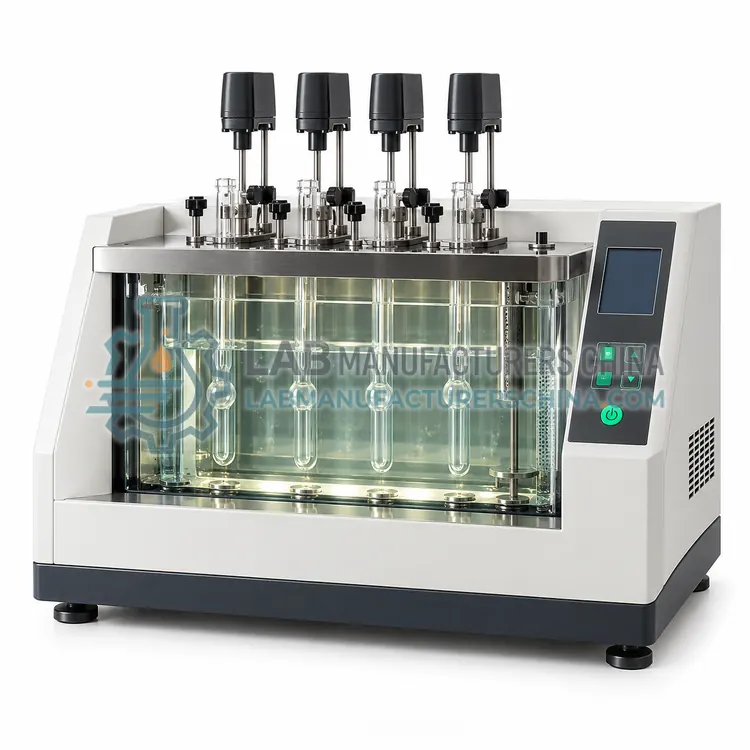

- Automatic Multi-Tube Kinematic Viscometer — An automatic multi-tube kinematic viscometer times oil flow through several capillary viscometers with optical or ultrasonic sensors, calculates results and often cleans tubes automatically.

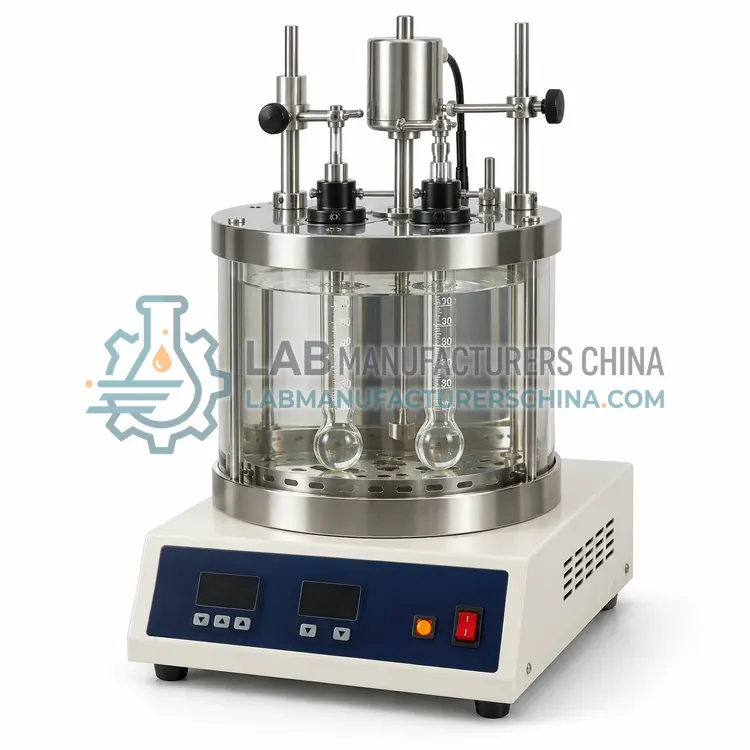

- Saybolt Viscometer for Petroleum Products — A Saybolt viscometer measures the time for 60 mL of petroleum product to flow through a calibrated orifice at a set temperature, reported as Saybolt Universal or Furol seconds.

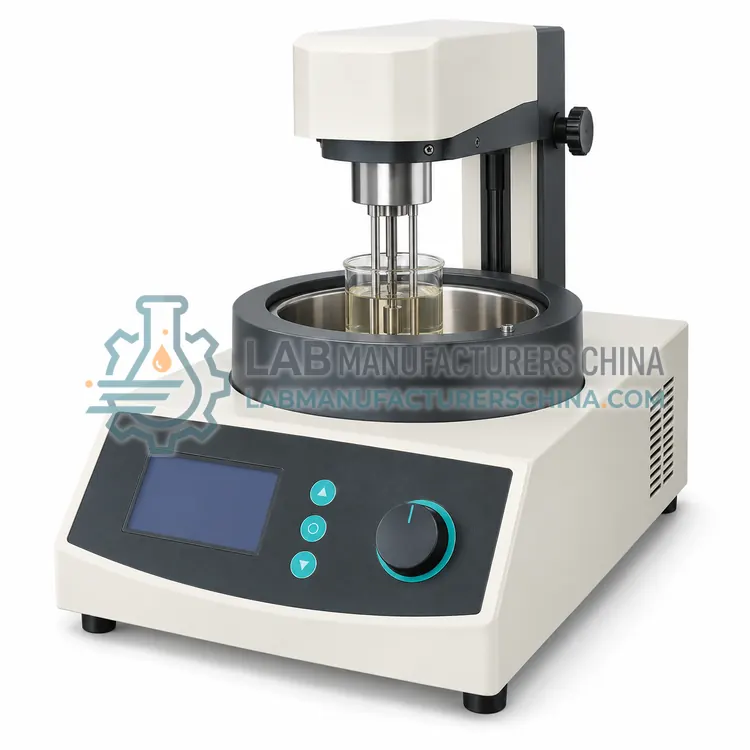

- Low-Temperature Rotational Viscometer for Lubricants — A low-temperature rotational viscometer measures apparent viscosity of gear oils, hydraulic fluids and transmission fluids by rotating a spindle in a cooled sample.

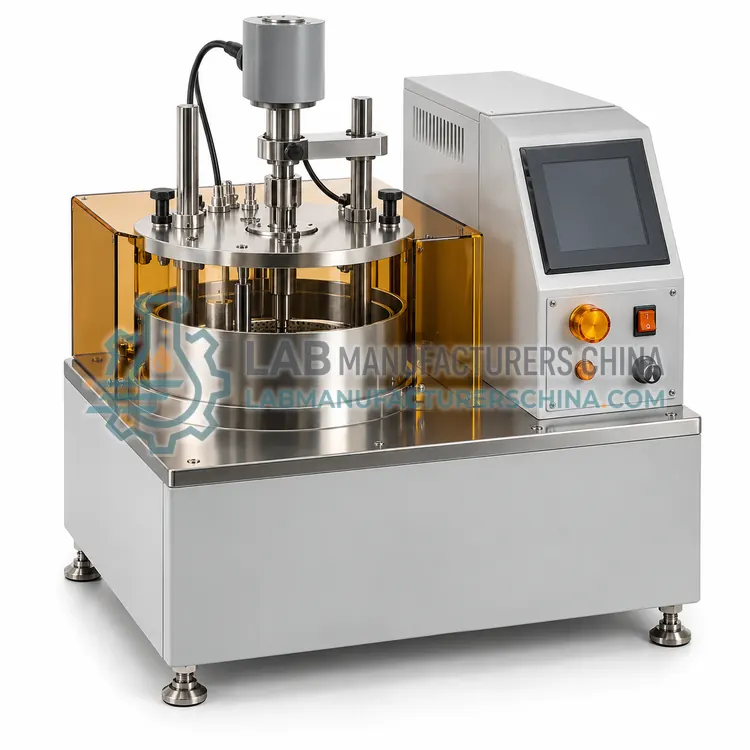

- Cold Cranking Simulator for Engine Oils — A cold cranking simulator measures apparent viscosity of engine oils at -5 to -35 °C and high shear rates, simulating starter motor cranking of a cold engine.
How do I choose the right variant?
Choose by the method named in your product specification. ASTM D445 capillary viscometry is the reference for kinematic viscosity of fuels and lubricants, and automatic multi-tube instruments raise throughput and remove timing subjectivity. Saybolt viscometers remain in use where legacy specifications are expressed in Saybolt seconds. Rotational instruments suit non-Newtonian or very viscous products and low-temperature lubricant tests, while cold-cranking simulators are specific to engine oil low-temperature grading under SAE J300. Consider the temperature range, from 40 and 100 °C for routine oils to -40 °C for low-temperature work, and confirm the bath can maintain stability. Check the tube range, sample volume, cleaning and drying arrangements, and calibration fluid availability. For large workloads, automatic cleaning stations and multi-position baths reduce labor considerably.
Where are Viscosity Testers used?
Viscosity Testers are specified in lubricant viscosity grade verification, fuel oil and diesel specification testing, engine oil low-temperature grading, used oil condition analysis and base oil and additive blending control.
Which standards and certifications apply?
Work with Viscosity Testers is commonly governed by ASTM D445, ISO 3104, ASTM D88, ASTM D2983, ASTM D5293, SAE J300, IP 71, GB/T 265 and IEC 61010-1. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Level the bath and keep it away from drafts and vibration, because temperature stability and tube verticality drive precision. Use certified viscosity reference standards to calibrate tubes and check the bath thermometer against a traceable reference at least annually. Filter or degas samples to remove particles and bubbles, and allow adequate thermal equilibration, usually 15 to 30 minutes. Clean viscometer tubes with suitable solvents and dry with filtered air so residue does not change the tube constant. Inspect glass for cracks or chips. Replace bath fluid at intervals recommended by the supplier. For rotational and cold-cranking instruments, verify torque and speed calibration with standard oils and keep cooling systems free of moisture build-up.
