How do Measurement Systems work?
A measurement system converts a physical variable into an electrical signal with a sensor, conditions and digitizes that signal, applies calibration coefficients and displays or records the result. Electromagnetic force restoration balances compensate the load with a current through a coil. Strain-gauge or piezoresistive sensors turn pressure and force into bridge voltages. Platinum resistance thermometers and thermocouples produce resistance or voltage that varies with temperature. Capacitive polymer sensors change capacitance with relative humidity. The system accuracy combines sensor quality, amplifier stability, analog-to-digital resolution, temperature effects and calibration uncertainty. Traceability to national standards is established by periodic calibration with higher-accuracy references. Data loggers and software add time-stamped records, limit alarms and statistical analysis for quality documentation.
Which Measurement Systems variants are available?
- Laboratory Analytical Balance — An electronic balance with 0.1 mg or finer readability and an enclosed weighing chamber, used to weigh samples and reagents accurately.

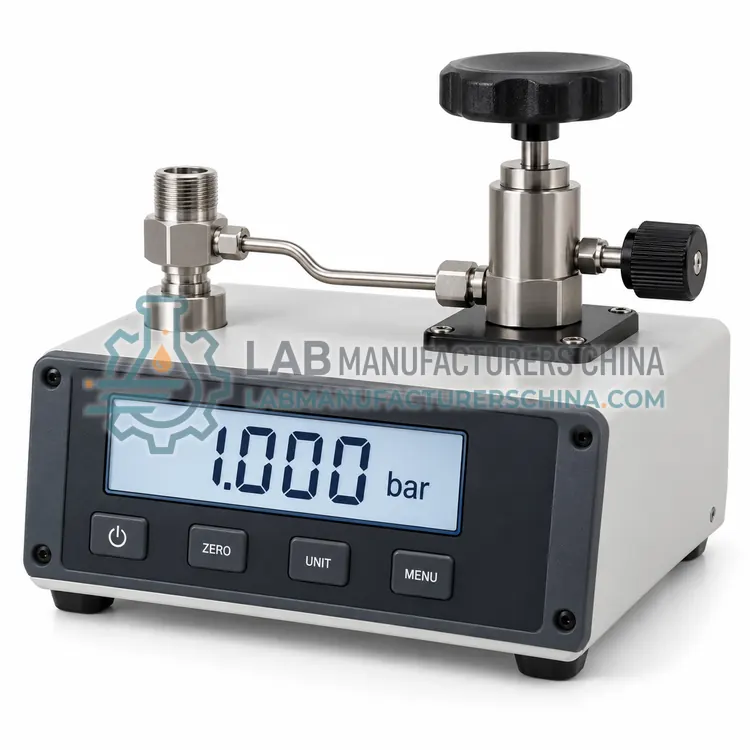

- Digital Pressure Calibrator — A portable instrument with an internal pressure sensor and often a hand pump that generates and measures pressure to calibrate gauges, transmitters and switches.

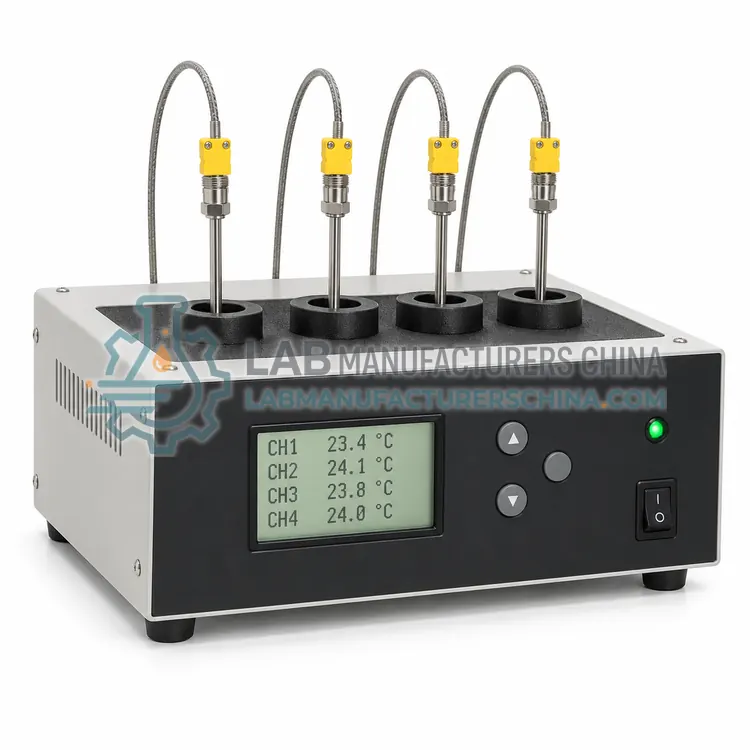

- Multi-Channel Temperature Data Logger — A multi-input recorder that logs temperature from thermocouples or Pt100 probes at set intervals with timestamps and alarms.
- Digital Force Gauge with Test Stand — A handheld force gauge mounted on a manual or motorized test stand that measures tension, compression, peel or breaking force of parts and materials.
- Digital Temperature and Humidity Meter with Reference Probe — A handheld or benchtop meter with a capacitive humidity and Pt100 temperature probe that measures relative humidity, temperature and dew point for environmental verification.
How do I choose the right variant?
Select the system by the variable, range and tolerance to be verified. Specify the resolution and accuracy needed at the working point, not only the full-scale value, and keep the instrument uncertainty to about one tenth to one third of the tolerance. For weighing, consider readability, capacity, repeatability and draft control. For pressure and temperature, check sensor type, media compatibility and environmental conditions. For monitoring, consider number of channels, logging interval, alarms and software features for audit trails. Confirm that calibration certificates are traceable and that calibration can be performed locally. Also consider ruggedness, battery life, display readability, connectivity and the ability to export data for regulatory or customer audits.
Where are Measurement Systems used?
Measurement Systems are specified in formulation and sample weighing, calibration of process gauges, storage and cold chain monitoring, mechanical property and force verification and environmental condition logging.
Which standards and certifications apply?
Work with Measurement Systems is commonly governed by ISO/IEC 17025, ISO 10012, OIML R 76-1, OIML R 111-1, EURAMET cg-18, IEC 60751, ISO 7500-1 and JJG 1036. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install measurement systems in a stable environment appropriate to their accuracy class. Balances need a vibration-free table, level mounting and protection from drafts and temperature swings. Allow warm-up before use. Verify each instrument with check weights or reference devices on a routine schedule, and send it for full calibration at intervals defined by your quality system, typically annually. Keep calibration certificates, as-found and as-left data and uncertainty budgets. Protect sensors from overload, shock and incompatible media. Label instruments with calibration status and due dates, and remove those out of tolerance from service. Train operators on correct handling, such as using tweezers for weights and stabilizing before reading.
