How do Process Analyzers work?
Process analyzers replace manual sampling with automated measurement at or near the point of production. In-line sensors, such as pH or conductivity electrodes, sit in the pipe or tank. At-line and on-line systems draw a conditioned sample through a flow cell, filter and pressure regulator to a measuring module. Measurement techniques include potentiometry for pH, conductometry for ionic strength, optical luminescence or amperometry for dissolved oxygen, near-infrared spectroscopy with chemometric models for composition, and high-temperature oxidation with infrared detection for organic carbon. A transmitter digitizes the signal, applies temperature compensation and outputs 4 to 20 mA, Modbus, HART or Profibus to a PLC or DCS. Reliability depends on representative sampling, sensor cleaning, calibration and a validated relationship between analyzer and laboratory reference results.
Which Process Analyzers variants are available?
- Online pH/ORP Analyzer — A transmitter and electrode system that continuously measures acidity and redox potential in pipes or tanks and outputs 4–20 mA to a controller.

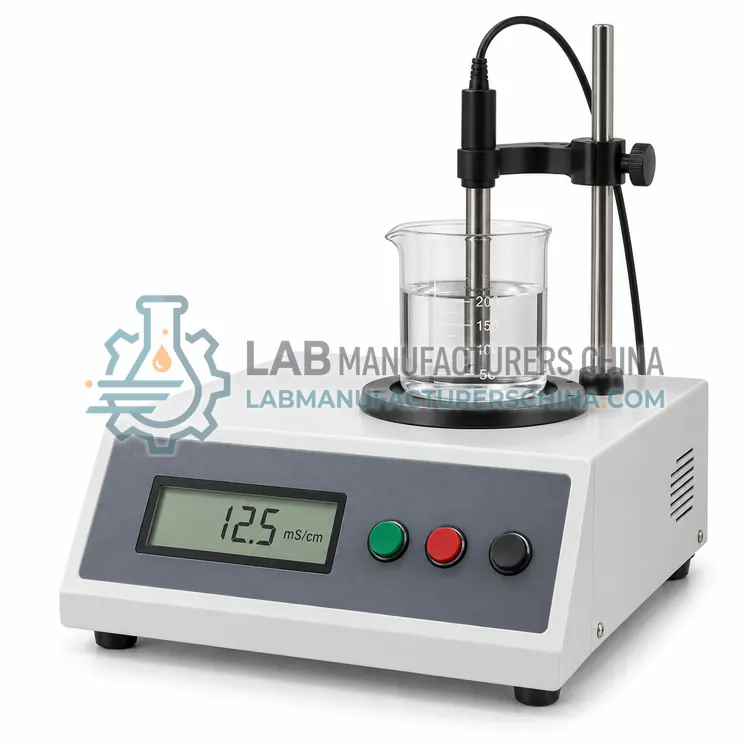

- Online Conductivity Analyzer — An analyzer that measures electrical conductivity of a process liquid with contacting or toroidal sensors to indicate ionic content, concentration or purity.

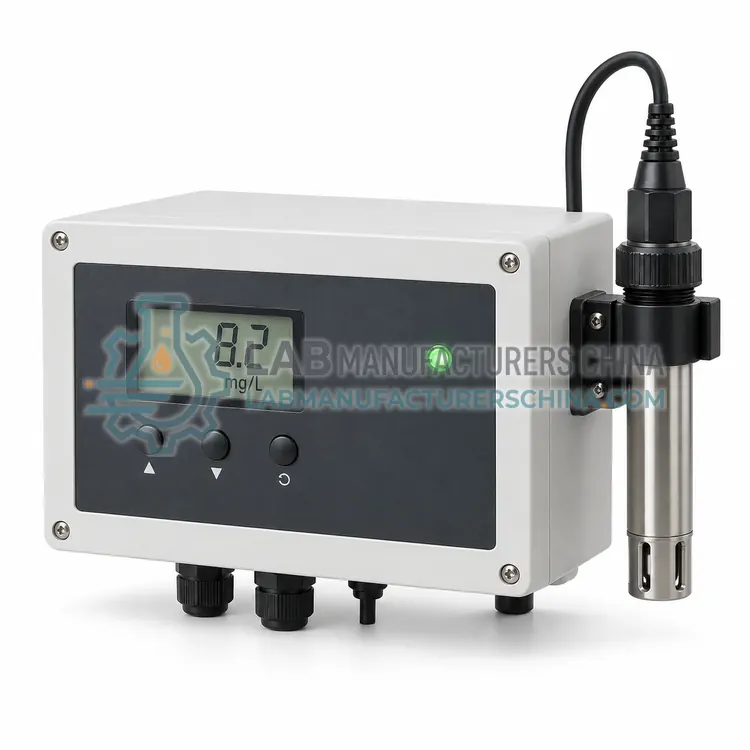

- Online Dissolved Oxygen Analyzer — An analyzer with an optical luminescence or amperometric sensor that continuously measures dissolved oxygen in water or process liquids.
- Online Near-Infrared Process Analyzer — A fiber-coupled or flow-cell NIR spectrometer that measures composition such as moisture, protein, octane or polymer content in real time using chemometric models.

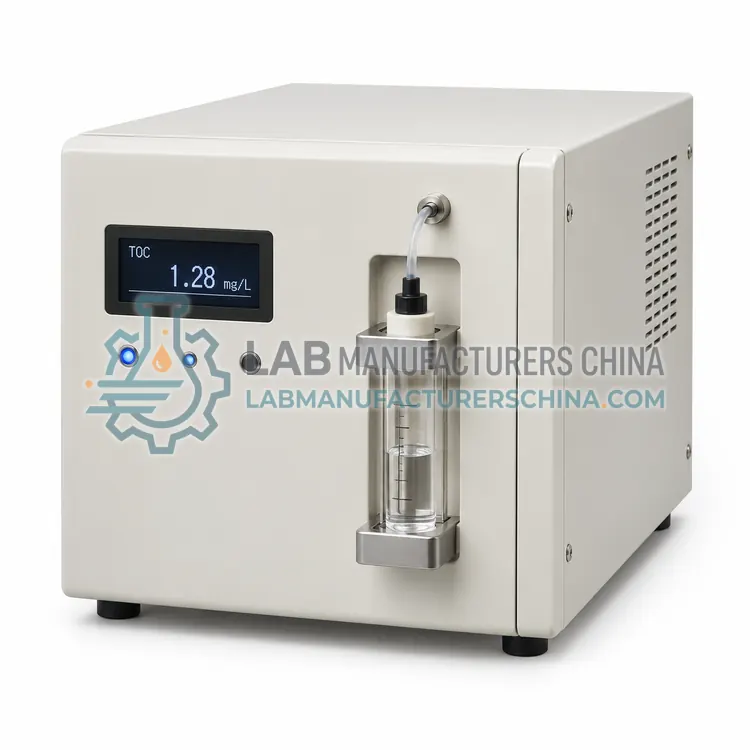

- Online Total Organic Carbon (TOC) Analyzer — An automatic analyzer that oxidizes organic compounds in a water stream and measures the resulting carbon dioxide to report total organic carbon in mg/L or ug/L.
How do I choose the right variant?
Start with the variable that controls product quality or compliance and the response time needed. For ionic or acid-base control, pH and conductivity analyzers are the usual choice. For oxygen-sensitive processes, choose dissolved oxygen. For multi-component composition in real time, near-infrared with a calibrated model fits, while organic contamination in water is measured with TOC. Evaluate process conditions including temperature, pressure, fouling tendency, hazardous area classification and sample conditioning requirements. Compare accuracy, drift, calibration interval, maintenance effort, output protocols and alarm functions. Insertion or flow cell mounting, retractable housings and automatic cleaning matter in dirty streams. Plan a correlation study with laboratory methods before relying on analyzer values for control or release.
Where are Process Analyzers used?
Process Analyzers are specified in chemical reactor and neutralization control, boiler and cooling water monitoring, pharmaceutical and food fermentation control, wastewater discharge compliance and blending and polymer composition monitoring.
Which standards and certifications apply?
Work with Process Analyzers is commonly governed by ISO 9001, IEC 61010-1, IEC 60079-0, ISO 10523, ISO 7888, ISO 8245, ASTM D1125 and ASTM E1655. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install sensors where the sample is representative and flow is continuous, avoiding dead legs, air pockets and stagnant zones. Provide isolation valves or retractable assemblies so sensors can be removed without stopping the process. Calibrate against certified buffers or standards at defined intervals and compare periodically with laboratory results. Cleaning frequency depends on fouling; automatic jet or ultrasonic cleaning reduces manual work. In hazardous areas, select equipment certified to the local explosion protection scheme. Keep spare sensors, reagents and filters on site. Document alarm limits, maintenance tasks and the action to be taken when the analyzer fails, because automatic control loops depend on its signal.
