How do Spectrophotometers work?
These instruments apply the Beer–Lambert law: absorbance at a chosen wavelength is proportional to the concentration of the absorbing species and the optical path length. For most water tests, a reagent converts the analyte into a colored complex, for example indophenol blue for ammonia, molybdenum blue for orthophosphate, DPD for free chlorine and dichromate reduction for COD. A tungsten-halogen or LED source passes light through a monochromator or interference filter, then through a cuvette or vial to a silicon photodiode or array detector. Readings are compared with a blank and a calibration curve to report mg/L. Water-specific models add pre-programmed methods, barcode-recognized reagent vials, digestion blocks and flow cells to reduce manual steps. UV absorbance at 254 nm is also used directly as a surrogate for dissolved organic matter.
Which Spectrophotometers variants are available?
- Visible Spectrophotometer for Colorimetric Water Testing — A single-beam visible-range spectrophotometer covering 340 to 1000 nm, used for reagent-based colorimetric tests on ammonia, phosphate, iron, chlorine and similar parameters.

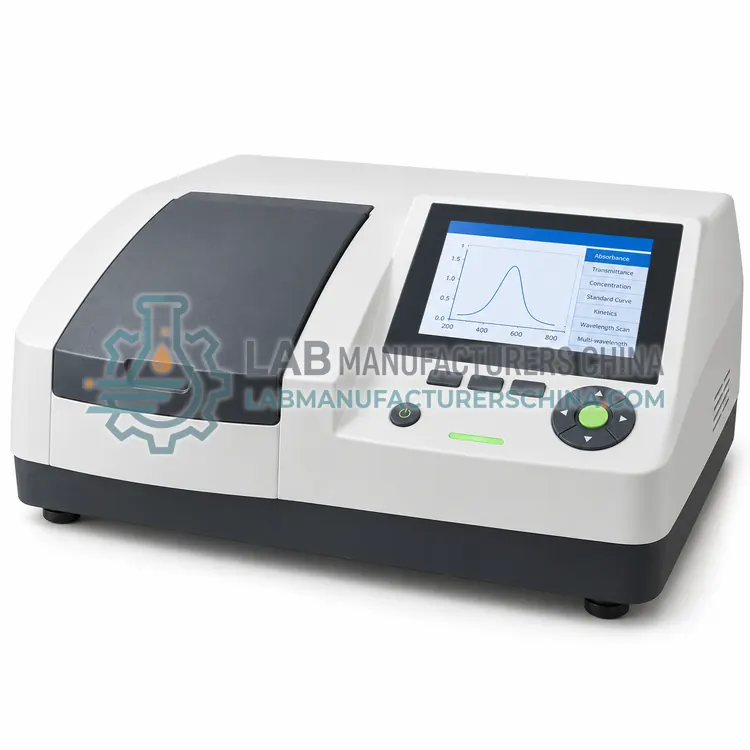

- UV-Vis Spectrophotometer for Water Analysis with Preset Methods — A double-wavelength or scanning UV-Vis spectrophotometer covering 190 to 1100 nm, loaded with preset water methods for nitrate, UV254, COD and color.

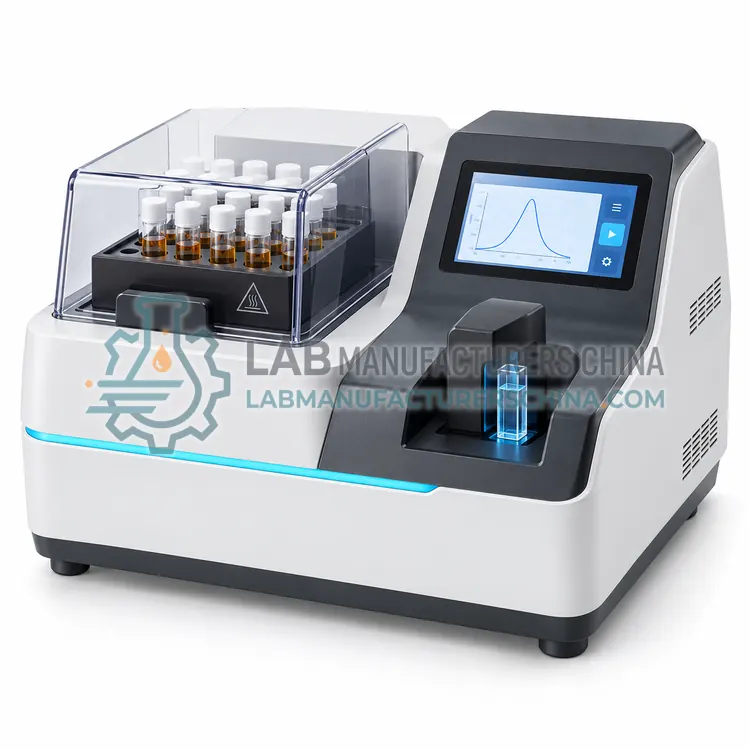

- COD Rapid Analyzer with Digestion Reactor and Photometer — An integrated system combining a thermostatted digestion block and a dedicated photometer for chemical oxygen demand.

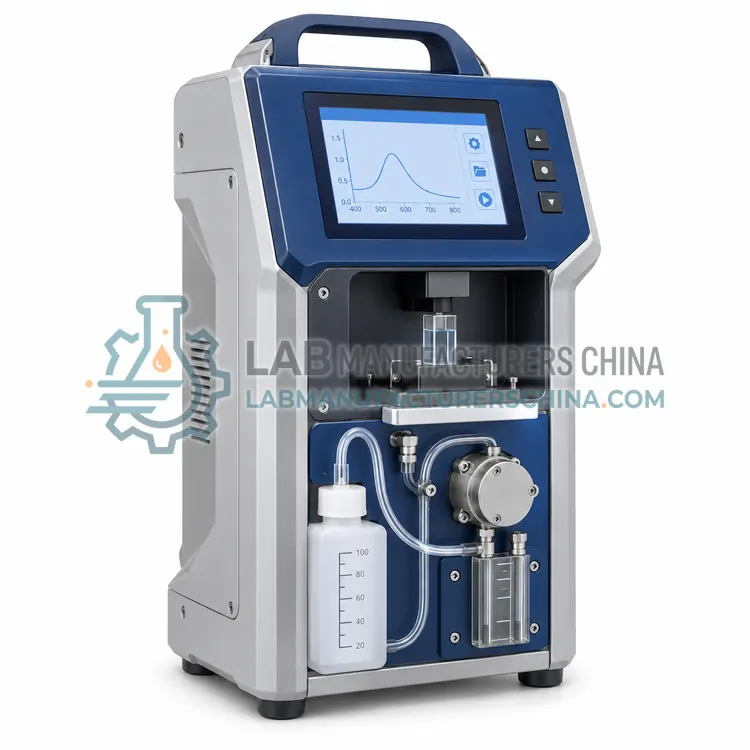

- Portable Spectrophotometer for Field Water Quality Testing — A battery-powered handheld photometer or spectrophotometer with 50 to 100 preset water methods and IP-rated housing.

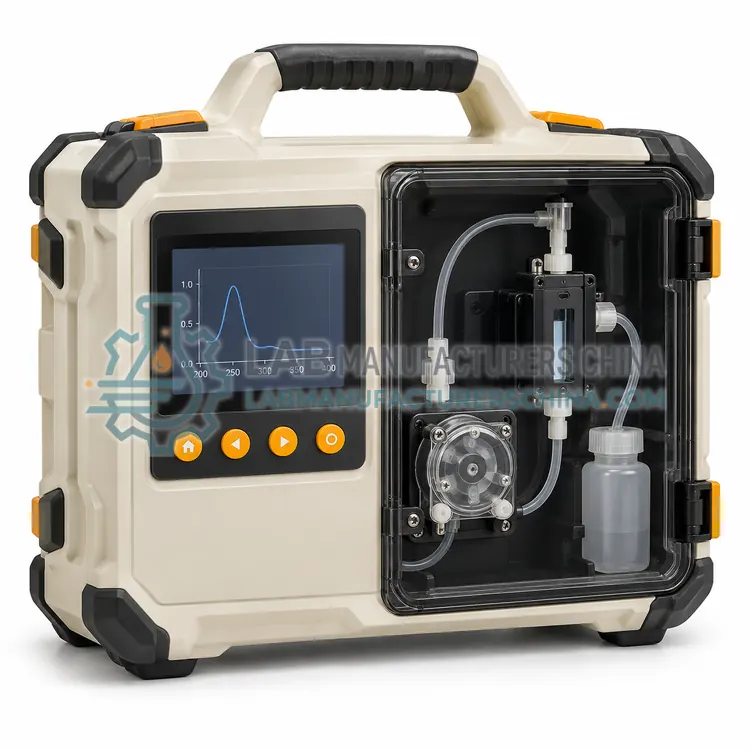

- Online UV Absorbance Analyzer for Organic Load Monitoring — A reagent-free inline analyzer that measures UV absorbance at 254 nm, or full UV spectra, in flowing water.
How do I choose the right variant?
Start from the test list and methods you must run. If you report a handful of colorimetric parameters, a visible-range instrument with pre-programmed methods is sufficient. If you need nitrate, UV254 or other UV-absorbing parameters, choose a UV-Vis model. Match throughput to the format: cuvette-based instruments suit flexible method development, while vial-based systems with barcodes cut errors in high-volume testing. For COD, an integrated digestion reactor and photometer reduces handling. Field teams need battery operation and IP-rated housings. Check wavelength accuracy and photometric stability, because trace-level tests near detection limits demand low noise. Also confirm that reagent chemistries follow recognized methods such as ISO, EPA or HJ and that the supplier can provide traceable calibration standards and validation data.
Where are Spectrophotometers used?
Spectrophotometers are specified in ammonia nitrogen and phosphorus determination, COD testing for wastewater discharge, residual chlorine monitoring in disinfection, iron, manganese and silica in boiler water and color and UV254 screening of organic load.
Which standards and certifications apply?
Work with Spectrophotometers is commonly governed by ISO 7150-1, ISO 6878, ISO 7393-2, HJ 535, HJ 828, HJ 636, USP <857>, JJG 178 and IEC 61010-1. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Warm the lamp as specified and zero with reagent blanks prepared from the same water. Use matched, scratch-free cuvettes or vials, clean the optical windows and keep reagents within expiry and storage temperature. Verify wavelength accuracy and photometric linearity with holmium oxide and neutral-density or potassium dichromate standards at least annually, and run a mid-range check standard with each batch. Dispose of mercury-, chromium- and sulfuric acid-containing reagent waste, particularly from COD digestion, in accordance with local rules. Place the instrument away from direct sunlight, vibration and drafts. Laboratories operating under ISO/IEC 17025 should record lamp hours, calibration dates and control charts.
