How do Slide Preparation Systems work?
A slide preparation system combines sample handling with deposition and, often, downstream slide processing. Depending on the design, it may dilute and mix the sample, deposit a measured volume onto a slide, spread or settle cells into a defined area, dry the slide, transfer it to a stainer and finally apply a coverslip. Many systems use barcode tracking so each sample, slide and reagent event is linked in a record. Motors, syringes or peristaltic pumps move fluid, and heated or ventilated zones control drying. Consistency comes from fixed volumes, timings and motions, which reduce operator-dependent variation. The quality of the output depends on correct sample collection, adequate cell numbers and complete reagent removal, because residual fluid or fixative causes uneven staining and poor adhesion.
Which Slide Preparation Systems variants are available?

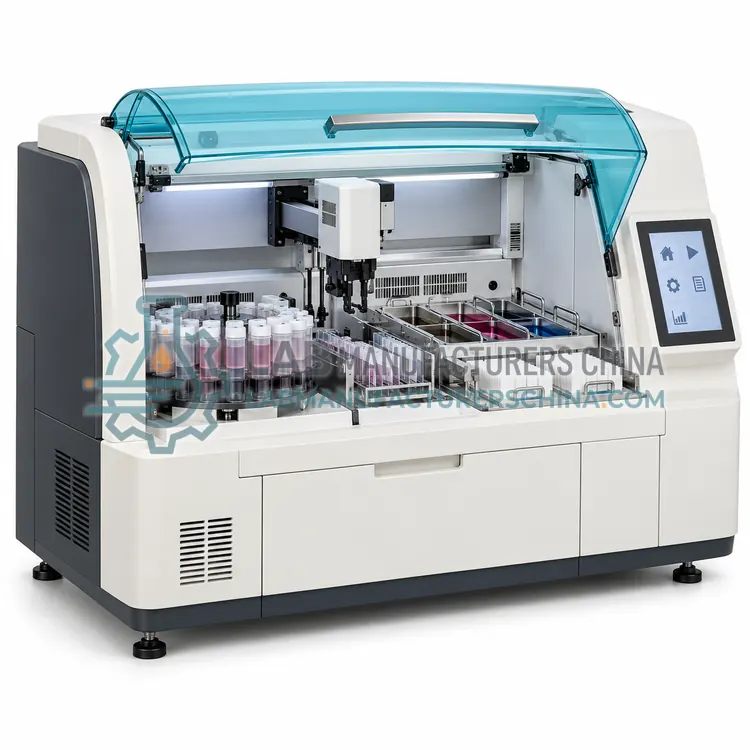

- Automated Cytology Slide Preparation System — An automated cytology slide preparation system performs sample dilution, deposition and slide processing without manual intervention.

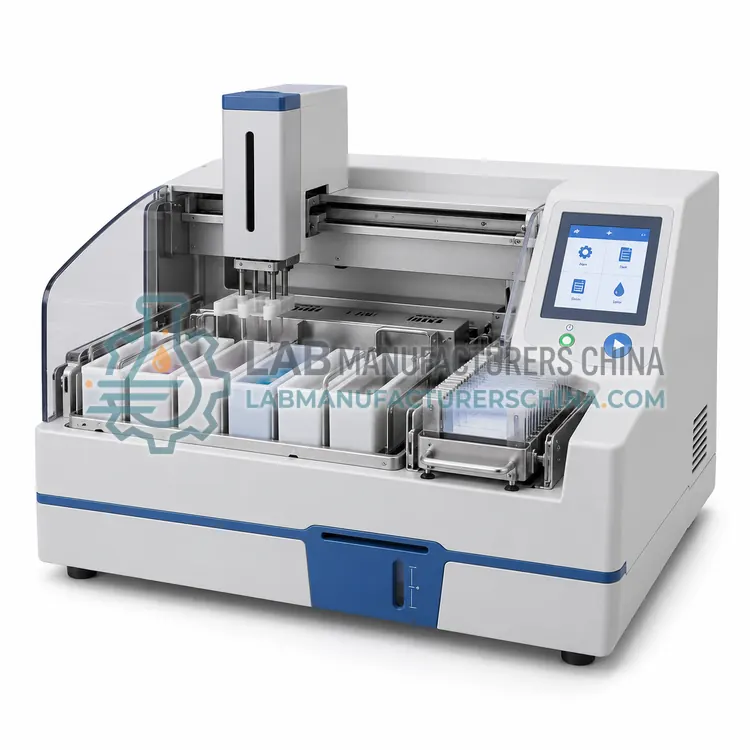

- Semi-Automated Slide Preparation System — A semi-automated slide preparation system automates deposition and drying while the operator selects and loads samples.

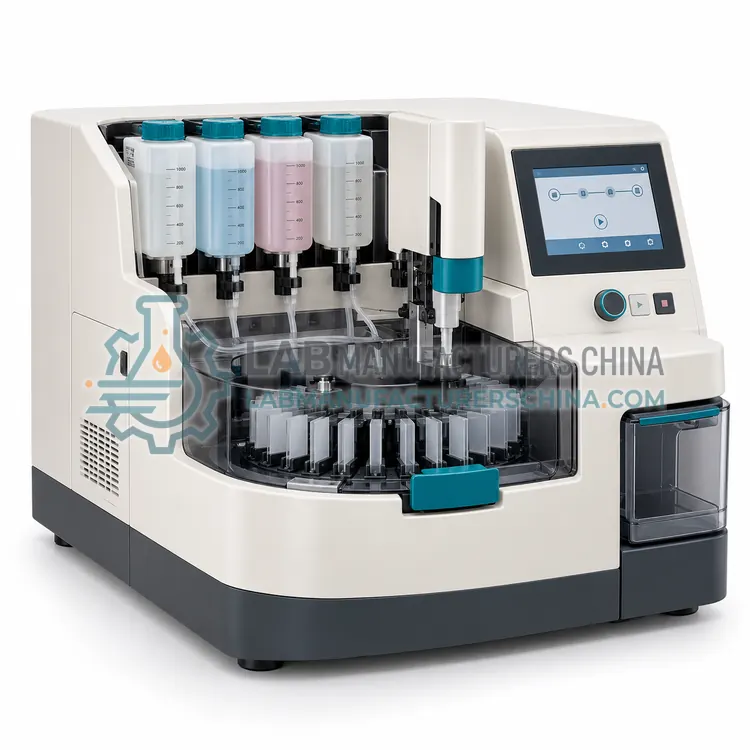

- Liquid-Based Slide Preparation System — A liquid-based slide preparation system disperses a preserved sample and deposits a thin monolayer for cervical and body-fluid cytology.

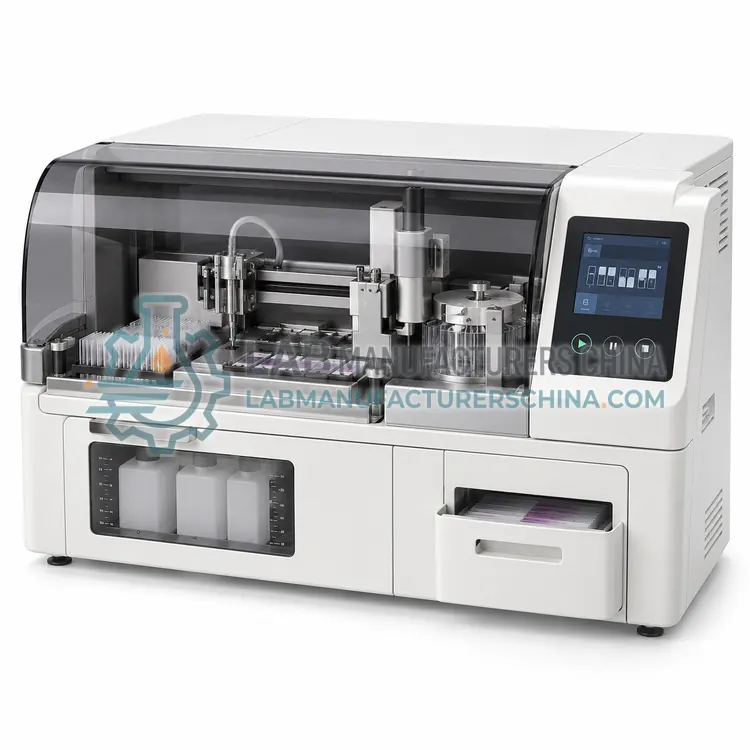

- Slide Preparation System with Integrated Coverslipper — A slide preparation system with an integrated coverslipper deposits cells and then applies a coverslip automatically in one workflow.
- Cell Block Slide Preparation System — A cell block slide preparation system concentrates residual cells into a paraffin block and cuts sections for downstream ancillary testing and archiving.
How do I choose the right variant?
Choose a preparation system by the level of automation you need and the output you must produce. A semi-automated system suits laboratories that want control over sample selection while automating deposition. A fully automated system gives standardised monolayers at throughput, often with integrated staining and coverslipping. Liquid-based systems define the reagent and consumable architecture, while cell block systems target ancillary testing. Compare samples per run, cycle time, spot size, barcode and record capability, consumable cost and compatibility with existing stainers. Check whether the system is open to third-party reagents, and confirm validation, training and service support before committing to a platform.
Where are Slide Preparation Systems used?
Slide Preparation Systems are specified in cytology slide preparation, cervical screening programmes, body fluid cytology, cell block preparation and research monolayer preparation.
Which standards and certifications apply?
Work with Slide Preparation Systems is commonly governed by IEC 61010-1, IEC 61010-2-101, IEC 61326-1, ISO 15189 and CLSI GP41. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install the system on a stable bench with power and, if required, a drain, and keep the working area organised so tubes and slides cannot be mismatched. Follow the specified reagent volumes and timings, since too little fixative causes poor adhesion and too much leaves residue. Clean fluid lines and nozzles on schedule to prevent blockage and carryover, and check that barcodes are readable so records remain complete. Verify performance with control samples and record reagent lot numbers and run conditions. Train staff in safe handling of preservative fluids and in recognising preparation faults, and keep maintenance and quality records for accreditation.
