How do DMA work?
The instrument clamps the specimen in a chosen geometry and applies a sinusoidal stress or strain while measuring the response. Because a viscoelastic material does not respond instantaneously, the strain lags the stress by a phase angle, and the ratio of amplitudes together with that phase angle yields the complex modulus. Its real part is the storage modulus, describing elastic energy stored per cycle; the imaginary part is the loss modulus, describing energy dissipated as heat; and their ratio is the damping factor, tan delta, whose peak defines the glass transition temperature. Measurements are made in single or dual cantilever, three-point bending, tension, compression or shear mode, with the geometry chosen to suit the sample stiffness. Temperature ramps of 0.5 to 5 degrees Celsius per minute, frequency sweeps from 0.01 to 100 hertz, and single or multi-frequency operation allow activation energies, cure profiles and master curves to be derived.
Which DMA variants are available?
- Benchtop Dynamic Mechanical Analyzer — A benchtop dynamic mechanical analyzer applies oscillating loads of up to about 20 newtons across interchangeable clamps, covering bending, tension, compression and shear.
- High-Force Dynamic Mechanical Analyzer — A high-force dynamic mechanical analyzer applies up to several hundred newtons in three-point bending or compression, allowing stiff composites, metals, ceramics and rigid foams to be measured.

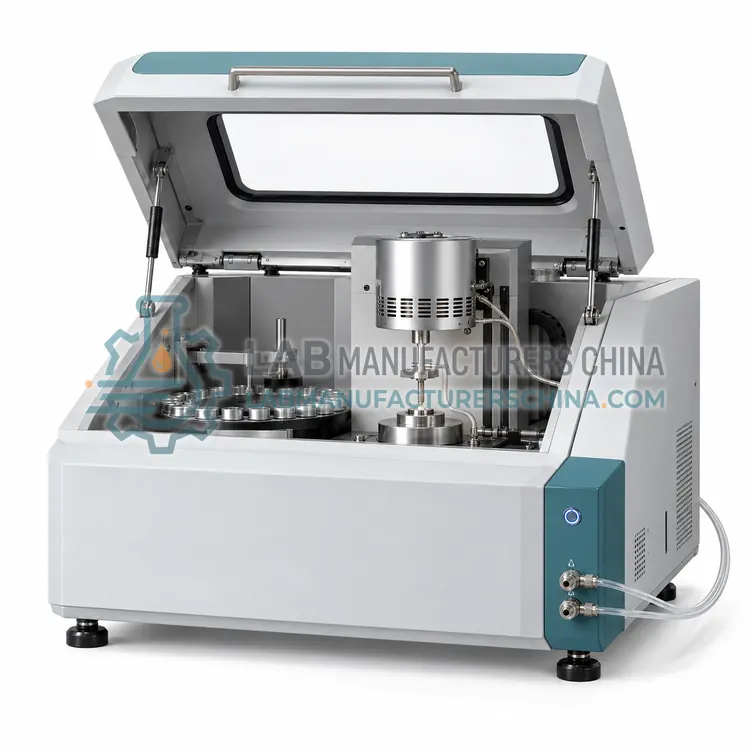

- Film and Fiber Dynamic Mechanical Analyzer — A film and fiber dynamic mechanical analyzer applies very small forces in tension with high displacement resolution, measuring thin films, filaments, fibres, tapes and coatings.
- Humidity-Controlled Dynamic Mechanical Analyzer — A humidity-controlled dynamic mechanical analyzer mounts a humidity generator on the sample chamber, so viscoelastic properties can be measured at defined relative humidity and temperature.

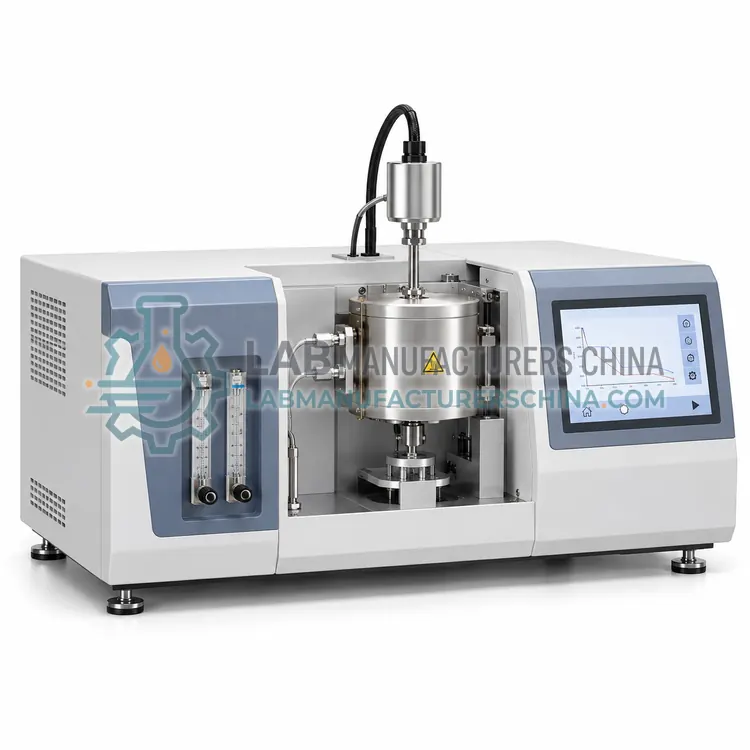

- Submersion Dynamic Mechanical Analyzer — A submersion dynamic mechanical analyzer measures viscoelastic properties of a specimen immersed in liquid or buffer, which is essential for hydrogels, biological tissue and materials that must stay hydrated.
How do I choose the right variant?
Choose the clamping geometry before anything else, because it determines the specimen dimensions and the usable stiffness range: three-point bending suits stiff bars, single and dual cantilever suit medium-modulus plastics and composites, tension suits films and fibres, and compression or shear suit soft gels and foams. Then match the force range to the material: stiffer samples and composites need higher force and a rigid frame, while thin films and gels need very low force with high displacement resolution. Check the temperature range and the cooling system, since liquid nitrogen is needed for sub-ambient glass transitions. Frequency range, multi-frequency capability and the software for master curve generation matter for research, while a simple temperature sweep with specification limits is enough for quality control. For hydrogels, biological samples or humid environments, ensure the instrument can accept a submersion or humidity accessory.
Where are DMA used?
DMA are specified in composite and laminate viscoelastic characterisation, elastomer and rubber compound testing, thermoset cure monitoring, coating and adhesive performance and biomaterial and hydrogel mechanics.
Which standards and certifications apply?
Work with DMA is commonly governed by ASTM D4065, ASTM D5023, ASTM D5024, ASTM D5026, ASTM E1640 and ISO 6721-1. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Specimen geometry must be measured accurately, because modulus depends on the cube of thickness in bending and on cross-sectional area in tension, so a dimensional error is amplified. Clamp the specimen without pre-stress or slippage, verify that the measured stiffness lies in the instrument's reliable range, and check linearity by repeating at a second amplitude. Calibrate the instrument with certified stiffness standards or reference materials and record the geometry, amplitude, frequency and atmosphere for each run. Beware of thermal lag at higher heating rates, which shifts transition temperatures upward, and of clamp expansion that can add apparent strain. For thermosets, run the cure in a multi-frequency mode so gelation and vitrification can be separated. Purge gas is required for measurements above room temperature to avoid oxidation, particularly in elastomers.
