How do GC-MS work?
In GC-MS, a liquid or gas sample is vaporized in a heated inlet and carried by helium or hydrogen through a capillary column, typically 15 to 60 m long with a 0.25 mm internal diameter. Compounds separate according to boiling point and interaction with the stationary phase and elute at characteristic retention times. The column exit feeds an ion source, most often electron ionization at 70 eV, which produces reproducible fragmentation patterns that can be matched against libraries such as NIST. Ions are filtered by a mass analyzer, commonly a quadrupole, and counted by an electron multiplier. Acquisition can run in full scan for identification or selected ion monitoring for higher sensitivity. A turbomolecular pump maintains the high vacuum required in the analyzer.
Which GC-MS variants are available?
- Single Quadrupole GC-MS System — A single quadrupole GC-MS pairs a gas chromatograph with one quadrupole mass filter and an electron ionization source.

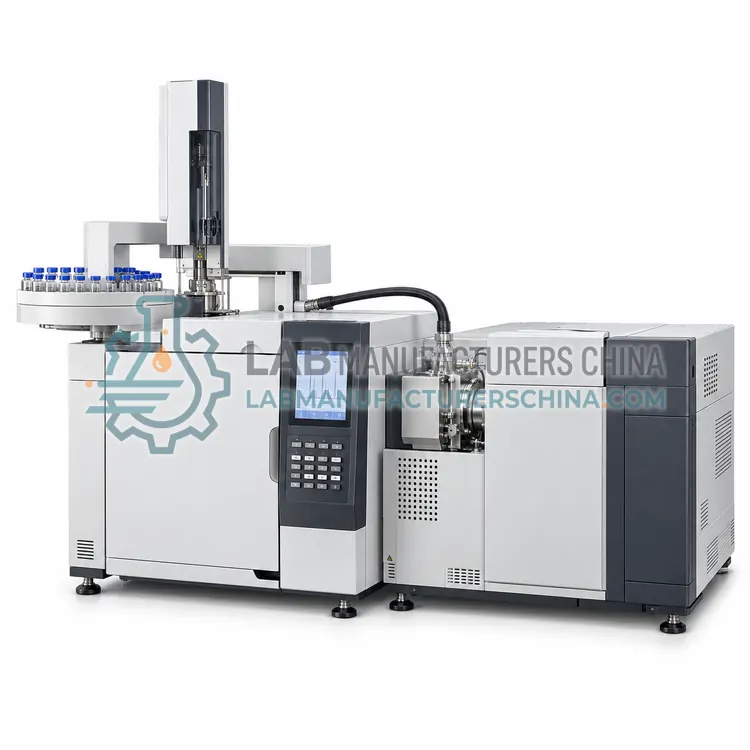

- GC-Triple Quadrupole MS (GC-MS/MS) System — A GC-MS/MS system couples a gas chromatograph to a triple quadrupole, using multiple reaction monitoring to cut chemical noise.

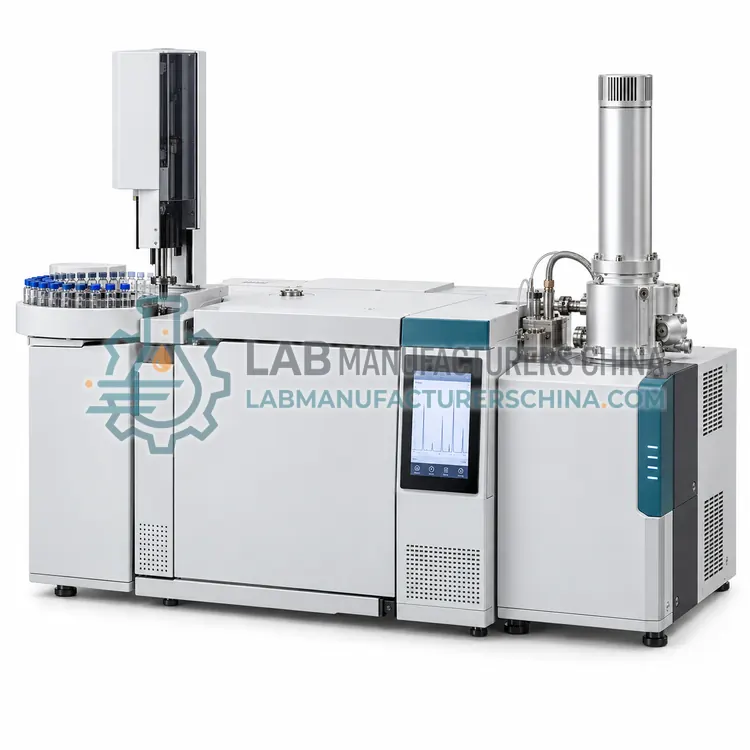

- GC-TOF MS System — A GC-TOF MS pairs a gas chromatograph with a time-of-flight analyzer that records full spectra at very high acquisition rates.

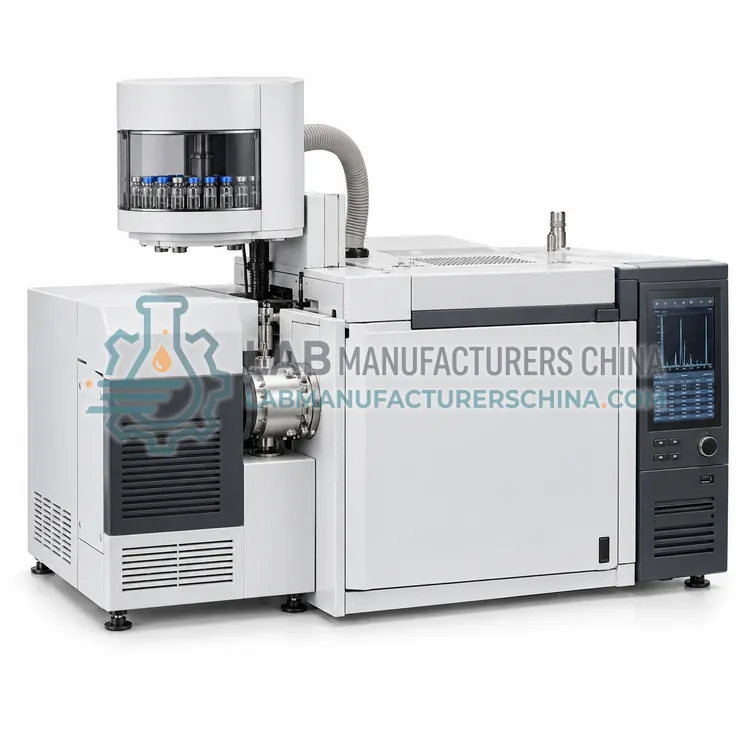

- Headspace GC-MS System — A headspace GC-MS combines an automated headspace sampler with a GC-MS so that volatile compounds are analyzed from the vapor phase above a sample.

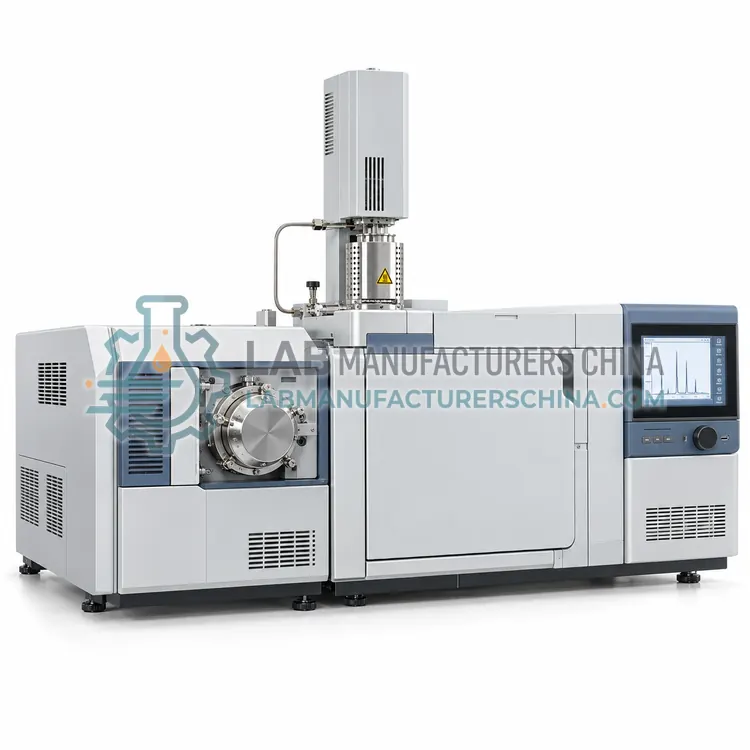

- Pyrolysis GC-MS System — A pyrolysis GC-MS thermally decomposes solid or polymeric samples in an inert atmosphere and sends the fragments to a GC-MS for identification.
How do I choose the right variant?
Select a GC-MS by matching the detector to the task. A single quadrupole is the economical choice for routine identification and quantitation of residues, volatiles and unknowns using library matching. A triple quadrupole configuration is needed when matrix interference limits sensitivity, as in pesticide multi-residue or dioxin-related work. Time-of-flight offers fast acquisition and accurate mass for non-targeted screening. Headspace and pyrolysis configurations suit specific sample types without solvent extraction. Check the scan speed, mass range, source cleanliness tolerance, and whether the ion source can be changed without venting. Verify support for helium alternatives such as hydrogen, autosampler capacity, and library and data-integrity software. Ask vendors for detection-limit data, such as octafluoronaphthalene instrument detection limit, measured on the exact configuration quoted.
Where are GC-MS used?
GC-MS are specified in environmental VOC and semi-volatile analysis, pesticide residue testing in food, forensic toxicology and drug screening, flavor and fragrance profiling, petrochemical hydrocarbon characterization and residual solvent analysis in pharmaceuticals.
Which standards and certifications apply?
Work with GC-MS is commonly governed by EPA Method 8270, EPA Method 524.2, EPA Method 8260, ASTM D5769, USP <467> Residual Solvents, ISO 11423, EN 15662, ISO/IEC 17025 and IEC 61010-1. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install the GC-MS on a level bench with a dedicated power outlet, a vented exhaust for the rotary pump, and stable room temperature. Use high-purity carrier gas of at least 99.999 percent with moisture and oxygen traps, since contamination shortens column and filament life. Perform an autotune with perfluorotributylamine before each batch and verify mass accuracy and isotope ratios. Routine maintenance includes replacing inlet liners, septa and gold seals, trimming the column, cleaning the ion source and changing pump oil. Keep leak checks in the daily routine, as air peaks at m/z 28 and 32 indicate a leak. Regulated laboratories should require audit trails, electronic signatures and access control that support 21 CFR Part 11.
