How do Hardness Testers work?
A hardness tester compresses a tablet diametrically between a stationary anvil and a moving jaw while a load cell records force. Force rises until the tablet fractures, and the peak value is reported as breaking force in newtons (or kgf, SCU). Manual designs use a spring or screw; motorized testers drive the jaw at a constant rate of typically 0.5–3 mm/s for operator-independent results. Multi-parameter testers add a displacement sensor to measure thickness and diameter, and some add a balance for weight. Tensile strength for flat round tablets equals 2F/(πDH), which normalizes hardness for size. Hardness depends on compression force, binder, moisture content and tablet geometry. The load cell is calibrated against traceable force standards per ISO 7500-1, and the loading rate and tablet orientation must be fixed in the method to ensure comparability.
Which Hardness Testers variants are available?
- Manual Tablet Hardness Tester — A manual tablet hardness tester crushes a tablet between a fixed anvil and a jaw advanced by a hand-operated screw or spring mechanism, and reads breaking force on a dial or scale.

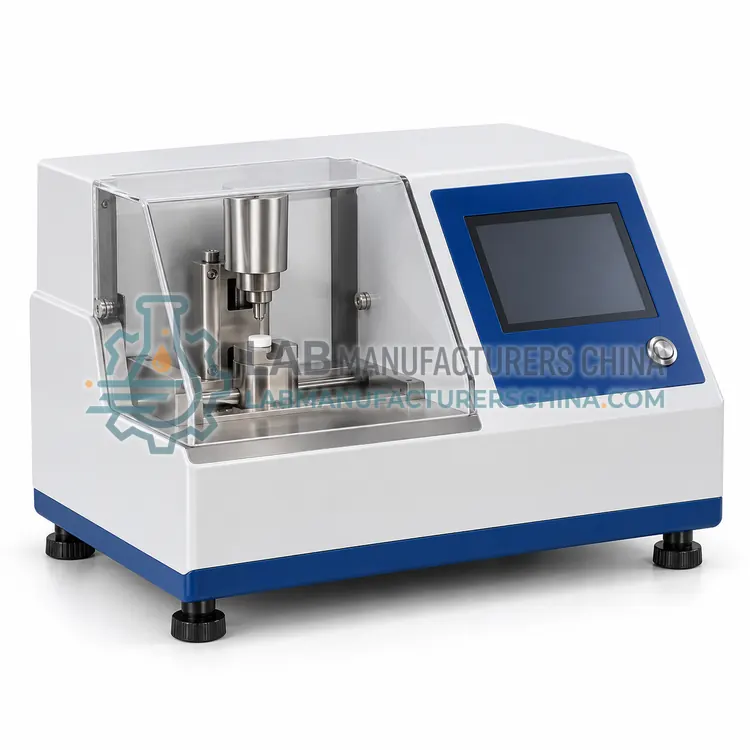

- Motorized Digital Tablet Hardness Tester — A motorized digital tablet hardness tester advances a jaw at a constant speed, typically 0.5–3 mm/s, and records peak breaking force on a load cell with digital display.

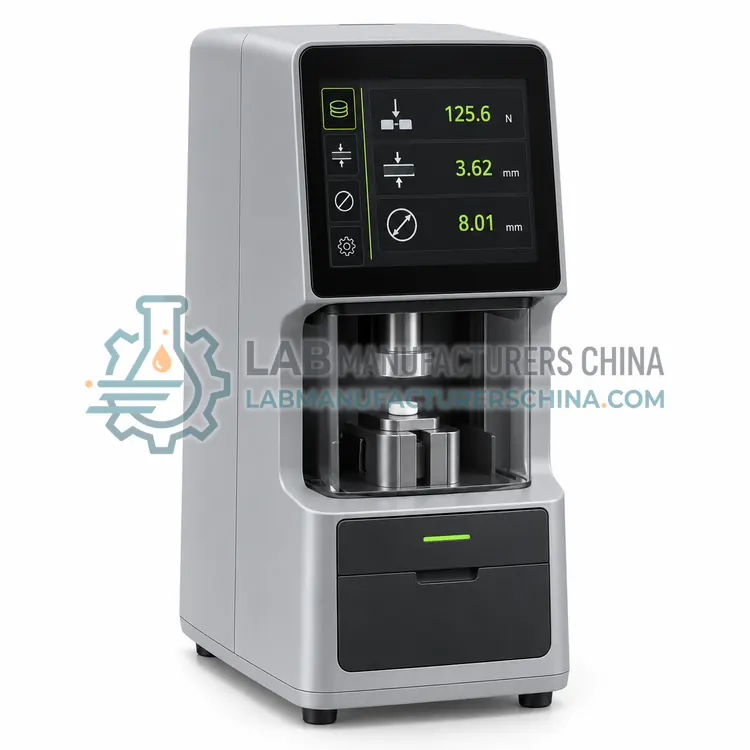

- Multi-Parameter Tablet Tester (Hardness, Thickness, Diameter) — A multi-parameter tablet tester measures hardness, thickness and diameter on the same tablet in a single sequence, often with an added weighing module.

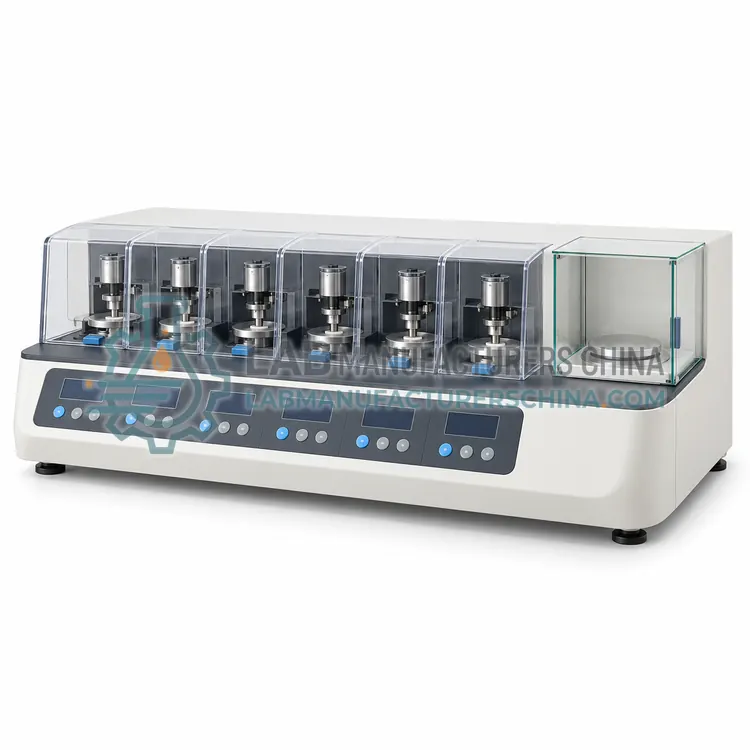

- Automated Tablet Testing System with Balance — An automated tablet testing system feeds tablets from a hopper or tray through weighing, thickness, diameter and hardness stations without operator handling.

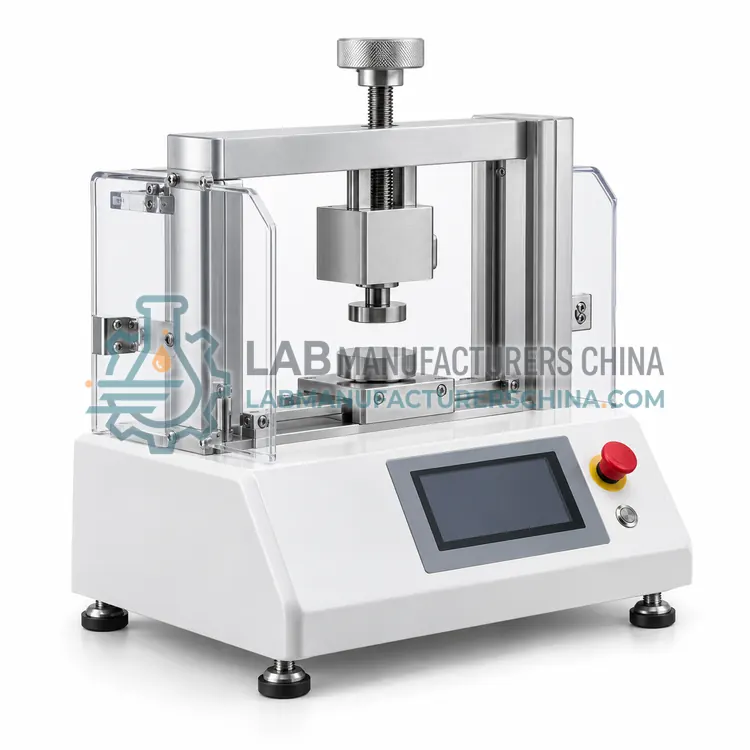

- Large Tablet and Bolus Hardness Tester — A large tablet and bolus hardness tester extends the force range to 500–1000 N and the jaw opening to over 50 mm for veterinary boluses, effervescent tablets, chewables and compressed nutritional tablets.
How do I choose the right variant?
Decide first whether you need manual spot checks or repeatable QC data. Manual testers suit press set-up and teaching; motorized digital testers suit release and validation work with constant loading speed and records. Choose a multi-parameter tester when thickness, diameter, weight and tensile strength are also required, and an automated system for high sample volume or press integration. For boluses and large tablets specify a 1000 N or greater capacity. Key parameters are force range, resolution (0.1 N for small tablets), accuracy, loading speed, tablet diameter range, statistics, data output and compatibility with 21 CFR Part 11 if regulated. Verify that the supplier provides force calibration certificates traceable to national standards.
Where are Hardness Testers used?
Hardness Testers are specified in tablet compression control, QC release testing, formulation development, press validation and coating suitability assessment.
Which standards and certifications apply?
Work with Hardness Testers is commonly governed by USP <1217>, Ph. Eur. 2.9.8, USP <1216>, ISO 7500-1, ASTM E4, ChP 0931 and USP <905>. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install the tester on a stable bench away from vibration. Verify force with traceable weights or a reference load cell at installation and at least annually, plus after overload events. Clean anvils and jaws to remove powder that can affect contact, and inspect them for wear. Use consistent tablet orientation and loading speed, test at least ten tablets, and allow tablets to equilibrate to room temperature and humidity. Record units clearly, because kgf and N are both used. For regulated laboratories, include the tester in IQ/OQ and calibration schedules and maintain audit-trail records for electronic data.
