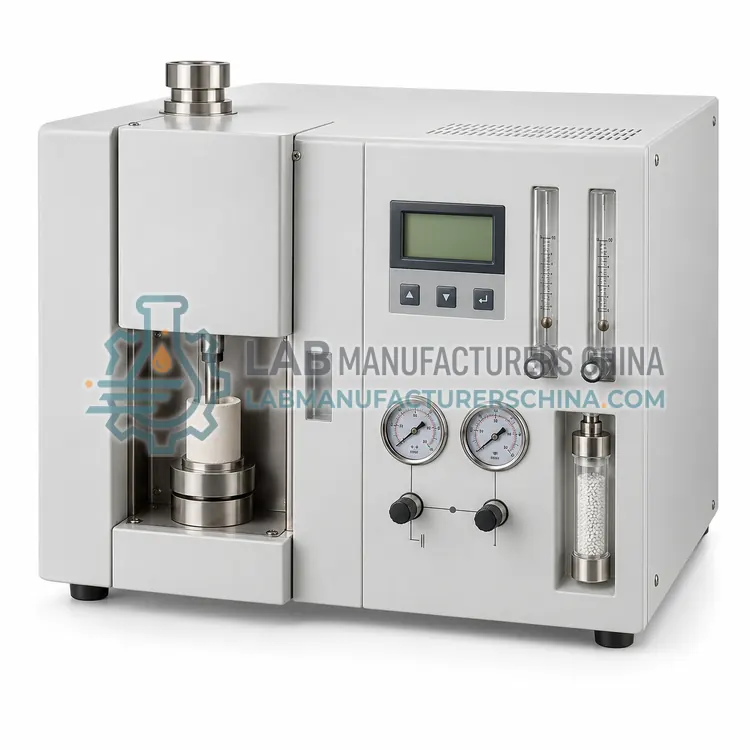

Combustion Carbon-Sulfur Analyzer for Metals

What is the Combustion Carbon-Sulfur Analyzer for Metals?

A combustion carbon-sulfur analyzer burns a weighed metal sample with an accelerator in an oxygen stream and measures the carbon dioxide and sulfur dioxide released with infrared cells. It covers carbon and sulfur to mg/kg levels.

Overview

The sample, usually chips or a small pin, is weighed into a ceramic crucible with a combustion accelerator such as tungsten, iron chip or tin, and placed in an induction or resistance furnace. Oxygen sweeps through the crucible, the metal melts and carbon and sulfur oxidise to carbon dioxide and sulfur dioxide, which are carried through dust and moisture traps to infrared cells. Two or four cells allow simultaneous or sequential measurement, and integration of the detector signal during the combustion period gives the mass of each element. Calibration uses certified steel, cast iron or alloy standards, and a control sample is run at intervals to detect drift. Because the analytical mass is small, chip preparation, cleanliness and the choice of accelerator must be consistent, and crucibles and tungsten from the accelerator produce blanks that affect the low-level performance.

How does it work?

Spark optical emission spectrometry is the workhorse for solid metal. An argon-shielded electric discharge vaporises and excites atoms at the sample surface, the emitted light is dispersed by a spectrometer, and intensities are converted to concentrations using calibrations built from certified reference materials of similar composition. X-ray fluorescence offers the same idea without the need for a conductive, flat surface: a beam excites inner-shell electrons, and the characteristic fluorescence identifies and quantifies elements, which makes handheld units useful for alloy sorting. Carbon, sulfur, oxygen, nitrogen and hydrogen are not accessible to optical emission at low levels and are determined by combustion or inert gas fusion: the sample melts in a crucible under a stream of oxygen or inert gas, gases are released and measured by infrared cells or thermal conductivity. Inductively coupled plasma optical emission spectrometry is used after acid dissolution for trace elements and for certification work. All these techniques depend on calibration, matrix matching and clean, representative samples.

What are the key features?

• Induction or resistance furnace with oxygen flow control
• Two or four infrared cells for carbon and sulfur
• Dust and moisture traps protecting the detectors
• Accelerator dosing for reliable combustion
• Calibration with certified metal reference materials
• Control sample verification at set intervals

What are the technical specifications?

A typical combustion carbon-sulfur analyzer for metals configuration offers carbon range of 0.0005–6 %, sulfur range of 0.0005–1 %, sample mass of 0.2–1 g chips, furnace temperature of Induction, 1800–2200 °C in the crucible, detectors of NDIR cells for CO2 and SO2 and analysis time of 40–90 s per sample. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Combustion Carbon-Sulfur Analyzer for Metals is used in carbon and sulfur control in steelmaking, verification of low-carbon and ultra-low-carbon steels, cast iron and ferroalloy carbon determination and certification of reference materials. Across the wider Metal Analysis class, laboratories also deploy it for steel and alloy grade verification, foundry melt control and charge optimisation and positive material identification of installed parts.

Which standards and certifications apply?

Relevant standards and methods include ASTM E415, ASTM E1086, ASTM E1019, ASTM E1479, ISO 14284, ASTM E1806 and IEC 61010-1. Certification candidates for this model are CE and ISO 9001 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Everything depends on calibration and reference materials, so keep a set of certified standards covering each element range and renew them before they expire. Condition the sample surface correctly: machined for spark emission, flat and clean for X-ray fluorescence, uncontaminated chips for combustion. Reference the instrument daily with a control sample and confirm drift before releasing results. Maintain gas supplies at the specified purity, since moisture and oxygen in argon degrade spark stability, and check crucibles, electrodes, filters and reagents on a schedule. Control contamination between samples: clean the spark stand, change crucibles and use new tools. Radiation and laser safety programs, fume extraction for acid digestion and safe handling of compressed gases are part of normal operation, and records of calibration, verification and maintenance should travel with the results.

How do I select the right Combustion Carbon-Sulfur Analyzer for Metals?

Select the combustion analyzer when carbon and sulfur are specified elements, and check the low-level detection limits and the reference materials supplied. Include chip preparation equipment, accelerators, crucibles and crucible tongs in the purchase, and plan for a control sample routine.

How does it compare with other Metal Analysis variants?

Decide from the elements, the levels and the sample form. For production control of solid metal, spark optical emission gives fast multi-element results from a machined surface and is the usual choice, with the spectrometer configuration matched to the base metals and element ranges you analyse. Combustion and inert gas fusion instruments are required when carbon, sulfur, oxygen, nitrogen or hydrogen form part of the specification, and they need their own sample preparation and reference materials. Handheld X-ray fluorescence suits incoming inspection, alloy sorting and positive material identification on installed parts, but cannot measure carbon or low atomic number elements and needs careful radiation management. Inductively coupled plasma is preferred for trace and tramp elements, for non-routine matrices and for validating other methods. Check detection limits, the number of elements and channels, calibration standards available, argon or gas supply and service support before committing.
