How do Vacuum Ovens work?
A vacuum oven removes air from a sealed chamber with a pump, lowering the boiling point of water and solvents so evaporation proceeds quickly at moderate temperature. The chamber is a thick-walled vessel, usually stainless steel, with a reinforced door, silicone or fluororubber gasket and a transparent window. Heating comes from elements in the walls, a water or oil jacket, or heated shelves, so most heat reaches the sample by conduction and radiation rather than convection. A Pt100 sensor and PID controller hold the setpoint, while a vacuum gauge or sensor displays chamber pressure. Cold traps, solvent recovery units and inert-gas purge connections can be added for solvent-laden samples. The mild cycle protects thermolabile and easily oxidized materials.
Which Vacuum Ovens variants are available?
- Benchtop Vacuum Drying Oven — A benchtop vacuum drying oven is a compact chamber for drying small batches under reduced pressure.

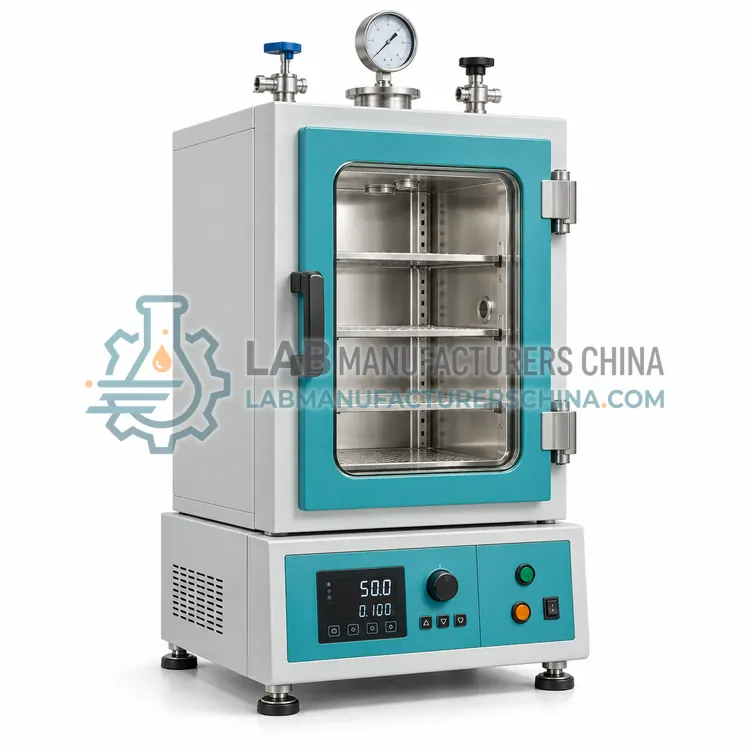

- Vertical Vacuum Drying Oven — A vertical vacuum drying oven uses a tall chamber with stacked shelves to dry taller or larger batches under reduced pressure.

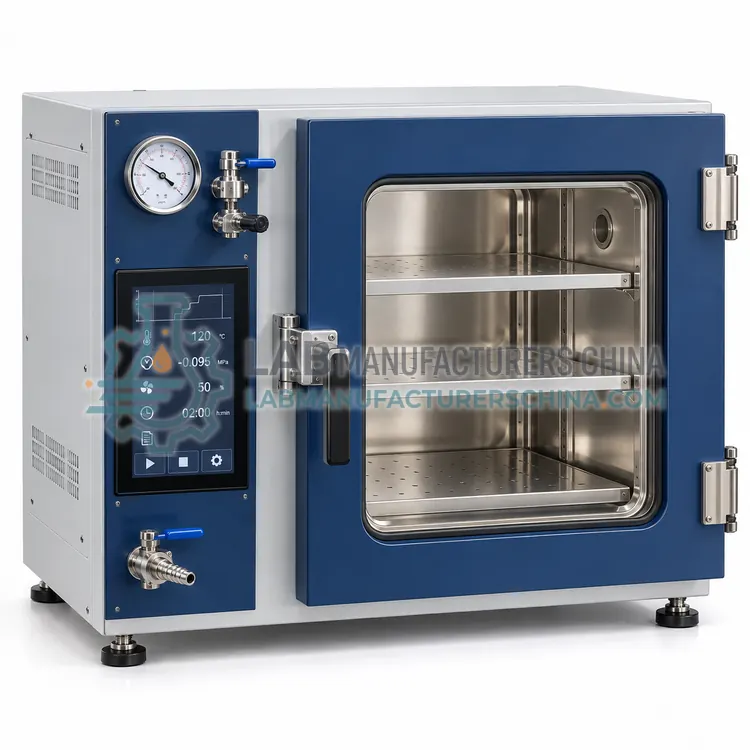

- Programmable Vacuum Drying Oven — A programmable vacuum drying oven stores multi-step temperature, vacuum and time profiles so drying cycles can be repeated exactly.

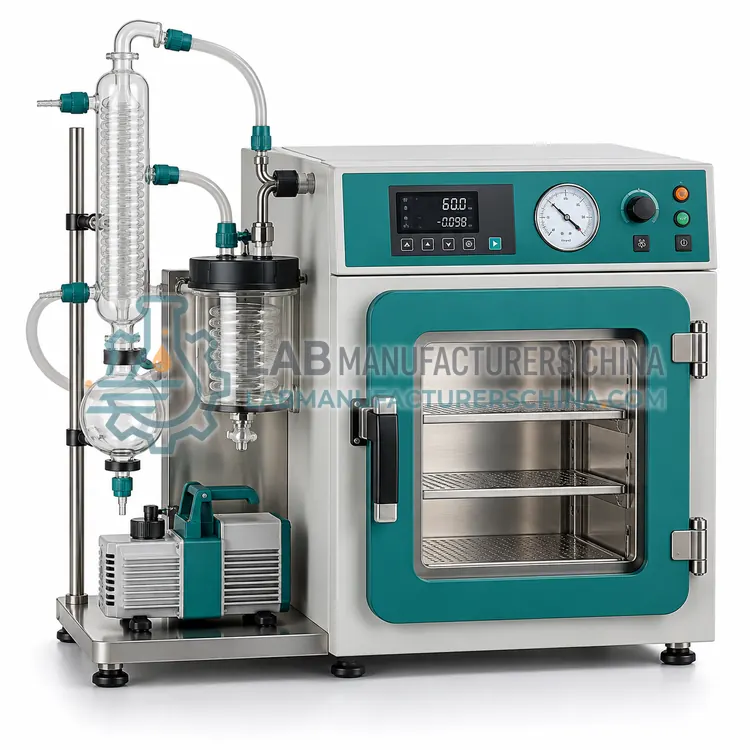

- Solvent Recovery Vacuum Drying Oven — A solvent recovery vacuum drying oven captures evaporated solvent in a cold trap or condenser instead of releasing it to the pump.

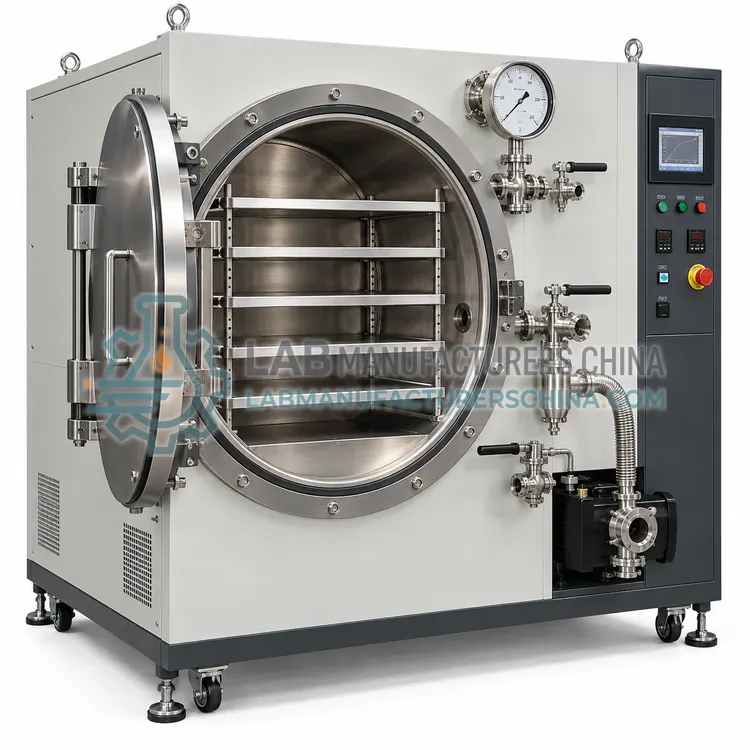

- Large-Capacity Vacuum Drying Chamber — A large-capacity vacuum drying chamber provides hundreds of liters of heated vacuum space for bulk loads, trays and palletized batches.
How do I choose the right variant?
Choose a vacuum oven when the sample degrades at the drying temperature, oxidizes in air, or contains a solvent that must be recovered. Start with chamber volume and shelf area against batch size, then set temperature range, usually up to 200 or 250 C, and the required ultimate vacuum, from about 133 Pa for general drying to below 10 Pa for demanding work. Decide whether you need heated shelves for better conduction or a jacket-heated chamber. Check the gasket and window material if aggressive solvents are used, and specify a cold trap or solvent recovery unit. Confirm pump compatibility, controller profile, safety interlocks and electrical supply.
Where are Vacuum Ovens used?
Vacuum Ovens are specified in heat-sensitive powder drying, degassing of liquids and resins, drying electronic and optical components, solvent removal with recovery, preparation of biological and pharmaceutical samples and moisture determination support.
Which standards and certifications apply?
Work with Vacuum Ovens is commonly governed by IEC 61010-1, IEC 61010-2-010, DIN 12880, ISO 9001 and GB/T 30435. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Vacuum ovens need a compatible pump, usually a rotary-vane or dry pump, and for solvent work a cold trap to protect the pump and recover vapour. Never use a vacuum oven as a pressure vessel, and never open the door until the chamber is vented to atmosphere. Place the oven on a stable surface with pump clearance and route exhaust safely. Calibrate temperature and verify vacuum tightness periodically, checking the door gasket for wear and replacing it as needed. Clean shelves and chamber after solvent use, and keep a log of pump oil changes or dry-pump service.
