How do Drying Ovens work?
A drying oven uses resistance heating elements placed at the bottom, sides or back of an insulated chamber. A temperature sensor, usually a Pt100 or thermocouple, feeds a PID controller that switches the heaters to hold the setpoint. In gravity or natural-convection designs, warm air rises and circulates passively, which gives gentle heating and little disturbance of powders. Forced-convection designs add a fan for uniformity, but the models in this category are generally natural-convection or fan-assisted for routine use. Moisture evaporates from samples and leaves through adjustable vents in the top or rear. Chamber walls are stainless steel or coated steel, insulated with mineral wool or ceramic fiber, and the door has a silicone gasket. An independent over-temperature limiter cuts power if the control fails.
Which Drying Ovens variants are available?
- Natural Convection (Gravity) Drying Oven — A natural convection drying oven heats by passive air circulation without a fan.
- Stainless Steel Chamber Drying Oven — A stainless steel chamber drying oven has a 304 or 316 stainless interior and stainless shelves for corrosion resistance and easy cleaning.

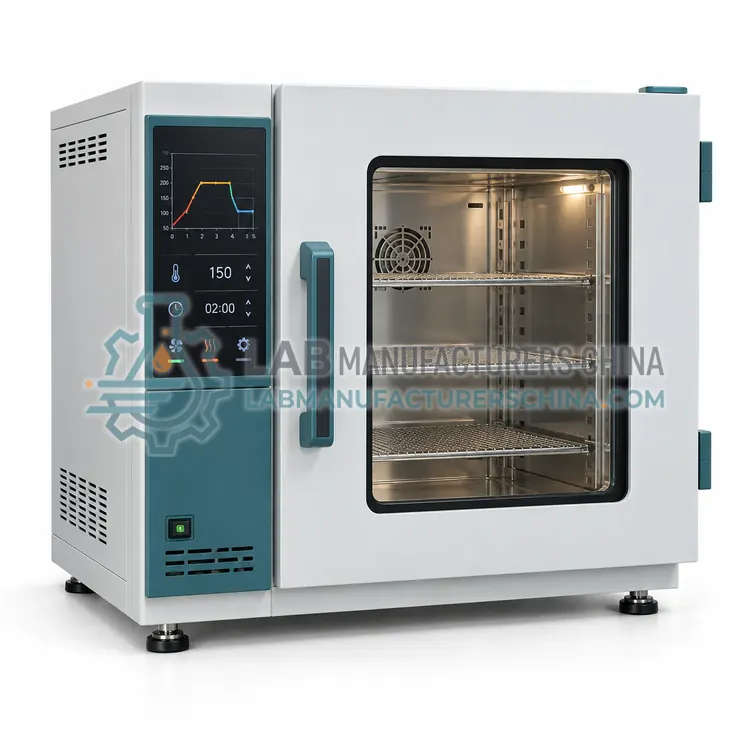

- Programmable Drying Oven with Ramp-Soak Control — A programmable drying oven stores multi-segment temperature profiles with ramp, soak and cool steps.

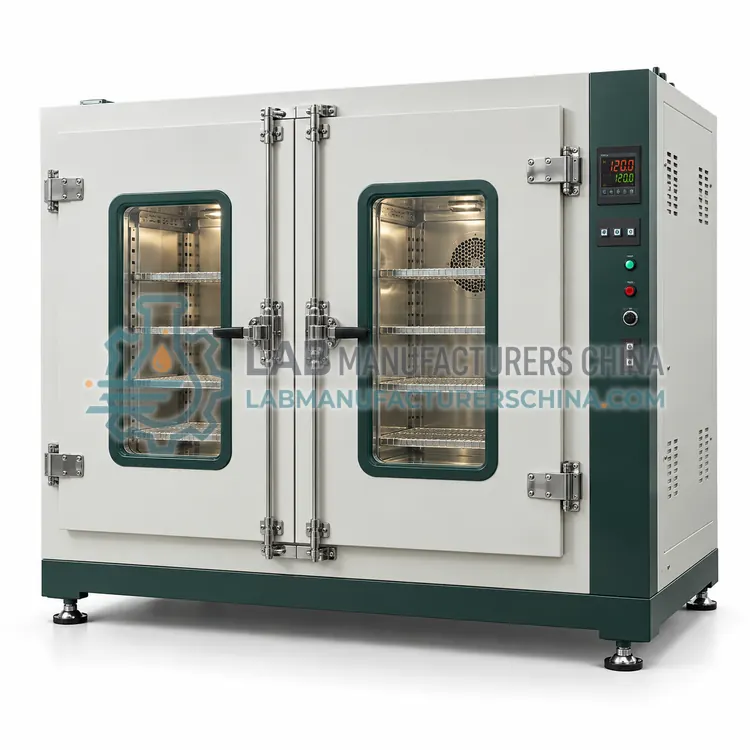

- Large-Capacity Drying Oven — A large-capacity drying oven offers 500 to 1,000 liters or more of chamber volume with many shelves or a trolley for batch drying.
- Benchtop Mini Drying Oven — A benchtop mini drying oven has a compact chamber of 9 to 30 liters and temperatures up to 200 or 250 C.
How do I choose the right variant?
Start with chamber volume, since it sets throughput and footprint, typically 30 to 500 liters. Then set the temperature range with a margin above the highest working temperature, and verify uniformity at that temperature, often ±1 to ±5 C. Choose natural convection for fine powders and light materials, and fan-assisted types for faster recovery and uniform temperature. Specify interior material, with 304 stainless steel preferred for clean applications. Consider controller type, whether a simple digital controller or a programmable one with timers and ramp segments. Check safety features such as over-temperature protection. For regulated laboratories, evaluate documentation and calibration options, including sensor ports for mapping. Finally confirm electrical supply and whether shelves, trays or extra ports are needed.
Where are Drying Ovens used?
Drying Ovens are specified in glassware drying, sample moisture removal, sterilizing heat-stable items, material aging and conditioning, sample preheating and baking of coatings.
Which standards and certifications apply?
Work with Drying Ovens is commonly governed by IEC 61010-1, IEC 61010-2-010, DIN 12880, EN 60519-1, ASTM E145, GB/T 30435 and ISO 9001. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Place the oven on a stable, non-combustible surface with at least 15 to 30 cm clearance on all sides for ventilation. Do not heat flammable solvents, explosive materials or sealed containers, since standard ovens have ignition sources and no explosion relief. Keep loads to no more than about 70 percent of shelf area to allow airflow, and do not block vents. Use vented exhaust where fumes are produced. Calibrate temperature using a reference probe at set intervals, and map uniformity when needed. Allow warm-up and recovery times after door openings. Wear heat-resistant gloves, and let the oven cool before cleaning. Inspect gaskets, vents and the over-temperature limiter regularly and keep service records.
