How do Slide Stainers work?
A slide stainer performs a sequence of steps on cut tissue sections. Paraffin is removed with xylene or a substitute, the slides are rehydrated through graded alcohols to water, stained with hematoxylin, differentiated and blued, counterstained with eosin, then dehydrated and cleared for coverslipping. In dip-and-dunk systems a robotic arm or carousel carries slide racks between reagent stations with programmed times, agitation and drying. Reagent-dispensing systems instead apply small volumes of antibody or stain to each slide in a temperature-controlled chamber, which suits immunohistochemistry. Key components are the transport mechanism, reagent containers, heaters, wash stations, fume control and a controller that stores protocols and logs reagent use. Consistent timing and temperature give reproducible staining intensity.
Which Slide Stainers variants are available?

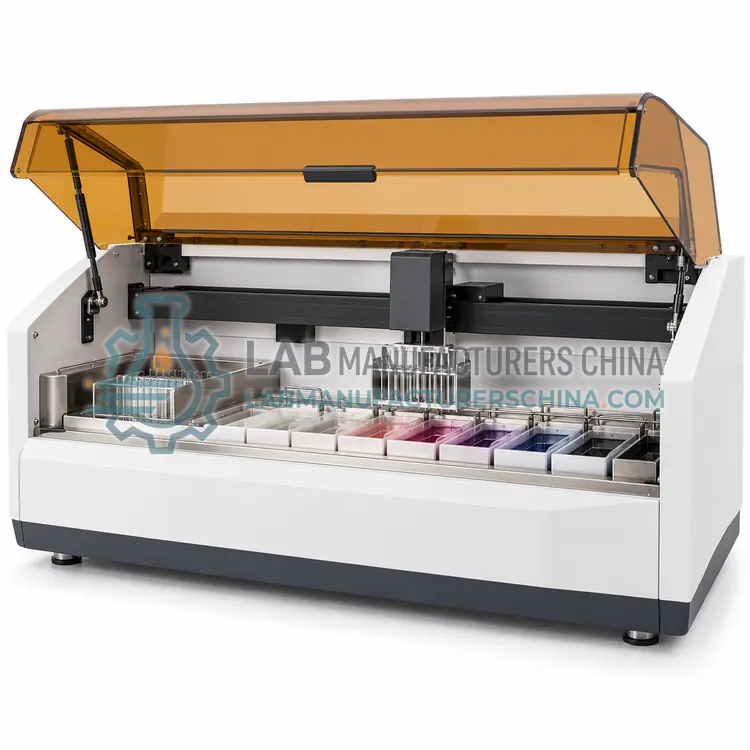

- Linear Dip Slide Stainer — A linear dip slide stainer transports racks of slides along a row of reagent stations with a robotic arm, following programmed times.

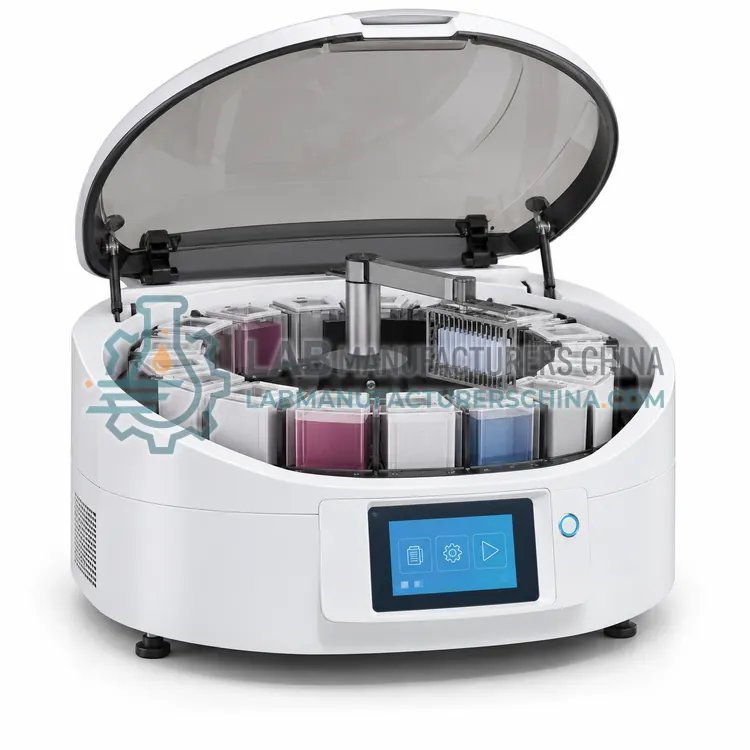

- Carousel Slide Stainer — A carousel slide stainer rotates a basket of slides between reagent dishes arranged in a circle.

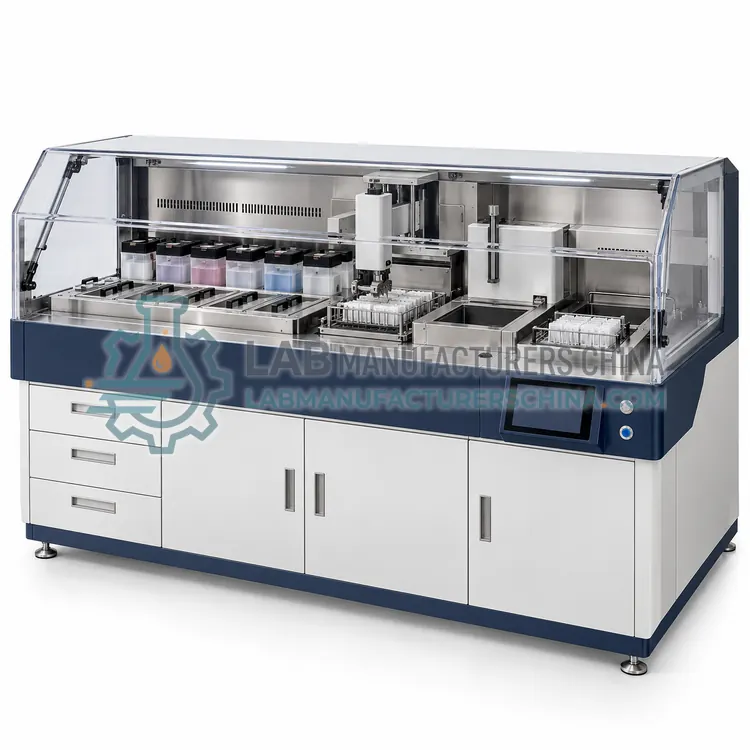

- Integrated Stainer-Coverslipper Workstation — An integrated stainer-coverslipper workstation combines automated H and E staining with film or glass coverslipping in one continuous workflow.

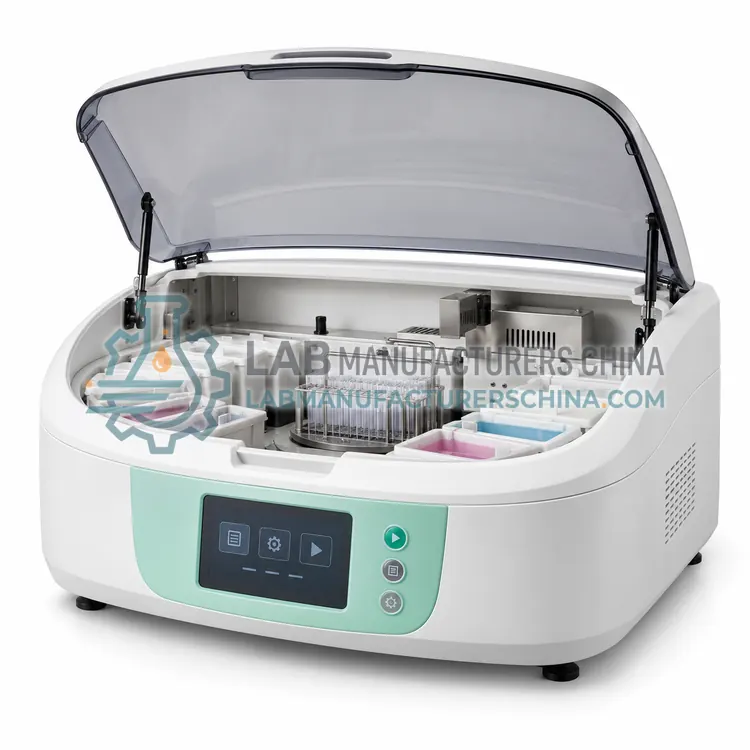

- Automated IHC Slide Stainer — An automated IHC slide stainer applies primary and secondary antibodies and detection reagents to each slide in a controlled-temperature chamber, often with heat-induced epitope retrieval.

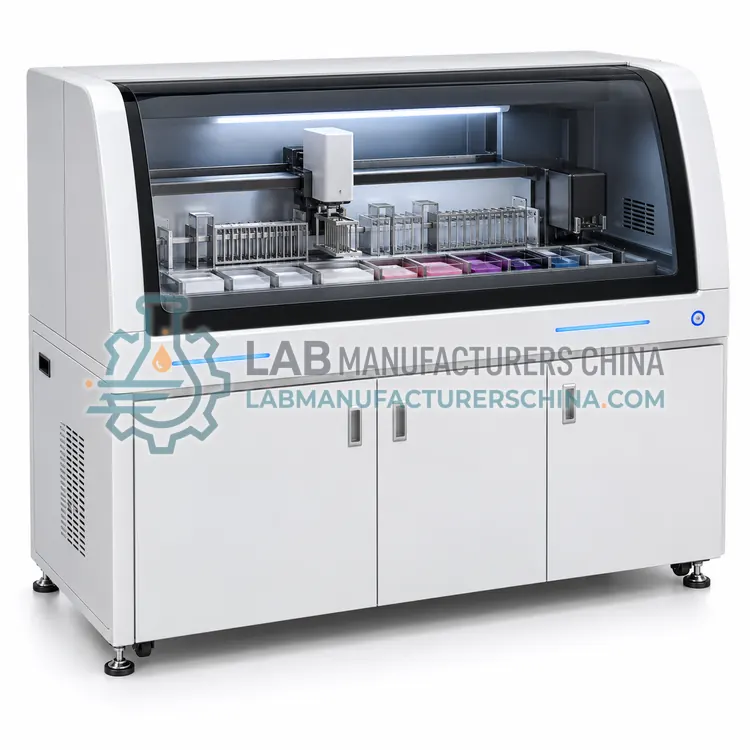

- Automated Special Stains Slide Stainer — An automated special stains slide stainer runs histochemical stains such as PAS, Masson's trichrome, Gram and silver stains with controlled temperature and timing.
How do I choose the right variant?
Match the stainer to the dominant staining type. Routine H and E in high volume favors robotic or carousel dip systems with integrated coverslippers, while immunohistochemistry and in situ hybridization require reagent-dispensing systems with heat retrieval and open or closed reagent options. Consider slide capacity per run, number of reagent stations, flexibility to change protocols and whether special stains are supported. Evaluate reagent use per slide, xylene-free options, fume containment and cleaning requirements. Check connectivity with laboratory information systems, slide labeling, and the maker's validation documents. Match footprint to available bench space and confirm service response times, since stainer downtime delays diagnosis.
Where are Slide Stainers used?
Slide Stainers are specified in routine hematoxylin and eosin staining, immunohistochemistry, special stains, in situ hybridization and research histology.
Which standards and certifications apply?
Work with Slide Stainers is commonly governed by IEC 61010-1, IEC 61010-2-101, IEC 61326-1, ISO 15189, CLSI QMS 02 and ISO 13485. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install the stainer in a ventilated area with a carbon filter or exhaust duct and a stable electrical supply. Establish a reagent management program that replaces stains and solvents according to slide counts, and record changes. Keep wash stations clean to prevent precipitate and carry-over, and filter hematoxylin regularly. Validate each protocol with control slides, checking nuclear and cytoplasmic staining balance. Perform daily wipe-down, weekly deep cleaning and annual preventive maintenance. Follow safety rules for solvent and stain handling, with spill kits and training, and follow local regulations for hazardous waste.
