How do Sample Preparation work?
Diagnostic sample preparation changes a specimen so that a downstream assay can measure it reliably. Serum and plasma are separated from cells by centrifugation and then aliquoted into labelled tubes, which reduces thaw cycles and cross-contamination during archiving. Some serology and molecular workflows require heat inactivation, typically at 56 degrees Celsius for thirty minutes, to reduce infectivity before handling. Solid or viscous specimens such as stool, sputum, swabs and tissue must be homogenised, liquefied or extracted into a buffer so that target organisms or analytes are released uniformly. Fecal immunochemical tests need a defined sample mass mixed with buffer, and blood film preparation requires a controlled spread and stain so that cells can be examined morphologically. Each step influences the analytical result, so volume accuracy, temperature control and traceability matter as much as in the analytical instrument itself.
Which Sample Preparation variants are available?
- Automated Aliquotting Station for Diagnostic Specimens — An automated aliquotting station splits serum, plasma or other diagnostic specimens from primary tubes into labelled secondary tubes with defined volumes.

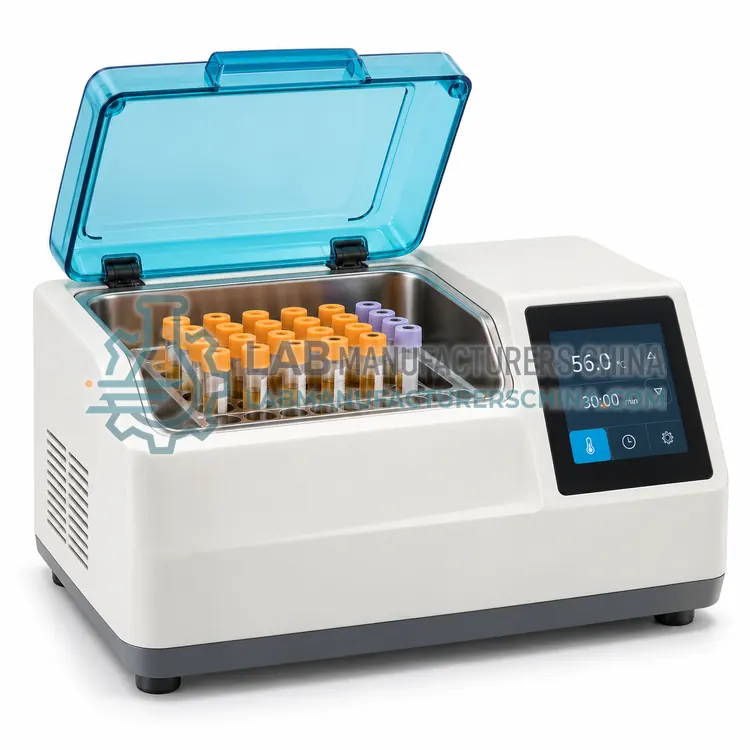

- Serum and Plasma Heat Inactivation Bath — A heat inactivation bath or block holds serum or plasma at 56 degrees Celsius for a defined period to reduce infectivity before batch testing.
- Bead Mill Homogenizer for Diagnostic Specimens — A bead mill homogenizer disrupts swabs, sputum, tissue and stool specimens with high-speed beads inside a sealed tube, releasing organisms and analytes for downstream testing.
- Automated Fecal Sample Preparation System — This system prepares stool specimens for quantitative fecal tests by sampling a defined mass, mixing it with buffer and delivering the extract to a test device or tube.
- Automated Blood Smear Preparation System — An automated blood smear preparation system aspirates blood, spreads a monolayer slide and stains it with a Romanowsky stain at defined settings.
How do I choose the right variant?
Start from the specimen types you receive and the assays that follow, since a device is only useful if its process matches the downstream kit requirements. For aliquotting, check the number of tubes per primary sample, the dead volume, the liquid class accuracy for viscous specimens and the labelling method. For heat inactivation, confirm the temperature uniformity across the bath or block, the capacity per batch and whether a lid is needed to limit evaporation. For homogenisation, choose between bead milling, rotor-stator and paddle systems according to specimen hardness and the need to keep analytes intact. For fecal and blood smear preparation, confirm the sample mass or film quality specification. In all cases, ask for process validation data and confirm that consumables are available locally.
Where are Sample Preparation used?
Sample Preparation are specified in serum and plasma aliquotting for serology and molecular testing, heat inactivation of serum before batch serology, stool and sputum processing for infectious disease testing and blood film preparation for morphological review.
Which standards and certifications apply?
Work with Sample Preparation is commonly governed by ISO 15189, ISO 15190, CLSI GP16, CLSI M29, CLSI EP05, IEC 61010-1 and IEC 61010-2-101. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Verify each device at installation with gravimetric volume checks, temperature mapping and, where relevant, recovery or uniformity studies using spiked specimens. Write procedures that define specimen acceptance, batch size, temperature and time limits, and the identification of each aliquot, because traceability between the primary tube and derived aliquots is frequently examined during accreditation. Clean and decontaminate surfaces, rotors and homogenisation chambers after each batch, and use sealed or disposable components where aerosols are a risk. Record maintenance, calibration and validation data, and review temperature records for heat inactivation and incubation steps. Treat all specimens, consumables and waste as potentially infectious.
