How do Blood Bag Sealers work?
Most blood tubing sealers use dielectric heating. A radio-frequency field, commonly 27.12 MHz, is applied across a PVC tube held between two electrodes. PVC molecules have a dipole moment, so the field heats the material from within, softens the walls and forms a weld under electrode pressure. Cooling under pressure produces a hermetic seal in one to three seconds, and the tube is then cut or separated. The process does not add a clip, so seals are smooth and leak-tight. Sterile tubing welders work differently: a heated blade at roughly 260–300 °C cuts two tubes and the ends are joined while molten, preserving sterility. Controllers monitor power, pressure and time to give consistent seals and flag failed cycles.
Which Blood Bag Sealers variants are available?

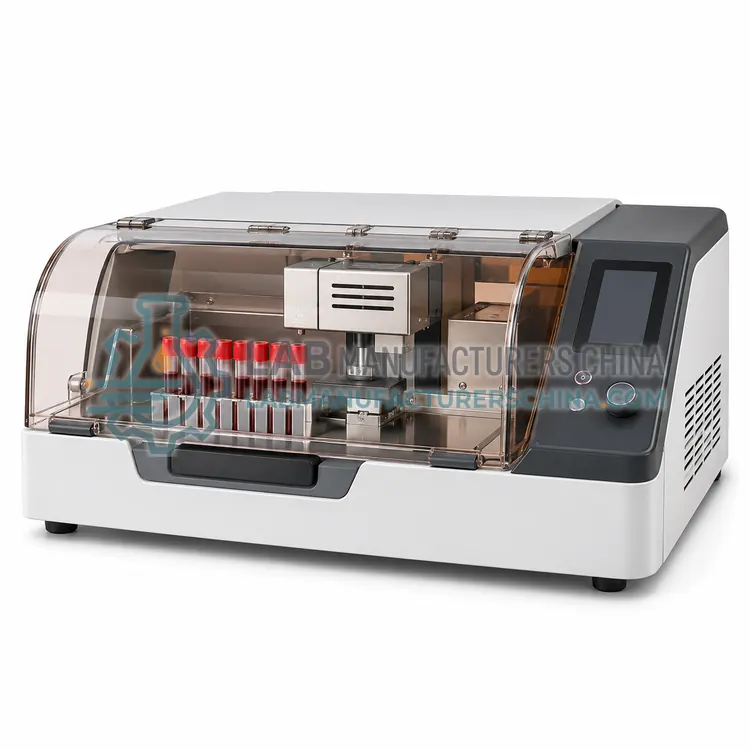

- Benchtop Radio-Frequency Blood Tube Sealer — A benchtop radio-frequency blood tube sealer is a mains-powered unit that seals PVC donation and processing tubing in one to three seconds using dielectric heating.
- Portable Battery-Powered Blood Tube Sealer — A portable battery-powered blood tube sealer performs radio-frequency tube sealing on a rechargeable battery for mobile blood drives.
- Handheld Radio-Frequency Blood Tube Sealer — A handheld radio-frequency blood tube sealer is a forceps-style sealer operated with one hand at the donor's side.

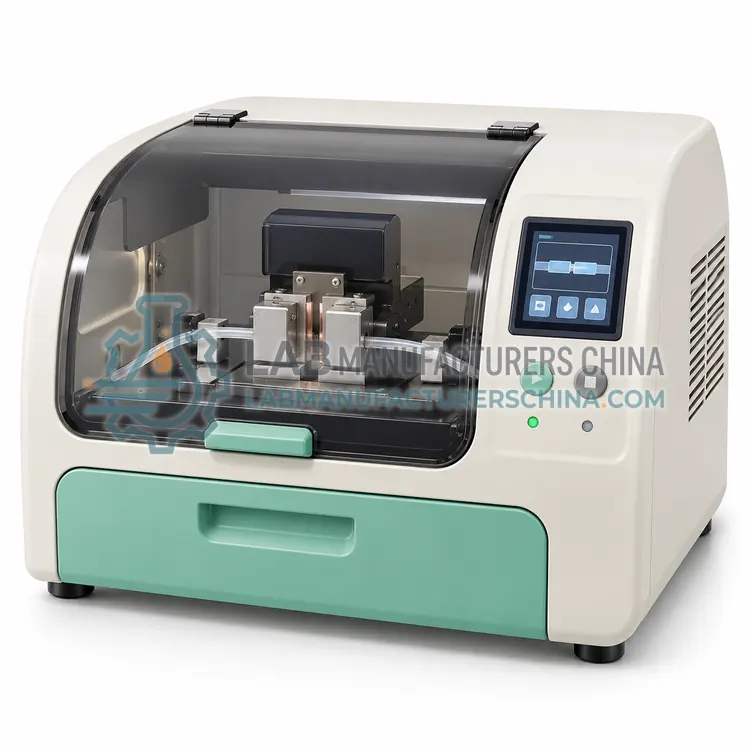

- Sterile Tubing Welder for Blood Bag Connections — A sterile tubing welder joins two PVC tubes by cutting them with a heated blade and fusing the molten ends, forming a sterile connection without opening the closed system.

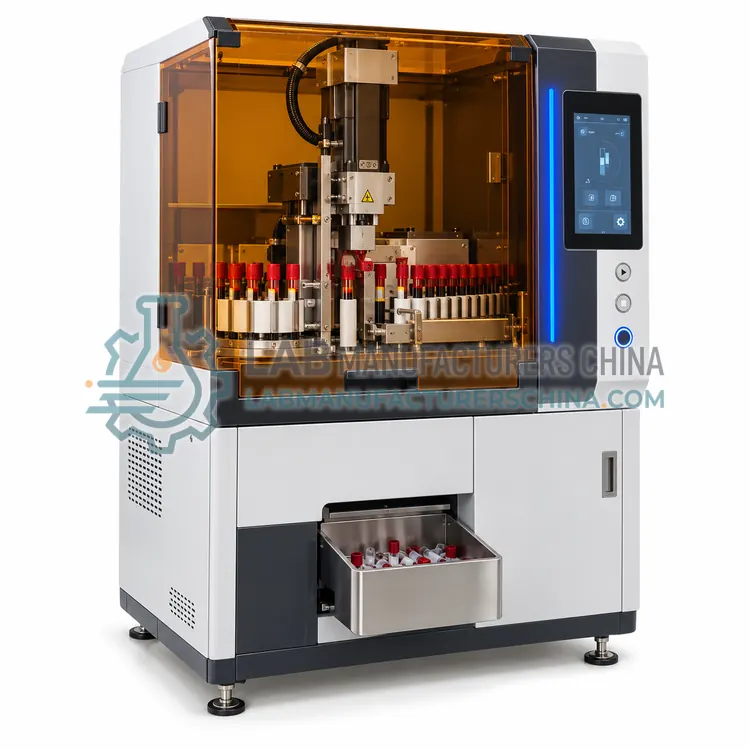

- Automatic Blood Tube Sealer with Integrated Cutter and Segment Counter — An automatic blood tube sealer with integrated cutter seals and severs tubing in a single sensor-triggered cycle and counts the segments made for each donation.
How do I choose the right variant?
Choose based on seal type and workflow. RF sealers suit routine tube segmenting and line closure, with options for benchtop, handheld or battery use. A sterile welder is needed when you must join tubing in a closed system, for example pooling or adding bags. Check the tube outer diameter range, seal time, seal integrity verification and whether the unit supports your tube material. Consider throughput, noise, operator ergonomics and whether foot pedal or sensor triggering is useful. Verify that the sealer has been tested on your bag brand and that seals meet leak and pull tests. For mobile collection, battery runtime and robustness matter more than speed.
Where are Blood Bag Sealers used?
Blood Bag Sealers are specified in donation line sealing and segment creation, sterile connection of blood bags, component processing and pooling, mobile blood drives and hospital transfusion services.
Which standards and certifications apply?
Work with Blood Bag Sealers is commonly governed by ISO 3826-1, IEC 60601-1, IEC 60601-1-2, IEC 61010-1, ISO 13485 and AABB Standards for Blood Banks and Transfusion Services. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Place the sealer on a stable surface with clear airflow and keep electrodes clean and free of residue, since contamination causes weak seals. Verify seal quality on a routine schedule, for example by pulling, squeezing and immersion tests on test tubing, and record results. Electrodes and blades are wear parts and need replacement per maker intervals. RF equipment must meet electromagnetic safety and emission rules, and users should avoid contact with live electrodes. Sterile welders require correct wafer handling and storage. Service by authorized technicians and inclusion in the quality system are recommended.
