How do Class I Cabinets work?
A Class I cabinet works like a ventilated enclosure with a single HEPA-filtered exhaust path. Room air is pulled through the front opening at an inflow velocity of about 0.7–1.0 m/s, sweeps across the work surface, and carries aerosols and particles away from the operator. The air then passes a HEPA filter rated at least 99.97 % efficient at 0.3 µm before being discharged, either back into the room through a recirculating arrangement or, more commonly, to the atmosphere through a duct. Because there is no filtered supply air over the work zone, the cabinet does not protect the sample from contamination. Cabinets have a stainless steel work surface, a glass or polycarbonate sash, interior lighting and usually a UV lamp for surface decontamination between uses. Airflow alarms and a front grille complete the design; performance is confirmed by filter leak and airflow testing.
Which Class I Cabinets variants are available?
- Benchtop Class I Biosafety Cabinet — A benchtop Class I biosafety cabinet sits on a laboratory bench and provides single-pass HEPA exhaust for low-risk work.

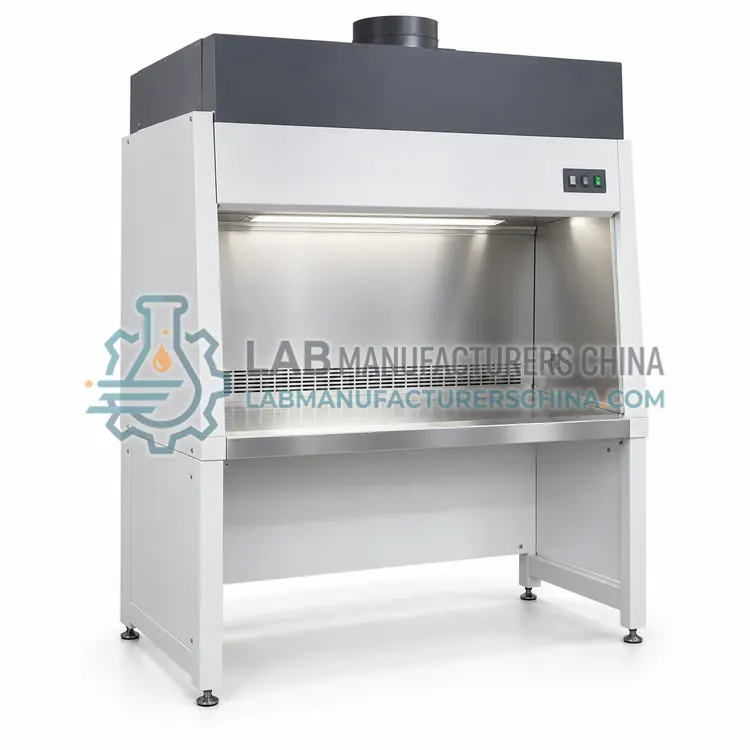

- Floor-Standing Class I Biosafety Cabinet — A floor-standing Class I biosafety cabinet provides a large work area at standing height for bulky equipment or multiple operators.
- Ducted Class I Biosafety Cabinet — A ducted Class I biosafety cabinet exhausts all air to the atmosphere after HEPA filtration.

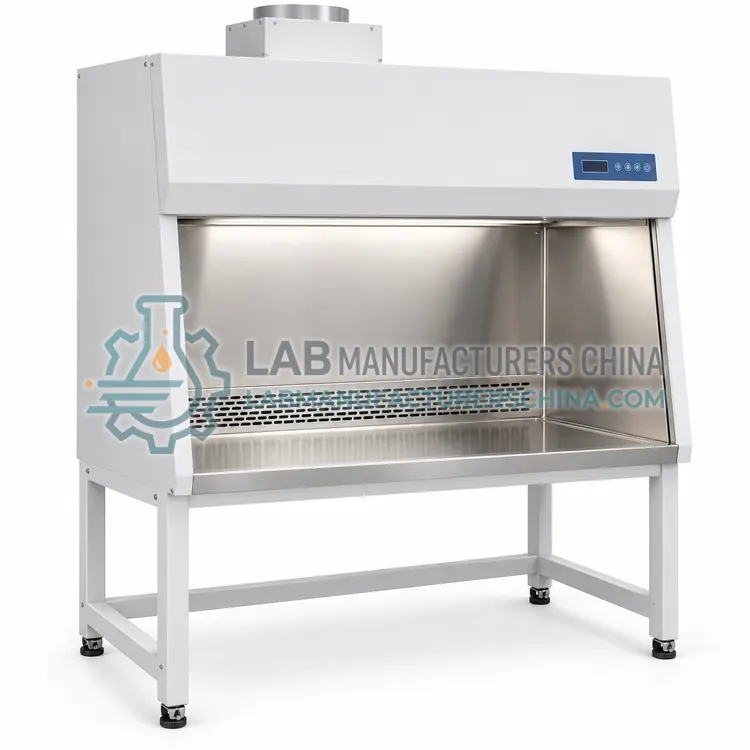

- Class I Animal Transfer Cabinet — A Class I animal transfer cabinet provides a HEPA-exhausted work zone for cage changing and animal handling.

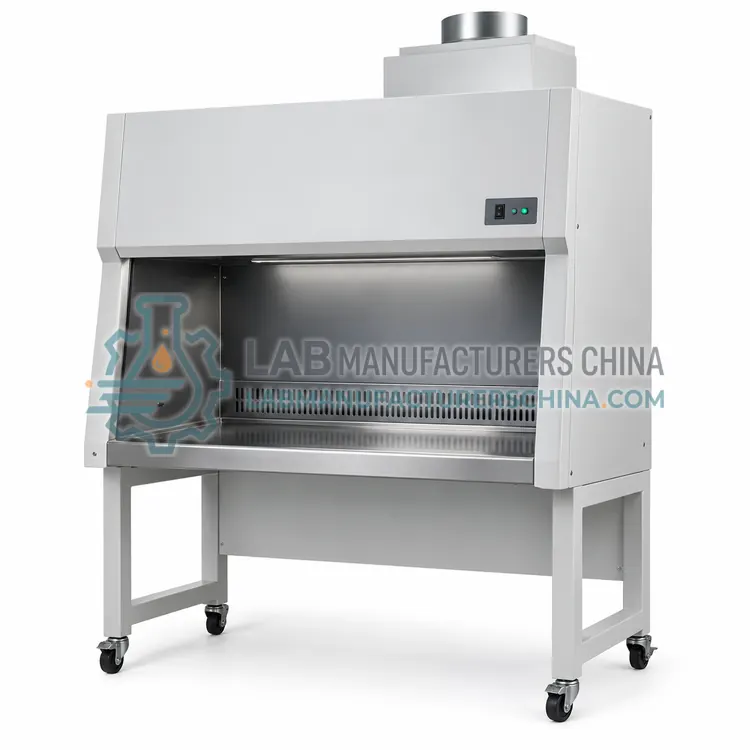

- Mobile Class I Biosafety Cabinet — A mobile Class I biosafety cabinet is mounted on a wheeled base for use at different locations or in shared facilities.
How do I choose the right variant?
Choose a Class I cabinet when operator and environmental protection are needed but the sample does not require protection, for example for low-risk microbiology, homogenising, or housing a centrifuge or shaking device. Confirm the inflow velocity and HEPA exhaust arrangement, and decide whether exhaust goes to the atmosphere by duct or is filtered and recirculated, since recirculation is not acceptable for many agents. Match the internal height to the equipment housed and the external footprint to the bench or floor space. Check whether the cabinet must be connected to an exhaust system and whether a thimble or direct connection is used. Confirm certification to EN 12469 or NSF/ANSI 49 where applicable, and plan annual recertification. Class I cabinets are not suitable when sterile product protection is required.
Where are Class I Cabinets used?
Class I Cabinets are specified in low-risk microbiology, centrifuge and equipment enclosures, veterinary and agricultural work, homogenising and sample disruption and teaching laboratories.
Which standards and certifications apply?
Work with Class I Cabinets is commonly governed by EN 12469 (biosafety cabinets), NSF/ANSI 49 (biosafety cabinetry), ISO 14644-1 (cleanroom classification), GB 19489 (biosafety laboratory requirements) and IEC 61010-1 (safety requirements for electrical equipment). Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install the cabinet away from doors, vents and high-traffic areas, with clearance for service and filter replacement. If ducted, verify the exhaust fan and duct are dedicated and that airflow cannot fall below the alarm threshold; an undersized or blocked duct can reverse the internal flow. Confirm filter integrity and inflow velocity at installation and at least annually, and record results. Reduce clutter inside the cabinet, since bulky items disturb airflow and reduce protection. Clean the work surface before and after use, use UV lamps only as a supplement to chemical disinfection, and never rely on UV for penetrating surfaces. Confirm that the exhaust discharge point meets local requirements.
