Six-Vessel Basket/Paddle Dissolution Tester

What is the Six-Vessel Basket/Paddle Dissolution Tester?

A six-vessel dissolution tester runs USP Apparatus 1 (basket) and Apparatus 2 (paddle) on six 1 L vessels in a thermostatted water bath. It is the standard configuration for batch-release and stability dissolution testing of immediate-release tablets and capsules.

Overview

The six-vessel tester is the reference layout for pharmacopoeial dissolution: six vessels match the standard Stage 1 (S1) sample size, so one run covers a full acceptance-table stage. A heated water bath or waterless heating jacket holds media at 37.0 ± 0.5 °C, while a single motor head drives six shafts at 25–250 rpm. The head lifts hydraulically or mechanically to allow vessel loading and shaft inspection. Shaft wobble, vessel centering and verticality are set by alignment fixtures to satisfy mechanical calibration limits. Interchangeable baskets (40 mesh) and paddles fit the same shafts, and optional manual sampling cannulas with filters mount on a rotating arm. It suits QC laboratories running moderate batch volumes where sampling is performed manually or by a separate autosampler, and offers the lowest cost and footprint of the apparatus-1/2 options.

How does it work?

A dissolution tester places the dosage form in a vessel of temperature-controlled medium, usually 500–1000 mL of buffer or acid, and agitates it by a rotating basket (Apparatus 1), paddle (Apparatus 2), reciprocating cylinder (Apparatus 3) or flow of medium (Apparatus 4). Aliquots are withdrawn at specified times through filters and assayed by UV-Vis or HPLC. The key components are a thermostatted water bath or waterless heater, a drive head holding shaft speed within ±2 rpm, polished glass or plastic vessels of defined geometry, and calibrated shafts with minimal wobble. Hydrodynamics, shaft position, centering and vibration all influence results, so mechanical qualification is integral. Drug release follows Noyes–Whitney kinetics, where dissolution rate depends on surface area, solubility and boundary layer thickness, and sink conditions must be maintained so that the medium volume is at least three times the saturation volume.

What are the key features?

• Six 1 L vessels matching the USP Stage S1 sample size
• Water bath or waterless heating with 37.0 ± 0.5 °C control
• Shaft speed 25–250 rpm with digital readout and ±1 rpm accuracy
• Motorized or hydraulic head lift with locked working position
• Interchangeable baskets and paddles on common shafts
• Alignment and centering fixtures supporting mechanical calibration
• Optional sinker holders and manual sampling cannulas

What are the technical specifications?

A typical six-vessel basket/paddle dissolution tester configuration offers apparatus types of USP Apparatus 1 (basket), 2 (paddle), number of vessels of 6, vessel volume of 1000 mL (100–4000 mL with adaptors), rotation speed of 25–250 rpm, speed accuracy of ±1 rpm and temperature range of ambient +5 to 45 °C. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Six-Vessel Basket/Paddle Dissolution Tester is used in immediate-release tablet batch release, capsule dissolution, stability studies and method development. Across the wider Tablet Dissolution Testers class, laboratories also deploy it for pharmaceutical QC, generic drug bioequivalence support and formulation development.

Which standards and certifications apply?

Relevant standards and methods include USP <711>, USP <1092>, Ph. Eur. 2.9.3, JP 6.10, ChP 0931, USP <724>, ASTM E2503 and FDA Guidance on Dissolution Testing of Immediate Release Solid Oral Dosage Forms. Certification candidates for this model are CE and ISO 9001 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Place the tester on a vibration-free bench, level it, and keep it away from air currents and centrifuges. Perform mechanical calibration of shaft wobble, vessel centering, verticality, speed and temperature at installation and at regular intervals, and run performance verification with USP prednisone or salicylic acid calibrator tablets. Degas media to prevent bubbles, clean vessels after each run, inspect shafts and baskets for corrosion or damage, and replace filters per SOP. Documentation should cover IQ/OQ/PQ, calibration records, and data-integrity controls.

How do I select the right Six-Vessel Basket/Paddle Dissolution Tester?

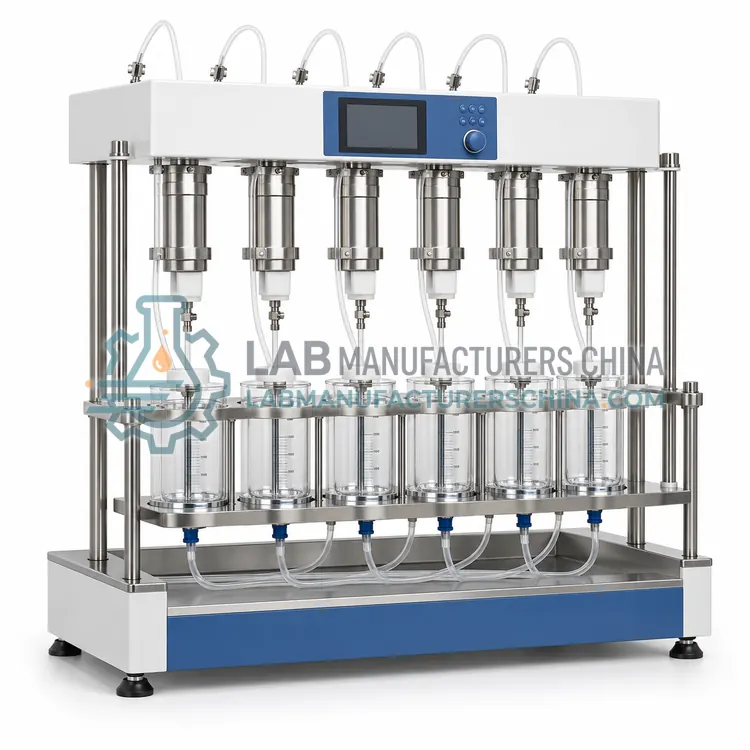

Select the six-vessel configuration for routine QC dissolution where USP Apparatus 1 or 2 is specified and throughput is moderate. In an RFQ state the vessel count, required apparatus types, temperature control (bath or waterless), speed range, and whether an autosampler or UV interface is needed later. Choose larger vessel counts for higher throughput or flow-through and reciprocating designs for modified-release forms.

How does it compare with other Tablet Dissolution Testers variants?

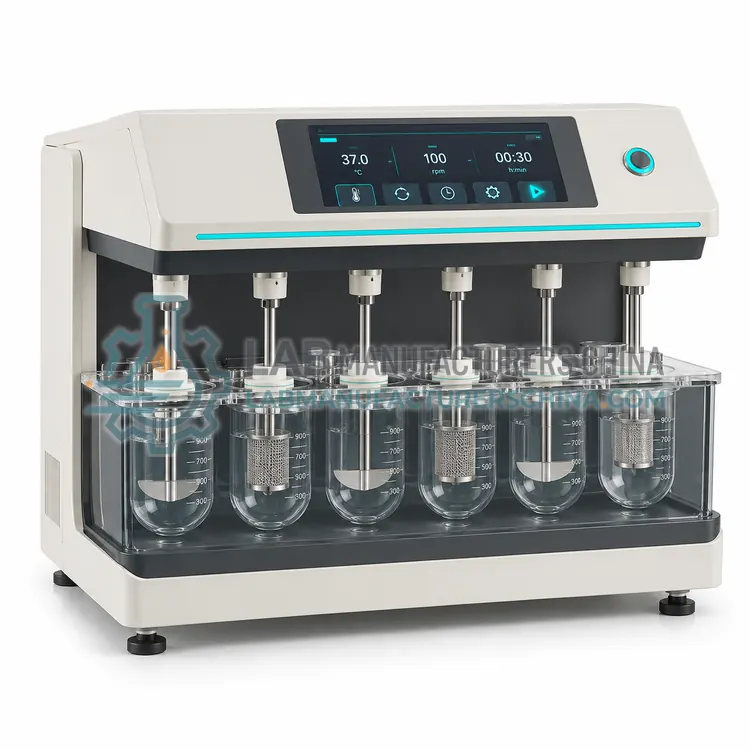

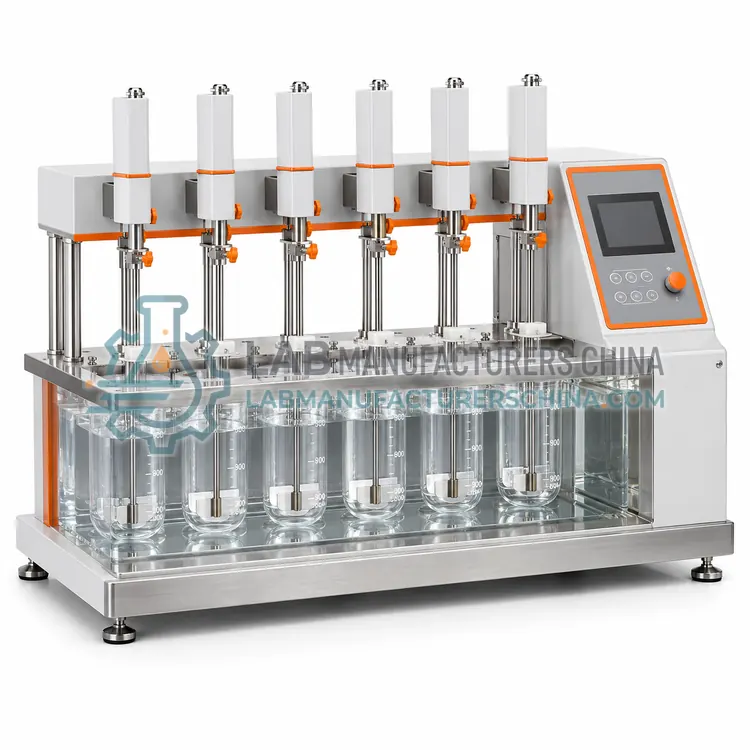

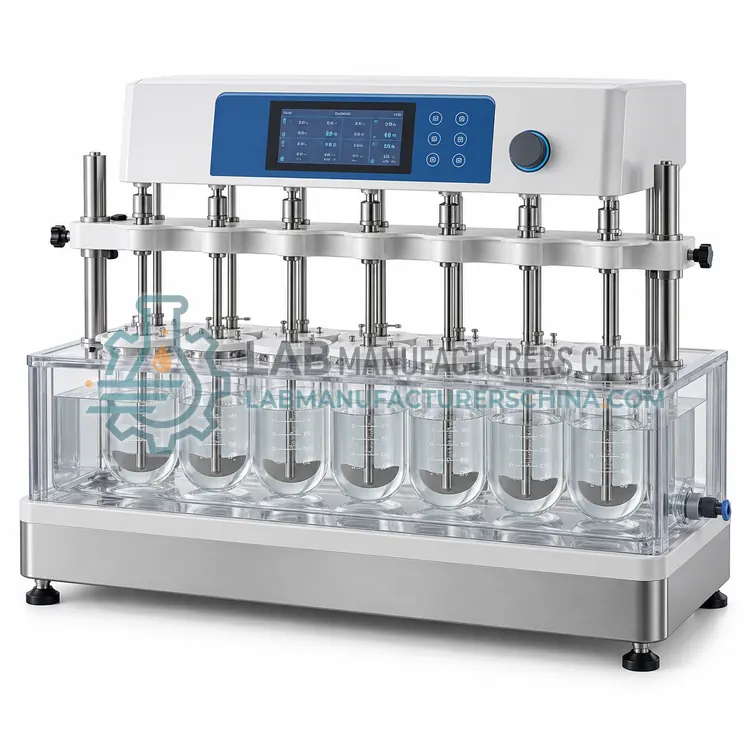

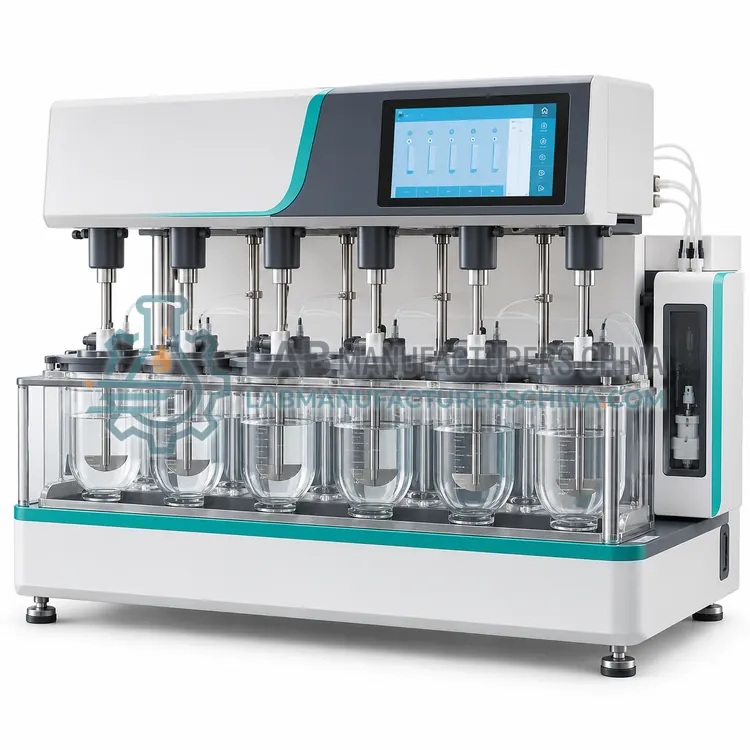

Start with the apparatus type the monograph specifies: Apparatus 1 or 2 for most immediate-release products, Apparatus 3 for extended-release and pH-shift profiling, Apparatus 5 or 6 for patches. Then choose vessel count by throughput: six for routine QC, eight for batches with standards, and automated systems for unattended profiles. Consider temperature control (bath versus waterless), speed range and accuracy, and compatibility with an autosampler or UV interface. For regulated sites, require IQ/OQ documentation, mechanical calibration fixtures, and software with audit trail. Also check vessel volume range, because low-dose or poorly soluble products may need 100–250 mL mini-vessels or 2–4 L vessels.
