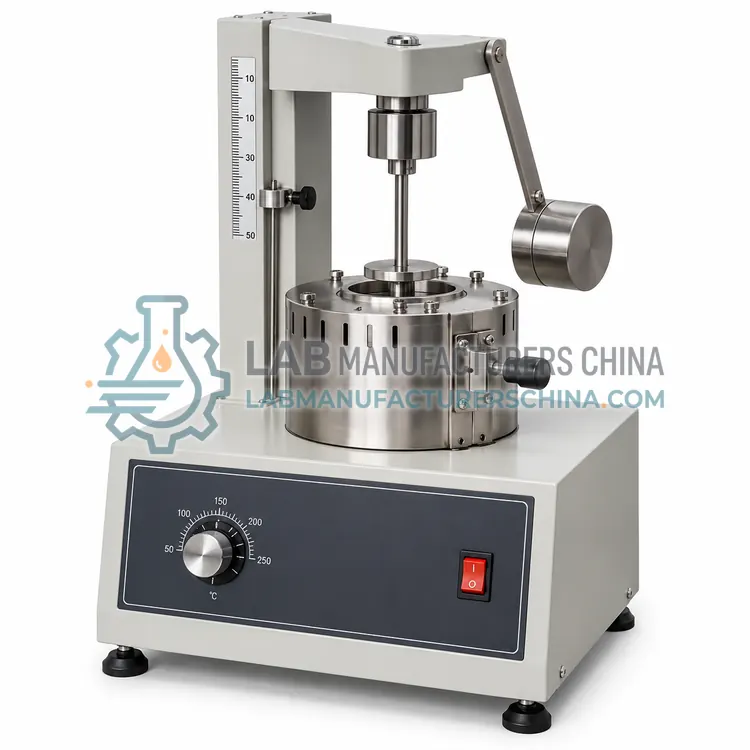

Oscillating Disc Rheometer for Rubber

What is the Oscillating Disc Rheometer for Rubber?

An oscillating disc rheometer embeds a biconical rotor in a rubber specimen held in a heated die cavity and rotates it through a small arc, recording torque against time. It provides the traditional cure curve format used in older specifications and long-term databases.

Overview

The specimen is loaded into a shallow groove in the lower die and the rotor is pressed into it when the upper die closes, so the compound fills the cavity around the rotor. Rotor oscillation of plus or minus one degree at 1.67 Hz strains the sample, and the torque required to maintain that oscillation is recorded. Because the rotor must be embedded, the instrument needs a defined warm-up and dwell, and temperature recovery after closing is slower than in rotorless designs, which affects scorch time values slightly. The rotor does not contact the die, so friction is low but rotor wear must be monitored. Many specifications and historical databases are based on this geometry, and comparative testing with reference compounds remains the standard way to confirm performance.

How does it work?

An unvulcanised rubber compound is viscoelastic and its properties change as crosslinking proceeds, so a rheometer records torque or complex modulus against time at a fixed temperature. Curemeters hold the compound in a sealed cavity at vulcanisation temperature and oscillate a rotor or the cavity itself through a small arc, producing a cure curve from which scorch time, optimum cure time and minimum and maximum torque are read. Oscillating disc instruments turn a biconical rotor inside the sample, while rotorless instruments oscillate the lower die and measure the reaction torque on the upper die, giving faster thermal response and lower inertia. Rotational and dynamic mechanical instruments apply small strains over a frequency range to measure viscoelastic moduli, and capillary instruments push the compound through a die to measure process viscosity at extrusion rates.

What are the key features?

• Biconical rotor embedded in a grooved die cavity
• Rotor oscillation of ±1° at 1.67 Hz
• Traditional cure curve parameters
• Temperature control to about 200 °C
• Wear inspection routine for the rotor
• Reference compound verification support

What are the technical specifications?

A typical oscillating disc rheometer for rubber configuration offers temperature range of Ambient to 200 °C, temperature accuracy of ±0.5 °C, rotor oscillation of ±1°, oscillation frequency of 1.67 Hz (100 cycles/min), torque range of 0–200 dN·m and specimen volume of About 8–10 cm³. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Oscillating Disc Rheometer for Rubber is used in specifications based on oscillating disc geometry, long-term database and historical comparison, retread and industrial rubber compound control and training and reference testing. Across the wider Rheometers class, laboratories also deploy it for scorch and cure time determination for production control, compound development and accelerator selection and batch-to-batch consistency of mixed rubber.

Which standards and certifications apply?

Relevant standards and methods include ISO 6502-1, ISO 6502-2, ISO 6502-3, ASTM D2084, ASTM D5289, ASTM D6204, ASTM D5099, ASTM D5992 and IEC 61010-1. Certification candidates for this model are CE and ISO 9001 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Cavity cleanliness is the main source of error: cured residue from a previous test alters the torque reading, so dies should be cleaned after every specimen and inspected at intervals. Verify cavity temperature with a calibrated probe, because cure rate changes steeply with temperature and a one degree offset changes the optimum cure time measurably. Weigh or volume-dose specimens consistently, close the dies fully and record test temperature, arc amplitude and frequency with every curve. Condition compounds at standard temperature before testing, and store them away from heat. Calibration with reference compounds, such as a certified rubber standard, provides a periodic check on the whole measurement chain.

How do I select the right Oscillating Disc Rheometer for Rubber?

Specify an oscillating disc rheometer when your specifications, customer requirements or historical data are based on this geometry, or when a direct comparison with legacy testing is needed. Confirm the specimen volume, warm-up procedure and rotor condition, and expect to verify the instrument with reference compounds rather than relying only on temperature checks.

How does it compare with other Rheometers variants?

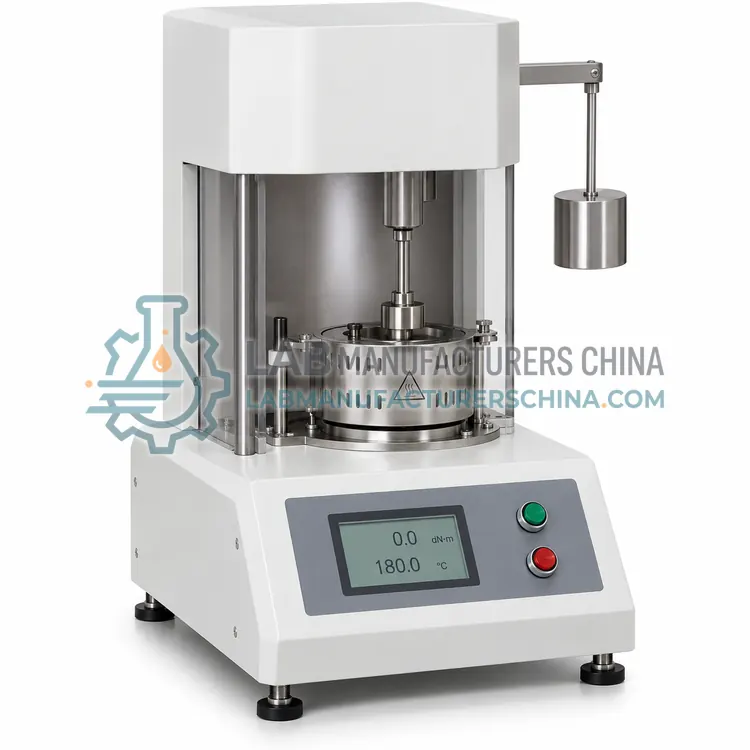

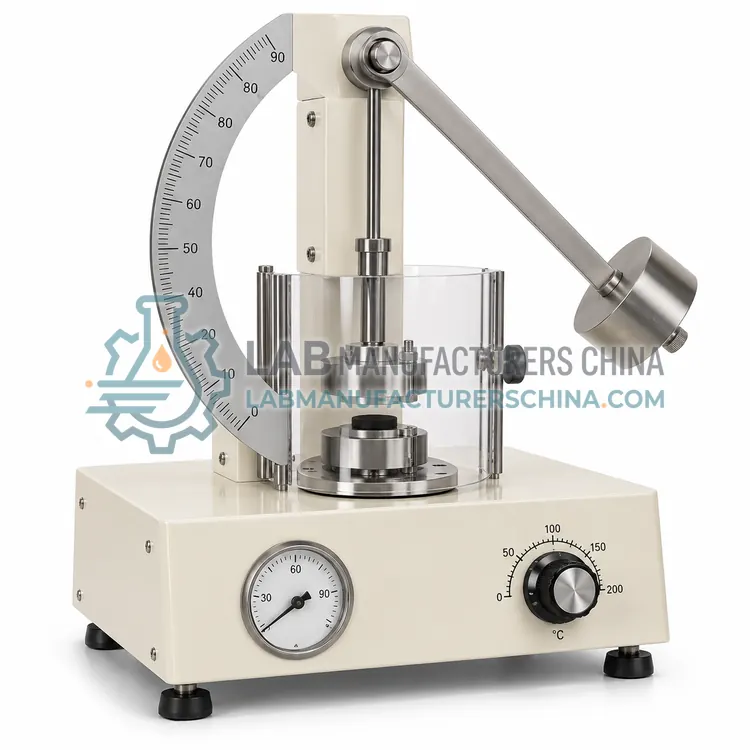

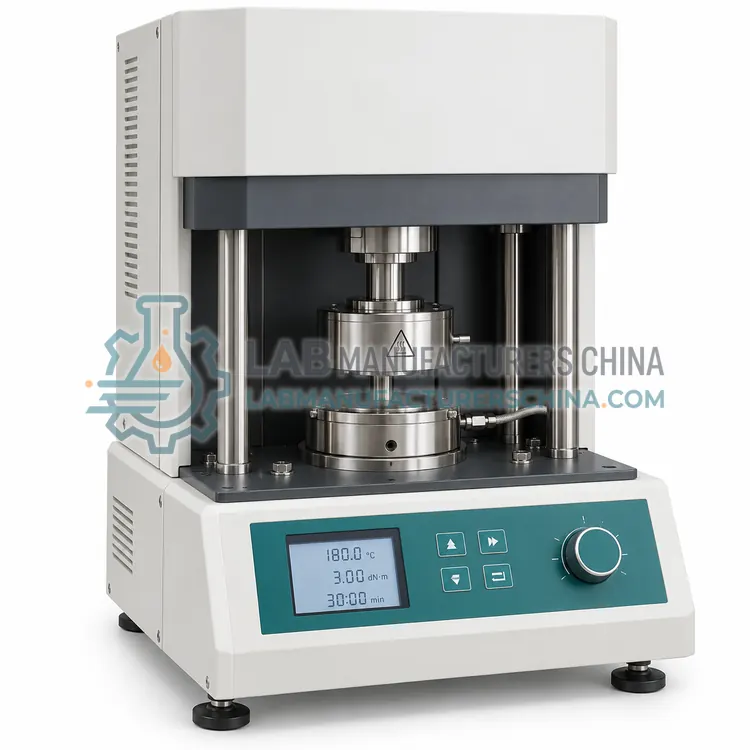

Begin with the standard your product or customer specifies. Rotorless curemeters dominate modern production control because they reach thermal equilibrium quickly and give repeatable scorch and cure times, while oscillating disc instruments remain in use where historical data or older specifications require them. Where the interest is the compound's response to varying strain and frequency, for example in filler networking or processability studies, a rotorless instrument with frequency sweep capability or a dedicated rotational rheometer is chosen. Capillary instruments are used when extrusion viscosity, die swell or the behaviour of a stiff or highly filled compound must be quantified. For vulcanised rubber, dynamic mechanical analysis describes the viscoelastic behaviour that governs damping, heat build-up and fatigue.
