Dry-Block Microplate Incubator

What is the Dry-Block Microplate Incubator?

A dry-block microplate incubator heats plates through direct contact with a thermostatted aluminum block, usually from ambient plus 5 to 80 degrees Celsius. It provides a compact, fast and inexpensive way to run ELISA and enzymatic incubations without a liquid bath or chamber.

Overview

This variant uses a machined aluminum block with wells or a flat platen shaped to the microplate footprint, heated by resistive elements and regulated by a PID controller and a platinum sensor. Typical temperature range is ambient plus 5 to 80 degrees with accuracy of plus or minus 0.5 degrees and heat-up times of 10 to 20 minutes. Models hold one to four plates, often with a hinged lid or a heated cover to reduce condensation. Because heat is transferred by contact, temperature is uniform for flat-bottom plates but can vary for plates with poor bottom contact, and the headspace may be cooler than the block. There is no humidity or gas control, so sealing films are used for longer incubations. The footprint is small, energy use low, and maintenance minimal.

How does it work?

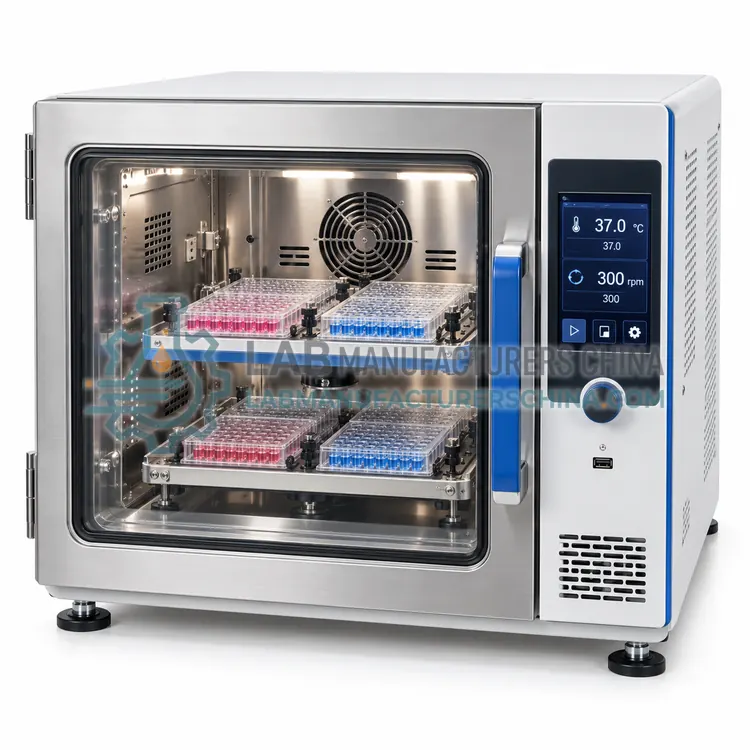

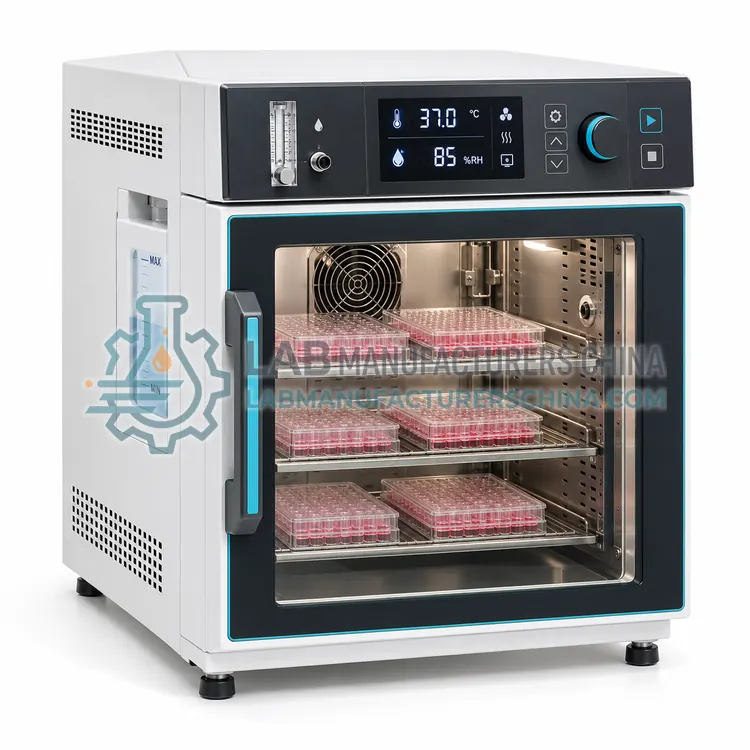

Microplate incubators maintain a uniform thermal environment around plates. Forced-air designs circulate heated air through the chamber with a fan, heater and a platinum resistance sensor feeding a PID controller, giving uniformity within about plus or minus 0.5 degrees Celsius. Dry-block designs conduct heat from an aluminum block that contacts the plate base, with Peltier elements for heating and cooling. Humidity is generated by a water reservoir or ultrasonic humidifier and monitored by a sensor, preventing evaporation from wells. CO2 incubators add infrared or thermal conductivity sensors and gas solenoid valves to hold 5 percent carbon dioxide for bicarbonate-buffered media. Shaking incubators combine these conditions with orbital motion. Door seals, insulation and heated lids limit gradients and condensation, which otherwise produce edge effects between outer and inner wells.

What are the key features?

• Machined aluminum block in contact with plate base for fast heat transfer
• Temperature range of ambient plus 5 to 80 degrees Celsius
• PID control with accuracy of plus or minus 0.5 degrees
• Holds one to four plates with hinged or heated lid
• Compact footprint and low energy consumption
• Heat-up within 10 to 20 minutes from ambient

What are the technical specifications?

A typical dry-block microplate incubator configuration offers temperature range of Ambient +5 to 80 °C, temperature accuracy of ±0.5 °C, temperature uniformity of ±0.5 °C (across block), heat-up time of ≈ 10–20 min to 37 °C, plate capacity of 1–4 plates and plate formats of 96-well, strip wells (384 optional). Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Dry-Block Microplate Incubator is used in ELISA incubation steps, enzymatic reactions in plates, antibody-coating incubations, short hybridization steps and teaching laboratories. Across the wider Microplate Incubators class, laboratories also deploy it for ELISA and immunoassay incubation, bacterial growth and susceptibility testing and mammalian cell culture in plates.

Which standards and certifications apply?

Relevant standards and methods include IEC 61010-1, IEC 61010-2-010, IEC 61326-1, ANSI/SLAS 1-2004 to 4-2004, ISO 13485 (IVD workflows) and EN 12469 (for biosafety-related enclosures, where applicable). Certification candidates for this model are CE, ISO 9001 manufacturing and RoHS; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Install on a level surface away from drafts, direct sunlight and heat sources, with clearance for ventilation. Map temperature with calibrated probes in loaded and empty conditions at installation and periodically, and record set point drift. Use distilled or deionized water in humidity reservoirs and clean them regularly to prevent microbial growth. Clean interior surfaces with disinfectants compatible with the chamber material, and run sterilization cycles where available. Avoid frequent door openings, and allow recovery time for temperature and CO2. Calibrate CO2 sensors against a reference analyzer, and keep alarms active for unattended runs.

How do I select the right Dry-Block Microplate Incubator?

Choose this variant for short, dry incubations at fixed temperature when budget and bench space are limited. Use a humidified or shaking chamber for long incubations. In an RFQ specify temperature range, plate capacity, plate formats, heated lid and accuracy or mapping documents.

How does it compare with other Microplate Incubators variants?

Match the incubator to assay temperature, duration and atmosphere. Dry-block or forced-air models are enough for ELISA and binding steps at 25 to 37 degrees. Use a humidified chamber for long incubations to limit evaporation. Mammalian cell assays need CO2 and humidity control, while bacterial growth may need shaking and temperatures up to 60 degrees. Check capacity in plates, uniformity and recovery time after door opening, plus cooling below ambient for refrigerated incubations. Consider footprint, compatibility with stackers and readers, contamination control features such as HEPA filtration or copper surfaces, data logging and alarms. For regulated laboratories, verify temperature mapping documentation, calibration certificates and audit trail capabilities.
