Syringe-Based Microplate Dispenser

What is the Syringe-Based Microplate Dispenser?

A syringe-based microplate dispenser uses precision plungers and multi-channel manifolds to aspirate and dispense accurate volumes of varied reagents, typically from 0.5 to 1,000 microliters. It is selected where accuracy across many reagents and reliable low-volume delivery matter.

Overview

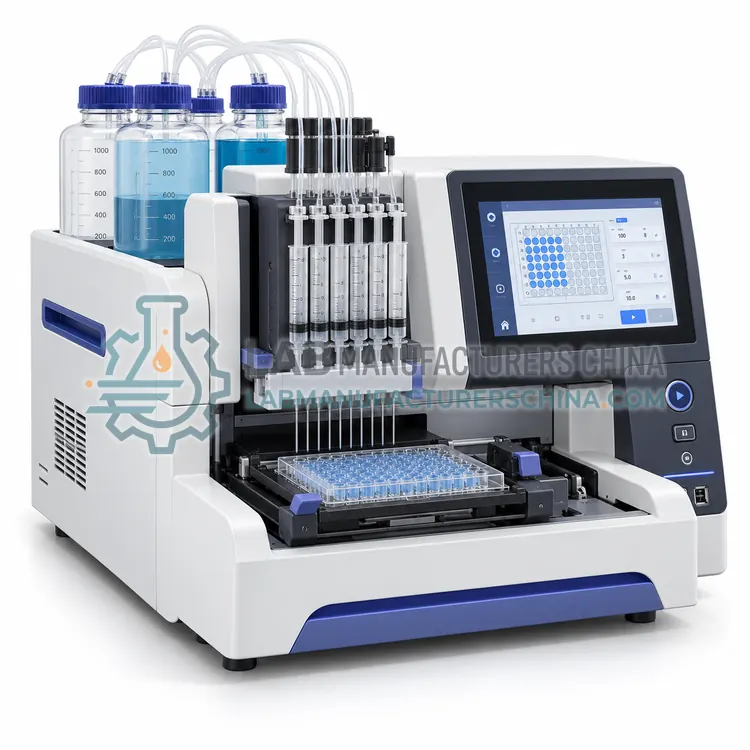

Syringe dispensers use stepper-driven glass or polymer syringes of 50 microliters to 10 milliliters connected through valves to reagent bottles and dispense nozzles. Positive displacement gives accuracy largely independent of viscosity and within plus or minus 1 percent, with coefficient of variation below 1 to 2 percent at 5 microliters or more. Systems with 8 to 96 channels fill a plate in seconds, and some dispense from multiple reagent ports for sequential addition. Fluid paths are fixed and cleaned by flushing with solvent, so carryover and cleaning must be controlled, but solvents such as DMSO and organic liquids are handled with compatible seals. Dispensing speed and height are adjustable to avoid splashing. Maintenance includes syringe and seal replacement. Dead volume is lower than peristaltic systems, conserving costly reagents.

How does it work?

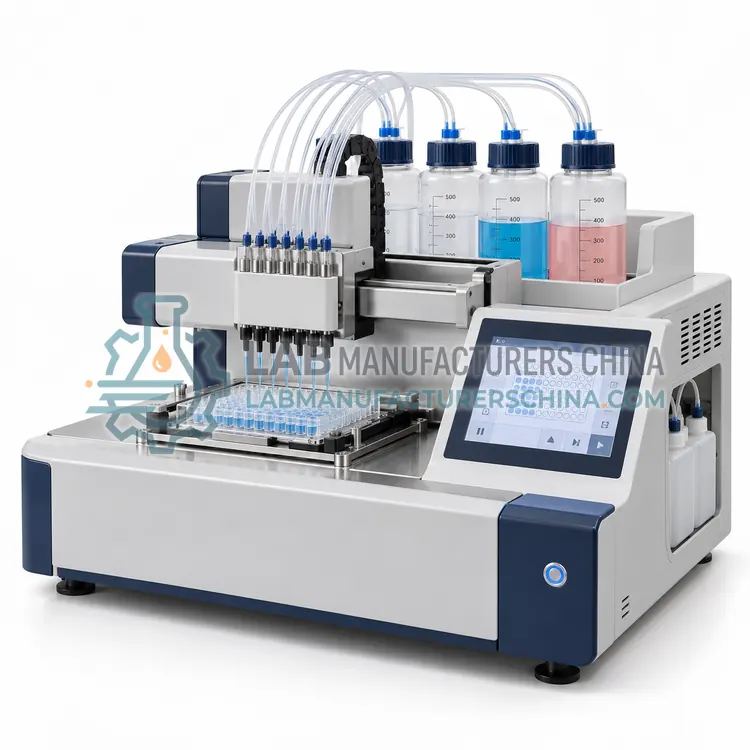

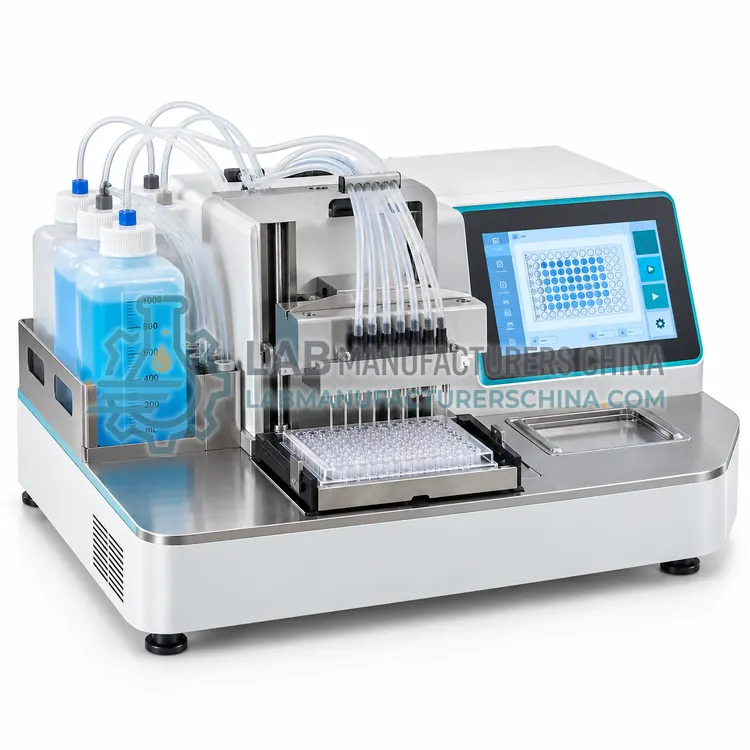

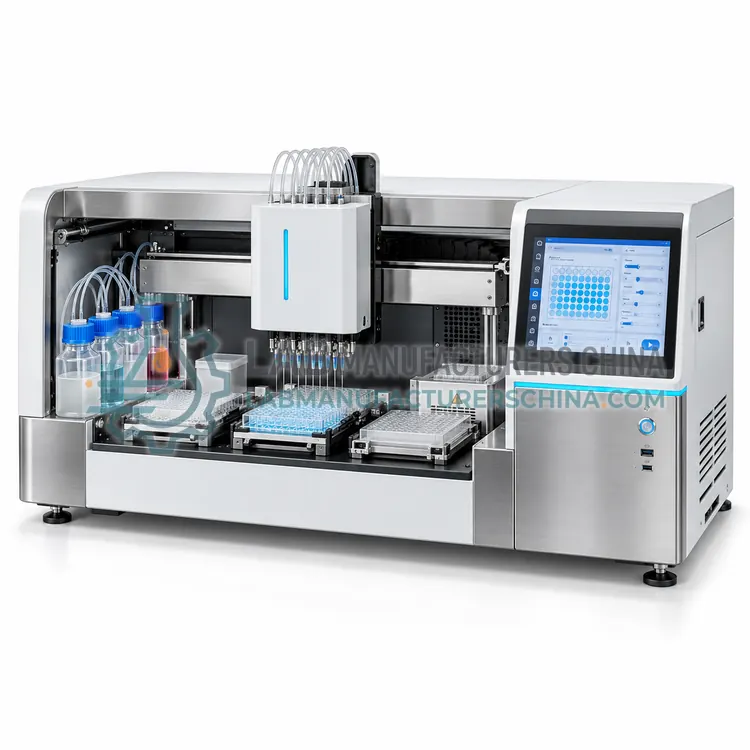

Microplate dispensers move liquid from a reservoir to the wells through tubing and a dispensing head. Peristaltic dispensers squeeze flexible tubing with rollers, delivering volume proportional to pump rotation, and they keep the liquid path disposable. Syringe dispensers use a precision plunger to aspirate and dispense volume with high accuracy. Solenoid valve systems pressurize a reagent line and open a microvalve for a precisely timed pulse, delivering nanoliter to microliter volumes, and piezoelectric systems eject droplets by a voltage-driven pressure wave for non-contact dispensing. Multi-channel heads of 8, 16 or 96 nozzles fill rows, columns or entire plates, and plate carriers move wells beneath the nozzles. Priming, backflush and cleaning cycles prevent carryover, and volume accuracy depends on viscosity, tubing and temperature.

What are the key features?

• Positive displacement accuracy largely independent of viscosity
• Volume range of 0.5 to 1,000 microliters with CV below 2 percent
• Multiple reagent ports for sequential additions
• Compatible with DMSO and organic solvents using suitable seals
• Low dead volume conserves expensive reagents
• 8- to 96-channel manifolds fill plates in seconds

What are the technical specifications?

A typical syringe-based microplate dispenser configuration offers dispense volume of 0.5–1,000 µL/well, accuracy of ±1% (≥ 10 µL), precision (CV) of < 2% (≥ 5 µL), syringe sizes of 50 µL–10 mL, channels of 8, 16, 96 and reagent ports of 1–8. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Syringe-Based Microplate Dispenser is used in multi-reagent assay plate preparation, DMSO compound addition, enzyme assay initiation, sequential reagent additions and low-volume ELISA reagent addition. Across the wider Microplate Dispensers class, laboratories also deploy it for ELISA reagent and substrate addition, cell seeding and media addition and high-throughput screening reagent dispensing.

Which standards and certifications apply?

Relevant standards and methods include ISO 8655 (piston-operated volumetric apparatus, gravimetric method), ANSI/SLAS 1-2004 to 4-2004, IEC 61010-1, IEC 61010-2-081 and IEC 61326-1. Certification candidates for this model are CE, ISO 9001 manufacturing and RoHS; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Prime every line before use and flush with water or an appropriate solvent after each run to prevent crystallization and cross-contamination. Verify dispensed volume gravimetrically or photometrically with dye at installation and at least annually, across all channels and at your working volumes. Replace peristaltic tubing according to its life, typically after a set number of hours, because wear changes volume. Avoid air bubbles by degassing liquids and checking connections. Use tubing rated for your reagents, and follow biosafety rules when dispensing infectious materials. Keep a log of maintenance and calibration for quality records.

How do I select the right Syringe-Based Microplate Dispenser?

Choose this variant when several reagents of varying viscosity must be added accurately, particularly at low volumes or with solvents. A peristaltic model is cheaper for bulk buffers. In an RFQ specify volume range, accuracy target, number of reagent ports, wetted materials and cleaning procedure.

How does it compare with other Microplate Dispensers variants?

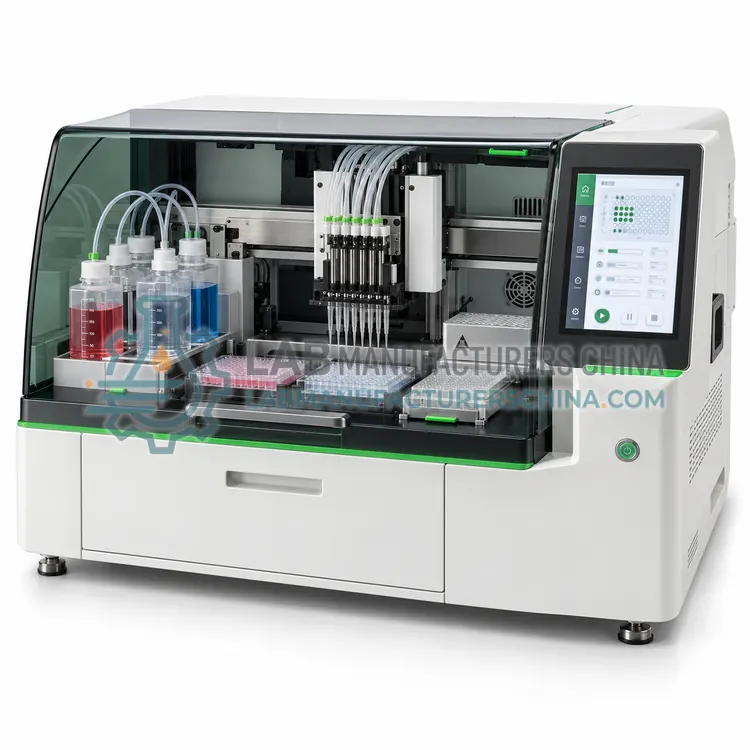

Choose a dispenser by dispensed volume range, accuracy, liquids and throughput. Peristaltic models are economical and simple for buffers and substrates at 5 to 2,000 microliters, while syringe models give better accuracy for varied reagents. Non-contact valve or piezo systems suit nanoliter volumes and 1536-well plates. For cell suspensions, select gentle, low-shear paths with mixing to keep cells suspended. Compare coefficient of variation at your typical volume, dead volume and cleaning procedure, because expensive reagents are lost in tubing. Check plate formats, number of channels, reagent bottles and whether the system integrates into an automation line. Confirm chemical compatibility of tubing and seals with solvents such as DMSO or ethanol.
