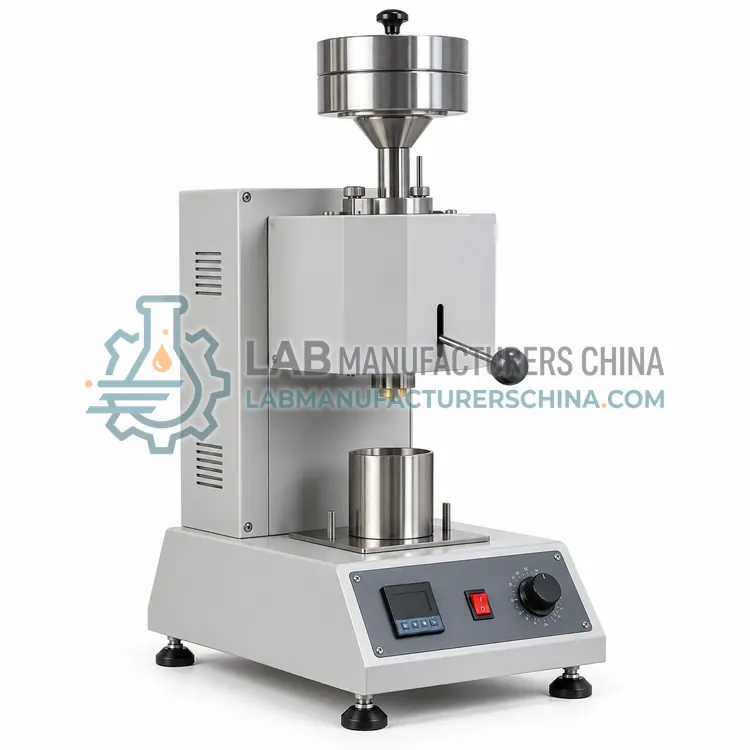

High-Load Melt Flow Analyzer for High-Viscosity Plastics

What is the High-Load Melt Flow Analyzer for High-Viscosity Plastics?

A high-load analyzer applies weights up to 21.6 kg and above to move very stiff melts, such as pipe grades, ultra-high-molecular-weight polyethylene and highly filled compounds. It is specified when standard loads produce no measurable flow within the allowed time.

Overview

Flow rate scales inversely with viscosity at a given load, so grades with very high molecular weight or heavy filler loading may extrude too slowly for the standard condition to be practical. Raising the load increases the shear stress and brings the measurement into a workable time window, and specific high-load conditions are defined within the standard for these materials, including polyolefins for pipe and for ultra-high-molecular-weight grades. The instrument therefore needs a reinforced frame, a piston and barrel that tolerate the higher load without distortion, and a die land that resists wear at the resulting pressure. Because the melt still moves slowly, preheat time and temperature stability matter more than in standard testing, and the possibility of thermal degradation during a long measurement must be considered.

How does it work?

The method heats a plastic sample in a barrel of defined bore, compacts it with a piston and extrudes it through a die of defined diameter and length under a controlled load. Mass-flow rate is obtained by weighing extrudate cut over a known time, and volume-flow rate by recording piston displacement with an encoder. Dividing mass flow by volume flow gives melt density at the test temperature, which is a useful check on filler loading and on batch consistency. Temperature, load, die geometry and preheat time are fixed by the standard condition applicable to the plastic, so results from different laboratories are comparable only when the same condition letter is used. Comparative testing, where a reference material is run on the same instrument, is often the most practical way to confirm instrument condition.

What are the key features?

• Weights from 10 kg to 21.6 kg and above
• Reinforced frame and piston assembly
• Long preheat and soak programming
• Wear-resistant die for high pressure
• Temperature stability display over long runs
• Record of load condition in each result

What are the technical specifications?

A typical high-load melt flow analyzer for high-viscosity plastics configuration offers available loads of 10 / 21.6 kg standard, higher on request, temperature range of 50–400 °C, temperature accuracy of ±0.2 °C, temperature stability of ±0.1 °C over 30 min, die dimensions of Ø 2.095 mm × 8.0 mm and frame load capacity of Designed for continuous 21.6 kg load. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The High-Load Melt Flow Analyzer for High-Viscosity Plastics is used in polyethylene pipe grade lot verification, ultra-high-molecular-weight polyethylene testing, highly filled masterbatch flow checks and very high molecular weight polymer development. Across the wider Melt Flow Analysis class, laboratories also deploy it for lot release of polyethylene and polypropylene grades, verification of recycled plastic melt flow consistency and effect of filler and reinforcement on flow behaviour.

Which standards and certifications apply?

Relevant standards and methods include ISO 1133-1, ASTM D1238, ASTM D3364, GB/T 3682.1, GB/T 3682.2 and IEC 61010-1. Certification candidates for this model are CE and ISO 9001 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Level the instrument and allow full thermal equilibration before the first measurement, then verify barrel temperature with an external probe. Check die bore and length against the standard tolerance and replace worn dies, because an enlarged bore lowers the measured value. Use only dried material for hygroscopic plastics stated in the method, and discard any extrudate containing bubbles or voids. Clean the barrel between materials with purging compound, not with metal tools. Keep weights traceable and record the standard condition, sample mass, preheat time and any melt density value with every result so that a reviewer can reconstruct the test.

How do I select the right High-Load Melt Flow Analyzer for High-Viscosity Plastics?

Choose a high-load configuration when the time to extrude under a standard load is impractically long, when the grade specification itself cites a high-load condition, or when the material is a pipe or ultra-high-molecular-weight grade. Confirm the frame and piston are rated for continuous operation at the load, not only for short periods, and plan longer test cycles in the laboratory schedule.

How does it compare with other Melt Flow Analysis variants?

Define the output you need first. For routine lot release, a gravimetric instrument that weighs timed cuts is adequate and easiest to defend against the standard. When results must be traceable in a digital system or the material is difficult to cut, an instrument with piston displacement measurement is preferable. Where throughput dominates, choose a multi-position analyzer or a robotic loading configuration. Add a melt density capability when filler content or batch-to-batch density variation is a quality concern. For filled, reinforced or very high molecular weight plastics, specify the load set and a corrosion- or abrasion-resistant barrel and die, because standard hardware may not reach the required condition or may wear quickly.
