Concentric Nebulizer and Cyclonic Spray Chamber System

What is the Concentric Nebulizer and Cyclonic Spray Chamber System?

A concentric nebulizer with a cyclonic spray chamber is the standard liquid sample introduction system for ICP. It is chosen for clean aqueous solutions where efficient aerosol transport and stable signals are the priority.

Overview

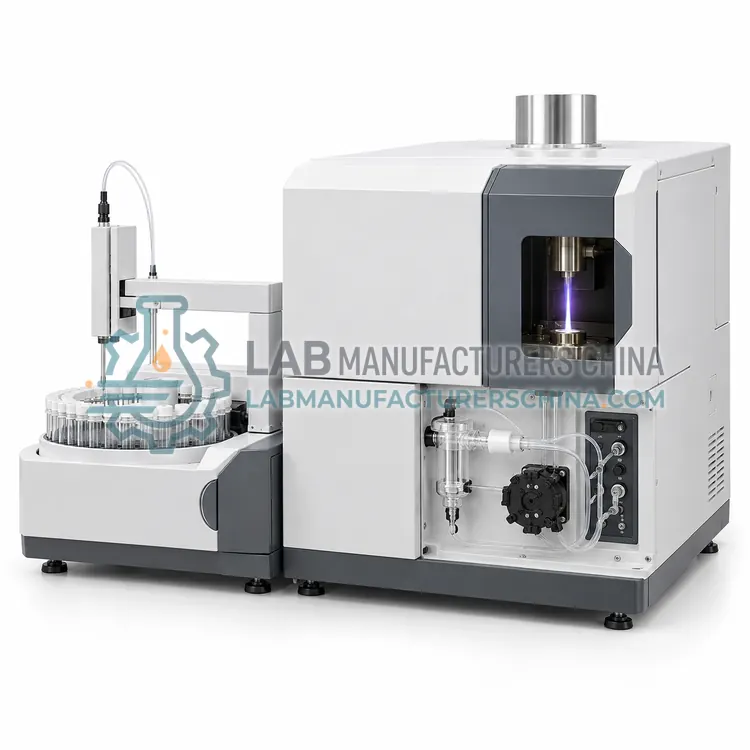

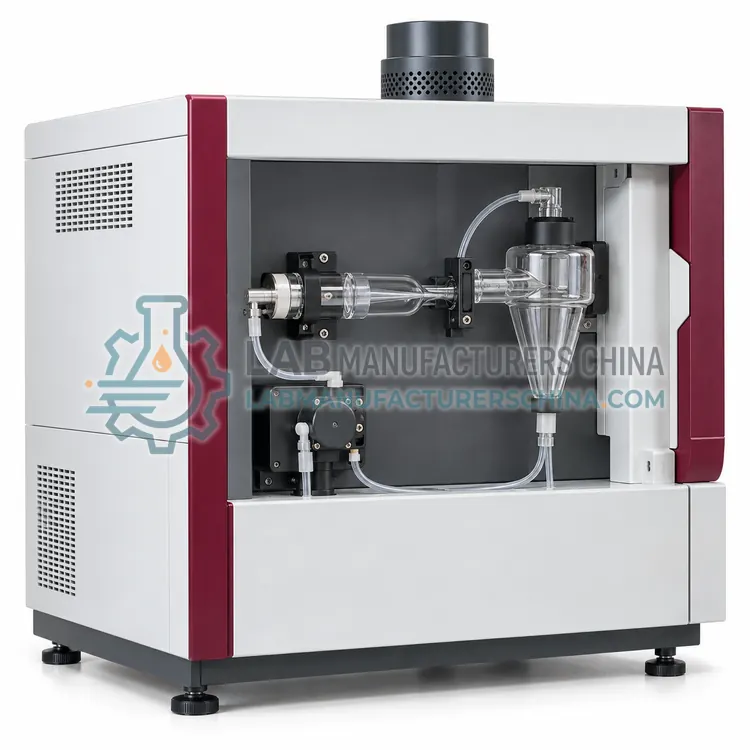

In a concentric nebulizer the sample flows through a fine central capillary surrounded by a high-velocity gas stream, which shears the liquid into a fine aerosol. The aerosol enters a cyclonic spray chamber, where a swirling motion throws larger droplets onto the walls and drains them away, while fine droplets exit to the torch. This combination gives good transport efficiency, low dead volume and a stable signal, and it is the default for aqueous samples with low dissolved solids. Uptake rates are typically 0.5 to 2 millilitres per minute and are set by the peristaltic pump. The nebulizer is sensitive to blockages from particulates and high salt, so samples are usually filtered or diluted, and a spare nebulizer is kept on hand. Materials include glass, quartz and inert polymers for corrosive samples.

How does it work?

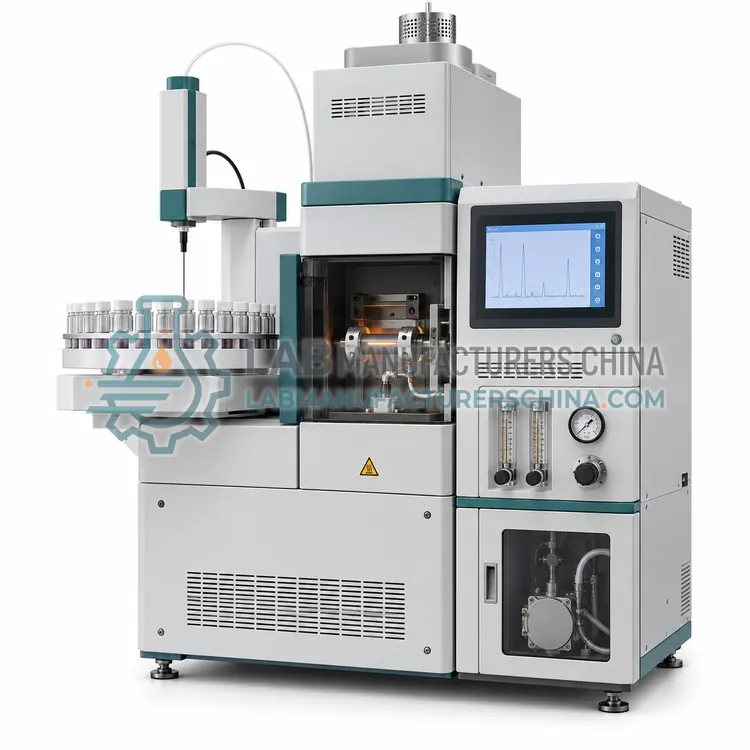

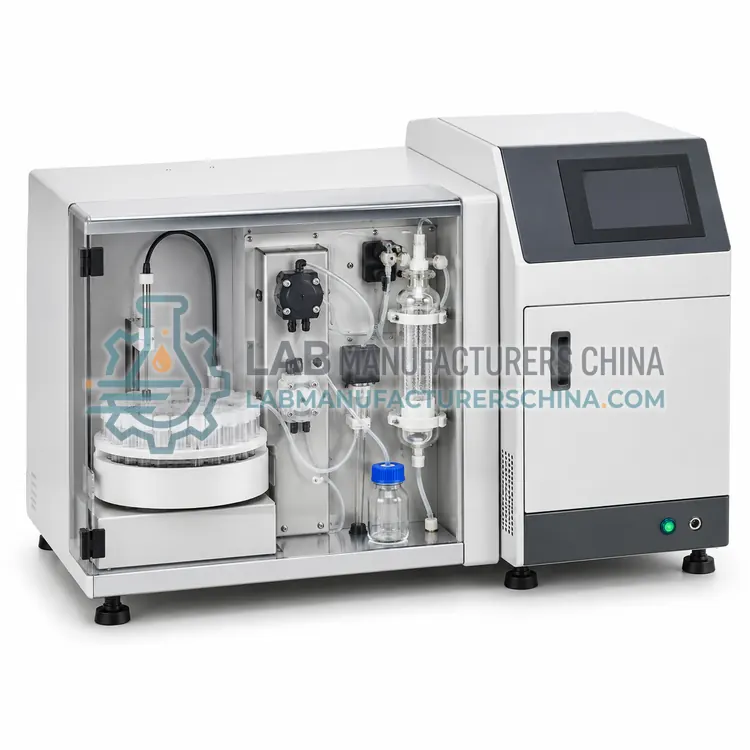

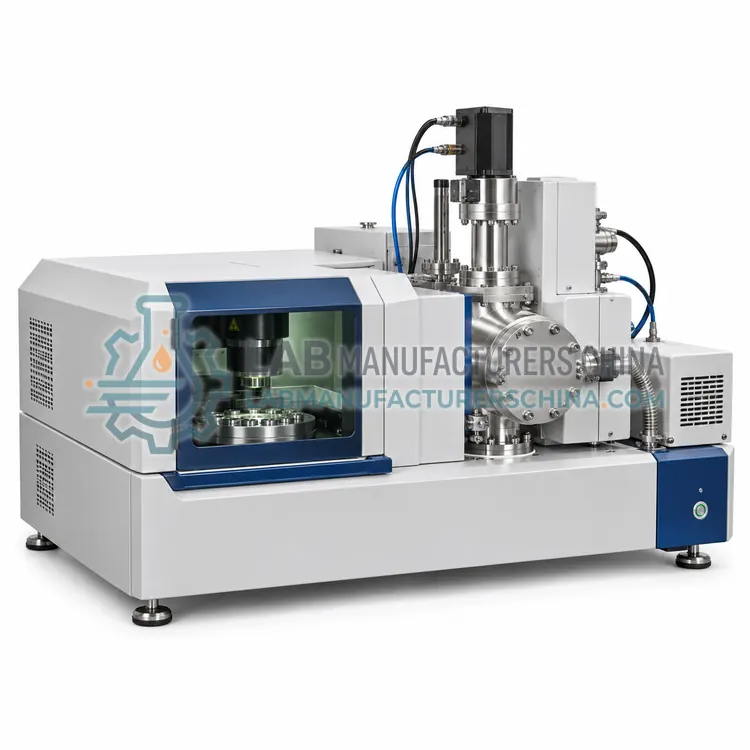

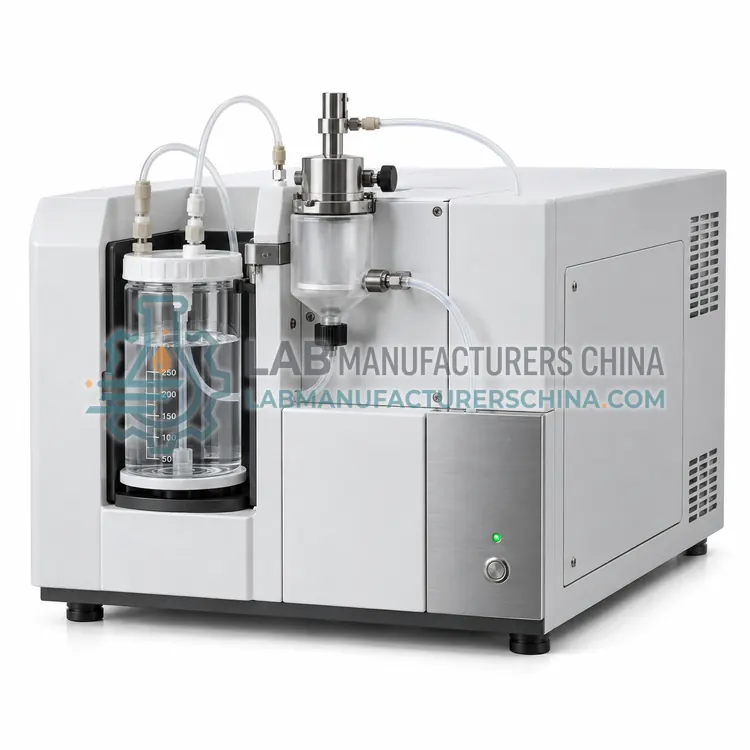

The sample introduction system determines how much sample reaches the plasma and in what form. For liquids, a peristaltic pump delivers sample to a nebulizer, which creates an aerosol; a spray chamber then removes large droplets so only fine droplets enter the plasma. Nebulizer type and spray chamber design set transport efficiency, which is typically only a few percent, and thus sensitivity. Ultrasonic nebulizers use vibration to produce finer aerosols and improve transport, while electrothermal vaporization heats a small sample to form a vapor. Hydride generation converts certain elements into volatile species, separating them from the matrix. Laser ablation removes solid particles from a sample surface for direct analysis. Whichever approach is used, transport tubing length and gas flows must be optimized, and washout between samples controls carry-over.

What are the key features?

• Concentric capillary nebulizer for fine aerosol
• Cyclonic spray chamber with low dead volume
• Transport efficiency suitable for aqueous samples
• Uptake rate set by peristaltic pump
• Glass, quartz or inert polymer versions
• Stable signal with low carry-over

What are the technical specifications?

A typical concentric nebulizer and cyclonic spray chamber system configuration offers nebulizer type of concentric, spray chamber of cyclonic, sample uptake rate of 0.5–2 mL/min, transport efficiency of 2–5%, gas flow of 0.6–1.0 L/min nebulizer and materials of glass, quartz, PFA or PEEK. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Concentric Nebulizer and Cyclonic Spray Chamber System is used in routine aqueous samples in ICP-OES and ICP-MS, drinking water and environmental analysis, digested food and biological samples and pharmaceutical elemental impurity testing. Across the wider ICP Sample Introduction Systems class, laboratories also deploy it for routine liquid sample delivery for ICP-OES and ICP-MS, trace analysis with improved transport efficiency and direct solid sampling and elemental mapping.

Which standards and certifications apply?

Relevant standards and methods include USP <730> Plasma Spectrochemistry, ISO 11885 Water quality — ICP-OES determination of elements, US EPA Method 200.7, US EPA Method 200.8, US EPA Method 6020B and ISO/IEC 17025. Certification candidates for this model are CE, ISO 9001 manufacturing and Elemental cleanliness test; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Sample introduction components are the most frequently replaced parts of an ICP system and are the usual cause of reduced sensitivity or precision. Nebulizers clog, corrode or crack; spray chambers accumulate deposits; pump tubing stretches and changes flow; and laser cells and transport lines adsorb analytes. Establish cleaning and replacement schedules and keep spares. Transport efficiency depends on gas flow, tubing length and chamber design, so changing one component may require method reoptimization. For high-solids samples, dilute or use a matrix-tolerant nebulizer to avoid blockages. Always check uptake rate and aerosol quality after maintenance, and verify performance with a check standard before releasing results.

How do I select the right Concentric Nebulizer and Cyclonic Spray Chamber System?

Select this system for routine clean aqueous samples when you want the best combination of simplicity, stability and low carry-over. Specify the sample matrix, dissolved solids level and instrument model, and confirm that the nebulizer material resists your acids. Keep a spare nebulizer and pump tubing in stock.

How does it compare with other ICP Sample Introduction Systems variants?

Select a sample introduction system by sample type, detection limit requirements and matrix. A concentric nebulizer with a cyclonic spray chamber is the standard, efficient choice for clean aqueous solutions. High dissolved solids need a V-groove, cross-flow or high-solids nebulizer that resists blockage. Ultrasonic nebulization improves detection limits for trace work when sample volume allows. Laser ablation is chosen for solid samples and spatial mapping, and electrothermal vaporization for very small volumes or micro-samples. Hydride generation targets arsenic, selenium and related elements with matrix separation. Autosamplers with peristaltic pumps provide reproducible delivery and throughput. Confirm compatibility with your torch, plasma gas flows and instrument software.
