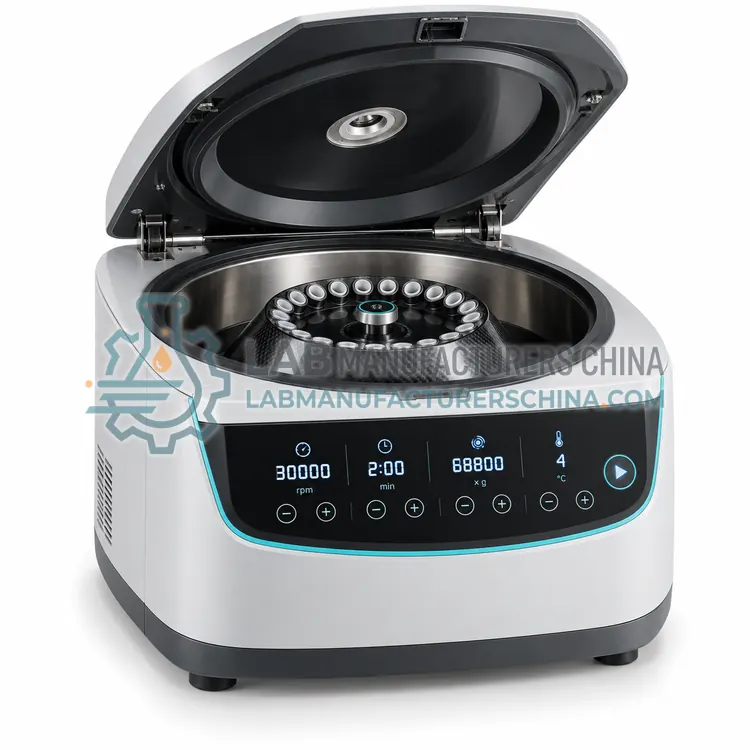

Carbon Fiber Rotor High-Speed Centrifuge

What is the Carbon Fiber Rotor High-Speed Centrifuge?

A carbon fiber rotor high-speed centrifuge uses lightweight composite rotors that resist fatigue and corrosion, reaching 20,000 to 30,000 rpm at 4 x 1 L or 6 x 500 mL capacity. It is chosen where rotor life, chemical tolerance and fast acceleration matter.

Overview

Carbon fiber rotors weigh roughly 40 to 50 percent less than aluminum rotors of the same capacity, which reduces stored kinetic energy and shortens acceleration and deceleration times. They resist corrosion from buffers and salts and are not subject to the same fatigue derating as aluminum, although they have cycle limits. Typical configurations include 6 x 500 mL fixed-angle rotors at 20,000 rpm, reaching about 50,000 x g, and 8 x 50 mL rotors at 30,000 rpm reaching over 70,000 x g. Because rotor mass and inertia are lower, the drive uses less power and runs cooler. The centrifuge itself is usually a floor-standing or large benchtop refrigerated unit with rotor life counters. Composite rotors require careful handling since surface impact damage is not always visible.

How does it work?

High-speed centrifuges use a high-torque induction or brushless drive, typically with a flexible shaft or direct coupling, to spin rotors made of aluminum alloy, titanium or carbon fiber. Centrifugal force scales with the square of angular velocity, so a 20,000 rpm rotor of 10 cm radius produces about 44,800 x g. Fixed-angle rotors shorten the sedimentation path and give fast pellets. Swing-bucket rotors allow gentle separation and gradients at lower speeds. Because friction with air heats the rotor significantly at these speeds, most units are refrigerated, with compressors holding 4 C and sensors monitoring rotor temperature. Armored chambers, rotor recognition, overspeed and imbalance protection, and lid interlocks contain energy in the event of a rotor failure.

What are the key features?

• Rotor mass is roughly 40 to 50 percent lower than comparable aluminum rotors
• Shorter acceleration and braking times increase daily throughput
• High resistance to corrosion from salt and buffer solutions
• Cycle counter tracks rotor life against the rated number of runs
• Compatible with sealed bottles and aerosol-tight lids for biosafety

What are the technical specifications?

A typical carbon fiber rotor high-speed centrifuge configuration offers maximum speed of 20,000–30,000 rpm, maximum RCF of 50,000–75,000 x g, rotor material of Carbon fiber composite with titanium fittings, maximum capacity of 4 x 1 L or 6 x 500 mL, acceleration to full speed of ≤ 4 min and braking from full speed of ≤ 5 min. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Carbon Fiber Rotor High-Speed Centrifuge is used in high-salt buffer harvests, bioprocess clarification, membrane protein preparation and frequent high-speed daily runs. Across the wider High-Speed Centrifuges class, laboratories also deploy it for bacterial and yeast cell harvest, protein precipitate recovery and organelle and membrane fractionation.

Which standards and certifications apply?

Relevant standards and methods include IEC 61010-1, IEC 61010-2-020, IEC 61326-1, ISO 9001, ISO 3734 and GB 4793.1. Certification candidates for this model are CE, ISO 9001 manufacturing and IEC 61010-2-020 compliance; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Floor-standing units weigh 150 to 400 kg and require a level, reinforced floor and dedicated power, often 220 V single phase at 16 A. Rotor care is critical: log run hours, derate aluminum rotors per the maker's schedule, and never exceed rated speed with lightly filled tubes that are not rated for the RCF. Clean with neutral pH detergents, lubricate threads and O-rings, and inspect for corrosion. Schedule annual preventive maintenance including tachometer and temperature verification. Comply with IEC 61010-2-020 and, for regulated work, document IQ/OQ and calibration records.

How do I select the right Carbon Fiber Rotor High-Speed Centrifuge?

Choose carbon fiber rotors when runs are frequent, buffers are corrosive or quick acceleration is needed. They cost more than aluminum rotors but typically give longer service. In the RFQ, specify rotor capacity, maximum RCF, rotor life counter requirement, temperature range and handling and storage conditions.

How does it compare with other High-Speed Centrifuges variants?

Begin with the pelleting requirement: bacteria and yeast typically pellet at 6,000 to 10,000 x g, while organelles, protein precipitates and membranes need 20,000 to 50,000 x g. Match capacity to batch size, from 6 x 50 mL to 6 x 500 mL or 4 x 1 L. Decide whether a floor or large benchtop unit fits the lab. Refrigeration is almost always required. Choose rotor materials by lifetime and corrosion resistance, since aluminum is economical but carbon fiber and titanium offer higher speed and better chemical tolerance. Evaluate programmable ramps, rotor life logging, aerosol-tight lids, and whether a swing-bucket option is needed for gradients or large-volume clarification.
