How do Hotplate Stirrers work?
A hotplate stirrer has an electrical heating element, typically a resistive coil or film, bonded to a plate of aluminum, ceramic or glass-ceramic, with a magnet drive below it for stirring. A temperature sensor in the plate, or an external PT1000 probe placed in the liquid, feeds a controller that regulates power by PID or on-off control. External probe control is more accurate because the liquid temperature, not the plate, is held at the set point, which avoids overshoot and overheating. A separate safety circuit, typically a bimetal switch or independent electronic limit, cuts power if plate temperature exceeds a fixed value. Plate material affects heat distribution and chemical resistance: aluminum heats evenly and quickly, ceramic resists corrosion, and glass-ceramic is easy to clean. Residual-heat indicators warn users that the plate remains hot after switching off.
Which Hotplate Stirrers variants are available?
- Ceramic-Top Hotplate Stirrer — A ceramic-top hotplate stirrer has a chemically resistant ceramic or ceramic-coated plate that tolerates acids, alkalis and solvent spills and reaches up to about 500 °C.

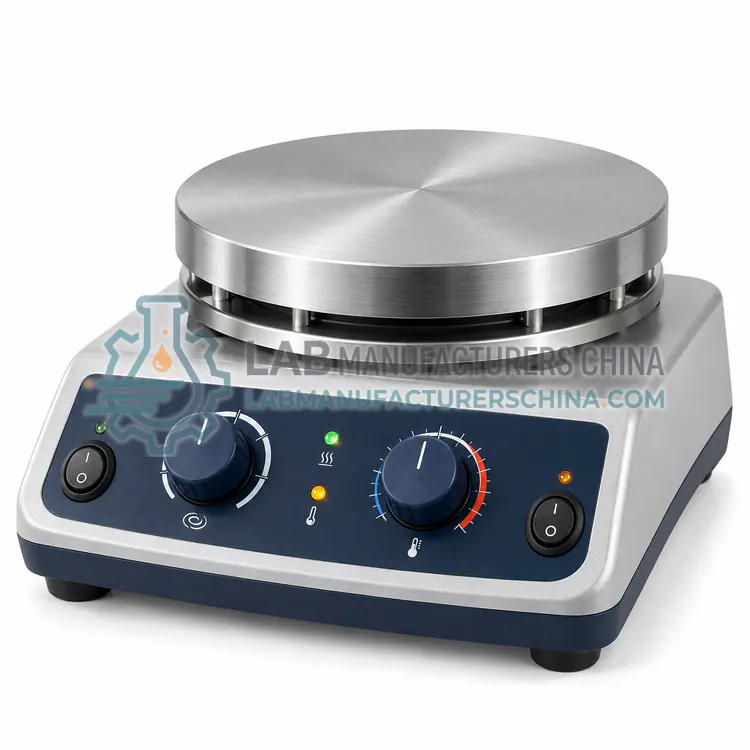

- Aluminum-Top Hotplate Stirrer — An aluminum-top hotplate stirrer uses a cast or machined aluminum plate with high thermal conductivity for rapid, uniform heating up to about 380 °C.

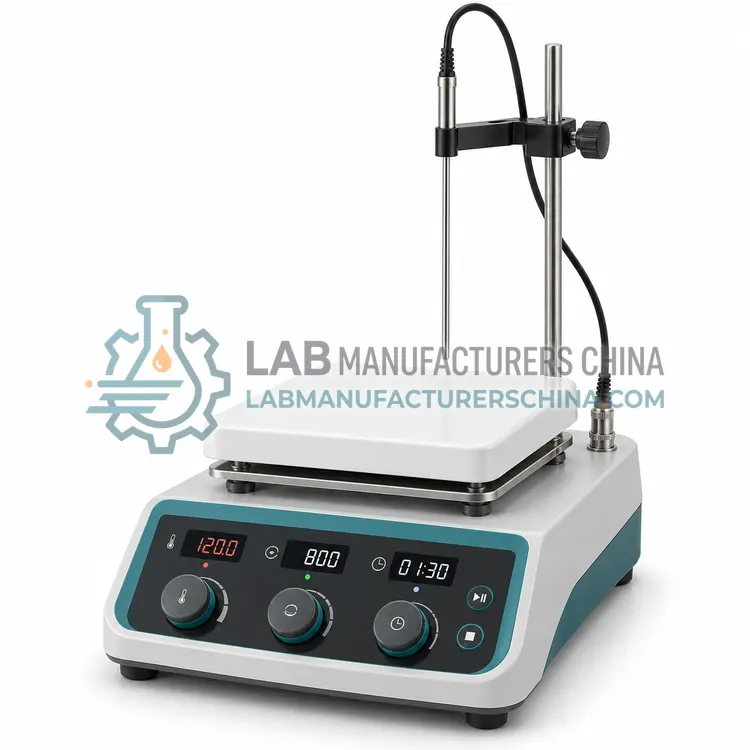

- PID Hotplate Stirrer with PT1000 Temperature Probe — A PID hotplate stirrer with a PT1000 probe measures temperature directly in the liquid and regulates heating with a PID algorithm, holding samples within about ±0.5 to ±1 °C.

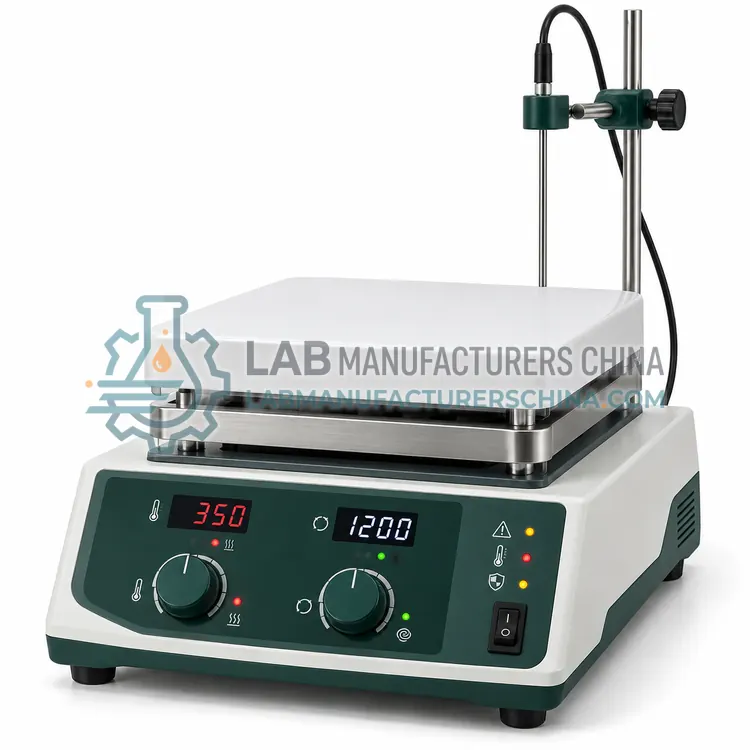

- High-Temperature Hotplate Stirrer — A high-temperature hotplate stirrer reaches plate temperatures of around 500–550 °C with a strong heater and a ceramic plate while still stirring magnetically.

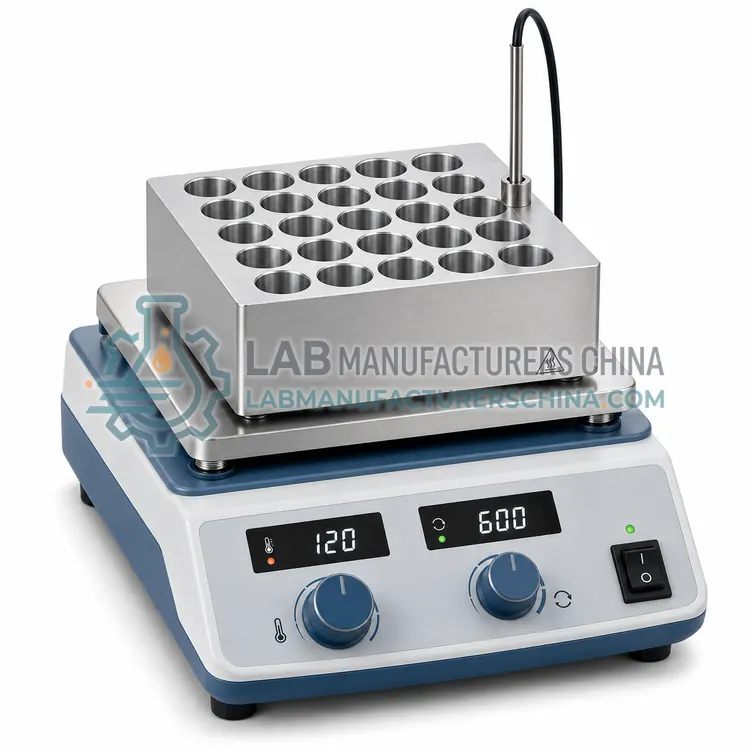

- Hotplate Stirrer with Heating Block for Reaction Vials — This hotplate stirrer is used with machined aluminum heating blocks that hold multiple vials or flasks, giving uniform conductive heating and stirring to several small reactions at once.
How do I choose the right variant?
Choose the plate material and maximum temperature first: aluminum for even heating up to about 380 °C, ceramic or glass-ceramic for corrosion resistance and up to 500 to 550 °C, and stainless steel where mechanical strength is needed. Decide whether plate-only control is sufficient or an external PT1000 probe with PID is needed for accurate liquid temperature. Check the independent safety circuit and its cut-out value, which matters when working with flammable solvents. Match plate diameter to vessel size, typically 135 to 200 mm for beakers and flasks, and confirm maximum stirring volume and speed range. Consider digital display, interface, hood compatibility and whether the housing is spark-free or has sealed controls. For temperature-sensitive samples choose a model with low overshoot and tested accuracy. Specify voltage and plug type.
Where are Hotplate Stirrers used?
Hotplate Stirrers are specified in heated dissolution of solids, synthesis under controlled temperature, solvent evaporation in beakers, culture media and agar preparation and sample digestion and pretreatment.
Which standards and certifications apply?
Work with Hotplate Stirrers is commonly governed by IEC 61010-1, IEC 61010-2-010, IEC 61326-1, GB 4793.1, GB 4793.9 and ISO 9001. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Use the unit on a heat-resistant, level surface and keep flammable materials away from the plate. Never heat a sealed vessel. Avoid spills on hot plates, since thermal shock can crack glass-ceramic and corrosive spills damage coatings. Place the external probe in the liquid, not touching the vessel wall, and use a probe clamp or holder. Do not exceed the rated temperature and confirm that the independent safety cut-out works during periodic inspection. Allow plates to cool fully before cleaning. Verify temperature with a calibrated thermometer periodically and record the result. For electrical safety refer to IEC 61010-1 and IEC 61010-2-010, and for hazardous solvents consider the fume-hood airflow and ignition sources.
