How do Coal Sample Preparation work?
Coal is heterogeneous, so sample preparation must cut particle size and sample mass without changing composition. Size reduction proceeds in stages: a jaw or roll crusher takes lump coal down to a few millimetres, a hammer mill or crusher reduces it to about one millimetre, and a vibratory ring mill or disc pulverizer grinds a laboratory portion below 200 µm, or to 75 µm for ash and elemental work. Between stages the sample must be mixed and divided, because mass reduction must be proportional: a riffle divider splits a stream into two equal halves through alternate chutes, and a rotary divider collects a controlled stream in rotating vessels to give identical fractions. Moisture control is critical, so equipment is enclosed, pass-through times are short and contact surfaces are chosen to avoid adding iron or other contamination that would bias ash and elemental results.
Which Coal Sample Preparation variants are available?
- Laboratory Jaw Crusher — A laboratory jaw crusher reduces lump coal from about 50 to 100 mm down to a few millimetres, preparing it for further size reduction.

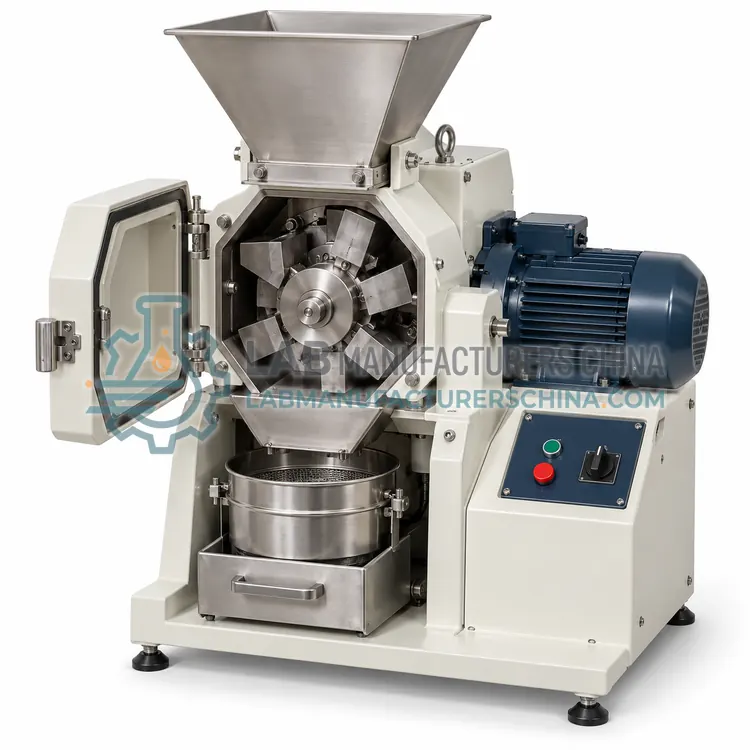

- Laboratory Hammer Mill for Coal — A laboratory hammer mill reduces crushed coal to about one to three millimetres in a single pass using swinging hammers and a screen, handling higher throughput than a jaw crusher.
- Vibratory Ring Mill Pulverizer — A vibratory ring mill pulverizes a few hundred grams of crushed coal to below 200 µm, or to 75 µm for analysis samples, in one to three minutes.
- Riffle Sample Divider — A riffle sample divider splits a coal sample into two equal halves by pouring it through alternating chutes into opposite receivers.

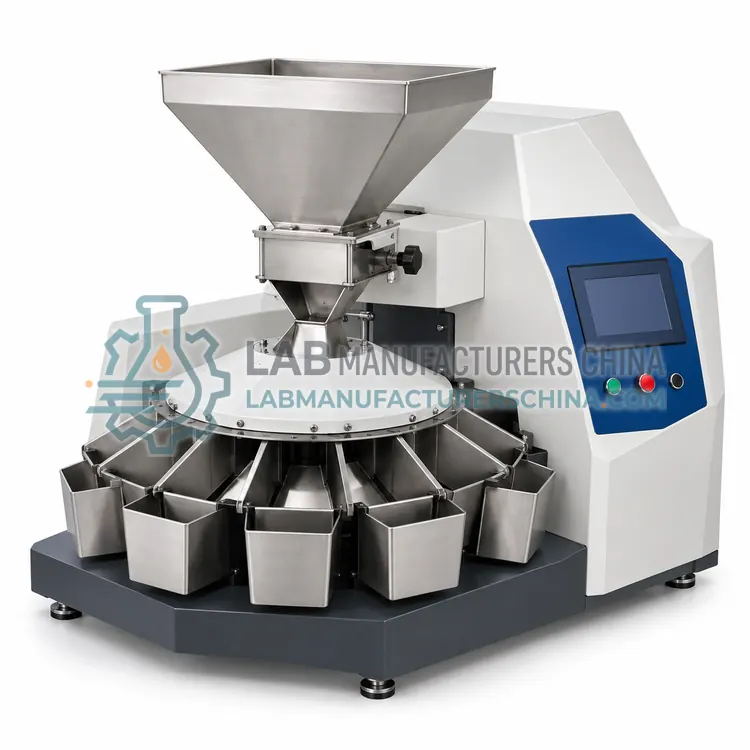

- Rotary Sample Divider for Coal — A rotary sample divider feeds coal at a controlled rate into a set of vessels on a rotating table, producing several fractions of equal mass.
How do I choose the right variant?
Plan the whole chain before buying individual machines. Match the top size of incoming material to crusher feed openings and the required final fineness to the pulverizer, and keep reduction ratios moderate by using several stages rather than one large step. Check throughput against the number of samples per shift, and check that the product size table of the sampling standard is respected, since the minimum sample mass depends on top size. Choose contact materials with contamination in mind: manganese steel wears well but adds iron, while tungsten carbide or ceramic grinding sets cost more and keep ash and trace element results cleaner. Look for enclosed, dust-tight designs with extraction connections, quick-release bowls or plates for cleaning, and drives rated for continuous duty. For dividing, riffle dividers suit gravity flows and rotary dividers give the best precision on fine coal.
Where are Coal Sample Preparation used?
Coal Sample Preparation are specified in coal mine and preparation plant sample chains, power station coal quality laboratories, commercial inspection sample preparation, coke and solid biofuel sample preparation and research on coal petrography and composition.
Which standards and certifications apply?
Work with Coal Sample Preparation is commonly governed by ASTM D2013, ASTM D2234, ISO 1988, ISO 13909-1, ISO 18283, GB/T 474, GB/T 475 and IEC 61010-1. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Prepare samples in a controlled room where moisture loss is limited, and work quickly through each stage, weighing after every division so that mass balance can be checked. Clean equipment between samples with brushes and, where necessary, by running a small amount of the next sample through, to avoid cross-contamination. Record the top size, mass and equipment settings for each stage so the reduction history can be audited. Keep grinding sets within wear limits, since worn plates change product size and can raise ash through iron pick-up. Guard feed openings, provide dust extraction rated for coal dust and use motors and switches suitable for a dusty environment. Reference materials and duplicate samples should be put through the same chain as routine samples to verify that no bias is introduced.
