Precision Seed Sieve Set

What is the Precision Seed Sieve Set?

A stack of certified sieves that classifies seeds by width and thickness for purity analysis and size grading. It is the right choice for laboratories that must prepare defined fractions and check the size of seed lots.

Overview

The precision seed sieve set consists of round or rectangular test sieves with designated aperture sizes, a receiving pan and a lid, used by hand or on a shaker. Seeds are separated by the smallest cross-section that passes each aperture, so the set classifies material by width or thickness into fractions that can be weighed and examined. Seed testing rules specify sieve apertures for particular separations and for preparing working samples, and a well-chosen stack reduces the time spent on visual sorting. Certified sieves are supplied with documentation of aperture size, and they must be inspected for damage and clogged apertures before use. Sieve loading is limited, so large samples are divided first. Cleaning with a soft brush or ultrasonically, and replacing worn sieves, keep results accurate and repeatable.

How does it work?

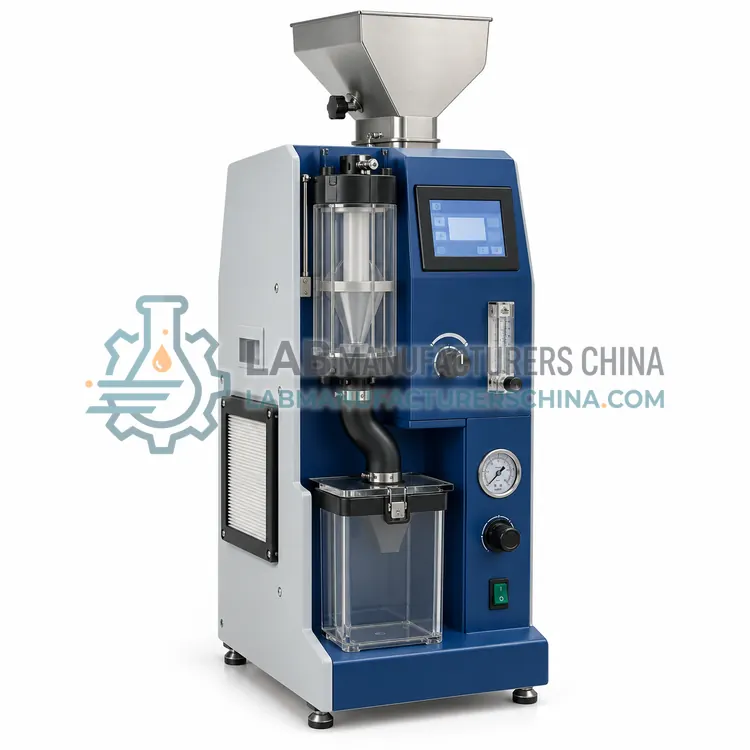

Purity work combines visual examination with mechanical separation. A purity analysis table provides even lighting, a ruled grid, trays and magnifiers so an analyst can identify each particle and weigh the fractions. Seed blowers separate particles by aerodynamic drag, since light chaff and empty seeds are lifted by an air stream at a lower speed than dense, sound seed. Indented cylinder separators trap seeds in pockets according to their length and shape, lifting round or short seeds away from long ones. Electrostatic separators charge seed surfaces and separate those that hold a charge from those that conduct it away, which is useful for removing discoloured, damaged or coated seed. Sieve sets classify by width and thickness, and precision sieves prepare defined size fractions. Together these tools reduce a working sample to fractions that can be weighed and expressed as percentages.

What are the key features?

• Certified apertures give traceable size classification.
• Stack separates by width and thickness into weighable fractions.
• Matches rule-specified apertures for seed testing.
• Reduces visual sorting time before purity analysis.
• Hand or shaker operation suits small and large batches.
• Consulting certificate documents each sieve aperture.

What are the technical specifications?

A typical precision seed sieve set configuration offers sieve type of Round test sieve, 200 mm, aperture range of 0.2–20 mm, aperture tolerance of Certified to standard, numbers per set of 5–12 sieves plus pan and lid, material of Brass, stainless steel or nylon mesh and operation of Hand or shaker. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Precision Seed Sieve Set is used in purity analysis fraction preparation, seed size grading, seed lot screening and thousand-grain weight sample sizing. Across the wider Seed Purity Equipment class, laboratories also deploy it for seed purity certification testing, seed lot cleaning and upgrading and weed seed contamination checks.

Which standards and certifications apply?

Relevant standards and methods include ISTA International Rules for Seed Testing (purity), AOSA Rules for Testing Seeds (purity), GB/T 3543.3 (purity analysis), ISO 520 (1000-grain mass) and ISTA Rules (other seed determination). Certification candidates for this model are CE and ISO 9001 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Take the working sample from the submitted sample by proper dividing, because purity results depend on the sample being representative. Follow the rule-defined masses and the order of separation for each species, and work methodically through the fractions so that nothing is lost or double-counted. Keep the purity table clean and the lighting consistent, and use magnifiers or a stereo microscope for difficult identifications. Calibrate and level the balance, and weigh each fraction to the resolution the rules require. Clean sieves, blowers and separators thoroughly between samples to avoid carry-over of small weed seeds, which is a major source of error. Retain fractions or photographs for verification, record species, method and operator, and store the working sample so results can be checked later.

How do I select the right Precision Seed Sieve Set?

Select the sieve set to support any purity or size grading workflow, and choose apertures that match the species requirements in the rules. For length or roundness separation that sieves cannot achieve, add an indented cylinder. In an RFQ, specify the apertures needed, sieve diameter, material and certification.

How does it compare with other Seed Purity Equipment variants?

Choose equipment based on the species, the fraction to be separated and the volume of work. For the reference purity analysis that produces the reported percentages, the essential tools are an adequately lit purity table, sieves of the required apertures, a blower for chaff and light fractions, and a balance of suitable resolution; almost every laboratory needs these. Indented cylinder separators are added when slender or round seeds must be removed and for cleaning seed lots. Electrostatic separators are selected for removing discoloured, immature or damaged seed of the same size as good seed. Confirm that the working sample mass and sieve apertures match the species requirements in the applicable rules, and that cleaning between samples is practical. Also check the resolution and calibration schedule of the balance, since purity results depend on accurate weighing of each fraction.
