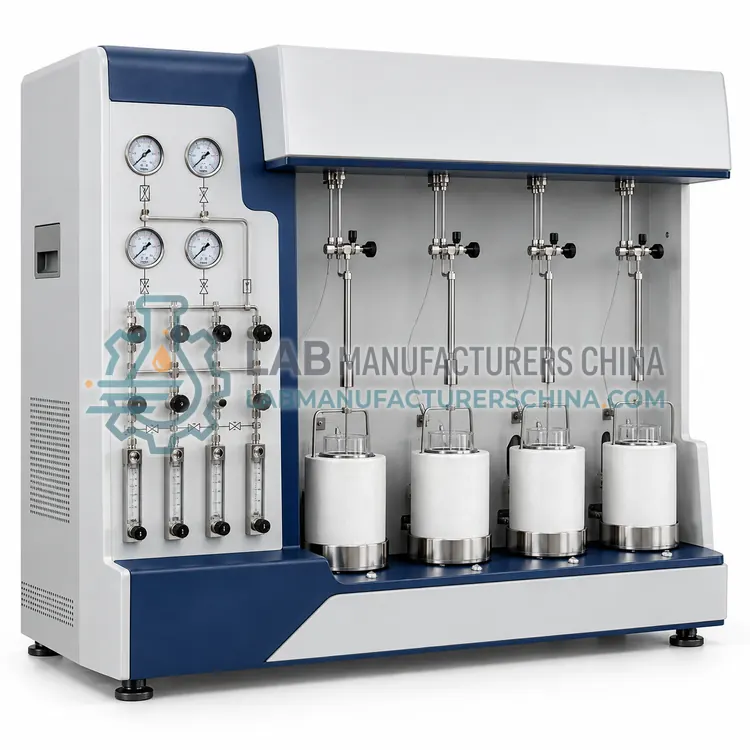

Multi-Station Static Volumetric BET Surface Area Analyzer for Powders

What is the Multi-Station Static Volumetric BET Surface Area Analyzer for Powders?

A static volumetric analyzer that dose nitrogen to a cooled sample and records the full adsorption isotherm at up to four stations simultaneously. It produces multipoint BET, Langmuir and t-plot results for powders, following ISO 9277 and suited to research and regulated laboratories.

Overview

In a static volumetric system a calibrated manifold doses known volumes of nitrogen to the sample tube in a liquid nitrogen bath. After equilibration, pressure transducers measure the pressure and the quantity adsorbed is calculated from the pressure difference. Repeating this at relative pressures from about 0.05 to 0.35 gives the multipoint BET plot; extended to 0.995, it provides the full isotherm for pore volume. Automatic BET range selection according to the Rouquerol criteria ensures that the pressure range is physically meaningful. Turbomolecular pumps reach high vacuum for degassing and free-space measurement with helium. Multiple independent analysis stations and separate degassing ports raise throughput. Typical measurement times are 1 to 3 hours per isotherm. Accuracy and repeatability of the multipoint method are better than single-point flow methods, particularly for microporous or low surface area powders.

How does it work?

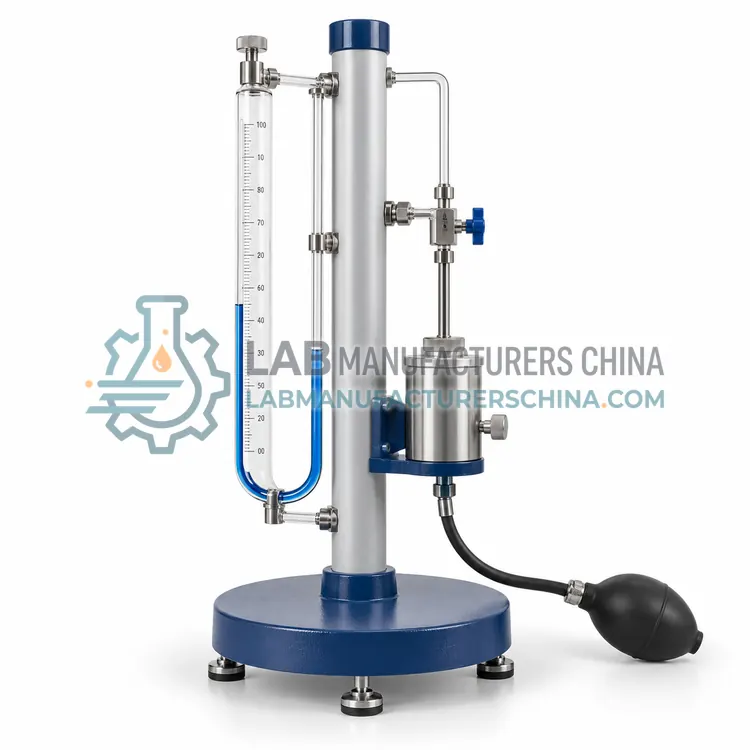

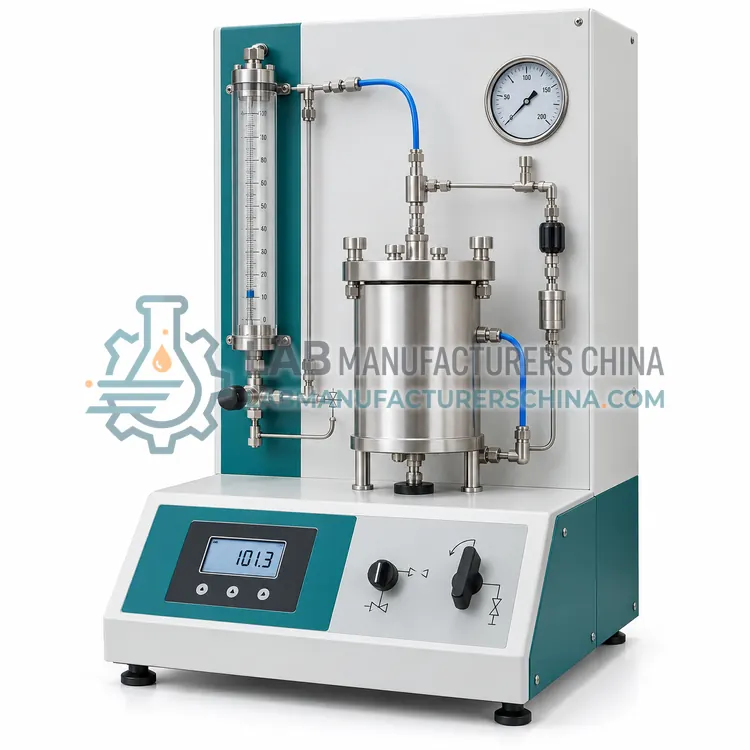

Gas adsorption methods expose a degassed powder to nitrogen at 77 K. Adsorbed gas quantity is measured at several relative pressures, and the Brunauer–Emmett–Teller (BET) equation converts the monolayer capacity into surface area using the molecular cross-sectional area of nitrogen, 0.162 nm². Static volumetric systems dose known gas volumes and calculate uptake from pressure changes. Dynamic flow systems pass a nitrogen–helium mixture over the sample and detect adsorption and desorption by a thermal conductivity detector. Air permeability methods, such as Blaine or Fisher-type apparatus, measure the resistance to airflow through a packed powder bed of defined porosity, and the Kozeny–Carman relation gives specific surface area. Key components include sample tubes, degassing stations, pressure transducers, Dewar flask or cryogenic bath, and calibrated volumes.

What are the key features?

• Up to four analysis stations with independent dosing
• Turbomolecular pumping for high vacuum degassing
• Pressure transducers at 0.1, 10 and 1000 Torr ranges
• Automatic BET range selection using Rouquerol criteria
• Langmuir, t-plot and BJH analysis in software
• Isothermal jackets to keep the free-space volume stable

What are the technical specifications?

A typical multi-station static volumetric bet surface area analyzer for powders configuration offers specific surface area range of 0.05 m²/g and above (N₂); lower with Kr, analysis stations of 2–4, degassing ports of 2–6 independent, pressure transducers of 0.1, 10, 1000 Torr, relative pressure range of 1×10⁻⁶–0.995 P/P₀ and vacuum of ≤ 10⁻⁵ Torr (turbo pump). Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Multi-Station Static Volumetric BET Surface Area Analyzer for Powders is used in battery cathode and anode powder research, catalyst and support development, pharmaceutical API surface control, nanopowder and ceramic characterisation and activated carbon QC. Across the wider Surface Area Analyzers class, laboratories also deploy it for cement fineness control, battery electrode and cathode powders and catalyst supports and activated carbon.

Which standards and certifications apply?

Relevant standards and methods include ISO 9277, ASTM D3663, ASTM C204, EN 196-6, ASTM D6556, ISO 15901-2 and GB/T 19587. Certification candidates for this model are CE and ISO 9001 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Sample preparation strongly affects surface area. Degas powders at a temperature and time that remove moisture and volatiles without altering the structure, and use the same protocol for every batch. Weigh samples accurately after degassing, because mass error transfers directly to the result. Keep the cryogenic bath level and cold trap stable, use high-purity nitrogen and helium, and check for leaks. Verify calibration with certified reference materials of known surface area. For air permeability, control bed porosity, temperature and humidity, and calibrate with a reference powder. Record degassing conditions and the BET pressure range in reports, and follow IQ/OQ/PQ practice where regulated.

How do I select the right Multi-Station Static Volumetric BET Surface Area Analyzer for Powders?

Choose the multi-station static variant when full isotherms, multipoint BET validation or micropore assessment are needed for powders, or when results must meet regulatory documentation. Specify surface area range, number of stations, gas options, pore size analysis needs, vacuum level and software validation features.

How does it compare with other Surface Area Analyzers variants?

Choose according to the material and the decision that depends on the result. Cement and fine powders in production control are commonly measured by air permeability because it is fast and standardised. Nanopowders, catalysts supports and battery materials need gas adsorption to capture surfaces that permeability cannot. Single-point flow instruments give quick QC numbers, while multipoint static systems provide a full BET isotherm and validate linearity and C constant. Consider the expected surface area range, because materials under 1 m²/g require krypton or larger sample masses. Check the number of stations, degassing capability, liquid nitrogen handling, and whether results must follow ISO 9277 or ASTM D3663. Software features for automatic BET range selection per ISO 9277 and Rouquerol criteria reduce operator bias.
