Automated Protein Purification System

What is the Automated Protein Purification System?

An automated protein purification system runs chromatography methods on a laboratory scale with programmable flow, gradients and detection. It is used for method development, small-scale preparation and process characterization before final scale-up.

Overview

An automated protein purification system, often called a fast protein liquid chromatography system, uses two or more pumps to form gradients, a sample loop or autosampler, a selection valve for columns and buffers, and detectors for ultraviolet absorbance, conductivity and pH. Software executes methods that define flow rates, gradient profiles, fraction collection and cleaning steps, and stores chromatograms and run data. Columns ranging from small pre-packed cartridges to laboratory glass or steel columns allow screening of resins, buffers and gradient conditions. The system can be configured for affinity, ion exchange, hydrophobic interaction, multimodal or size-exclusion chromatography, making it suitable for purifying many different proteins. Reported parameters include retention volume, peak area and purity by fraction, which support method development and subsequent transfer to process scale.

How does it work?

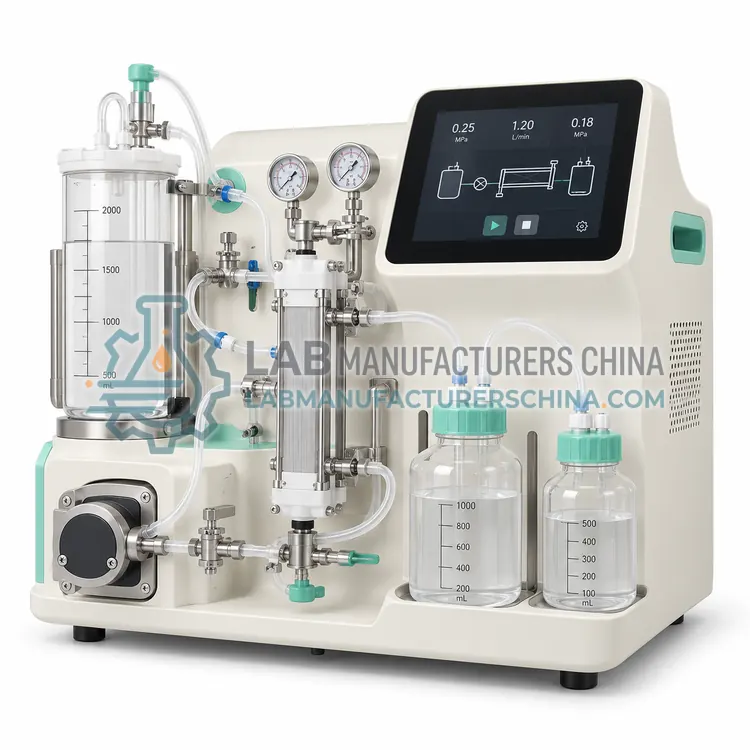

Protein purification systems separate a target protein from host-cell proteins, nucleic acids, aggregates and process impurities by exploiting differences in binding, charge, hydrophobicity or size. A typical train begins with clarification by centrifugation or filtration, then capture chromatography, often affinity, which binds the target strongly and allows most impurities to flow through. Low-pH or other elution releases the product, which is then neutralized and further purified by ion exchange, hydrophobic interaction or multimodal chromatography, and polishing by size-exclusion or a second ion-exchange step removes aggregates and residual impurities. Tangential flow filtration concentrates the pool and exchanges it into the formulation buffer. Pumps, valves, detectors and software control flow rate, gradients, pooling and cleaning, and record the chromatogram and batch data.

What are the key features?

• Multiple pumps for programmable gradients
• Detectors for UV, conductivity and pH
• Column and buffer selection valves
• Automated fraction collection and cleaning
• Method storage with chromatogram and data logging

What are the technical specifications?

A typical automated protein purification system configuration offers flow rate range of 0.01–150 mL/min, maximum pressure of Up to 5 MPa, detection wavelengths of UV 190–700 nm, conductivity, pH, gradient of Binary or quaternary, programmable, column formats of Pre-packed cartridges and glass columns and fraction collection of Automated, peak or time based. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Automated Protein Purification System is used in method and resin screening, small-scale protein preparation, process characterization and purification of research-grade proteins. Across the wider Protein Purification class, laboratories also deploy it for monoclonal antibody purification, recombinant protein purification and vaccine antigen purification.

Which standards and certifications apply?

Relevant standards and methods include USP <1050>, USP <661>, ICH Q7, ICH Q11, EU GMP Annex 1, 21 CFR Part 11 and IEC 61010-1. Certification candidates for this model are CE, ISO 9001 manufacturing and 21 CFR Part 11 software documentation; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Maintain resins according to the manufacturer's cleaning-in-place and storage instructions, and track cycle numbers against the validated lifetime. Verify column packing with an asymmetry and plate-count test before use and record it. Calibrate pumps, detectors, pH and conductivity sensors on schedule, and check that gradient performance meets method requirements. Use sanitary fittings, validated cleaning agents and documented cleaning verification for multi-product equipment. Control buffer preparation and microbial quality, since contamination reduces resolution and can introduce impurities. For regulated manufacture, review chromatogram data, pooling criteria and deviations as part of batch review, and confirm that software supports audit trails. Electrical safety follows IEC 61010-1.

How do I select the right Automated Protein Purification System?

Choose an automated laboratory system for development and small-scale preparation where flexibility and data are priorities. In an RFQ specify flow and pressure ranges, gradient type, detection wavelengths, column and valve options, fraction collection and software features.

How does it compare with other Protein Purification variants?

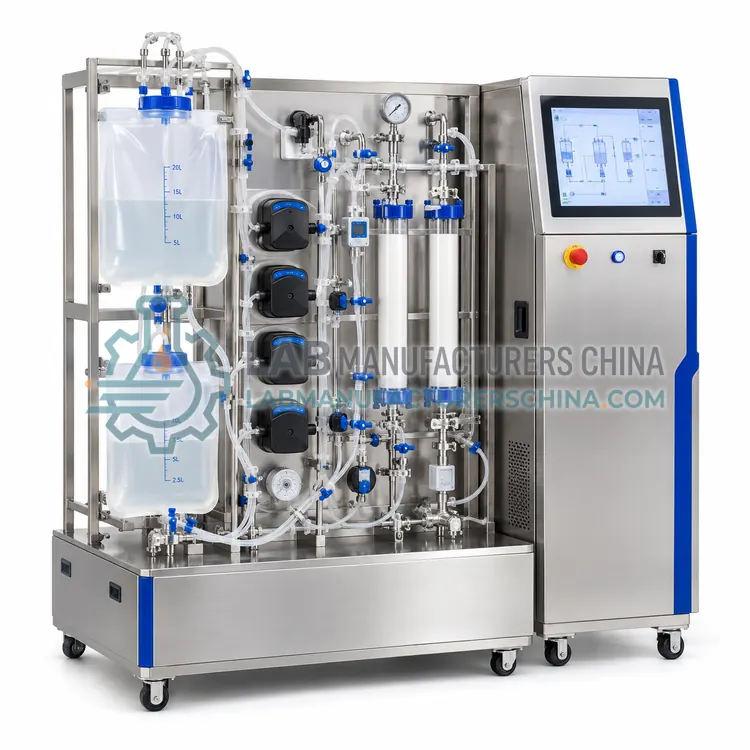

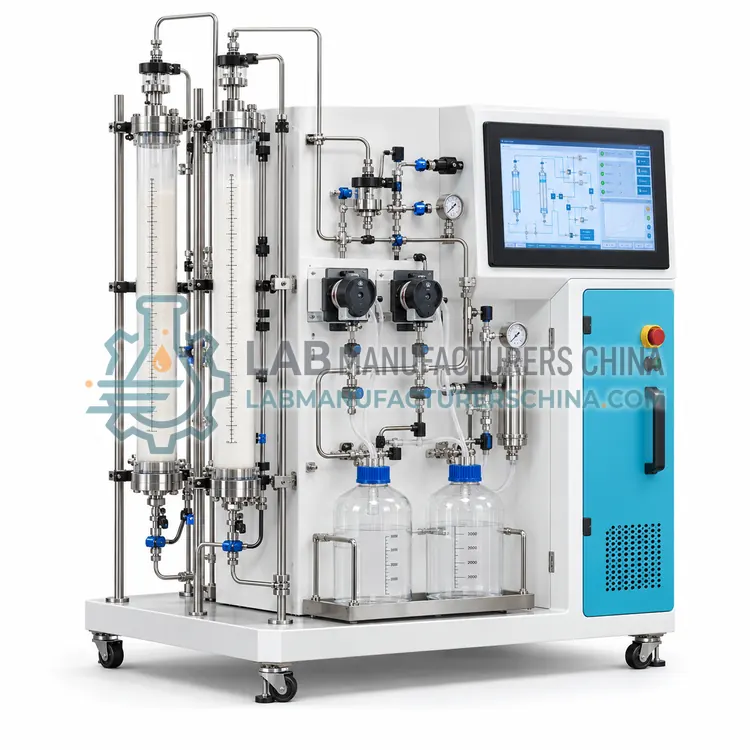

Select from the target molecule, expression level and scale. For capture, affinity resins give high selectivity and yield when a suitable ligand exists, while ion exchange or hydrophobic interaction suit cost-sensitive or ligand-free processes. Match column dimensions to the mass of product per batch and to the linear velocity the resin tolerates at the required cycle time. Choose the system format by scale: an automated laboratory system with method development software for development, a process skid with sanitary design and cleaning-in-place for production, and single-use flow paths for multi-product facilities. Determine the filtration area and membrane format required for clarification and concentration from the volumetric throughput. Confirm detection wavelengths, gradient and flow ranges, automation, data recording and the validation documentation you need.
