Automated H&E Slide Stainer

What is the Automated H&E Slide Stainer?

An automated H&E slide stainer programs deparaffinisation, staining, differentiation, dehydration and clearing as a single walk-away cycle. It is chosen for high-throughput pathology laboratories where hundreds of slides must be stained consistently every day.

Overview

The automated H&E stainer is designed for one purpose: to deliver consistent hematoxylin and eosin staining at high volume. Slides are loaded into racks or onto a conveyor and the instrument controls the full sequence, including heated deparaffinisation, hematoxylin and eosin application, acid-alcohol differentiation, blueing, graded alcohols and clearing. Many models additionally control reagent quality by monitoring bath age or slide counts and may flag when a bath is due for replacement. Temperature, agitation and dwell time are programmable in steps or profiles, and some instruments include a slide dryer and a coverslipper on the same platform. Throughput is typically 200 to 600 slides per hour. The main benefits are reproducibility, reduced solvent exposure and walk-away operation; the main requirements are correct reagent management and quality control slides.

How does it work?

A histology stainer automates the sequence of deparaffinisation, hydration, staining, differentiation, dehydration and clearing that a technician would perform by hand. Slides are held in racks or on a conveyor, and the instrument moves them between reagent baths for set dwell times, then transfers them to running water or a rinse station. Hematoxylin stains nucleic acids blue, eosin counterstains cytoplasm pink, and differentiation in acid alcohol tunes the contrast. Special stains such as Periodic Acid-Schiff, Masson trichrome or reticulin use different reagent sequences. Consistency comes from controlled dwell time, reagent concentration, agitation and temperature, while carryover is managed by draining and rinse stations. Automated coverslipping may follow on the same platform.

What are the key features?

• Fully programmed H&E cycle with heated deparaffinisation
• Throughput about 200–600 slides per hour
• Programmable temperature, agitation and dwell time
• Reagent age and slide count monitoring
• Optional integrated dryer and coverslipper
• Reduced operator solvent exposure

What are the technical specifications?

A typical automated h&e slide stainer configuration offers throughput of 200–600 slides per hour, slide capacity of up to about 600 slides, reagent stations of 20–30 stations, cycle time of about 30–60 min for full H&E, deparaffinisation temperature of up to about 65 °C and agitation of Programmable rocking or vertical. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Automated H&E Slide Stainer is used in high-volume routine pathology, surgical biopsy services, immunohistochemistry counterstaining and pharmaceutical toxicology studies. Across the wider Histology Stainers class, laboratories also deploy it for routine H&E staining in pathology, special stains and immunohistochemistry counterstaining.

Which standards and certifications apply?

Relevant standards and methods include IEC 61010-1, IEC 61010-2-101, IEC 61326-1 and ISO 15189. Certification candidates for this model are CE, IEC 61010-1 compliance and ISO 13485 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Install the stainer near a water supply and drain if it needs running water, and on a level bench away from direct sunlight that fades dyes. Reagents degrade with use and evaporation, so set replacement schedules based on slide counts and monitor staining quality with control slides. Clean baths and tubing regularly to prevent precipitate and microbial growth, and check that the differentiation step gives reproducible contrast. Record reagent changes, quality control results and maintenance. Train staff on loading orientation, since misplaced slides cause uneven staining, and on safe handling of xylene, alcohol and carcinogenic dyes.

How do I select the right Automated H&E Slide Stainer?

Specify an automated H&E stainer when daily workload is in the hundreds of slides and colour consistency is essential. Confirm throughput, reagent station count and volume, cycle time, reagent monitoring features and integration options. Plan reagent supply and disposal, since running cost depends heavily on bath volumes and replacement frequency.

How does it compare with other Histology Stainers variants?

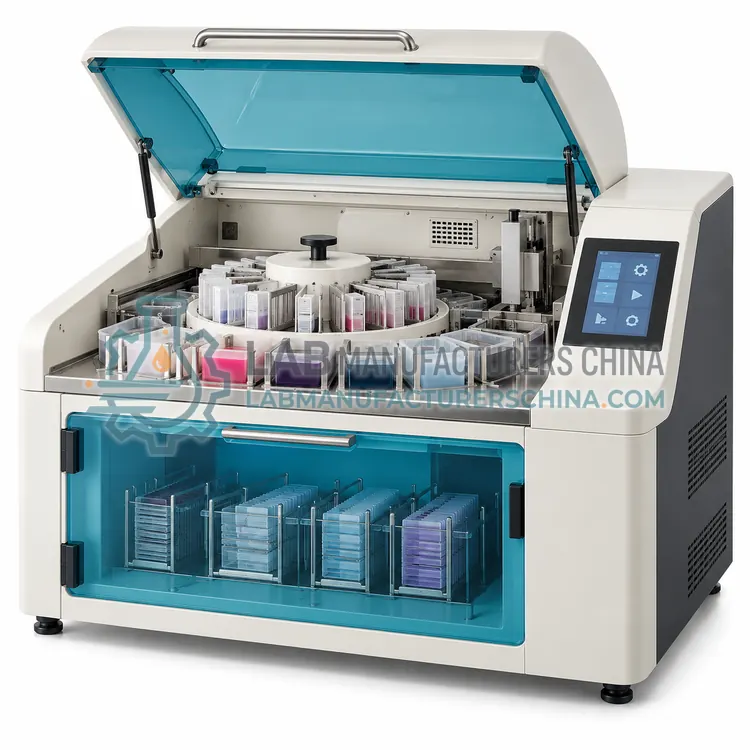

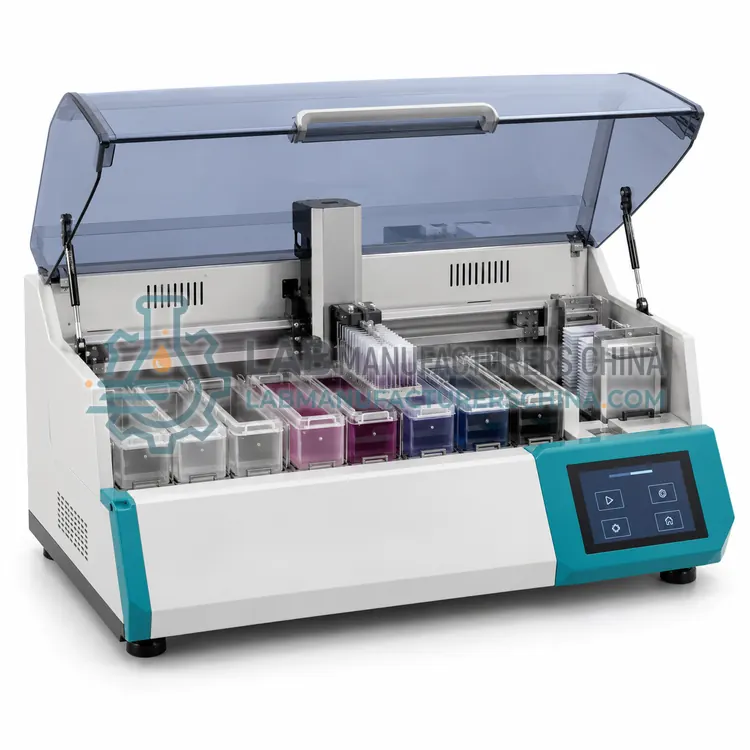

Select a stainer by throughput, reagent menu and the level of walk-away automation required. Manual staining stations cost least and give full control for low volumes and teaching. Linear stainers move racks along a track through fixed baths and suit routine H&E at moderate volume. Fully automated H&E stainers program time, temperature and agitation, and can process hundreds of slides per hour. Special stain stainers handle individual protocols for trichrome, PAS, reticulin or Gram staining. Compact benchtop models fit small laboratories. Compare slides per run, reagent station count and volume, program capacity, carryover prevention and whether a coverslipper can be integrated. Confirm reagent compatibility and the cost of consumables.
