Hot Air Aging Oven for Rubber

What is the Hot Air Aging Oven for Rubber?

A hot air aging oven exposes rubber specimens to a controlled elevated temperature with natural or moderate air circulation for a defined period. It is the basic instrument for heat resistance testing under ISO 188 and ASTM D573.

Overview

The chamber is heated by sheathed elements and ventilated through adjustable ports so that a defined number of air changes occurs per hour, and specimens are supported on trays or hung so that they do not touch each other or the walls. Typical operating ranges extend to 200 or 300 °C with uniformity within a few degrees at the working temperature, and multi-cell designs allow several sets of specimens to be aged at different temperatures in one unit. Temperature is controlled by a PID loop with an independent over-temperature cut-out, and a chart recorder or data logger documents the run. Post-ageing evaluation requires tensile, elongation or hardness testing equipment, so the oven is normally part of a small ageing test suite.

How does it work?

Accelerated ageing raises one or more degradation factors above service conditions so that measurable change occurs within days rather than years. In a hot air oven the dominant factors are temperature and oxygen, and the test specifies temperature, air exchange rate and duration under the standard method; specimens are then conditioned and their tensile strength, elongation or hardness compared with the unaged values. Ozone chambers generate a controlled ozone concentration and apply static or dynamic strain, because ozone cracking occurs only in strained rubber. Xenon arc chambers reproduce the ultraviolet and visible spectrum of daylight with controlled irradiance, temperature and humidity so that weathering effects on appearance and mechanical properties can be assessed. Oxygen pressure tests place specimens in oxygen at elevated pressure and temperature, which accelerates oxidative degradation far beyond what an air oven achieves.

What are the key features?

• Operating temperature up to 300 °C
• Adjustable ventilation for defined air changes
• PID control with independent over-temperature cut-out
• Trays and hanging bars for specimen support
• Multi-cell versions for several temperatures
• Chart or digital data recording

What are the technical specifications?

A typical hot air aging oven for rubber configuration offers temperature range of Ambient +20 to 300 °C, temperature uniformity of ±2 °C at 100 °C, air exchange rate of Adjustable, 3–20 changes per hour, chamber volume of 50–250 L, shelves of 2–4 stainless steel trays and control of PID with over-temperature protection. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Hot Air Aging Oven for Rubber is used in heat resistance testing of vulcanised rubber, antioxidant screening in compound development, ageing of hose, seal and belting compounds and specification testing per ISO 188 or ASTM D573. Across the wider Aging Ovens class, laboratories also deploy it for heat resistance verification of vulcanised rubber, antioxidant and stabiliser system screening and ozone cracking resistance of strained rubber.

Which standards and certifications apply?

Relevant standards and methods include ISO 188, ISO 1431-1, ISO 4892-2, ASTM D573, ASTM D572, ASTM D1149, ASTM G155 and IEC 61010-1. Certification candidates for this model are CE and ISO 9001 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Compliance with an aging method depends on the exact conditions, so verify temperature uniformity and airflow with a calibrated recorder, and confirm the air exchange rate of the oven rather than assuming it from the fan setting. Load only the number of specimens the standard allows, since overcrowding reduces airflow and changes results. Record aging time, temperature and atmosphere with each batch, condition specimens after aging and compare them with a control from the same production lot. Ozone and xenon chambers need their sensors and lamps calibrated and replaced on schedule, and oxygen pressure vessels must be inspected and pressure-tested as required by local rules for pressurized equipment.

How do I select the right Hot Air Aging Oven for Rubber?

Choose an air oven when the service condition is hot air and the standard method you follow is ISO 188 or ASTM D573. Confirm the achievable temperature uniformity and the air exchange rate, since those two parameters dominate compliance, and select chamber volume from the number of specimens and their required spacing rather than from convenience.

How does it compare with other Aging Ovens variants?

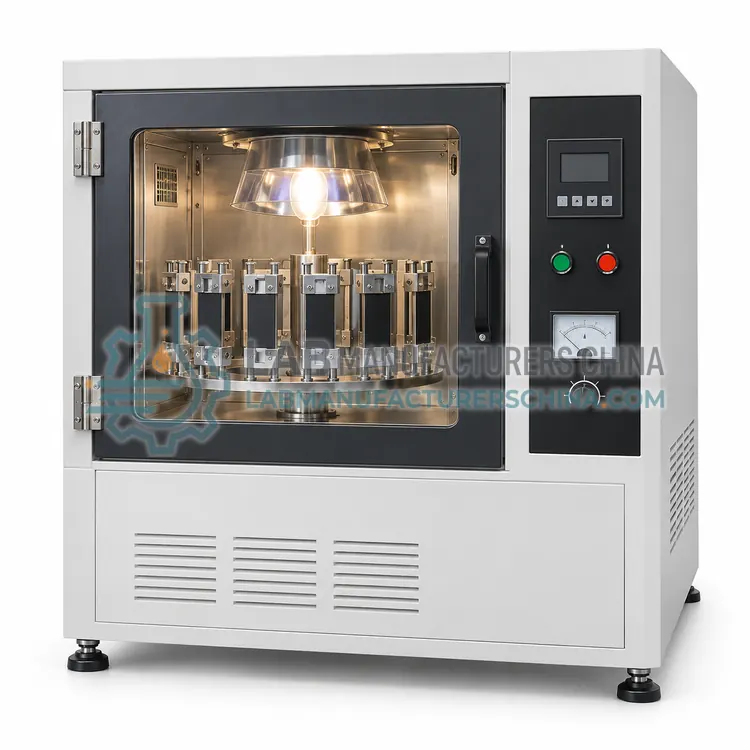

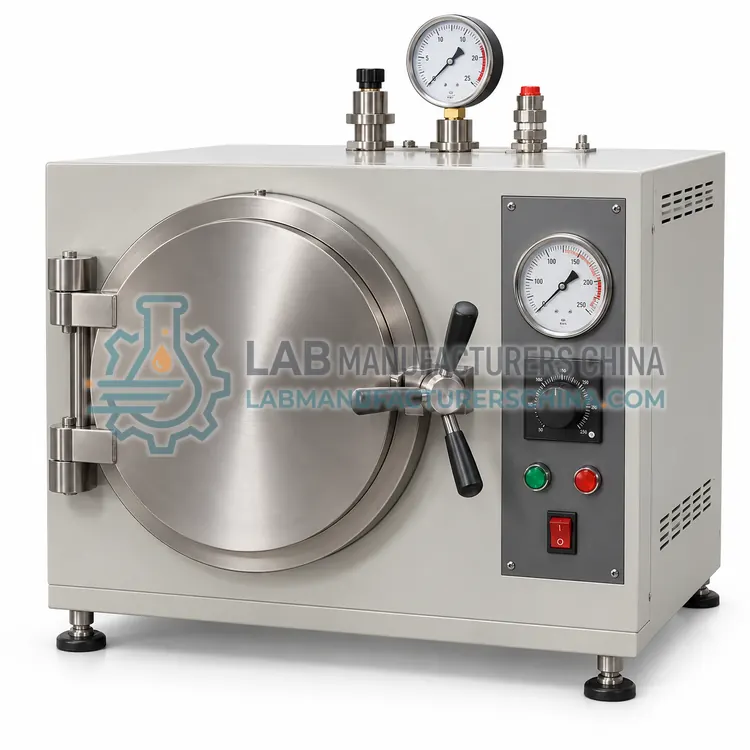

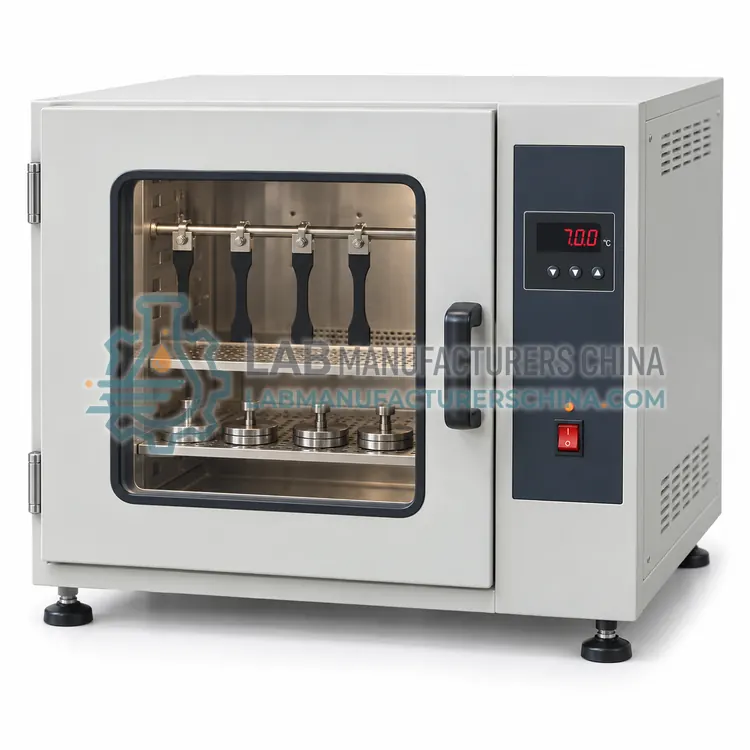

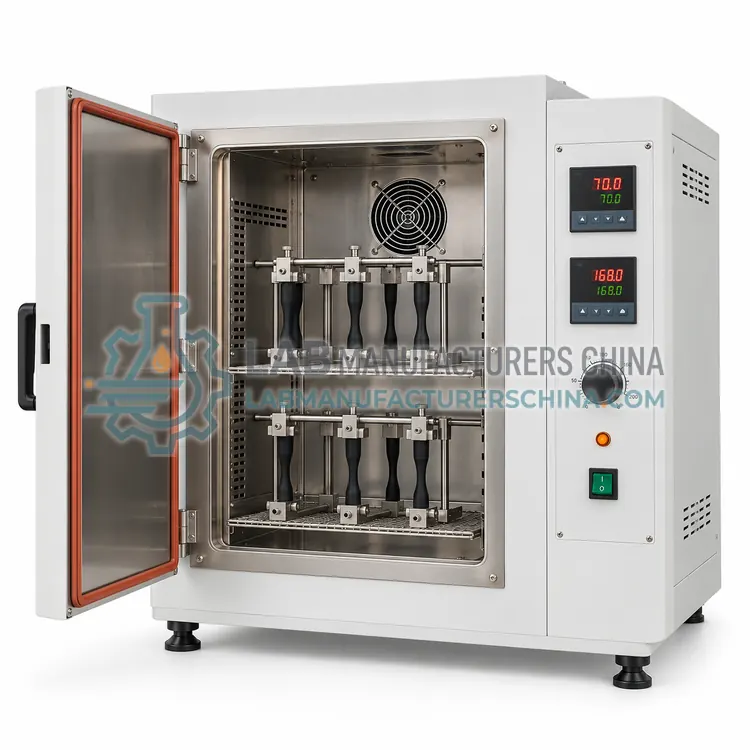

Select the degradation factor that matches the service environment. Heat resistance for engine, hose and belting compounds is tested in air ovens, with forced-air circulation used when temperature uniformity across many specimens matters. Where outdoor exposure involves sunlight, a xenon arc chamber with humidity control is appropriate, and where ozone from electrical equipment or urban air is the concern, a dedicated ozone chamber with strain fixtures is required. Oxygen pressure testing is chosen for rapid screening of antioxidant systems and for specification methods that call for it. Whichever method is used, specify chamber capacity, temperature uniformity, the control ranges for the degrading factor and the specimen holders, and ensure the instrument can reproduce the exact conditions named in the standard.
