How do Diaphragm Pumps work?
A diaphragm pump uses a flexible membrane that reciprocates inside a small chamber. On the suction stroke the membrane moves back, the inlet check valve opens and fluid fills the chamber. On the discharge stroke the membrane pushes forward, the outlet valve opens and fluid is expelled while the inlet closes. An eccentric cam or a solenoid drives the membrane, and the valves control direction. Because the fluid never contacts the drive, these pumps are oil-free and tolerate corrosive gases and liquids when the wetted parts are made from PTFE, EPDM or stainless steel. Multiple heads can be connected in series to increase pressure or in parallel to increase flow. In liquid service they are self-priming, can run dry and handle small solids. Typical parameters are flow rate, pressure or vacuum, wetted materials and number of heads.
Which Diaphragm Pumps variants are available?

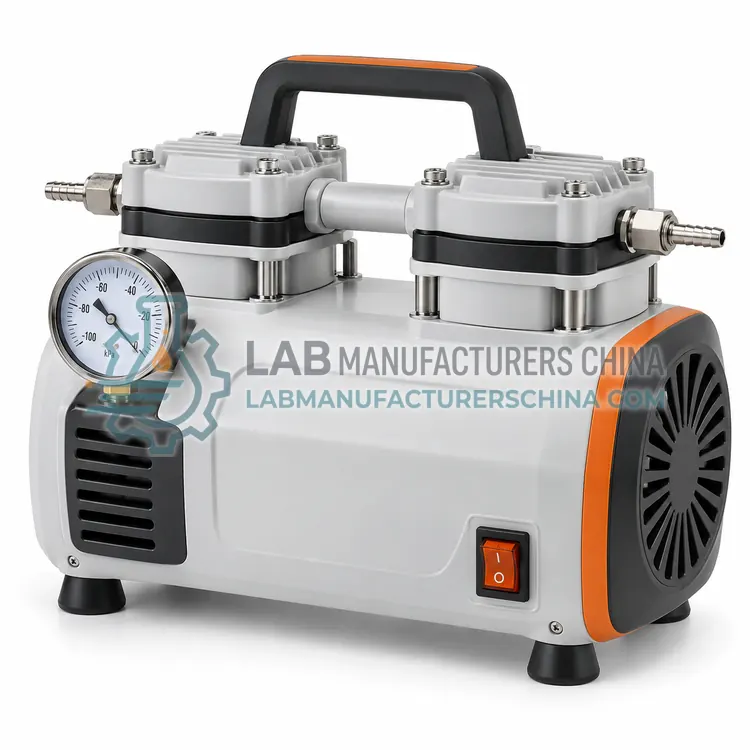

- Oil-Free Diaphragm Vacuum Pump — An oil-free diaphragm vacuum pump creates a clean vacuum for filtration, aspiration and concentration without oil mist or backstreaming.

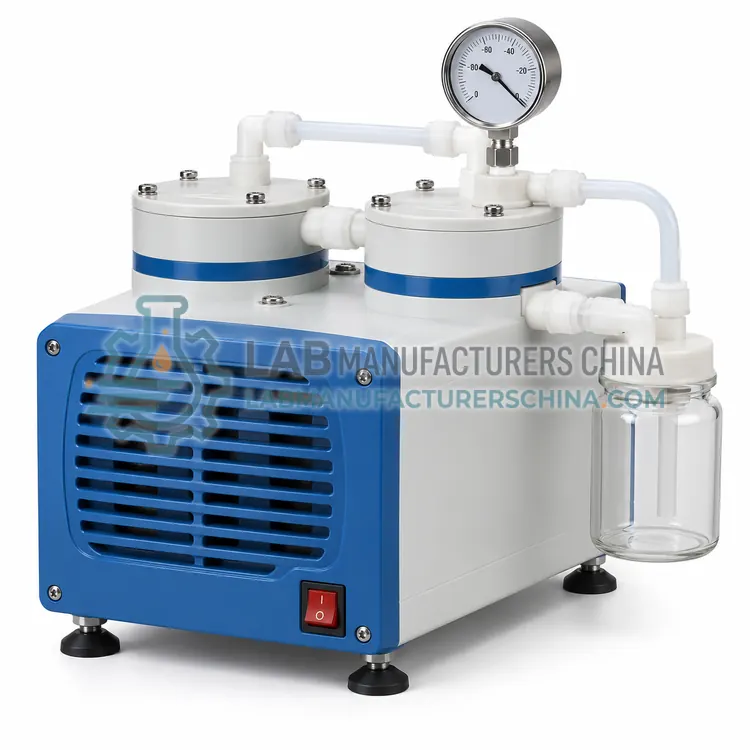

- Chemical-Resistant Diaphragm Vacuum Pump — A chemical-resistant diaphragm vacuum pump has a fully PTFE wetted path and reaches about 2 to 8 mbar, handling corrosive solvent and acid vapors without oil.

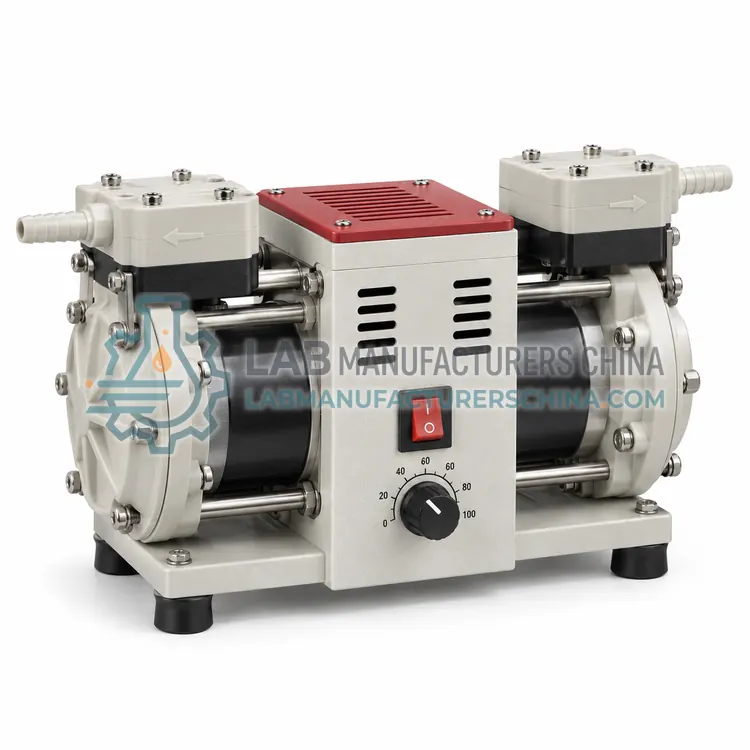

- Double-Diaphragm Liquid Transfer Pump — A double-diaphragm liquid transfer pump moves liquids and slurries with two opposing membranes for smoother flow and higher discharge pressure.

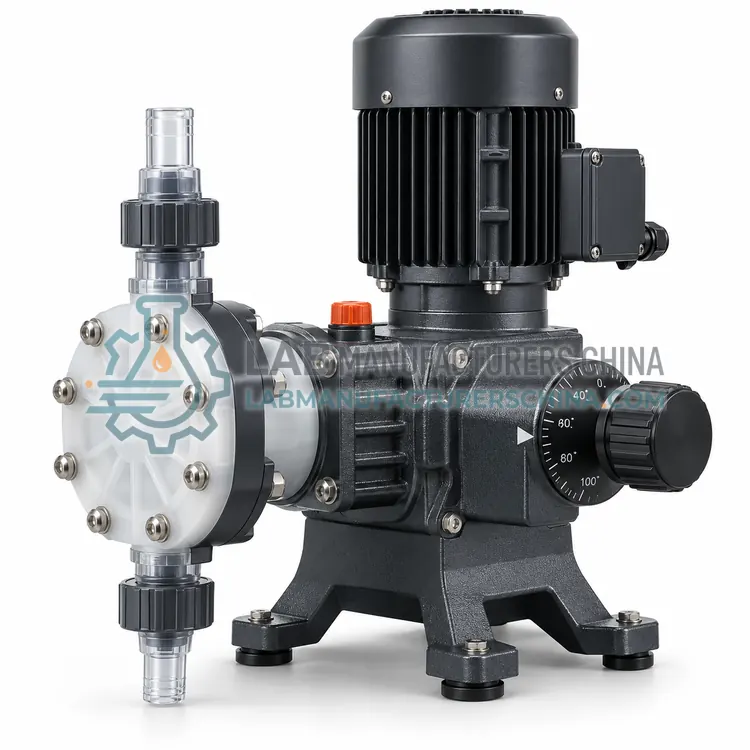

- Diaphragm Metering Pump — A diaphragm metering pump delivers accurate, adjustable doses of liquid against pressure, with a sealed head that prevents leaks.

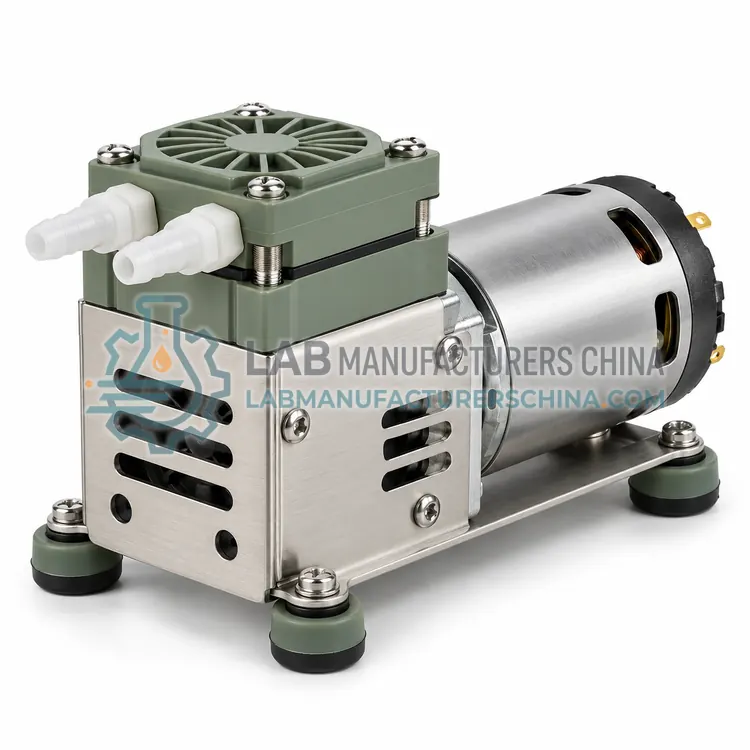

- Miniature Diaphragm Gas Pump — A miniature diaphragm gas pump moves air or gas at low flow for sampling, aeration, sensor supply and instrument integration.

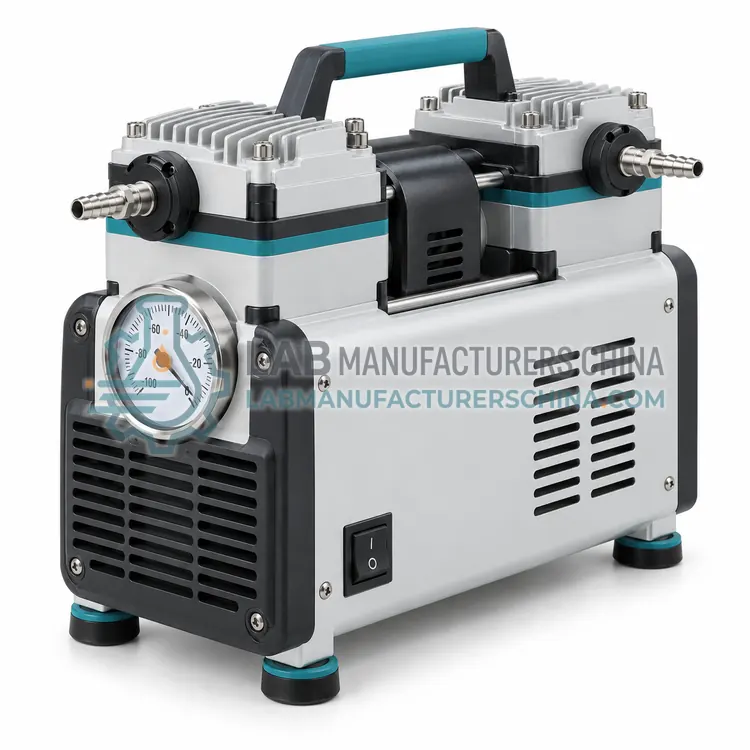

- High-Flow Diaphragm Vacuum Pump — A high-flow diaphragm vacuum pump delivers 60 to 300 L/min for large filtration manifolds, vacuum ovens and multi-port systems, combining quiet, oil-free operation with enough capacity and speed to serve larger vessels and many ports.
How do I choose the right variant?
Decide first whether you need vacuum, gas transfer or liquid transfer, since the head design differs. For vacuum and aspiration, choose a diaphragm pump with adequate free-air flow and the ultimate pressure your process needs. For liquid transfer, check the maximum discharge pressure, suction lift and ability to run dry. Match wetted materials to the fluid: PTFE and EPDM suit most solvents and acids, while stainless steel or PTFE-lined heads handle aggressive media. Choose the number of heads for the required flow and pressure, and consider double-diaphragm designs for higher pressure and smoother flow. Confirm the control interface, noise level and duty cycle for continuous instrument use. Specify calibration or flow verification where the pump is part of a metering system.
Where are Diaphragm Pumps used?
Diaphragm Pumps are specified in vacuum filtration and aspiration, gas sampling and transfer, reagent and buffer transfer, metered liquid dosing, degassing and aeration and instrument-integrated fluid handling.
Which standards and certifications apply?
Work with Diaphragm Pumps is commonly governed by IEC 61010-1, IEC 61326-1, ISO 21360, ISO 9001 and GB 4793.1. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install the pump so that the inlet line is short and wide, and keep the pump below the liquid level where possible to help priming. Fit a filter on the inlet to protect the valves from particles, and a trap when pumping condensable vapors. Replace diaphragms and check valves as consumables, because cracks or worn seats cause flow loss and premature failure. Clean wetted parts with compatible solvents and avoid abrasive cleaning. For hazardous gases, exhaust to a safe location. Follow IEC 61010-1 for electrical safety, and verify flow or vacuum against a reference when the pump is used in regulated methods. Record part numbers, service intervals and calibration data so that maintenance and results stay traceable.
