How do Ultrasonic Homogenizers work?
An ultrasonic generator converts mains power into a high-frequency electrical signal, typically 20 kHz, which drives a piezoelectric transducer. The transducer expands and contracts to produce longitudinal vibration, and a booster and a horn or probe amplify this motion to amplitudes of 20 to 200 micrometers at the tip. When the tip vibrates in liquid, alternating pressure waves form microscopic vacuum bubbles that grow and collapse violently, a process called cavitation. The collapse creates localized high temperature, pressure and shear jets, which rupture cells, break agglomerates and form emulsions. Key components are the generator, transducer, booster, probe or tip, and optional temperature sensor and sound enclosure. Amplitude, pulse mode, treatment time and probe diameter determine the energy delivered per volume. Cooling is essential because the process heats samples.
Which Ultrasonic Homogenizers variants are available?
- Probe-Type Ultrasonic Cell Disruptor — A probe-type ultrasonic cell disruptor immerses a titanium probe in the sample and delivers high-intensity cavitation at 20 kHz.

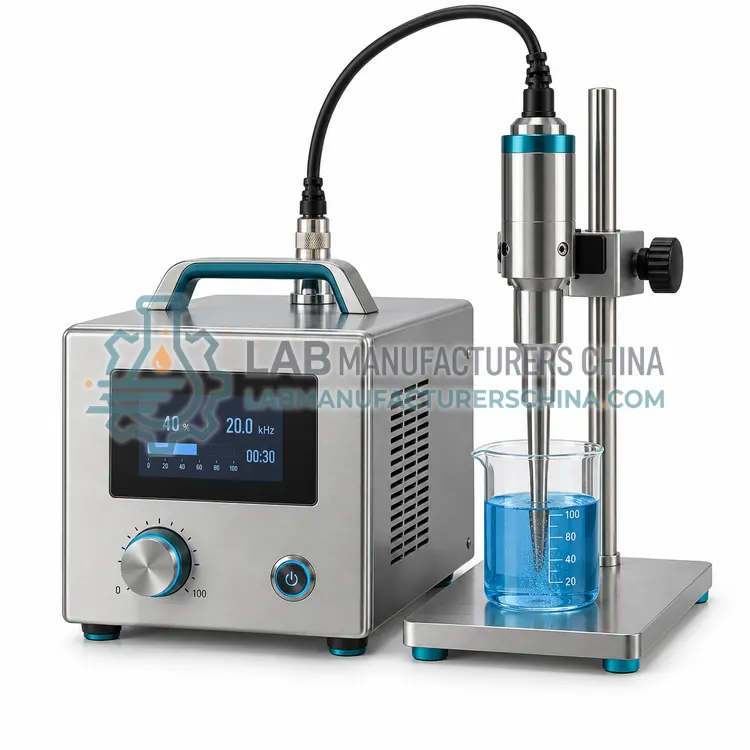

- Microtip Ultrasonic Homogenizer for Small Volumes — A microtip ultrasonic homogenizer uses a thin probe of 2 to 6 mm diameter to process 0.2 to 10 mL samples at 20 kHz.

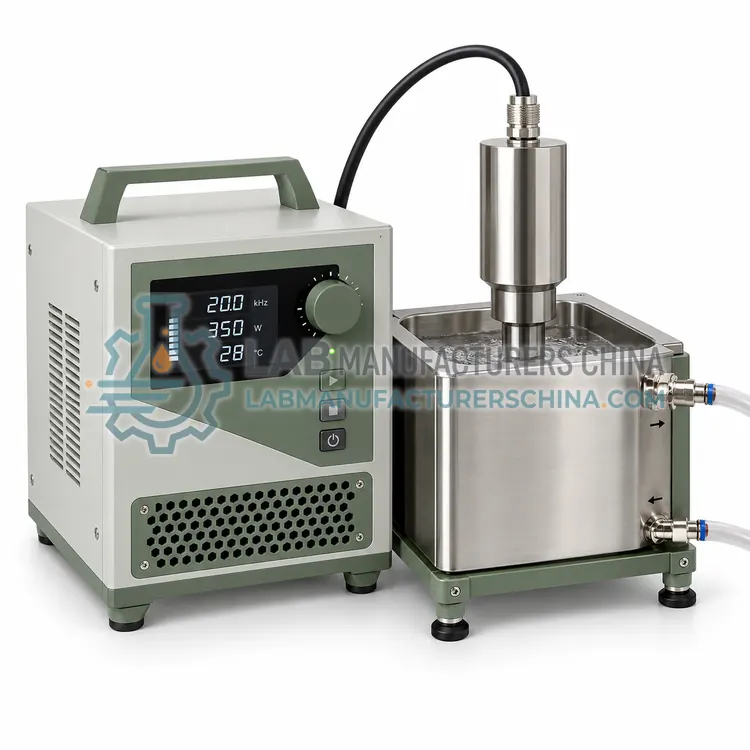

- Cup-Horn Ultrasonic Homogenizer — A cup-horn ultrasonic homogenizer transmits ultrasonic energy through a water-filled cup to sealed tubes or vials, with no probe contact.

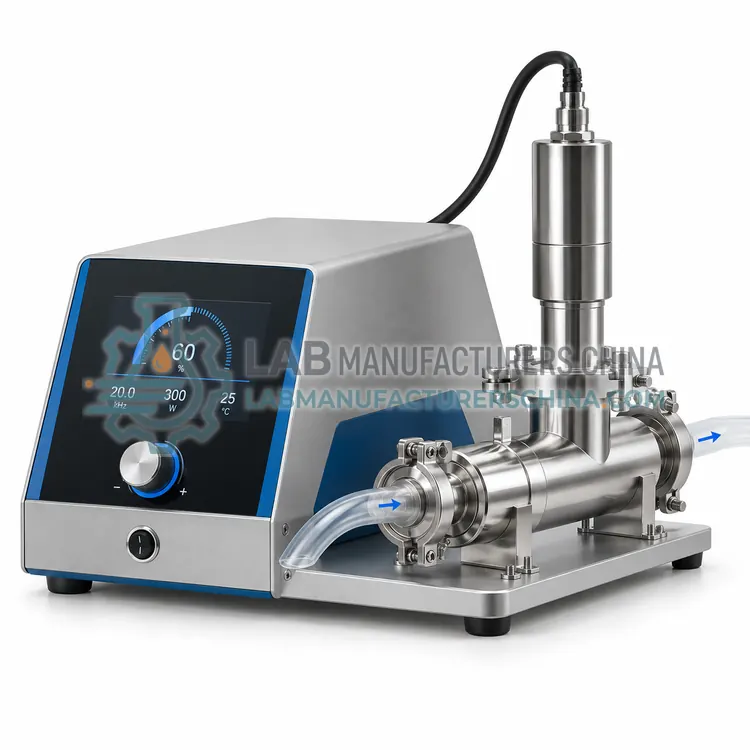

- Flow-Through Ultrasonic Processor — A flow-through ultrasonic processor pumps liquid through a chamber with an ultrasonic probe, treating volumes continuously from milliliters to liters per minute.
- Ultrasonic Homogenizer with Sound-Proof Enclosure — An ultrasonic homogenizer with sound-proof enclosure integrates the generator, probe and a noise-absorbing chamber with an interlocked door.
How do I choose the right variant?
Select an ultrasonic homogenizer by power, frequency, sample volume and format. Probe-type units deliver the highest energy density and are used for cell lysis and nanoparticle dispersion, with power from 100 to 1,200 W. Microtip probes handle volumes from 0.2 to 10 mL. Cup-horn systems treat sealed tubes indirectly and avoid aerosol and cross-contamination. Flow-through cells support continuous processing from milliliters to liters per minute. Enclosures reduce noise, which can reach 90 dB(A) or more without protection. Verify that the probe material, usually titanium alloy, is compatible with the sample, and check the availability of replacement tips. Consider pulse control, temperature sensing, amplitude stability and data logging. Ask for treatment time and energy per volume to allow method reproducibility across instruments.
Where are Ultrasonic Homogenizers used?
Ultrasonic Homogenizers are specified in cell lysis and protein extraction, nanoparticle and graphene dispersion, nanoemulsion and liposome preparation, DNA and chromatin shearing, sample degassing before analysis and sonochemistry and material synthesis.
Which standards and certifications apply?
Work with Ultrasonic Homogenizers is commonly governed by IEC 61010-1, IEC 61010-2-051, IEC 62127-1, ISO 13320 and GB 4793.1. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Always protect hearing, because ultrasonic units produce audible noise and subharmonics; use a sound enclosure or ear protection. Immerse the probe to the recommended depth and keep it centered without touching the vessel wall. Cool samples in an ice bath and use pulsed operation to limit heat, especially for proteins and RNA. Never run the probe in air, because this can damage the transducer. Inspect the tip for pitting and replace it when erosion is visible, since tip wear changes delivered power. Calibrate power output periodically with calorimetry. Clean with water or alcohol after each sample. Comply with IEC 61010-1 and local noise regulations, and use biosafety precautions because sonication can generate aerosols.
