How do -80°C Freezers work?
A -80 °C freezer needs a much larger temperature lift than a -20 °C unit, which a single refrigerant cannot provide efficiently. Most models use a two-stage cascade. A high-stage circuit with a refrigerant such as R404A cools the condenser of a low-stage circuit, which uses a low-boiling refrigerant such as R508B or R170 blends and reaches evaporator temperatures near -95 °C. Some designs use a single-stage compressor with a mixed-refrigerant blend and an internal heat exchanger. Thick polyurethane foam or vacuum insulation panels, often 100 to 150 mm, reduce heat gain, and multiple inner doors limit cold loss. A microprocessor controller reads a platinum resistance sensor and modulates the compressors, while independent alarm circuits monitor temperature, door status, power and battery. A pressure-equalization port prevents the vacuum that forms after the door closes from locking the door.
Which -80°C Freezers variants are available?
- Upright -80 °C Laboratory Freezer — An upright cascade freezer with multiple inner doors and adjustable shelves, holding -60 to -86 °C.

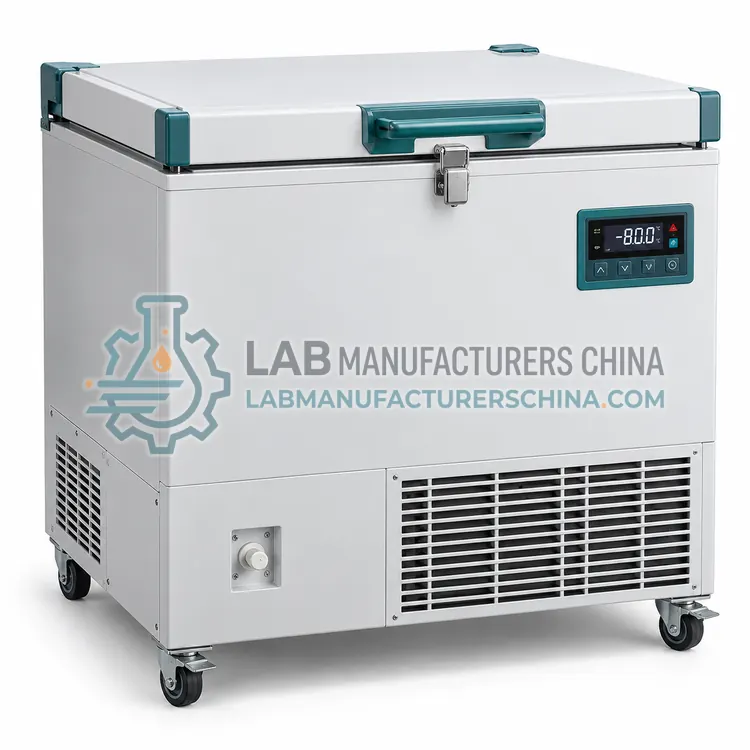

- Chest -80 °C Laboratory Freezer — A top-opening -80 °C freezer of about 100 to 500 L.

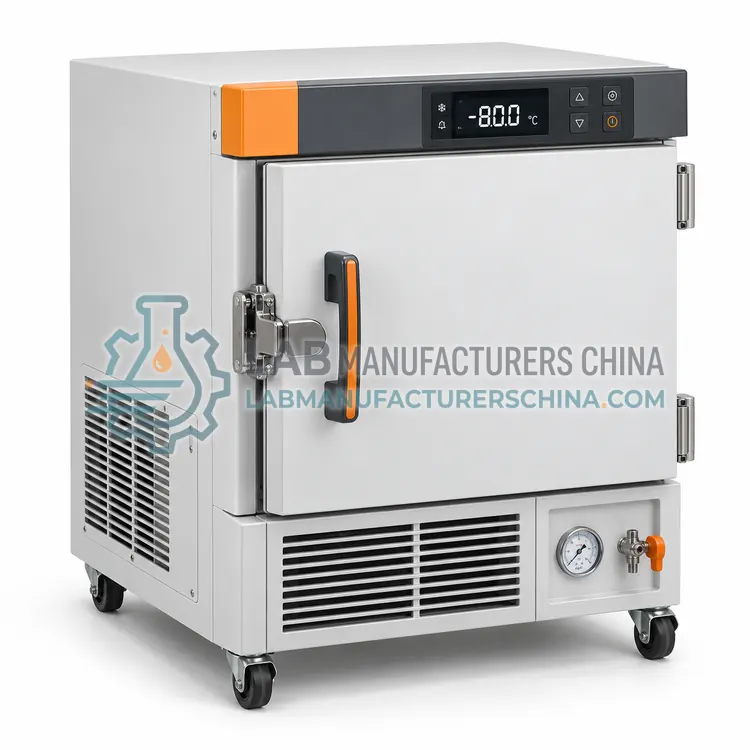

- Under-Counter -80 °C Freezer — A compact -80 °C freezer of about 50 to 150 L designed to fit below a laboratory bench.

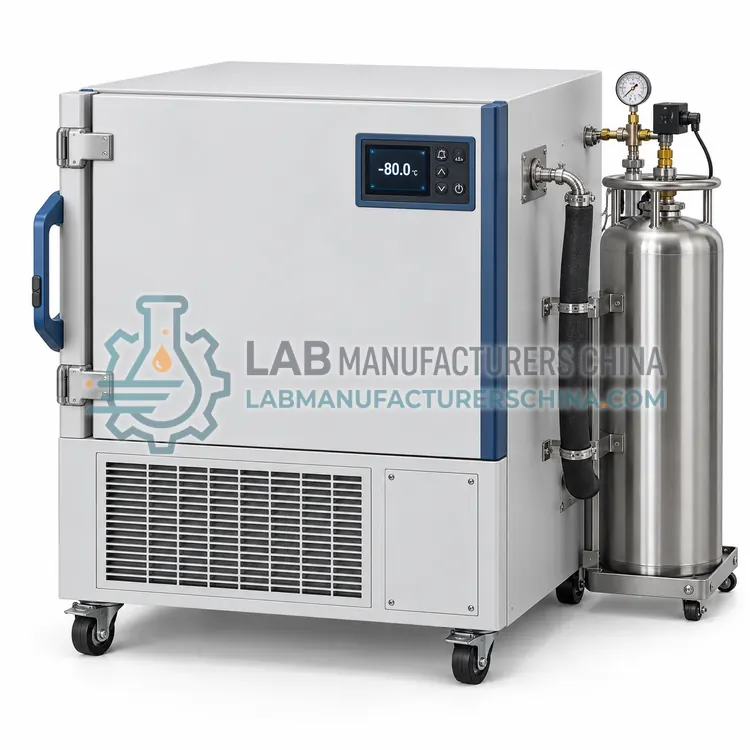

- -80 °C Freezer with CO2 or LN2 Backup System — A -80 °C upright freezer fitted with a backup port and solenoid valve that injects liquid carbon dioxide or nitrogen when temperature rises, holding contents cold for many hours during compressor failure or power loss.

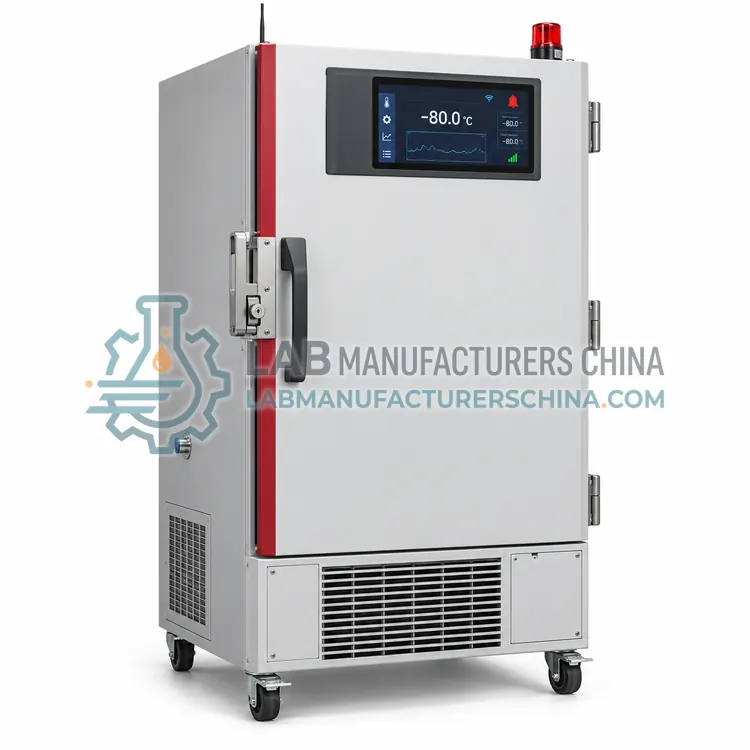

- -80 °C Freezer with Automated Monitoring and Remote Alarm — A -80 °C freezer with an integrated data logger, dual sensors and network or cellular alarm notification.
How do I choose the right variant?
Begin with how long samples are stored and how valuable they are. For DNA, RNA, proteins and cells kept for years, -80 °C is the widely used standard, and irreplaceable collections justify redundant monitoring and backup cooling. Choose upright units for organized access, chest units for lower energy and steadier temperature, and under-counter units for small volumes. Compare capacity in box positions rather than liters. Review energy consumption per day, since a -80 °C freezer can use 8 to 20 kWh daily, and check noise and heat rejection for the room. Evaluate pull-down and recovery times, number of inner doors, alarm options, remote monitoring and backup ports for CO2 or LN2. Plan a spare freezer or free space equal to one unit, and confirm ambient rating and electrical supply.
Where are -80°C Freezers used?
-80°C Freezers are specified in nucleic acid and protein storage, biobank and clinical specimen archives, cell line and tissue preservation, vaccine and biologic development and serum and plasma banking.
Which standards and certifications apply?
Work with -80°C Freezers is commonly governed by IEC 61010-2-011, IEC 60335-2-89, ENERGY STAR Laboratory Grade Freezers, ASHRAE 72, ISO 20387, GB/T 21151 and CLSI QMS. Instrument certifications such as CE marking are confirmed per configuration and never assumed.
What are the key considerations before purchase?
Install on a level floor with 200 to 300 mm of clearance at the rear and sides, and keep room temperature at or below 32 °C, because compressors lose capacity in hot rooms. Connect to a dedicated circuit, ideally on emergency power. After transport let the freezer stand upright for 24 hours before starting, and allow 4 to 8 hours to reach set point before loading. Load in stages to avoid temperature spikes. Clean the condenser filter monthly and defrost or remove door frost as needed. Calibrate the display against a reference thermometer yearly and map temperature under load for regulated use. Test alarms and backup systems quarterly, and dispose of or service refrigerants by certified technicians.
