Programmable Vacuum Ramp Controller

What is the Programmable Vacuum Ramp Controller?

A programmable vacuum ramp controller changes pressure according to a timed program, so processes follow a controlled curve. It is used for distillations, drying, degassing and coating where pressure must vary in stages.

Overview

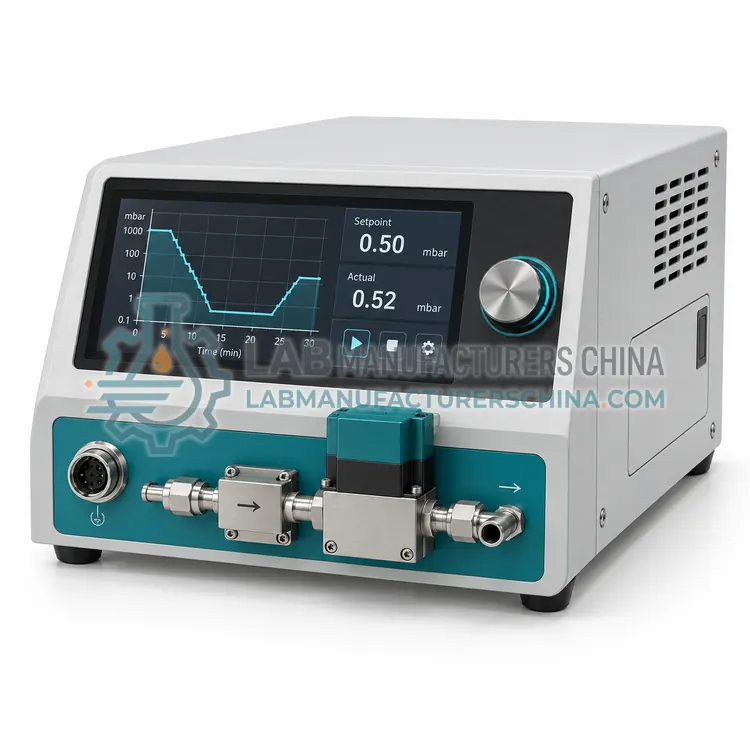

The ramp controller adds a programmable profile to normal vacuum regulation. The operator defines steps with target pressure, hold time and ramp rate, and the controller follows the sequence automatically, switching the pump or adjusting the bleed valve. Programs may include an initial slow pump-down to protect powders from dusting, a series of pressure holds for fractional distillation, or graded pressure changes for coating processes. Data logging stores the pressure profile for each run, which supports reproducibility and troubleshooting. Some units accept remote start signals or integrate with a process controller through analog or digital I/O. Accuracy and resolution match standard controllers, and the valve and sensor are the same, but the firmware and interface make multi-stage methods possible. Such controllers are used in method development and in any process with a defined pressure schedule.

How does it work?

A vacuum controller combines a pressure sensor, a control algorithm and an output that acts on the vacuum system. The sensor, usually a piezoresistive or capacitive absolute pressure transducer, measures pressure from atmospheric down to a few millibars. The controller compares this value with the setpoint and adjusts either the pump speed or, more often, a solenoid or proportional valve that bleeds air into the line. A PID or on-off algorithm holds the pressure within a band, and the display shows the current and target values. Some controllers add ramps so that pressure changes gradually, and inputs for a solvent library or an external sensor at the sample. Outputs may include relay contacts for the pump, an analog or digital signal, and alarm contacts for out-of-range conditions.

What are the key features?

• Multi-step programs with target pressure and hold time
• Adjustable ramp rates between steps
• Slow initial pump-down to protect powders
• Data logging of the pressure profile
• Remote start and analog or digital I/O
• Automatic pump and valve sequencing

What are the technical specifications?

A typical programmable vacuum ramp controller configuration offers pressure range of 1,000–1 mbar, resolution of 1 mbar, program steps of Up to 20 or more, ramp rate of Adjustable, mbar/min, data logging of Pressure versus time and I/O of Analog, digital or RS232. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Programmable Vacuum Ramp Controller is used in fractional and staged distillation, powder drying without dusting, coating pressure schedules, degassing with pressure steps and method development and validation. Across the wider Vacuum Controllers class, laboratories also deploy it for rotary evaporation control, vacuum distillation and solvent recovery and vacuum filtration and degassing.

Which standards and certifications apply?

Relevant standards and methods include IEC 61010-1, IEC 61326-1, ISO 21360, ISO 9001 and GB 4793.1. Certification candidates for this model are CE, RoHS and ISO 9001 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Calibrate or verify the pressure sensor periodically against a reference gauge, because drift changes the boiling point and therefore the process. Keep the bleed valve and sensor port clean and dry, since condensate or particles cause erratic readings. Fit a cold trap or separator between the controller and the pumped vapor to protect both, and mount the controller above the liquid level. Use ramps to avoid bumping and foaming when pressure is reduced quickly. Follow IEC 61010-1 for electrical safety and check that the valve materials suit the solvents in use. Record setpoints and ramp programs in the method so that runs are reproducible, and log pressure data where the process is regulated.

How do I select the right Programmable Vacuum Ramp Controller?

Choose a ramp controller when pressure must change in defined stages or be logged, such as distillations and coating schedules. For a single fixed setpoint, a digital controller is enough. In the RFQ, state pressure range, step count, ramp needs, logging and I/O.
