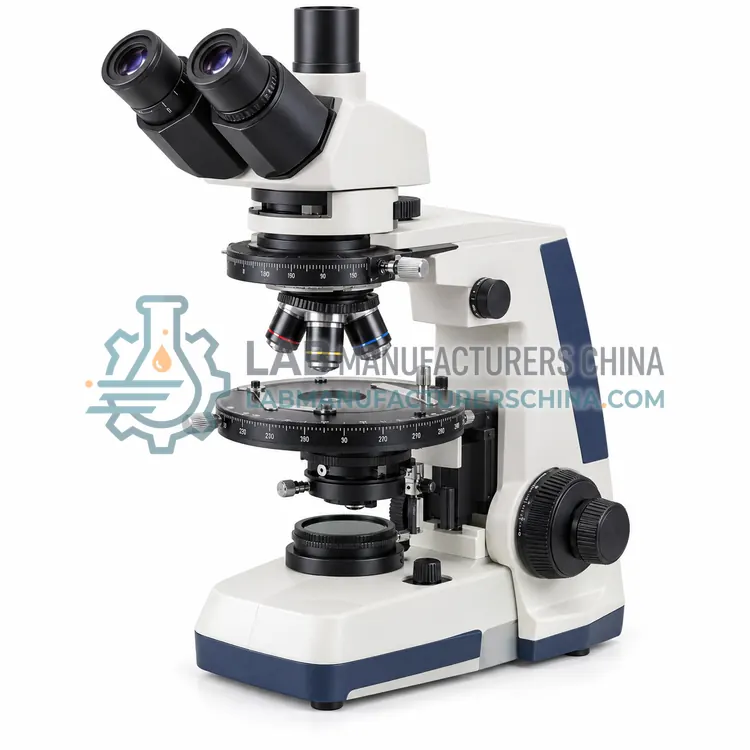

Transmission Polarizing Microscope
透射偏光显微镜
- SKU POM-0002
- Polarizing Microscopes
- CE (to be confirmed)
- ISO 9001 manufacturing (to be confirmed)
Price on request — FOB / CIF quoted per order
Prices depend on configuration, quantity and destination port.
Key specifications
| Optical system | Infinite corrected, strain-free |
|---|---|
| Magnification range | 40×–600× |
| Objectives | 4×, 10×, 40×, 60× strain-free |
| Stage | Rotating 360°, graduated 1° |
| Polarizers | Polarizer and analyser, crossed |
| Accessory slot | For quarter-wave and full-wave plates |
By Lab Manufacturers China Technical TeamLast reviewed Standards: ISO 8036, ISO 19012-1, ASTM E3
What is the Transmission Polarizing Microscope?
A transmission polarizing microscope examines transparent or thinly sectioned specimens in polarized transmitted light. It is used for crystals, fibres, films and biological birefringence where the sample transmits light. It is widely used in chemistry, materials and biology.
What is the Transmission Polarizing Microscope?
A transmission polarizing microscope examines transparent or thinly sectioned specimens in polarized transmitted light. It is used for crystals, fibres, films and biological birefringence where the sample transmits light. It is widely used in chemistry, materials and biology.
Overview
A transmission polarizing microscope passes polarized light through the specimen from below and analyses it above, using crossed polarizer and analyser. It suits transparent crystals, thin sections, fibres, films and liquid crystals that transmit light. The rotating centred stage allows extinction angles to be measured, and accessory plates support retardation assessment. Strain-free condenser and objectives keep the optical system free of induced birefringence. The design is simpler than combined transmission and reflection models and is optimised for specimens mounted on slides or held in a holder. It is widely used in chemistry, materials and biology as well as geology.
How does it work?
A polarizing microscope places a polarizer below the specimen and an analyser above it, usually with their transmission directions crossed. Isotropic materials appear dark under crossed polarizers, while anisotropic materials split light into two rays and change its polarization, producing interference colours and extinction positions as the stage rotates. With a full-wave plate and accessory plates, retardation and optical sign can be estimated, and conoscopic observation with a Bertrand lens shows interference figures that identify crystal systems and optic axes. A rotating, centred stage with graduated scale allows precise angle measurement. Polarized light therefore converts differences in crystal orientation and refractive index into visible colours and extinction behaviour.
What are the key features?
- Transmitted polarized illumination
- Crossed polarizer and analyser
- Rotating centred stage with graduated scale
- Strain-free condenser and objectives
- Accessory plate slot for retardation work
What are the technical specifications?
A typical transmission polarizing microscope configuration offers optical system of Infinite corrected, strain-free, magnification range of 40×–600×, objectives of 4×, 10×, 40×, 60× strain-free, stage of Rotating 360°, graduated 1°, polarizers of Polarizer and analyser, crossed and accessory slot of For quarter-wave and full-wave plates. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.
Which applications is it used for?
The Transmission Polarizing Microscope is used in crystal and liquid crystal study, fibre and film birefringence, pharmaceutical polymorph screening and biological and histological birefringence. Across the wider Polarizing Microscopes class, laboratories also deploy it for mineral and rock identification, crystal and pharmaceutical polymorph study and fibre and polymer orientation analysis.
Which standards and certifications apply?
Relevant standards and methods include ISO 8036, ISO 19012-1, ASTM E3, ISO 7404-3 and IEC 61010-1. Certification candidates for this model are CE and ISO 9001 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.
Centre and focus the rotating stage so the specimen stays in view, and calibrate the crosshair and scale against a known reference before measuring angles. Use strain-free objectives and keep polarizer and analyser clean; strain in optics or contamination produces false colours and extinction. Set the analyser accurately to extinction with no specimen in place. For quantitative retardation work, verify accessory plates and compensators and record their orientation. Avoid heat and vibration, which disturb optical alignment, and store the microscope with accessories protected. Recalibrate after service.
How do I select the right Transmission Polarizing Microscope?
Choose a transmission polarizing microscope for transparent or thin specimens. Confirm the polarizers can be crossed and rotated, the stage is centred and graduated, and that the accessories required for retardation work are available. If opaque polished specimens must also be examined, a combined transmission and reflection instrument is a better fit.
How does it compare with other Polarizing Microscopes variants?
Choose a polarizing microscope when optical anisotropy must be studied, such as identifying minerals, crystals, fibres or polymer structure. Decide whether transmitted polarized light is sufficient or whether reflected polarized light is also needed for opaque ores and polished sections. Confirm the stage rotates and is centred, and that a graduated scale with vernier is present for angle measurement. Consider whether strain-free objectives, a Bertrand lens, accessory plates and a conoscopic path are required. For quantitative work, a compensator and calibrated plates may be needed. Digital models add imaging and measurement software.
Full specifications
| Optical system | Infinite corrected, strain-free |
|---|---|
| Magnification range | 40×–600× |
| Objectives | 4×, 10×, 40×, 60× strain-free |
| Stage | Rotating 360°, graduated 1° |
| Polarizers | Polarizer and analyser, crossed |
| Accessory slot | For quarter-wave and full-wave plates |
| Condenser | Strain-free, centreable |
| Eyepiece | 10× with crosshair |
| Illumination | Transmitted, LED or halogen |
| Power supply | 100–240 V AC |
Indicative values for this product class. Final specifications are confirmed on the quotation and in the calibration documents supplied with the instrument.
Applications
- Crystal and liquid crystal study
- Fibre and film birefringence
- Pharmaceutical polymorph screening
- Biological and histological birefringence
Key features
- Transmitted polarized illumination
- Crossed polarizer and analyser
- Rotating centred stage with graduated scale
- Strain-free condenser and objectives
- Accessory plate slot for retardation work
