Inverted Fluorescence Imaging System

What is the Inverted Fluorescence Imaging System?

An inverted microscope platform with LED or arc illumination, fluorescence filter cubes and a cooled camera for fixed and live samples in dishes, flasks and plates. It is the standard instrument for fluorescence and immunofluorescence imaging in cell biology.

Overview

The inverted fluorescence imaging system places the objective below the sample, which allows imaging through the base of dishes, flasks and multi-well plates. Excitation comes from a multi-channel LED source or a mercury or xenon lamp, and filter cubes or a filter wheel select the channel, typically covering DAPI, FITC, TRITC and Cy5 ranges. A cooled CCD or sCMOS camera records the emission, with 12 to 16 bit depth and exposure times from a few milliseconds to several seconds. The stage is manual or motorized, and motorized versions support multi-position scanning, tiling and focus maps. Objectives usually span 4x to 100x with long working distances for plastic vessels. Software controls acquisition, channel overlay, scale bars and basic measurements such as area, intensity, confluence and cell count.

How does it work?

Most life science imaging systems share the same optical path: an excitation source such as an LED, laser or arc lamp sends light through filters or a monochromator to the sample, and an objective collects the emitted light, which a cooled CCD or sCMOS camera converts into digital counts. Fluorescence depends on fluorophores that absorb at one wavelength and emit at a longer one, so filter cubes or tunable filters separate excitation from emission. Brightfield imaging relies on transmitted light and contrast techniques such as phase contrast or differential interference contrast. Motorized stages, autofocus routines and multi-well plate carriers let the system visit many positions in a programmed order, and software assembles the images, applies flat-field and dark corrections, and extracts measurements such as intensity, area, count and morphology.

What are the key features?

• Inverted optical path for imaging through vessel bases.
• Multi-channel LED or arc illumination with filter cubes.
• Cooled CCD or sCMOS camera with 12 to 16 bit depth.
• Manual or motorized stage with multi-position scanning.
• Objectives from 4x to 100x with long working distances.
• Software for channel overlay, scale bars and basic morphometry.

What are the technical specifications?

A typical inverted fluorescence imaging system configuration offers optical configuration of Inverted, infinity-corrected, objective range of 4x to 100x, long working distance options, fluorescence channels of 4-6 cubes, DAPI to Cy5, light source of Multi-channel LED or 100 W mercury lamp, detector of Cooled CCD or sCMOS, 12-16 bit and camera resolution of 2-6 megapixels. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Inverted Fluorescence Imaging System is used in immunofluorescence staining assessment, transfection efficiency measurement, cell confluence and count measurement and live cell morphology checks. Across the wider Imaging Systems class, laboratories also deploy it for fluorescence and immunofluorescence microscopy, live-cell dynamics and time-lapse recording and high-content screening and phenotypic assays.

Which standards and certifications apply?

Relevant standards and methods include IEC 61010-1, IEC 61326-1, ISO 9022-1, ISO 13485 manufacturing and IVDR (EU) 2017/746. Certification candidates for this model are CE, ISO 9001 manufacturing and IEC 61010-1 test report; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Imaging performance depends on the room as much as on the instrument. Use a vibration-isolated bench away from centrifuges and pumps, keep temperature stable, and limit stray light for long exposures or bioluminescence work. Provide stable power, ideally through a line conditioner, and a network path for image data, which can exceed tens of gigabytes per session. Calibrate the stage, objective magnification and fluorescence channels with reference slides at installation and at defined intervals, and verify camera linearity and dark current. Clean objectives with lens tissue and approved solvent only. Manage data with a documented naming and backup policy, since files are large and often subject to retention requirements.

How do I select the right Inverted Fluorescence Imaging System?

Select this variant for endpoint fluorescence work on fixed or adherent cells, where flexibility in vessel type and channel choice matters more than throughput. Confirm that the objective set matches your magnification needs and working distance, and check camera quantum efficiency if signals are weak. Specify channel combinations, stage automation level, software modules and any qualification documentation required.

How does it compare with other Imaging Systems variants?

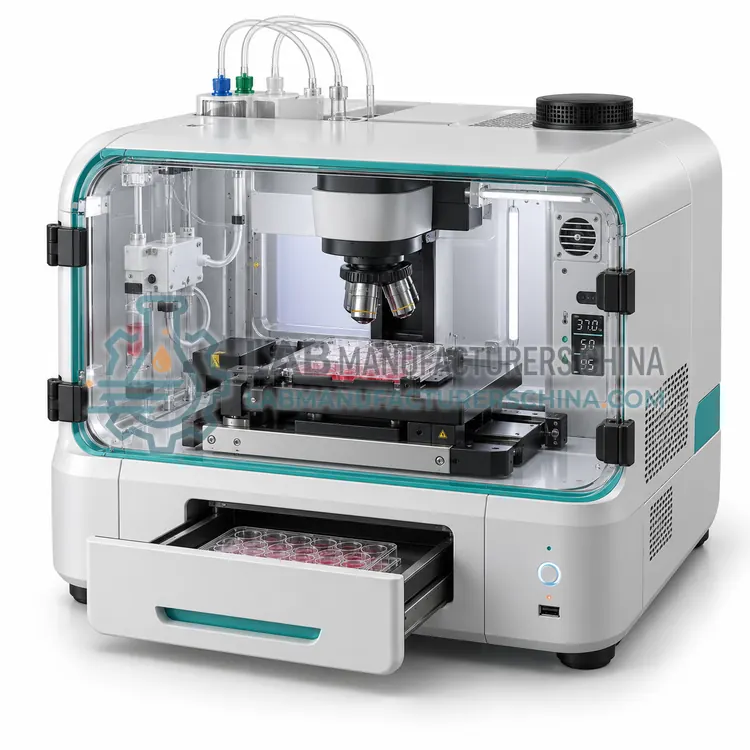

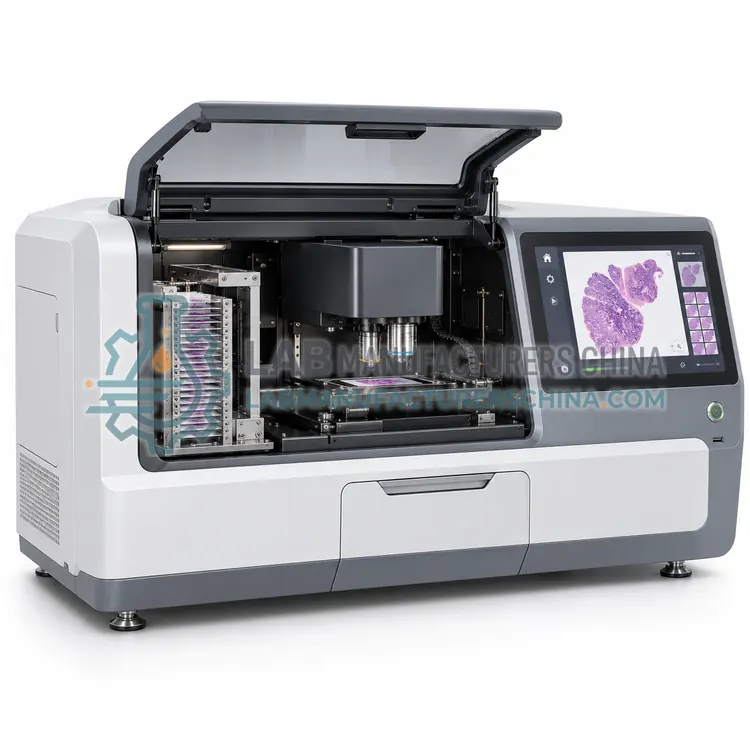

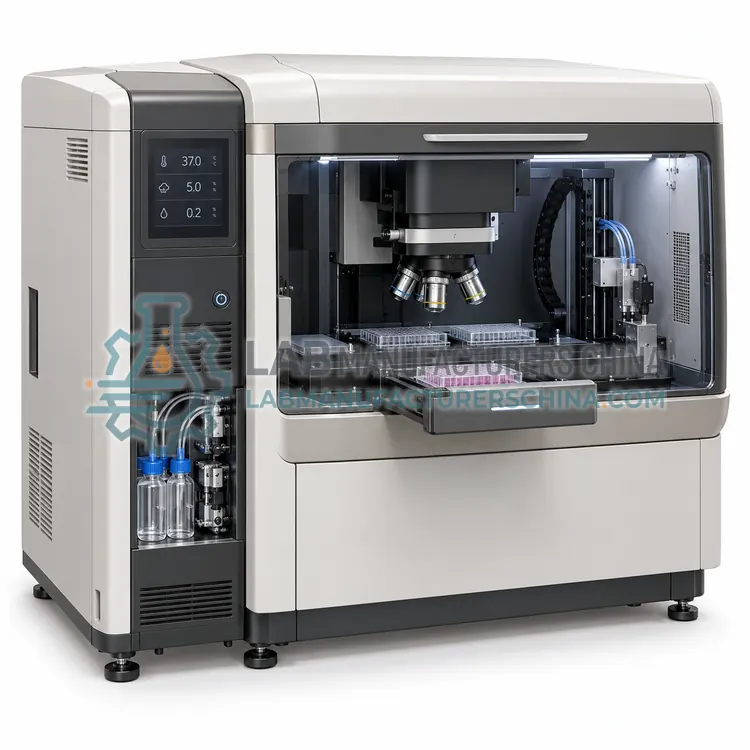

Match the system to the question: fixed-cell morphology and staining favour an inverted fluorescence microscope platform, while dynamic processes need an incubator-enclosed live-cell system. Throughput decides between manual microscopes, plate-capable high-content readers and slide scanners, which differ mainly in automation, plate handling and analysis software. Detection sensitivity is the next filter, since weak luminescence needs deep-cooled cameras and strong fluorophores tolerate less cooling. Check objective range and numerical aperture, excitation channels, camera quantum efficiency and pixel size, stage resolution, autofocus reliability and the image format and analysis tools. Confirm that the software exports raw data and supports the statistics package your team uses.
