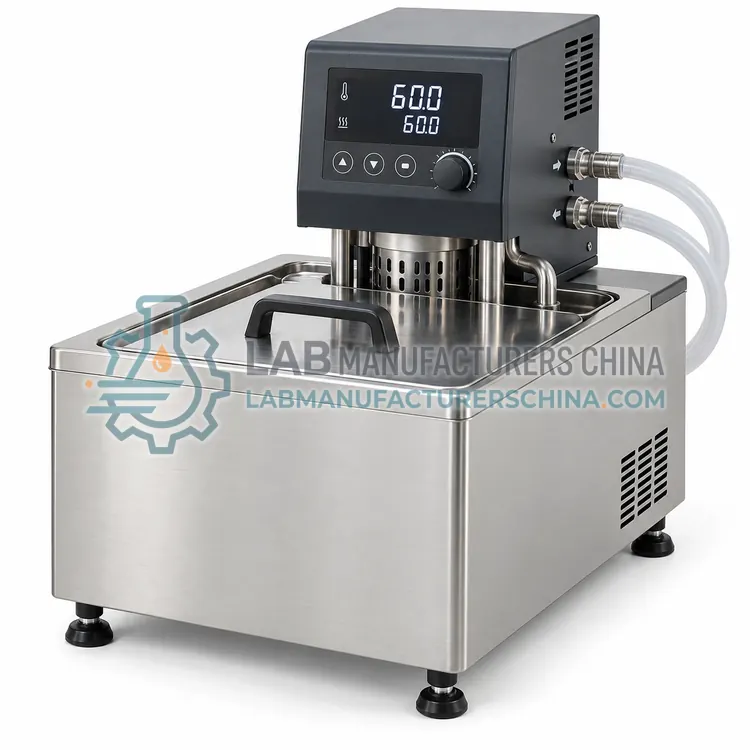

Heating Circulating Bath

What is the Heating Circulating Bath?

A heating circulating bath warms fluid and circulates it through an external loop to hold reactors, columns and instruments at a stable elevated temperature. It covers ambient to about 100 degrees Celsius with tight control.

Overview

The heating circulating bath combines a stainless steel reservoir, an immersion heater and a circulation pump. Heating capacities range from about 500 W to 3 kW, and temperature is held from ambient to about 100 degrees Celsius, or higher with a pressure lid or silicone oil, with stability of plus or minus 0.1 to 0.5 degrees. The pump delivers fluid to an external jacket or heat exchanger through insulated tubing, and the return line closes the loop. Controls include a digital PID controller, over-temperature cutout, low-level protection and often a timer or program. Bath volumes of 5 to 30 liters provide thermal stability for jacketed reactors, chromatography columns that must be held warm, viscometers, refractometers and dissolution testing. Some models combine heating and cooling for operation near or below ambient.

How does it work?

A circulation pump uses a centrifugal or gear impeller to push fluid through a closed loop at a controlled flow rate. The fluid passes through a heated or refrigerated reservoir, then to the application's jacket or heat exchanger, and returns to the reservoir. A temperature sensor measures the bath or the return line, and a PID controller adjusts the heater or refrigeration compressor to hold the setpoint. Pump pressure must be enough to overcome the resistance of the loop, tubing and the application, and flow determines how quickly heat is transferred. Key components are the reservoir, heater, compressor or thermoelectric module, circulation pump, temperature sensor and controller. Cooling capacity and temperature range define the envelope; pump pressure and flow define the loop performance. Some units also offer external temperature control with a probe at the application.

What are the key features?

• Heating capacity of about 500 W–3 kW
• Temperature from ambient to about 100 °C
• Stability of ± 0.1–0.5 °C with PID control
• External circulation through insulated tubing
• Over-temperature and low-level protection
• Bath volumes of 5–30 L for thermal stability

What are the technical specifications?

A typical heating circulating bath configuration offers temperature range of Ambient to 100 °C, temperature stability of ± 0.1–0.5 °C, heating capacity of 500 W–3 kW, flow rate of 5–25 L/min, pump pressure of Up to 1.5 bar and bath volume of 5–30 L. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Heating Circulating Bath is used in jacketed reactor heating, warm chromatography columns, viscosity and refractometry measurements, dissolution and solubility studies and sample incubation above ambient. Across the wider Circulation Pumps class, laboratories also deploy it for reactor jacket temperature control, spectrometer and detector cooling and laser and optics thermal management.

Which standards and certifications apply?

Relevant standards and methods include IEC 61010-1, IEC 61010-2-010, IEC 61326-1, ISO 9001 and GB 4793.1. Certification candidates for this model are CE, RoHS and ISO 9001 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Use only the recommended fluid and change it periodically, because algae, scale and contaminants reduce heat transfer and can block the loop. Keep the reservoir above the minimum level to avoid pump cavitation and heater damage. Insulate external lines to reduce condensation and heat loss, and use the shortest practical tubing with few restrictions. Vent the loop to release trapped air before setting the controller, because air pockets cause temperature oscillation. Place the unit where ambient heat and dust are low, and clean the condenser or air filter on schedule. Follow IEC 61010-1 for electrical safety and check the pressure rating of the application loop before running at high pump pressure. Record setpoint, fluid and calibration data for traceability.

How do I select the right Heating Circulating Bath?

Choose a heating bath for stable temperatures above ambient, and add cooling if you also need sub-ambient control. Confirm heating capacity, flow and the external loop pressure for your reactor jacket. In the RFQ, state setpoint, capacity at that setpoint, bath volume and fluid.

How does it compare with other Circulation Pumps variants?

Begin with the temperature range and the cooling or heating capacity required at your working temperature, not at the lowest rating. Then check pump flow and pressure, because a high-capacity bath with a weak pump may not circulate adequately through a restrictive jacket or long tubing run. Choose the reservoir volume for the thermal mass and stability you need, and decide between internal control at the bath and external control at the application. Match wetted materials to the fluid; water is standard, but glycol mixtures extend the low-temperature range, and some applications need silicone oil. Consider noise, footprint, drain and fill access, and whether a pressure or flow indicator is included. For unattended operation, look for low-level protection, over-temperature cutout and remote alarm contacts.
