Vacuum Filtration Pump Station

What is the Vacuum Filtration Pump Station?

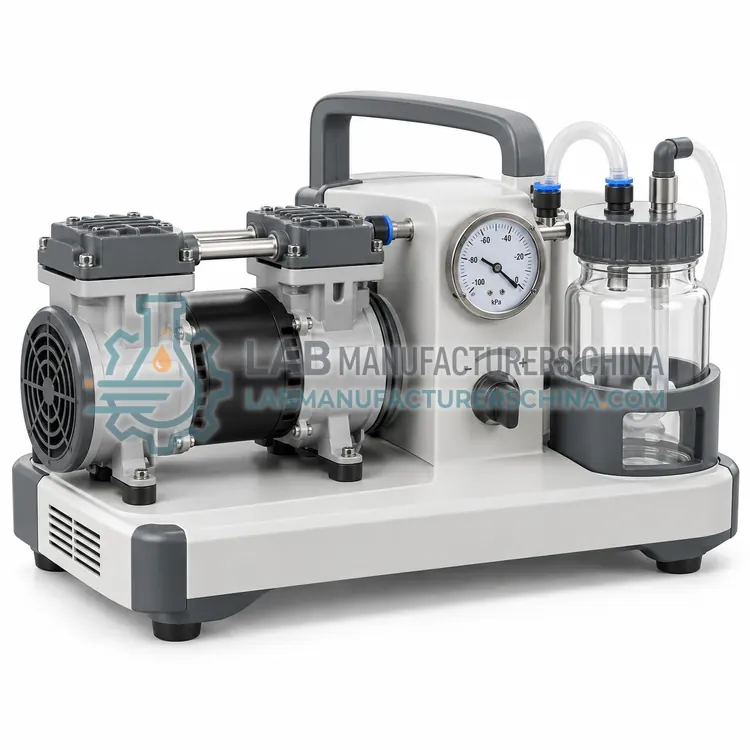

A vacuum filtration pump station combines an oil-free pump, receiver, gauge, regulator and trap in one benchtop unit for multi-place filtration and extraction. It provides clean, repeatable vacuum for routine work without any external plumbing or assembly.

Overview

The filtration pump station packages the moving parts of a vacuum system into one enclosure. A diaphragm pump provides 10 to 60 L/min free-air flow, a glass or polycarbonate receiver catches liquid carry-over, a gauge shows the working vacuum, and a needle valve or regulator sets the level so that different filtrations can be run at the same pressure. Some stations include a manifold with two to six ports, each with its own valve. Dry, oil-free operation keeps the bench clean, and a hydrophobic filter protects the pump from aerosols. The station is typically used for microfiltration, solid-phase extraction and vacuum concentration, and it is well suited to laboratories that run many small filtrations. Compact dimensions and a carrying handle make it easy to move between benches.

How does it work?

A laboratory vacuum pump removes gas from a sealed vessel to lower the pressure. Diaphragm pumps flex a membrane with check valves, drawing gas in and expelling it without oil, which suits filtration, aspiration and general laboratory work. Rotary vane pumps use an eccentric rotor with sliding vanes to trap and compress gas, giving a deeper vacuum for rotary evaporation and drying, but they need oil and protection against solvent vapor. Water aspirators use a Venturi effect in flowing tap water and are inexpensive but consume water and reach only a modest vacuum. In each case the pump is matched to a receiver, trap and gauge, and solvent or acid vapor must be trapped before it reaches the pump. Flow rate, ultimate pressure and chemical compatibility define performance.

What are the key features?

• Integrated oil-free diaphragm pump and receiver
• Vacuum gauge and regulator for repeatable settings
• Optional manifold with two to six valved ports
• Hydrophobic filter to protect the pump from aerosols
• Compact benchtop enclosure with carrying handle
• Suitable for microfiltration and solid-phase extraction

What are the technical specifications?

A typical vacuum filtration pump station configuration offers free-air flow rate of 10–60 L/min, ultimate vacuum of 100–10 mbar, receiver volume of 500–2,000 mL, manifold ports of 2–6, optional, vacuum regulation of Needle valve or regulator and gauge type of Analog or digital. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Vacuum Filtration Pump Station is used in multi-place vacuum filtration, solid-phase extraction, vacuum concentration of samples, microfiltration and sterility testing prep and solvent recovery from filtrates. Across the wider Vacuum Pumps class, laboratories also deploy it for vacuum filtration and solid-phase extraction, rotary evaporation and solvent recovery and vacuum oven drying and degassing.

Which standards and certifications apply?

Relevant standards and methods include IEC 61010-1, IEC 61326-1, ISO 21360, EN 12469 and GB 4793.1. Certification candidates for this model are CE, RoHS and ISO 9001 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Always fit a liquid trap between the vessel and the pump so that condensate or foam cannot enter the pump head. For solvent work, add a cold trap or an acid-resistant inline filter and change the pump oil regularly, watching for discoloration or emulsion. Vent the exhaust away from the operator when pumping hazardous vapors. Check diaphragms and valves on the maintenance schedule, since they are the usual wear points, and keep spare parts. Mount the pump on a stable surface with adequate ventilation, and confirm the electrical supply and, where required, use a pump rated for the ambient conditions. Follow IEC 61010-1 for electrical safety. Verify the achieved vacuum with a gauge rather than assuming the rated value, and record it for method consistency.

How do I select the right Vacuum Filtration Pump Station?

Choose a pump station when you want a self-contained, repeatable vacuum source for filtration and extraction without building a system from parts. For deep vacuum drying, a rotary vane pump is needed. In the RFQ, state port count, receiver size, flow, regulation type and wetted materials.

How does it compare with other Vacuum Pumps variants?

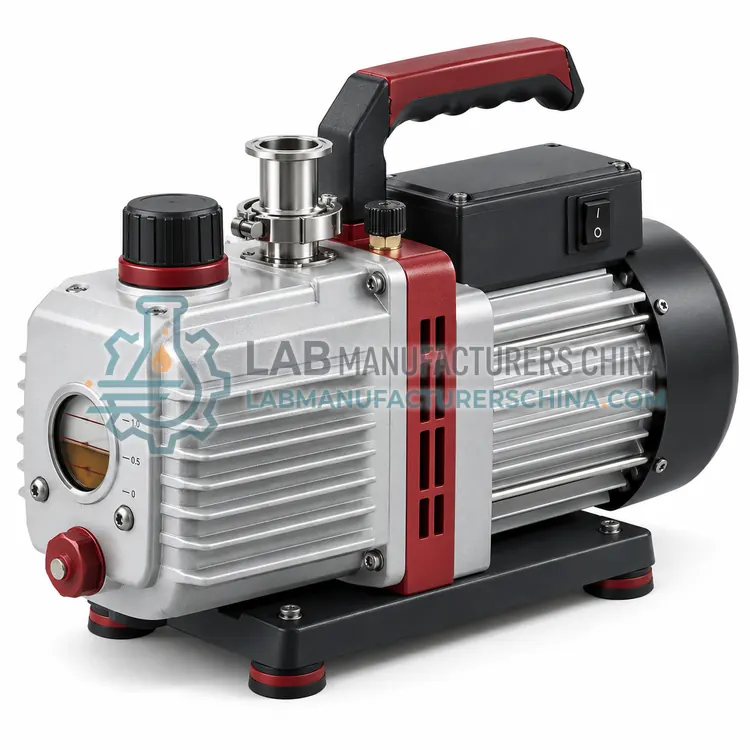

Choose by the required vacuum level and the vapor being pumped. For filtration, aspiration and vacuum concentration where a moderate vacuum is enough, an oil-free diaphragm pump is usually the right choice, because it needs little maintenance and cannot backstream oil. For rotary evaporation, gel drying and vacuum ovens that need a deeper vacuum, a chemically resistant rotary vane pump with a cold trap and oil mist filter works well. Use a water aspirator only where tap water is available and water use is acceptable. Then match the free-air flow rate to the system volume and the speed of operation you need, and confirm the pump can start against the load. Check wetted materials and diaphragm or vane materials for solvent and acid compatibility, noise level, and whether a gauge, regulator or vacuum controller is included.
