Freezing Microtome

What is the Freezing Microtome?

A freezing microtome cuts frozen tissue using a cooled stage, usually with dry ice or a circulating coolant, and is used for thick free-floating sections. It is chosen for neuroscience, enzyme histochemistry and large frozen specimens.

Overview

A freezing microtome combines a sliding or rotary cutting mechanism with a cooled specimen stage. The tissue, often embedded in gelatin or a cryo-embedding medium, is frozen onto the stage by CO2, dry ice or a thermoelectric or liquid cooling circuit that reaches –30 °C or lower. Sections of 10 to 100 µm are cut and transferred directly into buffer for free-floating immunostaining. Because the tissue is cut frozen, lipid and enzyme activity are preserved better than in processed paraffin blocks. Stages may be tilted and accept specimens up to about 50 mm. Compared with a cryostat, a freezing microtome is simpler and cheaper but does not keep the blade and surroundings cold, so sectioning is best done quickly and sections handled with brushes.

How does it work?

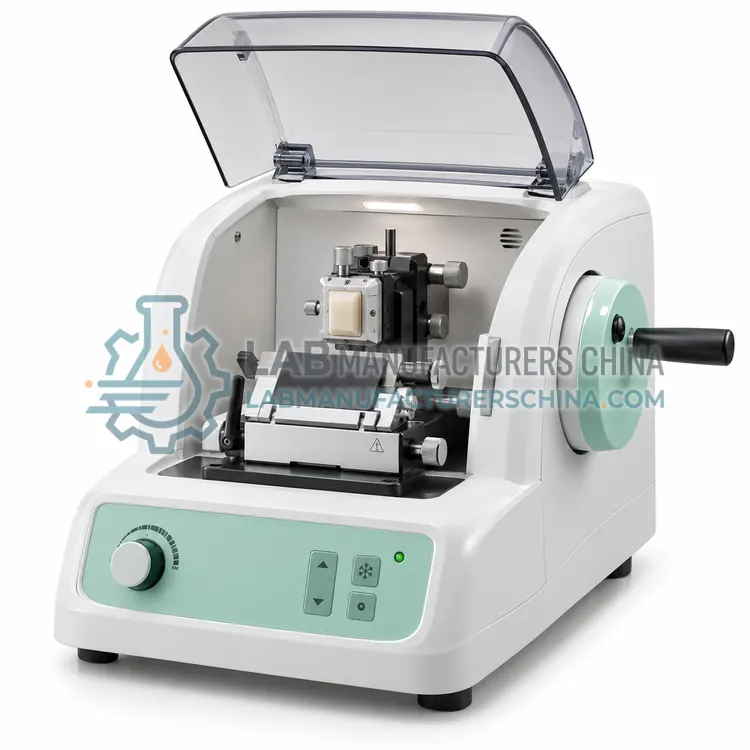

A microtome holds a specimen block and advances it by a controlled increment toward a fixed knife or blade, then cuts a section as the block or knife moves past. Precision comes from a feed mechanism, often a micrometer screw or stepper motor, that sets section thickness, and from rigid, vibration-free mounting. Sliding microtomes move the block across a stationary knife on linear guides, while vibrating blade types oscillate the blade at 50 to 100 Hz to cut soft unfixed tissue. Ultramicrotomes use thermal or mechanical advance and a glass or diamond knife to cut 40 to 100 nm sections. Cooling chambers, knife angle adjustments, waste removal and safety guards are common components. Sharp, properly angled knives are essential for clean sections.

What are the key features?

• Cooled specimen stage reaching –30 °C or lower
• Section thickness from about 5 to 100 µm
• Free-floating sections transfer directly into buffer
• Tiltable stage for specimen orientation
• Preserves lipids and enzyme activity
• Simpler and lower cost than a full cryostat

What are the technical specifications?

A typical freezing microtome configuration offers section thickness of 5–100 µm, stage temperature of to –30 °C or lower, cooling method of Dry ice, CO2 or thermoelectric/liquid cooling, maximum specimen size of about 50 × 50 mm, stage tilt of ±15° and knife type of Steel knife or disposable blade. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Freezing Microtome is used in neuroscience free-floating staining, enzyme histochemistry, lipid histology and large frozen specimens. Across the wider Microtomes class, laboratories also deploy it for surgical pathology, neuroscience research and electron microscopy.

Which standards and certifications apply?

Relevant standards and methods include IEC 61010-1, IEC 61010-2-101, IEC 61326-1, ISO 15189 and ISO 13485. Certification candidates for this model are CE, IEC 61010-1 compliance and ISO 13485 manufacturing; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Install the microtome on a rigid bench free of vibration and drafts, and keep it clean of debris. Handle blades and knives with extreme care, using guards and cut-resistant gloves, and dispose of used blades in a sharps container. Lubricate moving guides as recommended and check thickness calibration periodically with test sections or a calibrated gauge. Keep the block holder and knife clamp tight to prevent chatter. Ultramicrotomes need a stable room temperature and low air movement, while cryo models need regular defrosting and cleaning. Train staff on safe use and maintain records of service and calibration.

How do I select the right Freezing Microtome?

Choose a freezing microtome for thick free-floating sections and large frozen specimens at lower cost than a cryostat. It is unsuitable for intraoperative diagnosis, which needs a cryostat with a cold chamber. Specify stage temperature, section thickness range, specimen size, cooling method and whether gelatin embedding is used.

How does it compare with other Microtomes variants?

Start with the specimen and the section thickness required. Paraffin blocks for routine histology use rotary models covered separately, while large, hard or frozen specimens call for sliding, freezing or saw microtomes. Electron microscopy requires an ultramicrotome, and fresh unfixed tissue for neuroscience suits a vibrating blade microtome. Compare thickness range and increment, specimen travel, knife type and holder, and whether motorized control is needed. Check stability, vibration isolation, ease of knife change, safety features and availability of consumables such as blades. Consider how many sections per day you will cut and whether cooling or chamber options are needed. Confirm service support and training.
