Industrial Walk-In Oven

What is the Industrial Walk-In Oven?

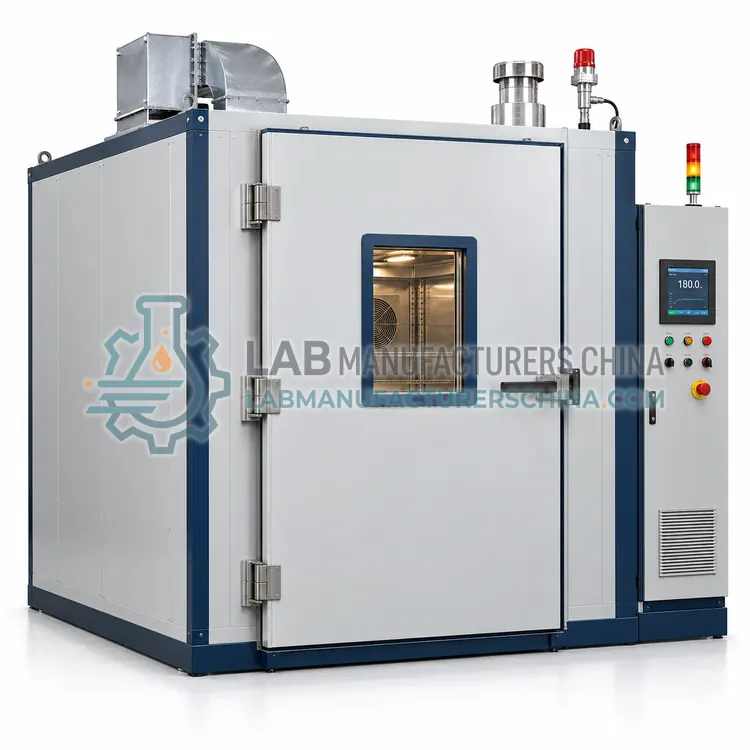

An industrial walk-in oven is a room-sized heated chamber large enough for operators or trolleys to enter. It is chosen when components or batches are too big for shelf ovens and must be loaded without lifting.

Overview

The walk-in oven provides operator access through a hinged or sliding doorway, with optional internal lighting and safety interlocks. Volumes range from about 3000 to over 20000 liters, and loads may be trolleys, racks or large assemblies. Heating is by high-capacity elements with ducted circulation; multiple thermocouples and zone controllers hold uniformity across the large space. Insulated panels form the chamber, and floor options include reinforced plate or track for trolleys. Because the door is large, make-up air and extraction are carefully balanced to avoid cold drafts and to remove moisture or fumes. Temperature reaches 250 to 300 C in most builds, higher in specialized refractory versions, and power demands are substantial.

How does it work?

Industrial laboratory ovens use the same convection principles as smaller units but are engineered for continuous heavy duty. Large centrifugal or axial fans circulate air through ducts to keep temperature even across big loads, and heating is supplied by high-capacity element banks, often controlled in zones with separate sensors. Structural frames, reinforced doors and trolley or conveyor access handle weight and repeated loading. Insulation is thicker to limit heat loss and skin temperature, and exterior panels may be water-cooled or air-cooled. Controllers range from simple PID units to programmable systems with data logging and alarm outputs. Extraction and make-up air arrangements remove moisture, solvent vapour or combustion products, which is often the limiting factor in selecting a model.

What are the key features?

• Room-sized chamber from 3000 to 20000 liters or more
• Operator doorway with lighting and safety interlocks
• Multi-zone element and sensor control
• Floor plates or tracks for trolley loading
• Balanced make-up air and extraction
• Optional programmable control and data logging

What are the technical specifications?

A typical industrial walk-in oven configuration offers chamber volume of 3000–20000+ L, temperature range of RT+10 to 300 C, temperature uniformity of ±3–6 C, access of Hinged or sliding doorway, loading of Trolley, rack or floor track and zone control of 1–4 zones. Values are indicative of the product class; the exact figures for each configuration are confirmed on the quotation and the calibration documents supplied with the instrument.

Which applications is it used for?

The Industrial Walk-In Oven is used in large assembly drying, aircraft and rail component processing, bulk pallet and drum drying, big mold preheating and post-coating cure of large parts. Across the wider Industrial Laboratory Ovens class, laboratories also deploy it for bulk powder and component drying, preheating of molds and tools and industrial batch curing.

Which standards and certifications apply?

Relevant standards and methods include IEC 61010-1, IEC 61010-2-010, DIN 12880, IEC 60519-1, ISO 9001 and GB/T 30435. Certification candidates for this model are CE, ISO 9001 manufacturing and RoHS; each is to be confirmed for the specific configuration before shipment, and certificates are supplied only where they have been issued.

Industrial ovens usually need dedicated floor space, a prepared foundation and utility connections for power, extraction and sometimes compressed air or cooling water. Verify floor loading and door or trolley access before delivery. Establish a maintenance schedule covering fans, belts, elements, seals, sensors and safety interlocks, since a failure mid-batch can spoil a large load. Calibrate temperature and map uniformity after installation, after major service and at defined intervals. Provide operator training for loading limits, solvent restrictions and emergency shutdown, and keep validation, calibration and service records for the life of the unit.

How do I select the right Industrial Walk-In Oven?

Select a walk-in oven when the load cannot be lifted into a shelf chamber or arrives on pallets and trolleys. Confirm floor space, foundation loading, door width and turning space, plus the large electrical supply. In the RFQ, specify internal dimensions, access, load type, temperature, uniformity and extraction.

How does it compare with other Industrial Laboratory Ovens variants?

Start with the load: mass, dimensions and whether items arrive on trays, racks or trolleys. This largely determines volume, access and floor loading. Then set the process temperature and atmosphere, and decide whether the oven is batch, conveyor or walk-in. Check the available floor space, power supply, since three and higher power ratings need three-phase, and ventilation, because extraction capacity often limits how much solvent or moisture the oven can handle. Specify uniformity at the working setpoint, controller and records, safety interlocks and corrosion protection. Finally confirm service access, spare parts and calibration support, which matter more on heavy-duty units.
